Stinger HORIZON10 RB10JK11X Jeep Wrangler JK Plug-and-Play Radio Kit
Key features
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.
- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
- 10.1-inch touchscreen: The 1280 × 800 display provides room for navigation, media and compatible vehicle functions.
- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.
- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Stinger HORIZON10 RB10JK11X Jeep Wrangler JK Plug-and-Play Radio Kit is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

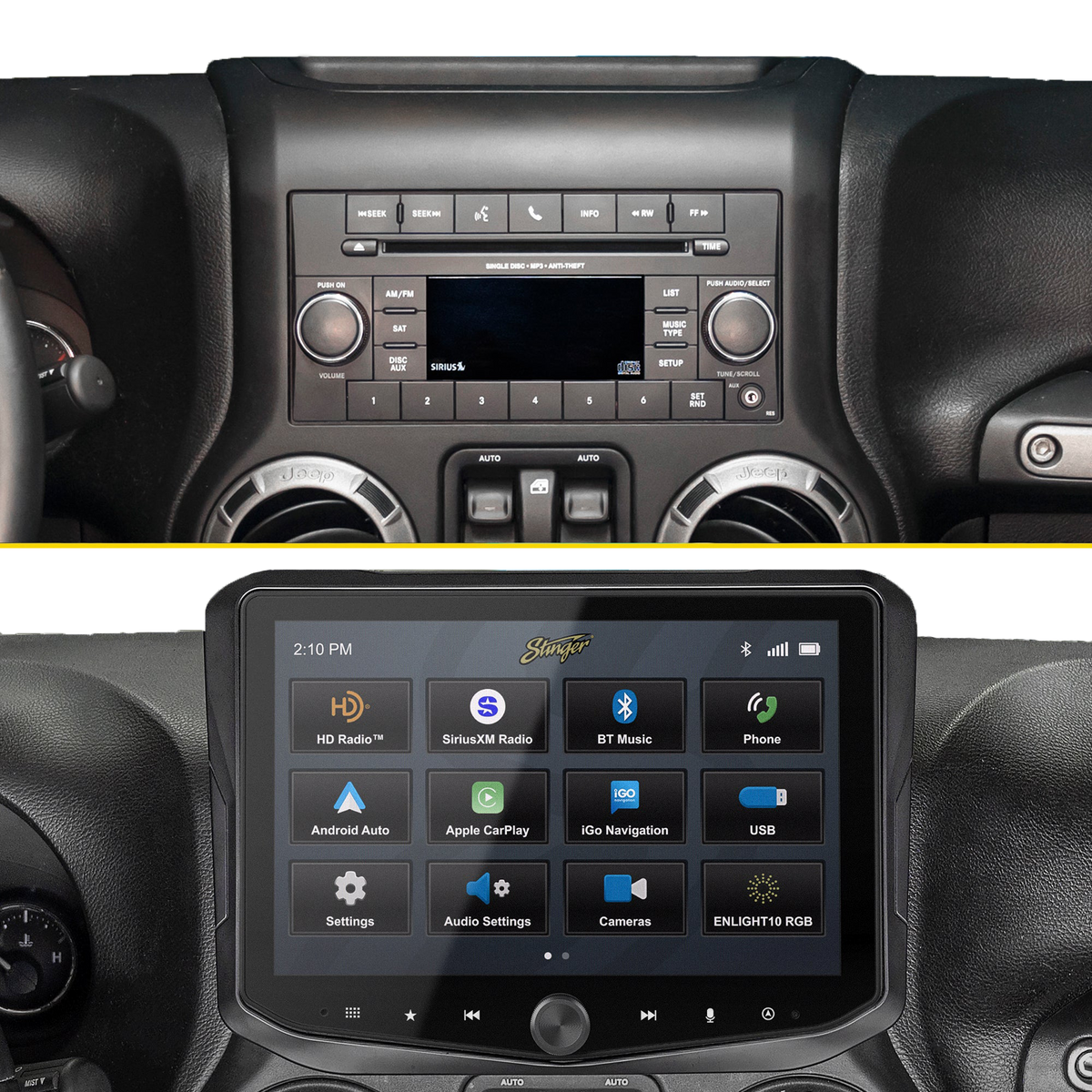

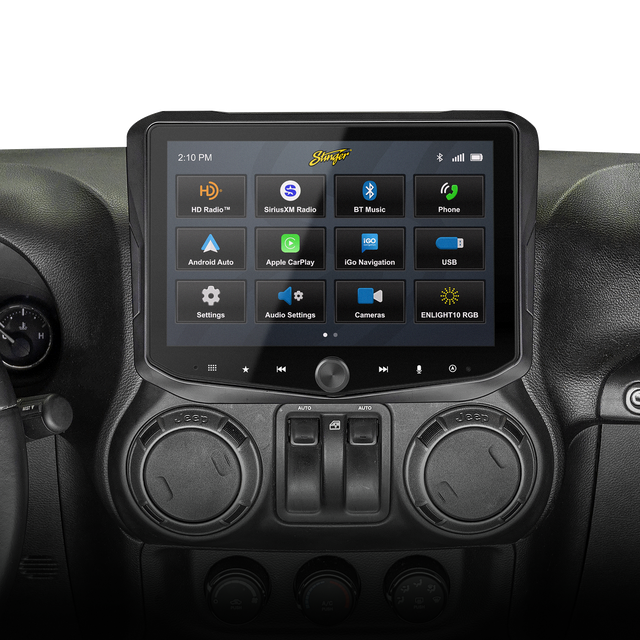

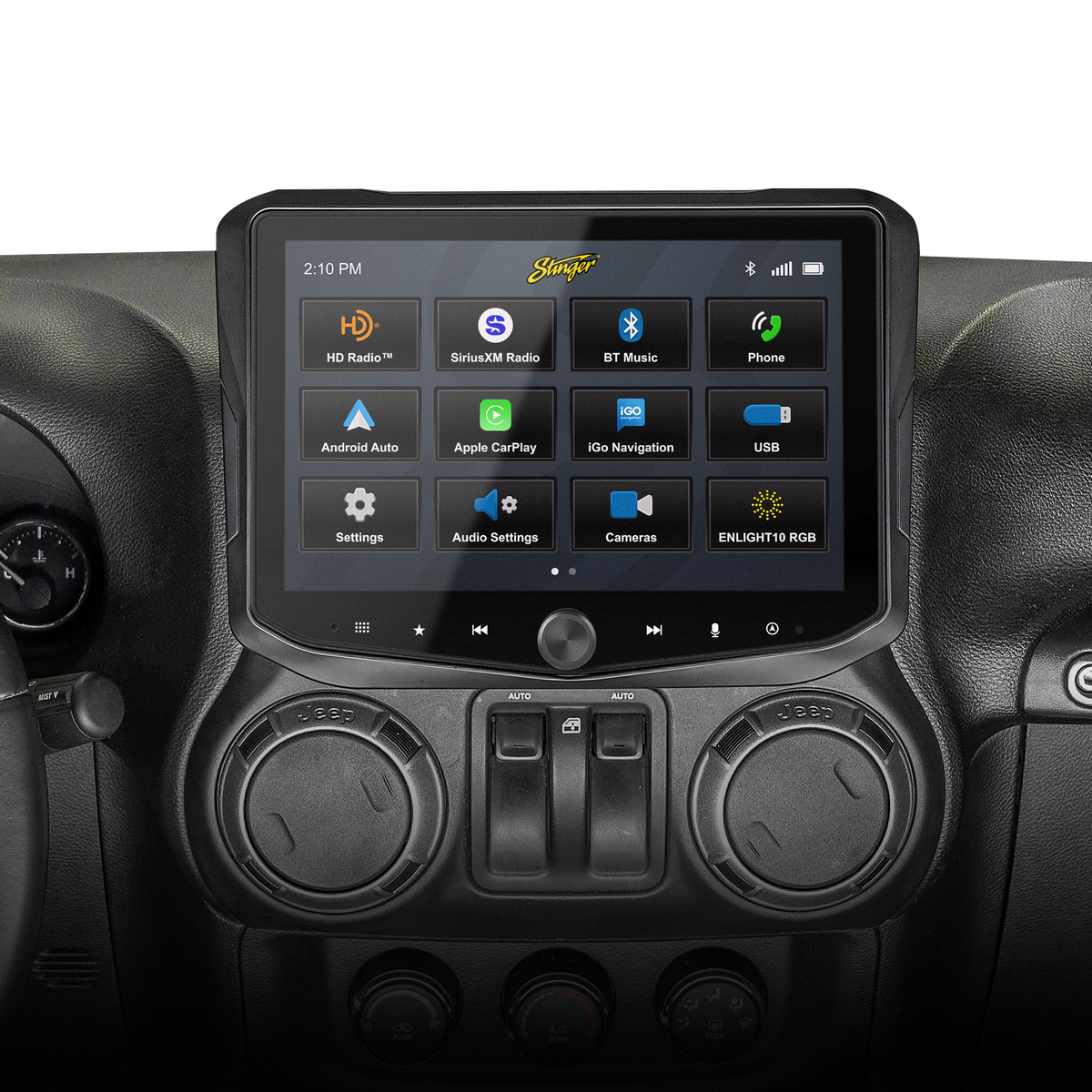

The Stinger HORIZON10 RB10JK11X gives compatible Jeep Wrangler JK vehicles a 10.1-inch touchscreen with wireless Apple CarPlay and Android Auto. This vehicle-specific radio kit combines the receiver with dash integration parts and an interface, rather than leaving you to assemble a universal-radio installation from separate components.
Key Features & Benefits
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.

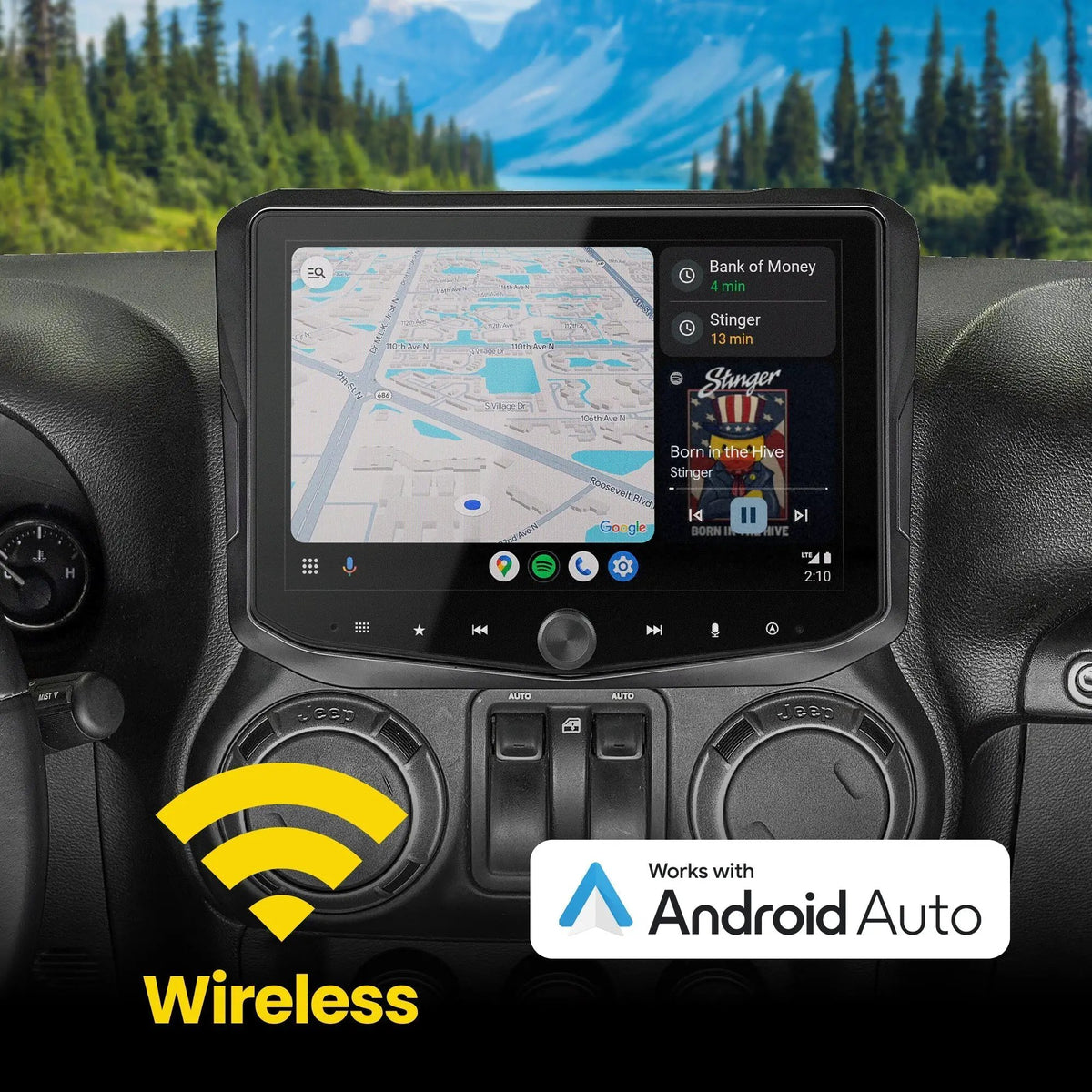

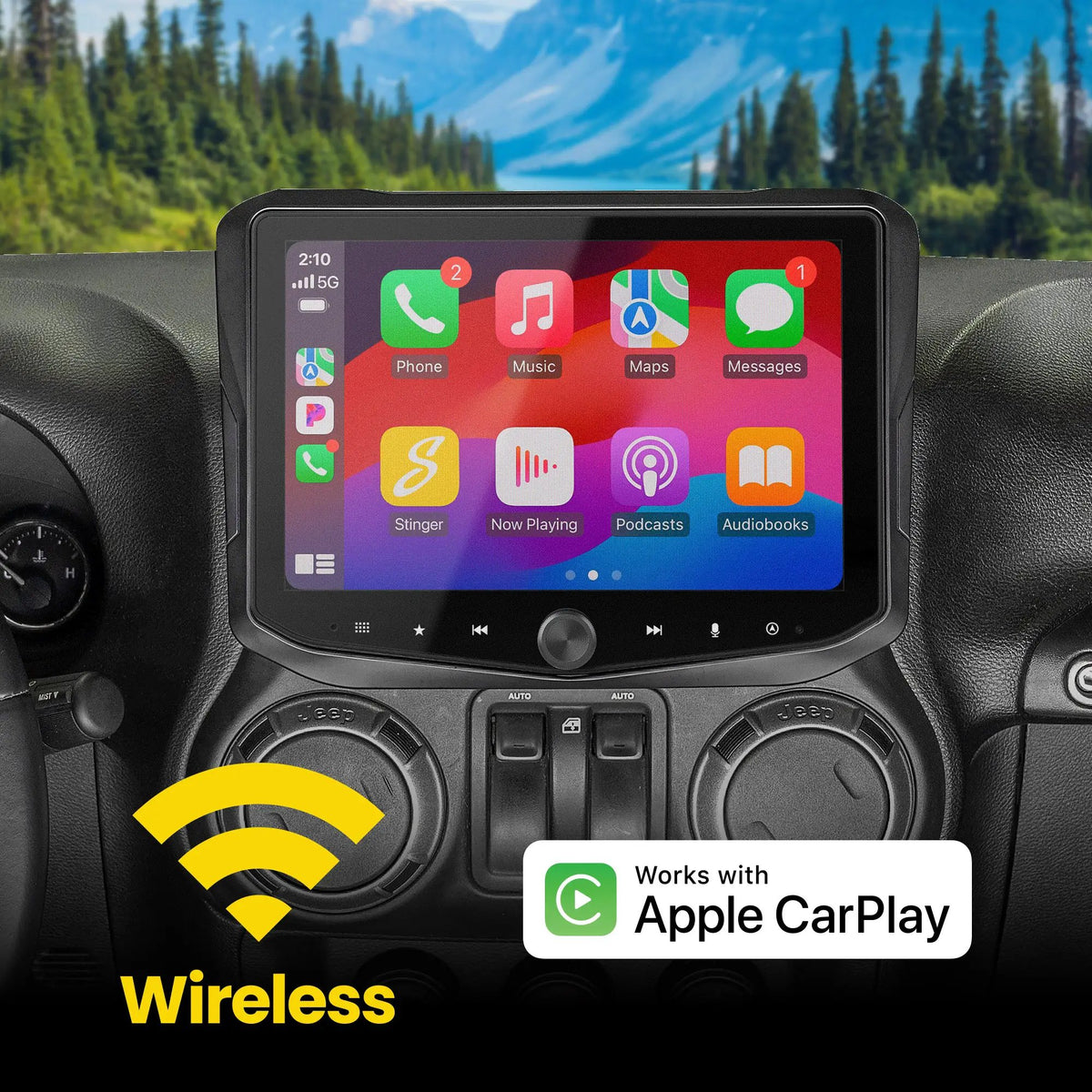

- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
- 10.1-inch touchscreen: The 1280 × 800 display provides room for navigation, media and compatible vehicle functions.

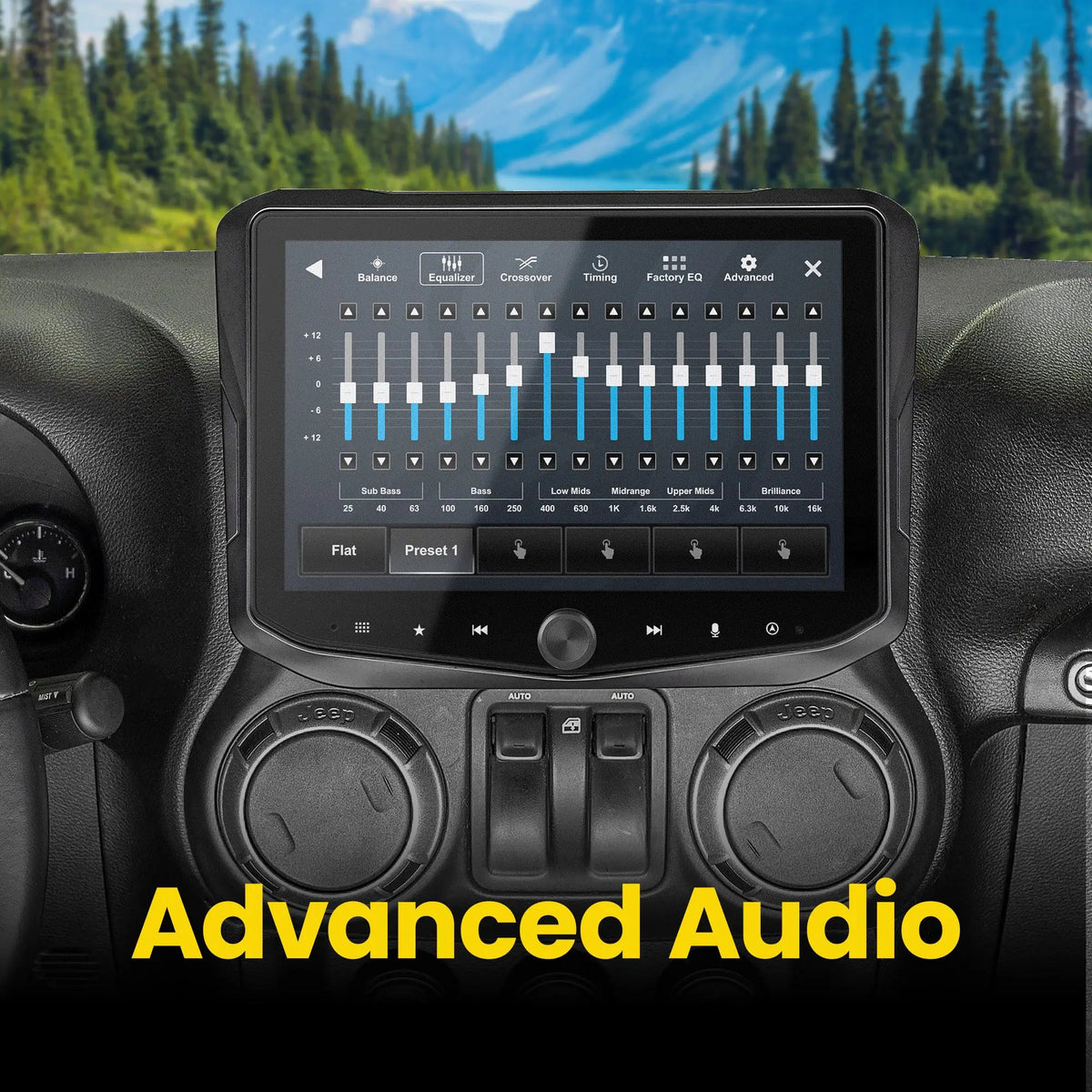

- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.

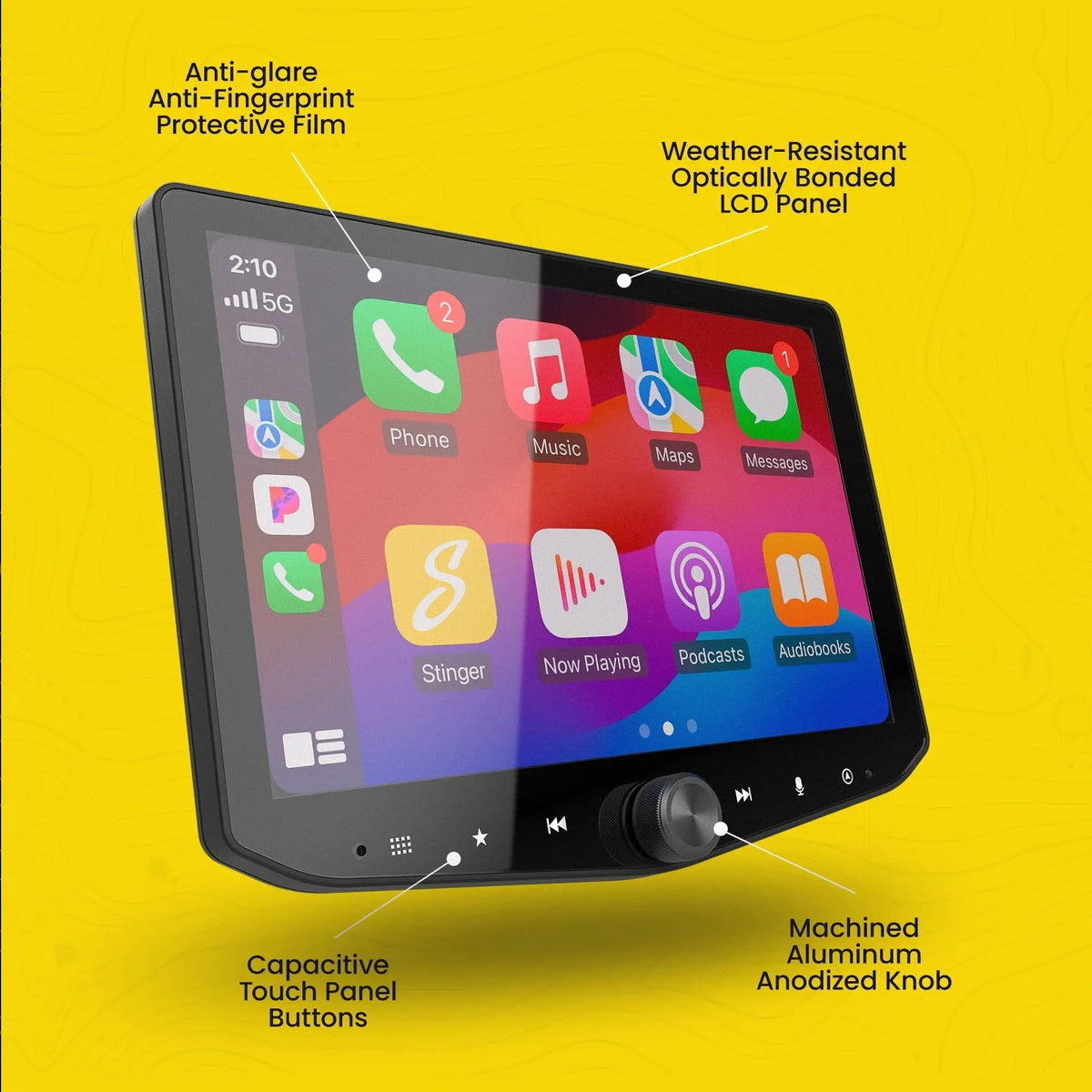

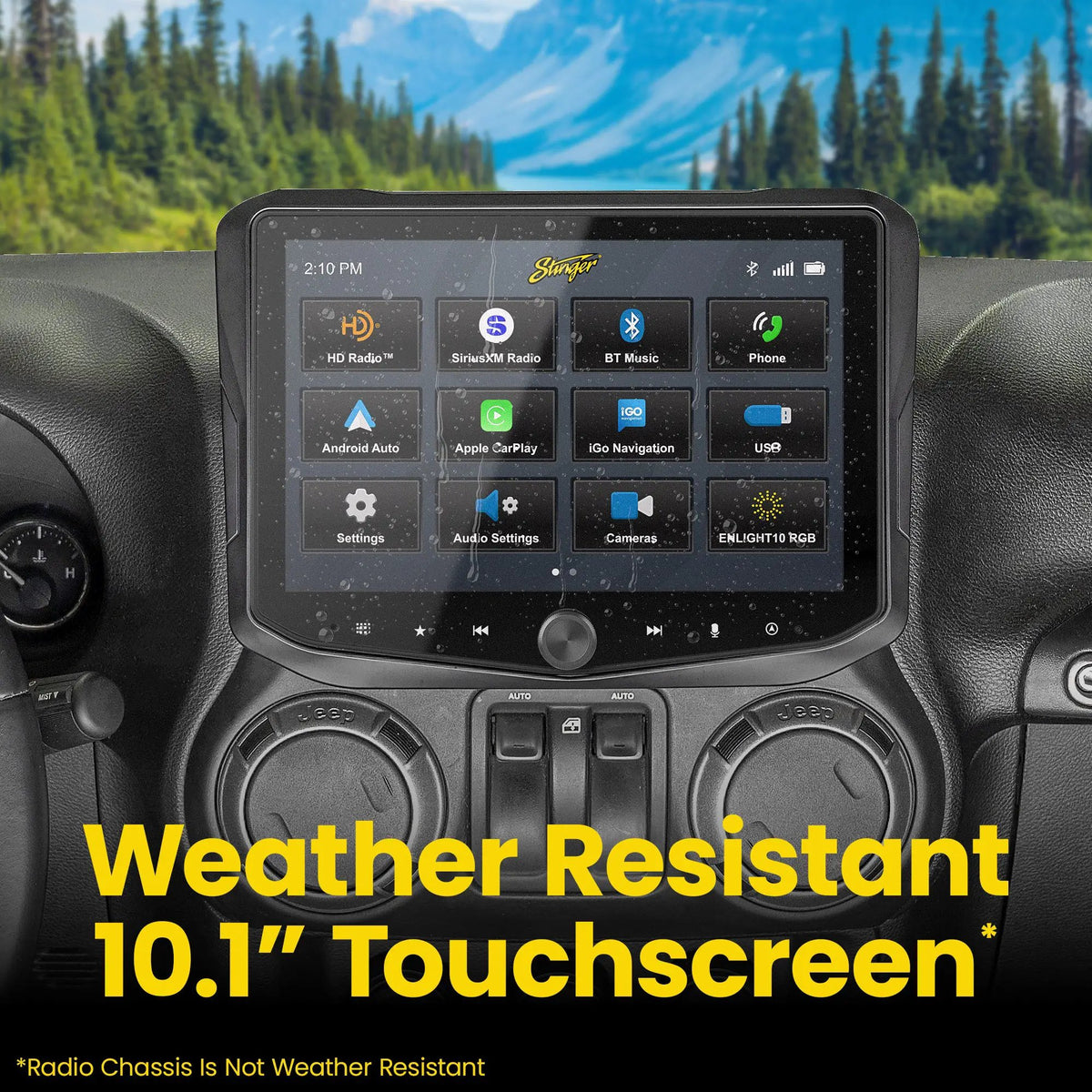

- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Technical Specifications
| Brand | Stinger |
|---|---|
| Model / SKU | RB10JK11X |
| Series | HORIZON10 |
| Product type | Vehicle-specific plug-and-play radio kit |
| Display diagonal | 10.1 inches |
| Display resolution | 1280 × 800 |
| Mounting style | Flush mount |
| Phone integration | Wireless Apple CarPlay and Android Auto; wired connection through USB-C |
| Audio adjustment | 15-band equalizer |
| Display protection | IP65 display; radio chassis is not IP rated |

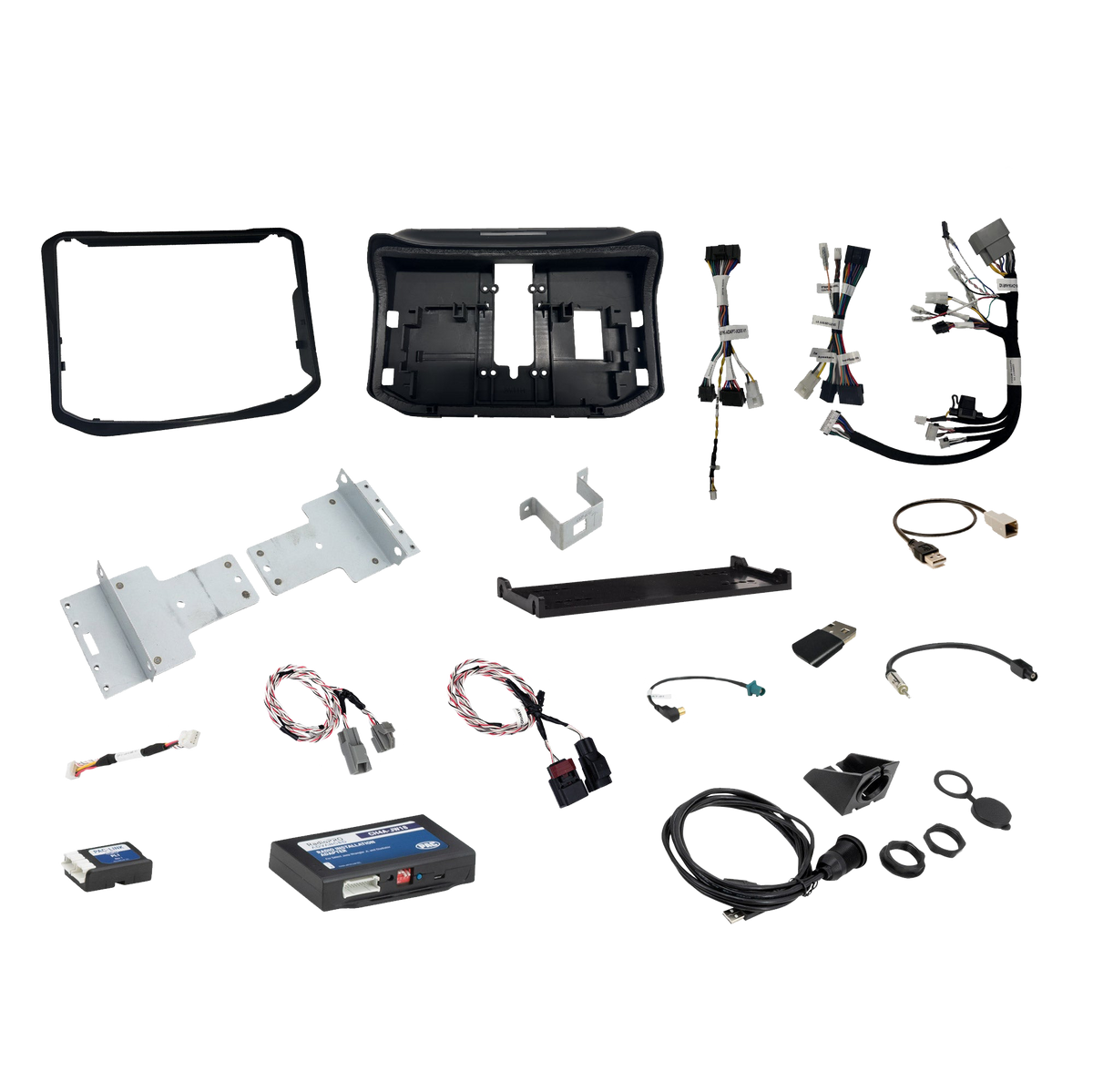

| Included components | HORIZON10 iX210 10.1-inch display/radio; SRK-JK11HX frame, panel, brackets and hardware.; CH1A-SRK interface, PAC-Link, radio/main/year-specific CAN/data harnesses.; USB retention and SSUSB3 USB extension, BAA22 AM/FM and SAT-01 satellite adapters.. |
Why Choose This Product?
Choose this HORIZON10 kit when you want a larger connected display and the matching installation components for your Jeep Wrangler JK. The flush-mount layout and vehicle-specific interface make the exact kit selection important: compare the fitment notes, not screen size alone.
Installation & Compatibility Notes
2011–2018 Jeep Wrangler JK/JKU. Factory-amplified and non-amplified systems documented. Plug-and-play describes the supplied vehicle connections, not universal compatibility or a guarantee that every factory function is retained. Dashboard disassembly, installation and setup are still required. Factory Uconnect and original SiriusXM tuner are not retained. SiriusXM requires separately sold SXV300 tuner. Optional iGO offline navigation requires a separately sold navigation card. Use the supplied external microphone rather than assuming the factory microphone can be reused.
Frequently Asked Questions
Which vehicles does the RB10JK11X fit?
2011–2018 Jeep Wrangler JK/JKU. Factory-amplified and non-amplified systems documented.
Does it support wireless Apple CarPlay and Android Auto?
Yes. Wired phone integration is also supported through the USB-C connection.
Are navigation maps and satellite radio included?

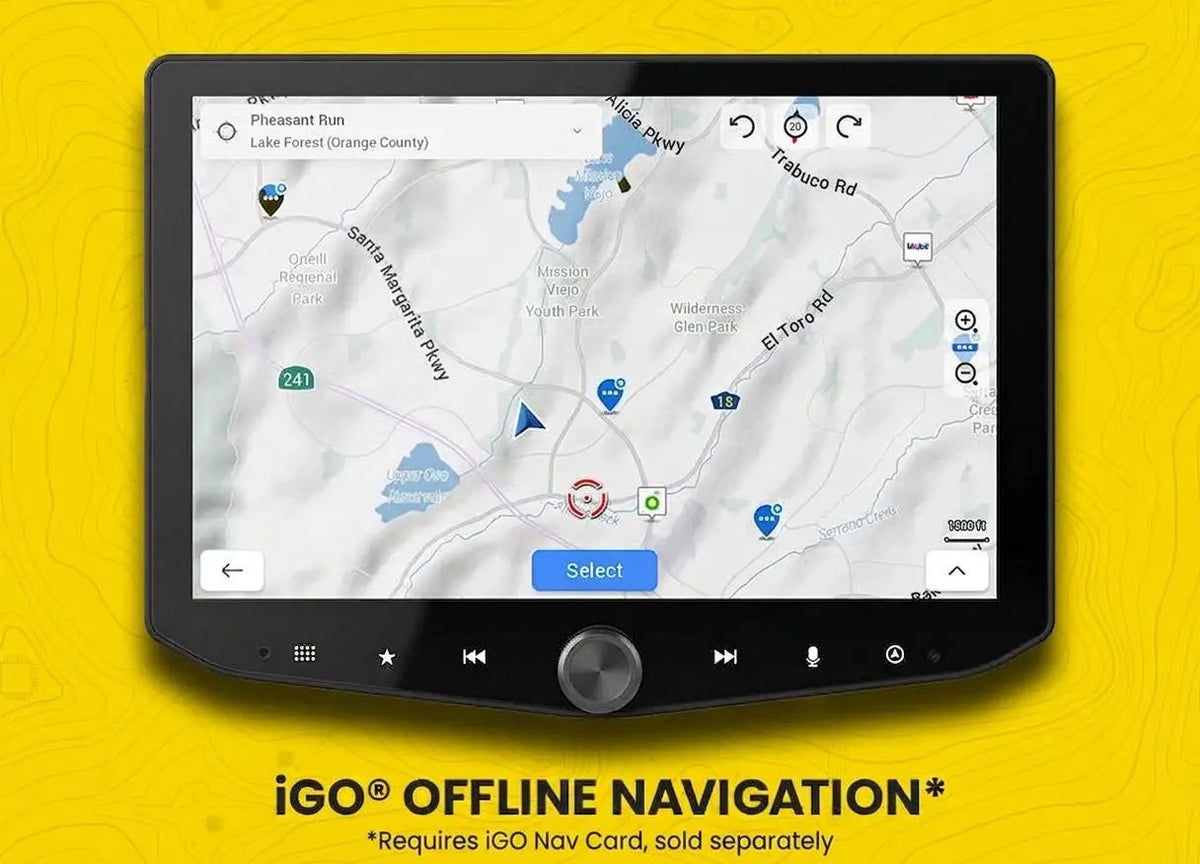

Optional iGO navigation requires a separately sold card. SiriusXM requires a compatible tuner and subscription, sold separately.
What is included in this radio kit?
HORIZON10 iX210 10.1-inch display/radio; SRK-JK11HX frame, panel, brackets and hardware.; CH1A-SRK interface, PAC-Link, radio/main/year-specific CAN/data harnesses.; USB retention and SSUSB3 USB extension, BAA22 AM/FM and SAT-01 satellite adapters..
