Stinger HORIZON12 JW18RB12 Jeep Wrangler JL/Gladiator JT Plug-and-Play Radio Kit
Key features
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.
- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
- 12.8-inch touchscreen: The 1920 × 1080 display provides room for navigation, media and compatible vehicle functions.

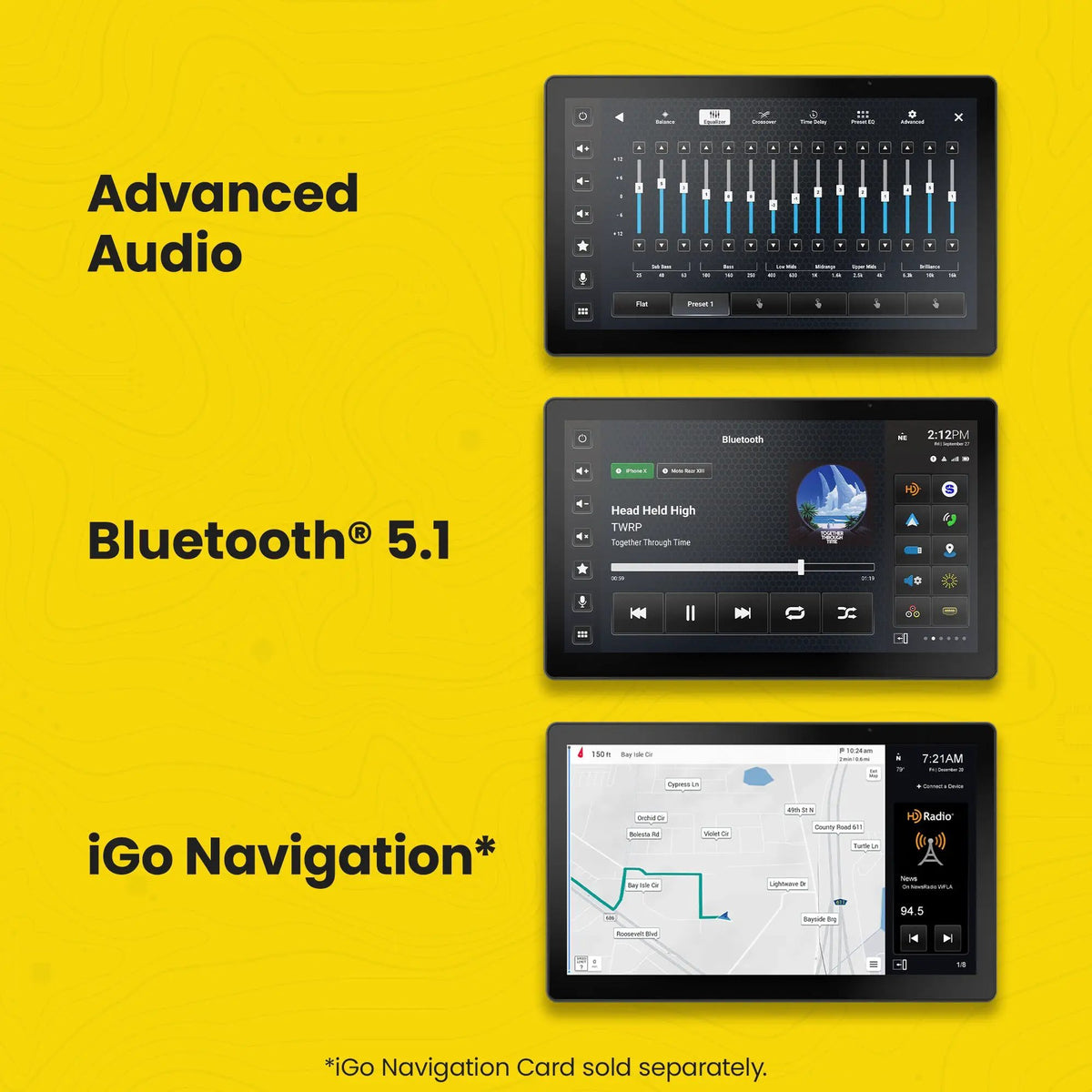

- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.

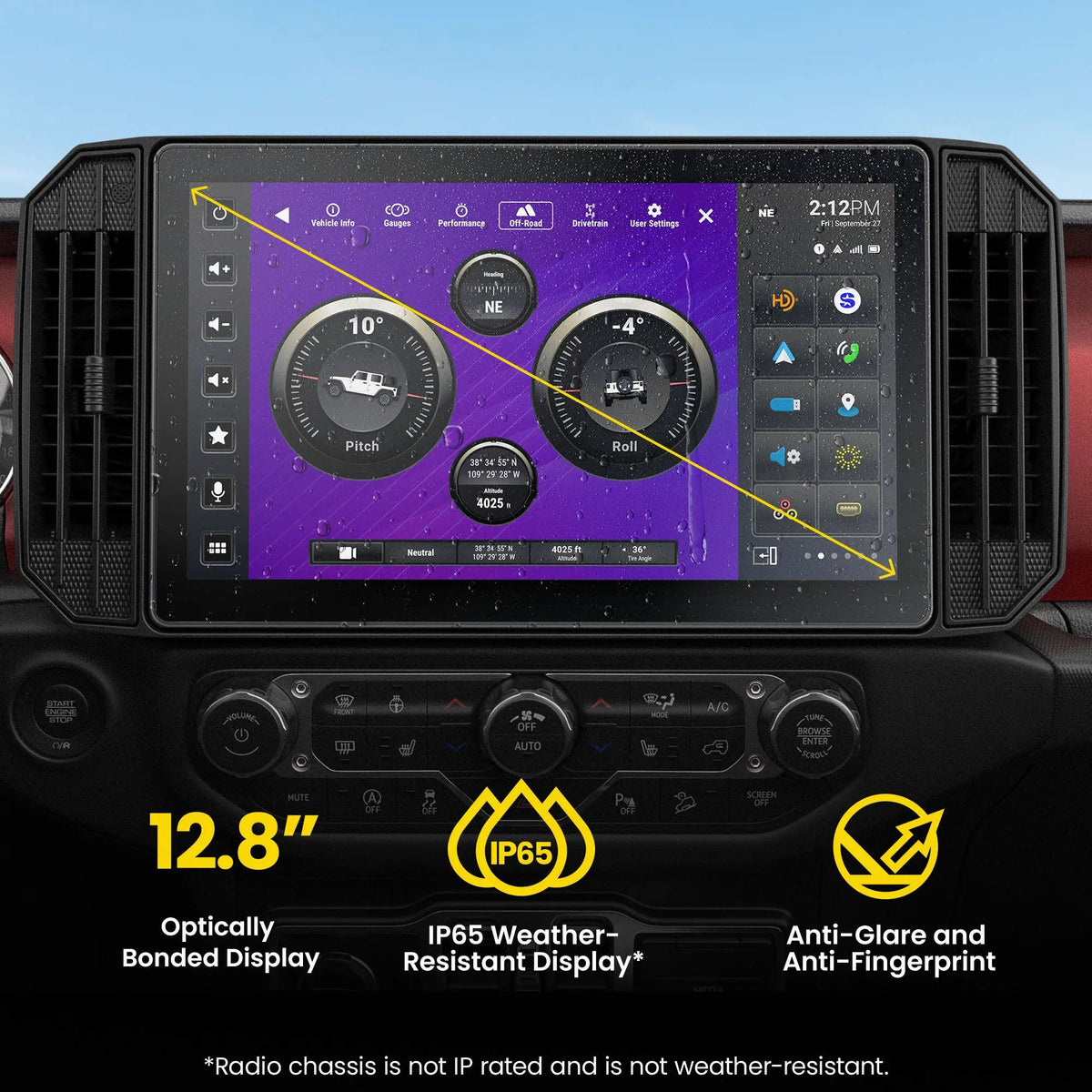

- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Stinger HORIZON12 JW18RB12 Jeep Wrangler JL/Gladiator JT Plug-and-Play Radio Kit is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

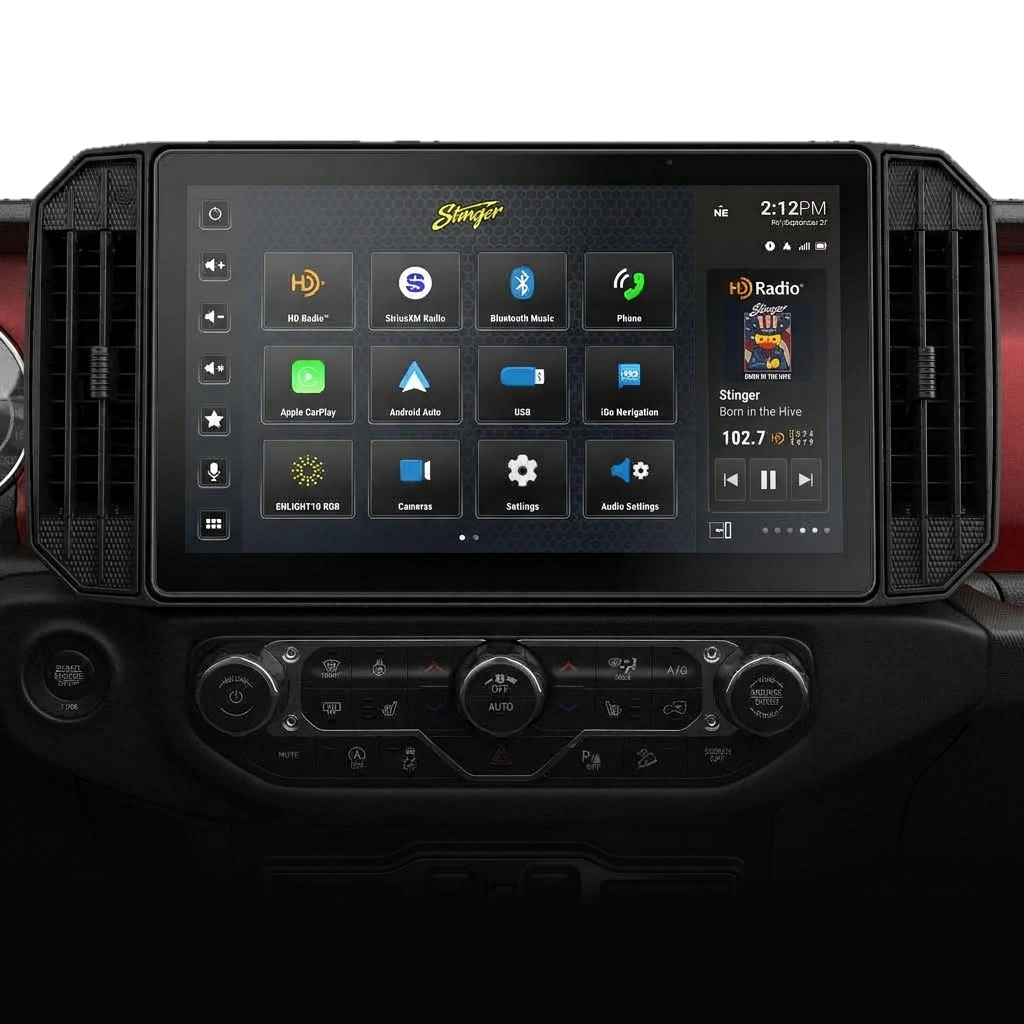

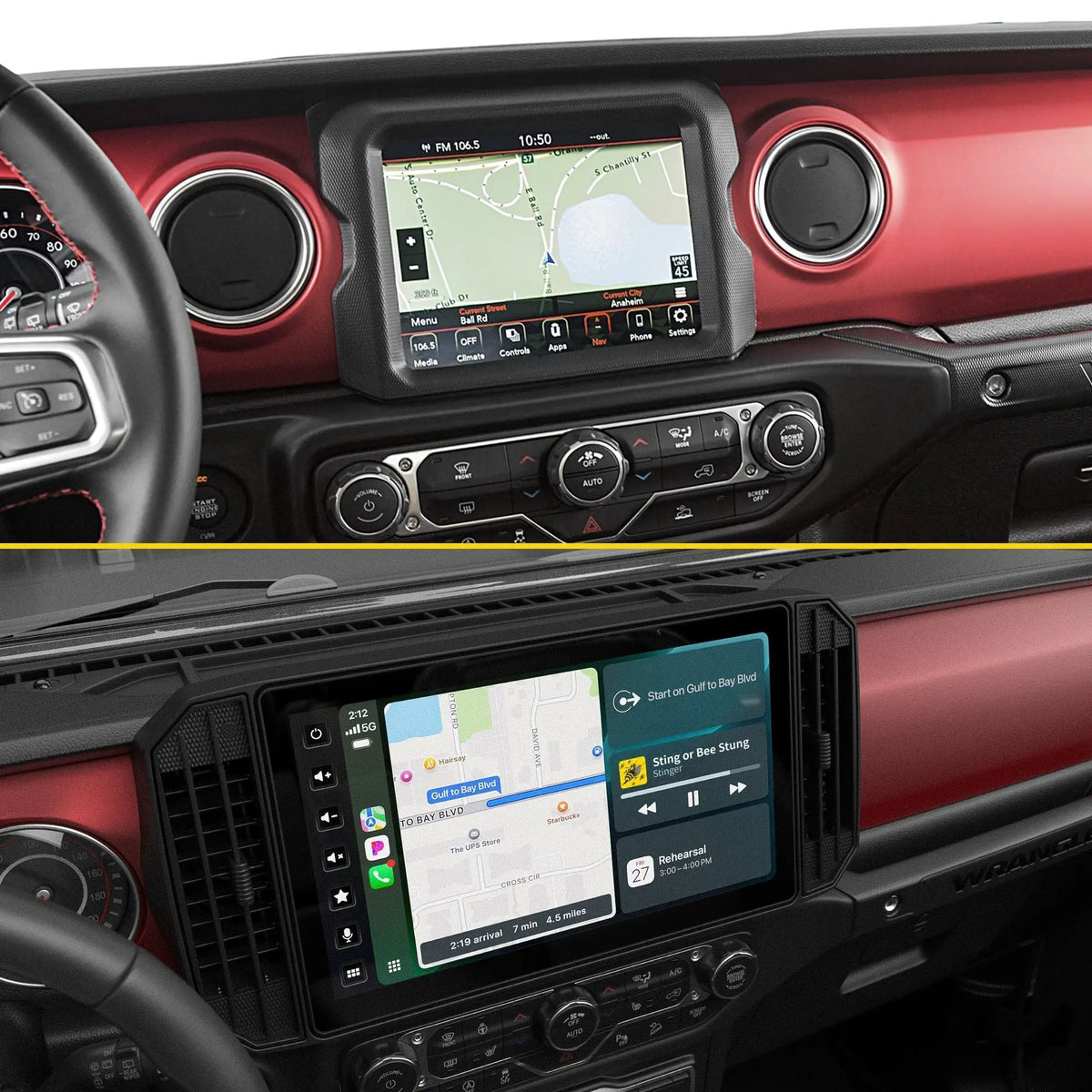

The Stinger HORIZON12 JW18RB12 gives compatible Jeep Wrangler JL and Gladiator JT vehicles a 12.8-inch touchscreen with wireless Apple CarPlay and Android Auto. This vehicle-specific radio kit combines the receiver with dash integration parts and an interface, rather than leaving you to assemble a universal-radio installation from separate components.
Key Features & Benefits
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.

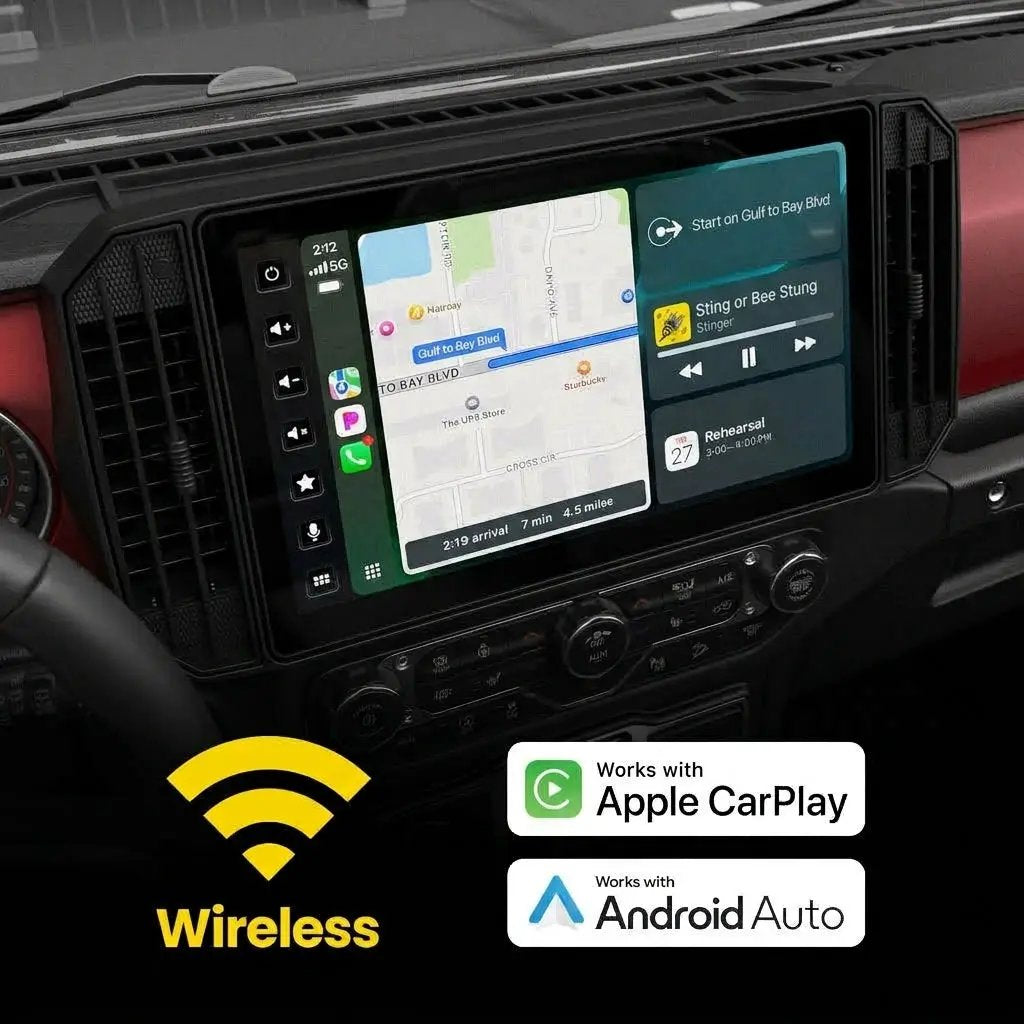

- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.

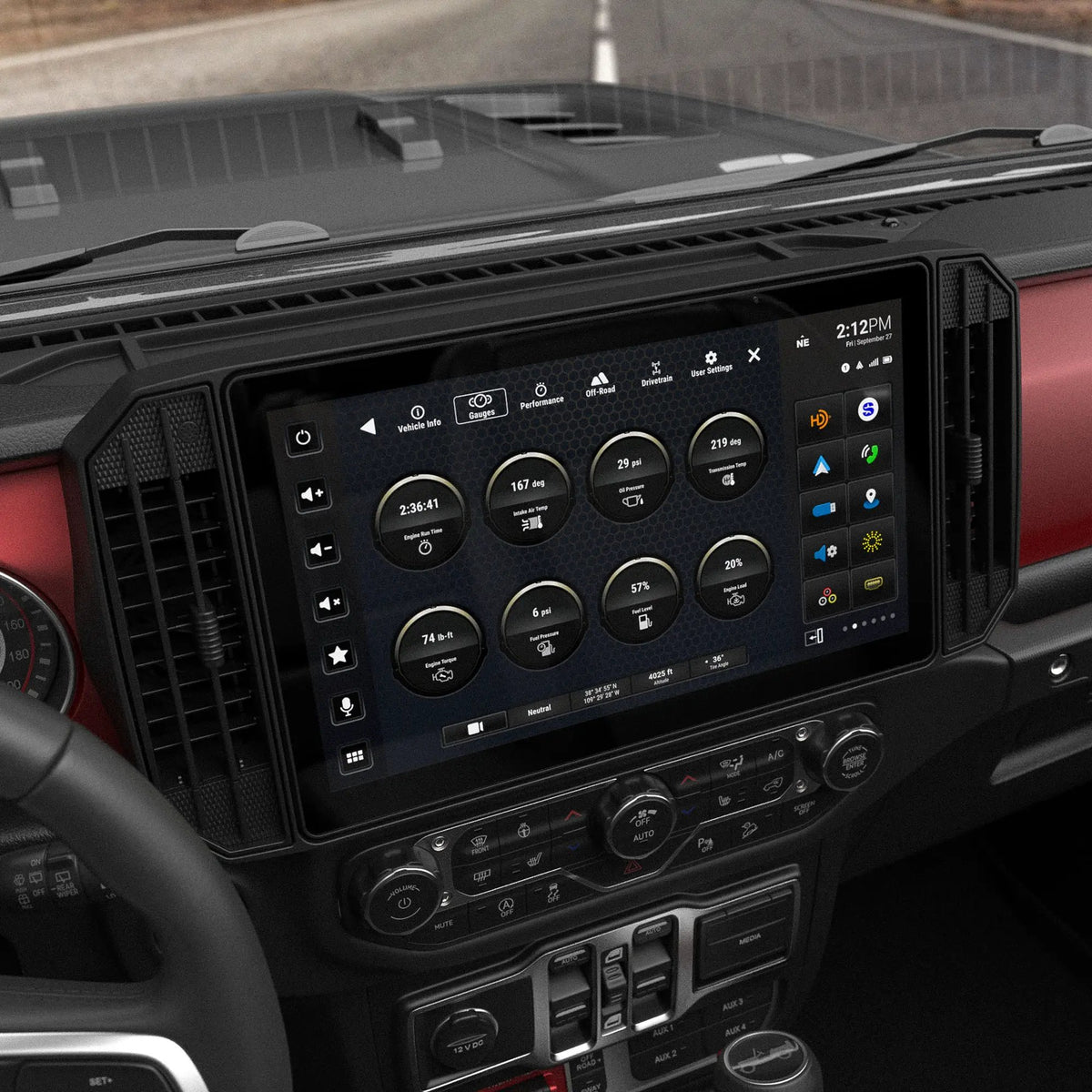

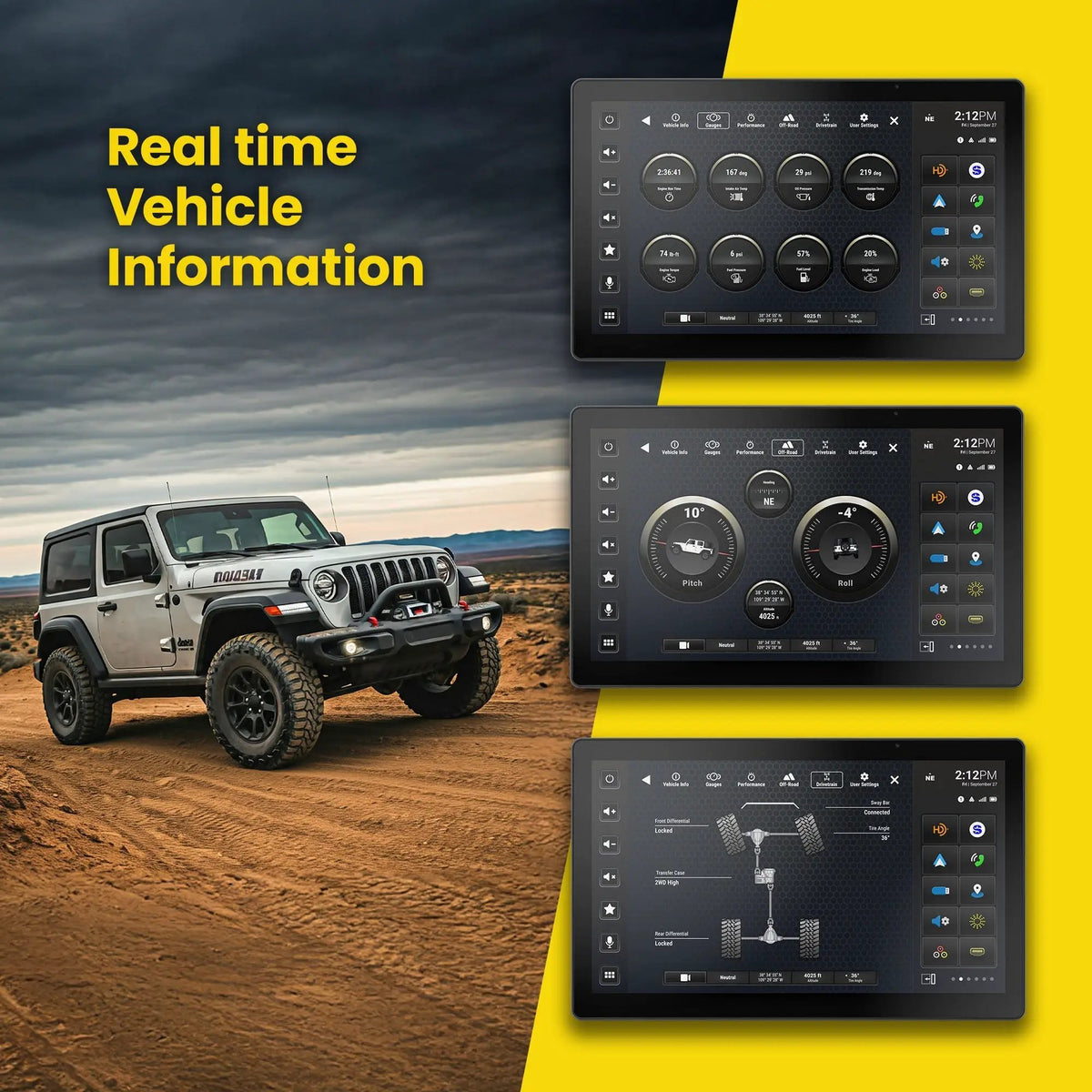

- 12.8-inch touchscreen: The 1920 × 1080 display provides room for navigation, media and compatible vehicle functions.
- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.
- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Technical Specifications
| Brand | Stinger |
|---|---|
| Model / SKU | JW18RB12 |
| Series | HORIZON12 |
| Product type | Vehicle-specific plug-and-play radio kit |
| Display diagonal | 12.8 inches |
| Display resolution | 1920 × 1080 |
| Mounting style | Flush mount |
| Phone integration | Wireless Apple CarPlay and Android Auto; wired connection through USB-C |
| Audio adjustment | 15-band equalizer |
| Display protection | IP65 display; radio chassis is not IP rated |
| Included components | HORIZON 12.8-inch display/radio; SRX-JW18128 mounting panel/brackets.; CH4A-JW18 interface, PAC-Link, RPA-HD1 factory HD-camera retention, RPA-SPK chime speaker.; Vehicle/radio/CAN/data harnesses, factory camera extension, USB retention, HDMI cable, AM/FM and satellite antenna adapters.. |
Why Choose This Product?

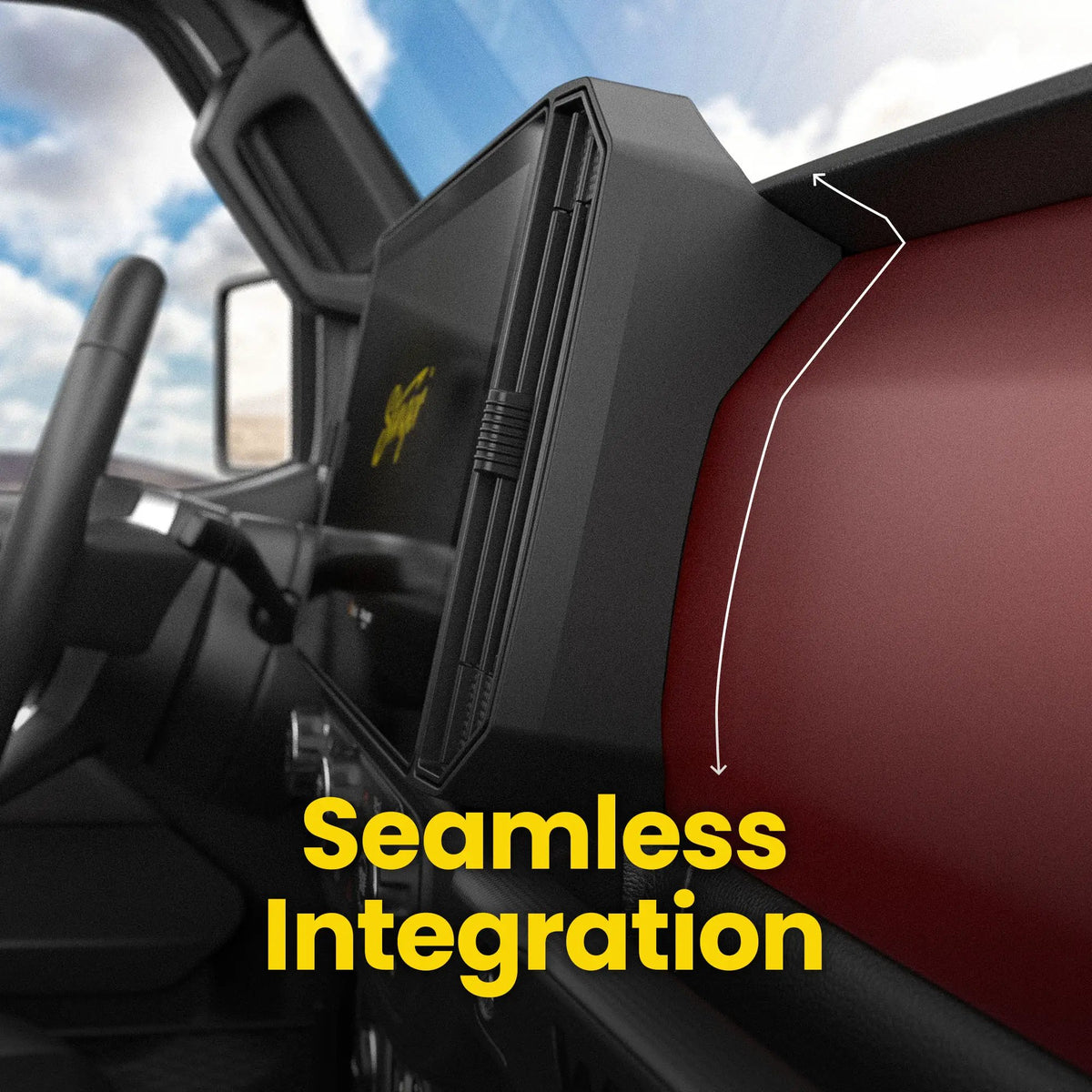

Choose this HORIZON12 kit when you want a larger connected display and the matching installation components for your Jeep Wrangler JL. The flush-mount layout and vehicle-specific interface make the exact kit selection important: compare the fitment notes, not screen size alone.
Installation & Compatibility Notes
2018–2023 Jeep Wrangler JL/JLU; 2020–2023 Jeep Gladiator JT. Wrangler 392 and 4XE Hybrid models are excluded. Factory-amplified systems supported. Plug-and-play describes the supplied vehicle connections, not universal compatibility or a guarantee that every factory function is retained. Dashboard disassembly, installation and setup are still required. On-screen HVAC only if factory radio displayed it. Does not retain Uconnect remote access, SOS/Assist, vehicle location, Wi-Fi, SiriusXM Guardian, amplifier speed-sensitive volume, cluster phone/navigation pop-ups or clock. Do not assume the factory instrument-cluster compass will remain available. Center-console USB supports CarPlay/Android Auto; other retained ports are charging/thumb-drive only. SiriusXM SXV300 tuner sold separately. Optional iGO offline navigation requires a separately sold navigation card. Use the supplied external microphone rather than assuming the factory microphone can be reused.
Frequently Asked Questions
Which vehicles does the JW18RB12 fit?
2018–2023 Jeep Wrangler JL/JLU; 2020–2023 Jeep Gladiator JT. Wrangler 392 and 4XE Hybrid models are excluded. Factory-amplified systems supported.
Does it support wireless Apple CarPlay and Android Auto?
Yes. Wired phone integration is also supported through the USB-C connection.
Are navigation maps and satellite radio included?
Optional iGO navigation requires a separately sold card. SiriusXM requires a compatible tuner and subscription, sold separately.
What is included in this radio kit?
HORIZON 12.8-inch display/radio; SRX-JW18128 mounting panel/brackets.; CH4A-JW18 interface, PAC-Link, RPA-HD1 factory HD-camera retention, RPA-SPK chime speaker.; Vehicle/radio/CAN/data harnesses, factory camera extension, USB retention, HDMI cable, AM/FM and satellite antenna adapters..
