Stinger HORIZON10 RB10TAC16X Toyota Tacoma Plug-and-Play Radio Kit
Key features
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.
- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
- 10.1-inch touchscreen: The 1280 × 800 display provides room for navigation, media and compatible vehicle functions.
- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.
- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Stinger HORIZON10 RB10TAC16X Toyota Tacoma Plug-and-Play Radio Kit is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

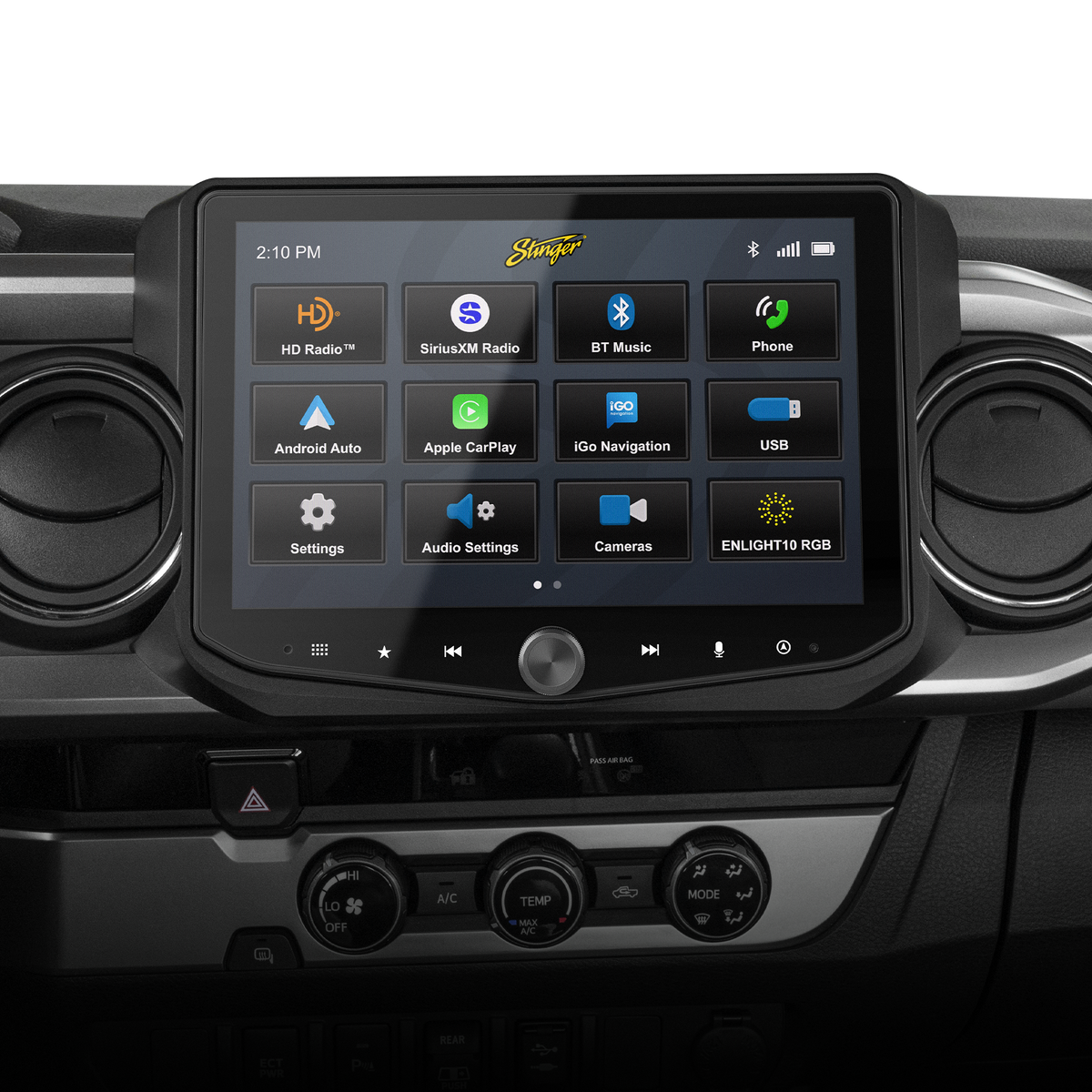

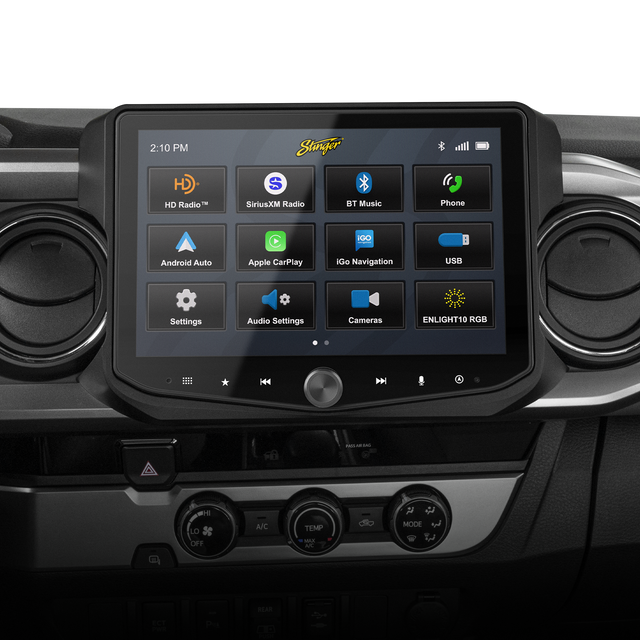

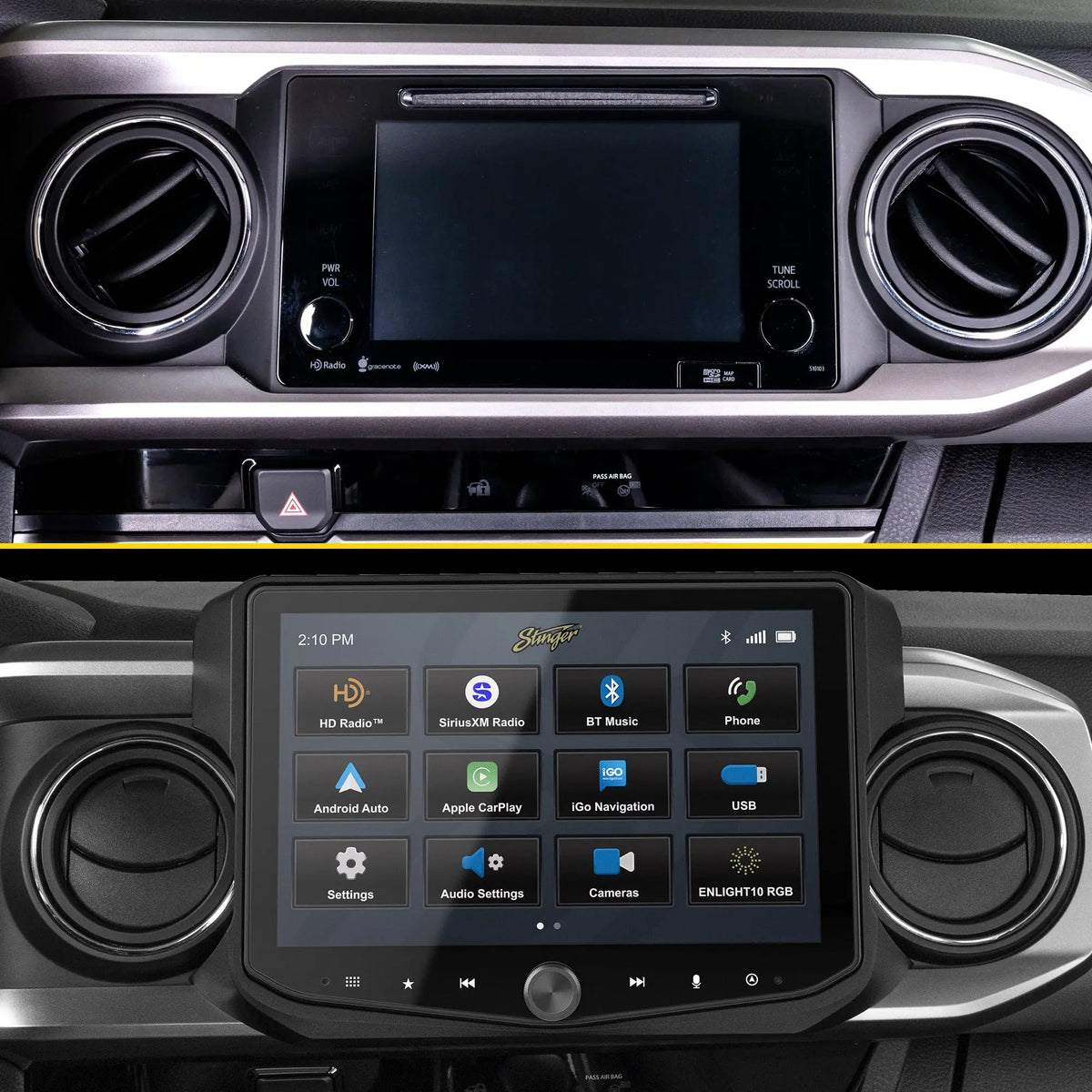

The Stinger HORIZON10 RB10TAC16X gives compatible Toyota Tacoma vehicles a 10.1-inch touchscreen with wireless Apple CarPlay and Android Auto. This vehicle-specific radio kit combines the receiver with dash integration parts and an interface, rather than leaving you to assemble a universal-radio installation from separate components.
Key Features & Benefits
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.

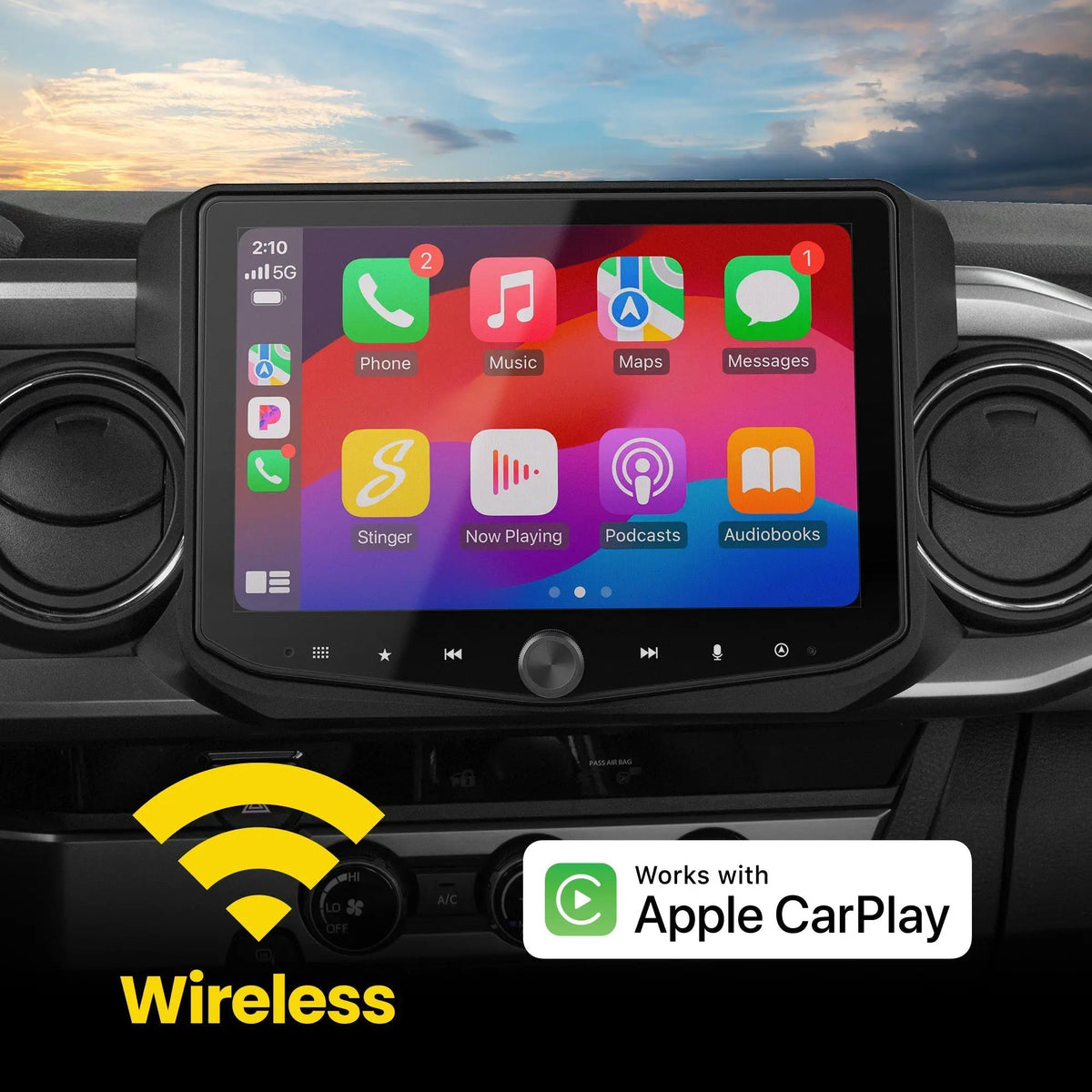

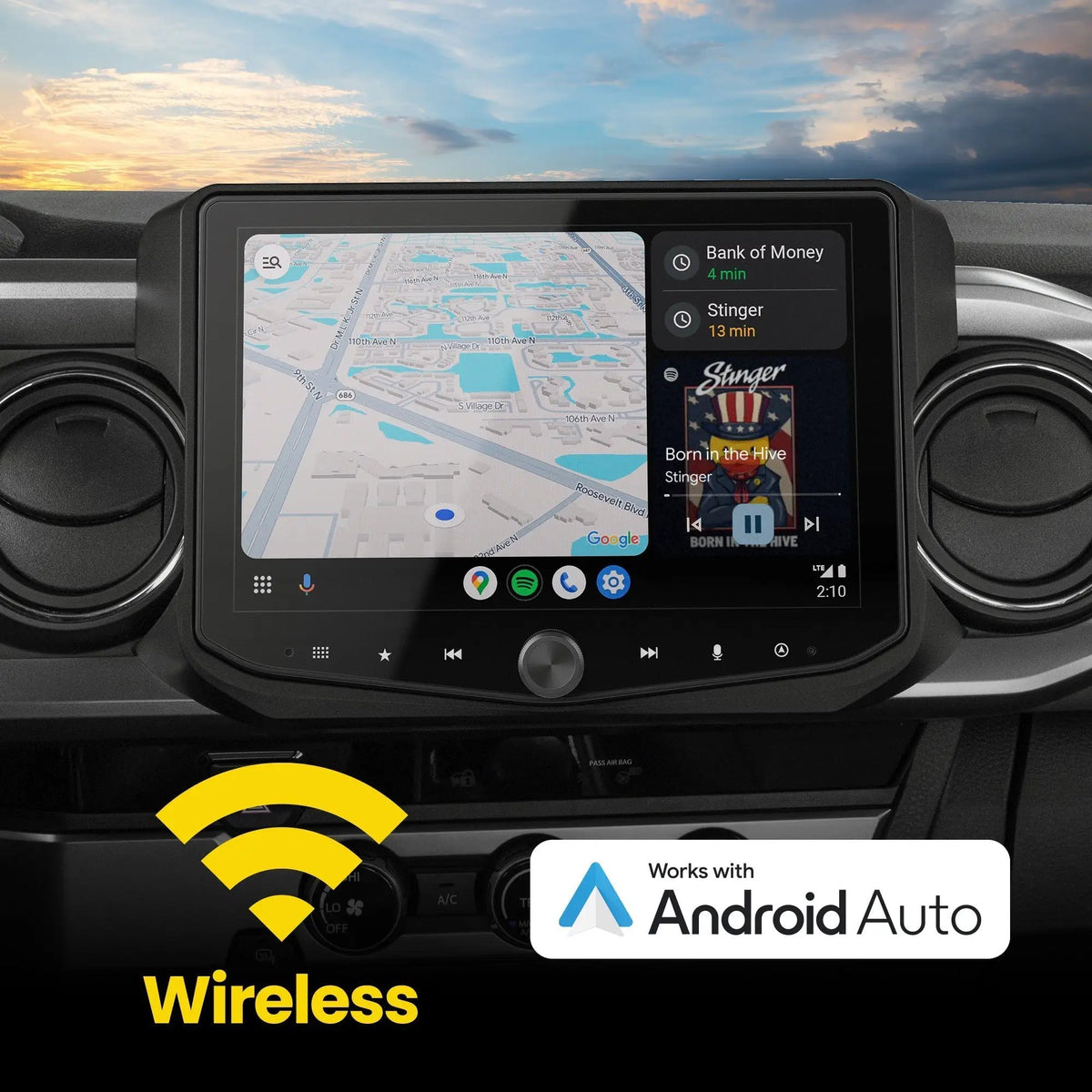

- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
- 10.1-inch touchscreen: The 1280 × 800 display provides room for navigation, media and compatible vehicle functions.

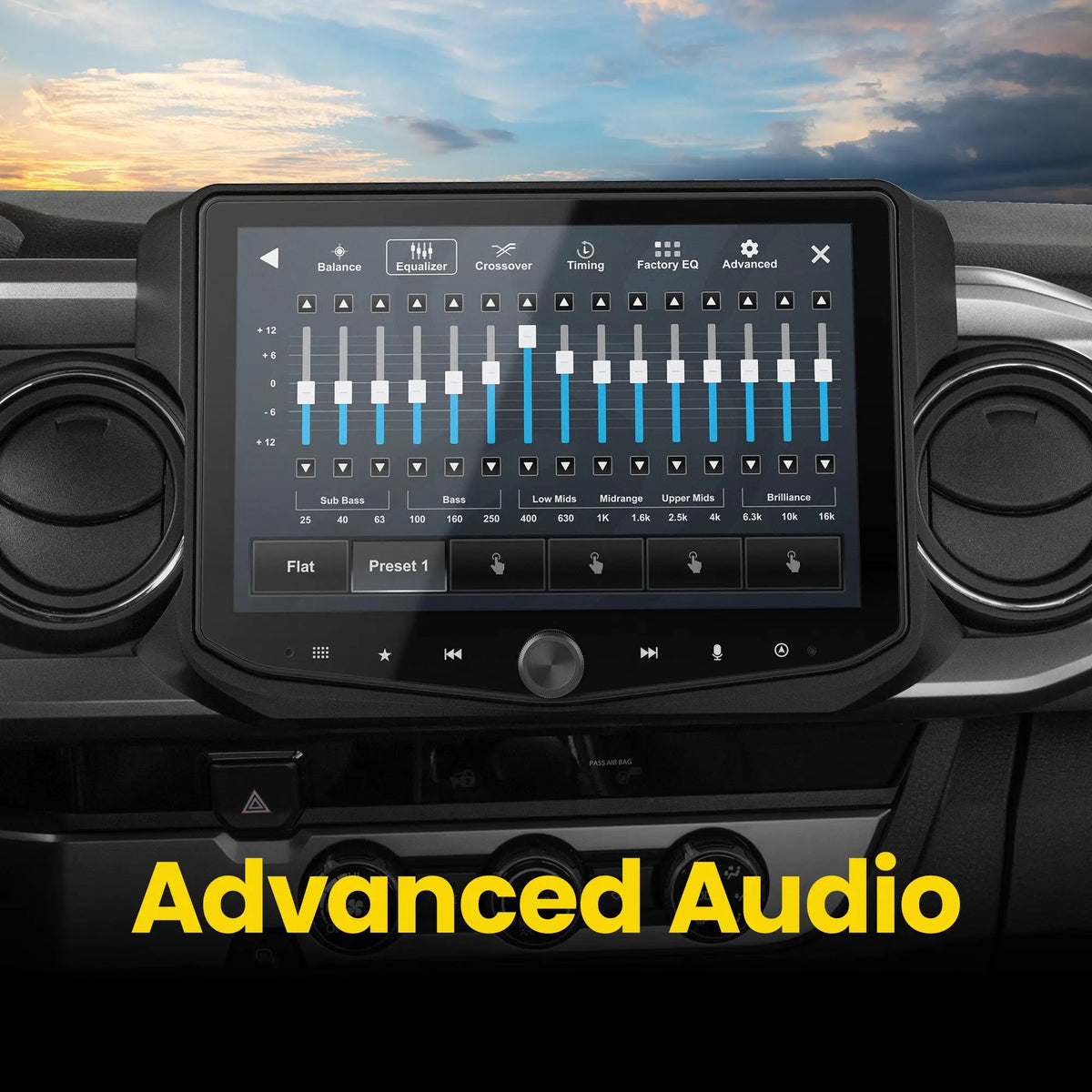

- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.

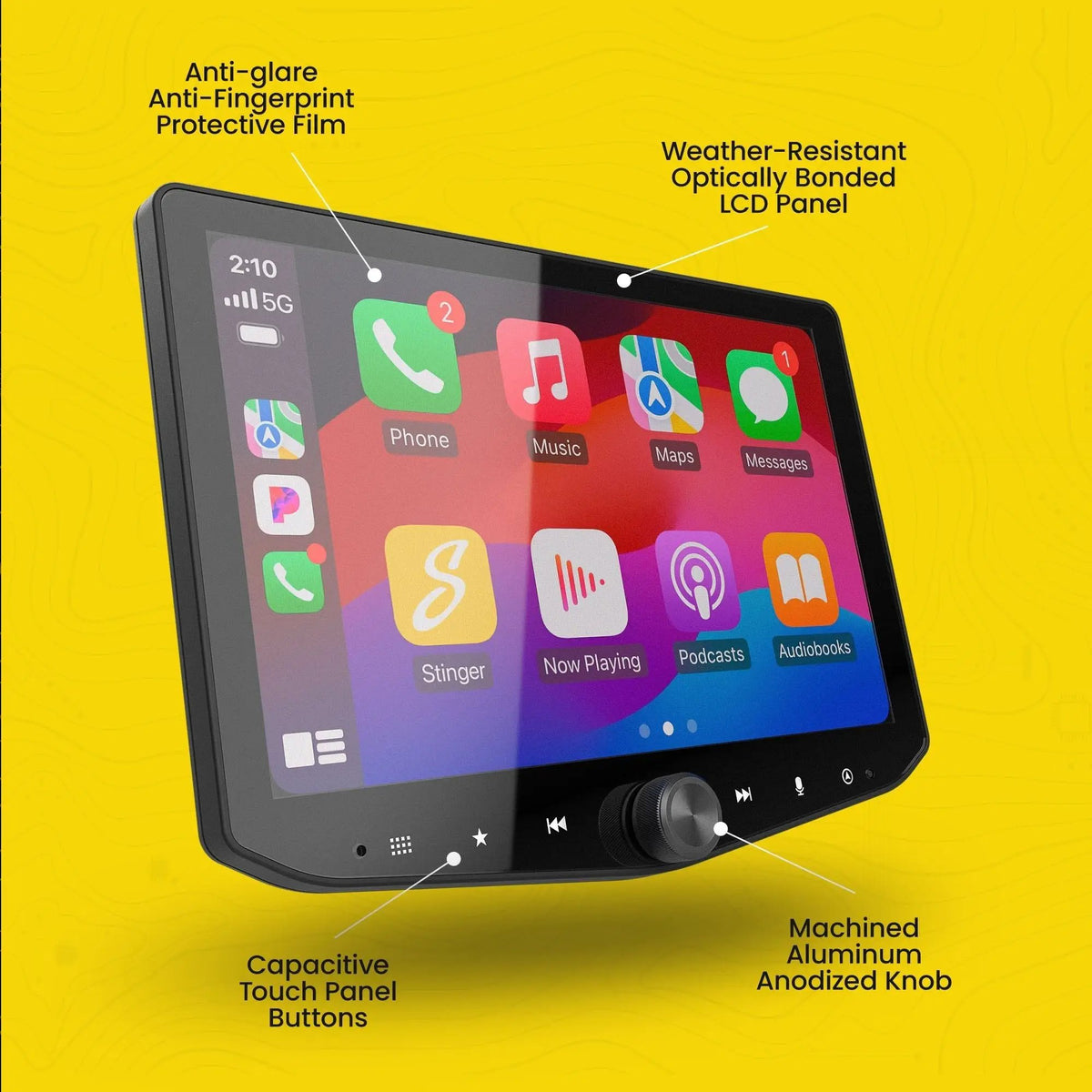

- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Technical Specifications
| Brand | Stinger |
|---|---|
| Model / SKU | RB10TAC16X |
| Series | HORIZON10 |
| Product type | Vehicle-specific plug-and-play radio kit |
| Display diagonal | 10.1 inches |
| Display resolution | 1280 × 800 |
| Mounting style | Flush mount |
| Phone integration | Wireless Apple CarPlay and Android Auto; wired connection through USB-C |
| Audio adjustment | 15-band equalizer |
| Display protection | IP65 display; radio chassis is not IP rated |

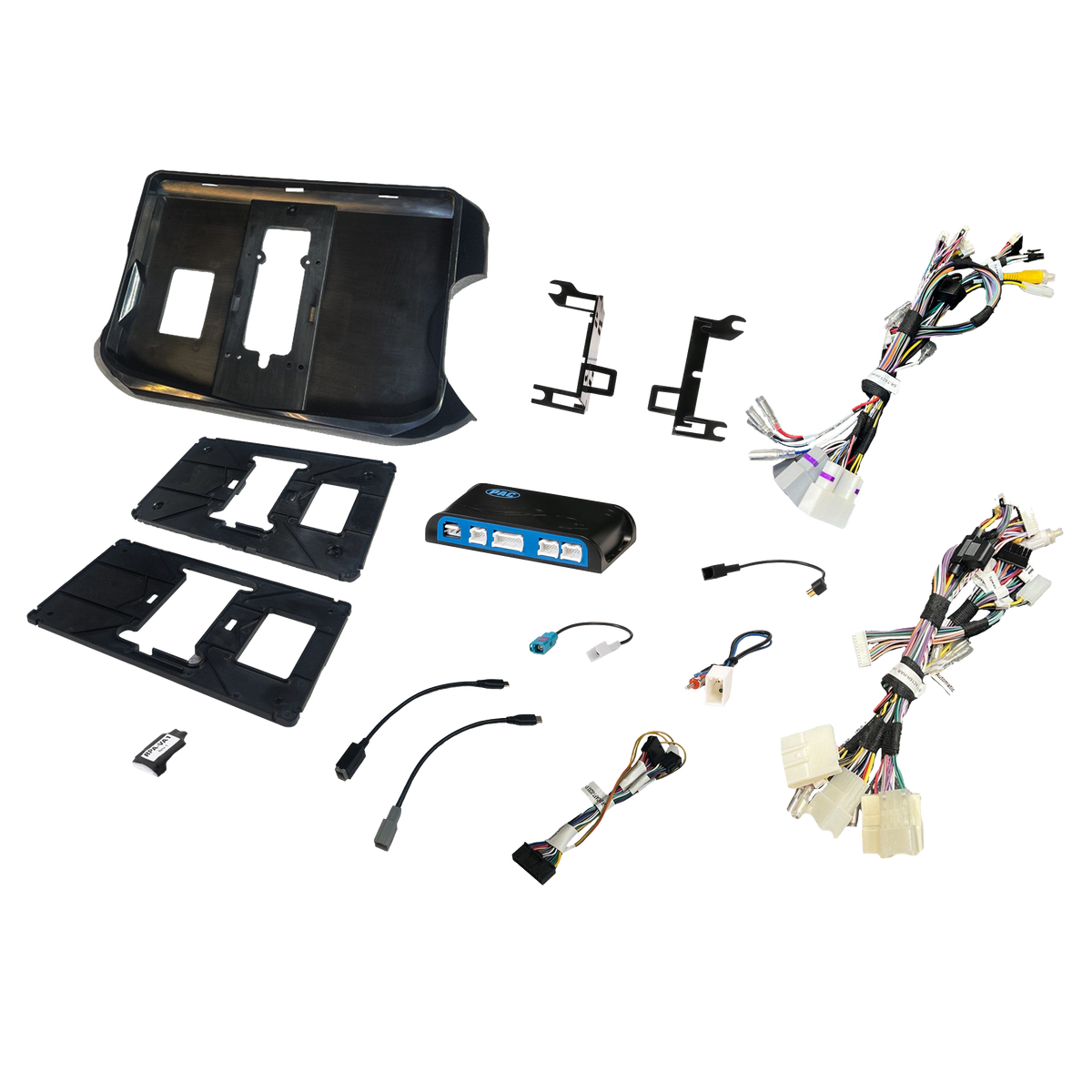

| Included components | HORIZON10 iX210 10.1-inch radio/display; SR-TAC16HX panel, 6/7-inch mounting plates and brackets.; RP4.2-TY11 interface, installation/radio harnesses, RPA-VA1 video adapter.; SAT-02 satellite, AM/FM, GPS and USB adapters plus mounting hardware.. |
Why Choose This Product?
Choose this HORIZON10 kit when you want a larger connected display and the matching installation components for your Toyota Tacoma. The flush-mount layout and vehicle-specific interface make the exact kit selection important: compare the fitment notes, not screen size alone.
Installation & Compatibility Notes
2016–2023 Toyota Tacoma; linked install manual specifies factory 6-inch or 7-inch displays. Factory-amplified/JBL and non-amplified connections are documented. Plug-and-play describes the supplied vehicle connections, not universal compatibility or a guarantee that every factory function is retained. Dashboard disassembly, installation and setup are still required. NOT compatible with Panoramic View Monitor (PVM), per current product FAQ. Original-radio vehicle-settings adjustment and rear-seat entertainment are not retained. Configure settings before removal. Factory-amplified fader requires amplified output and matching front/rear audio settings. SiriusXM requires separately sold SXV300 tuner. Optional iGO offline navigation requires a separately sold navigation card. Use the supplied external microphone rather than assuming the factory microphone can be reused.
Frequently Asked Questions
Which vehicles does the RB10TAC16X fit?
2016–2023 Toyota Tacoma; linked install manual specifies factory 6-inch or 7-inch displays. Factory-amplified/JBL and non-amplified connections are documented.
Does it support wireless Apple CarPlay and Android Auto?
Yes. Wired phone integration is also supported through the USB-C connection.
Are navigation maps and satellite radio included?

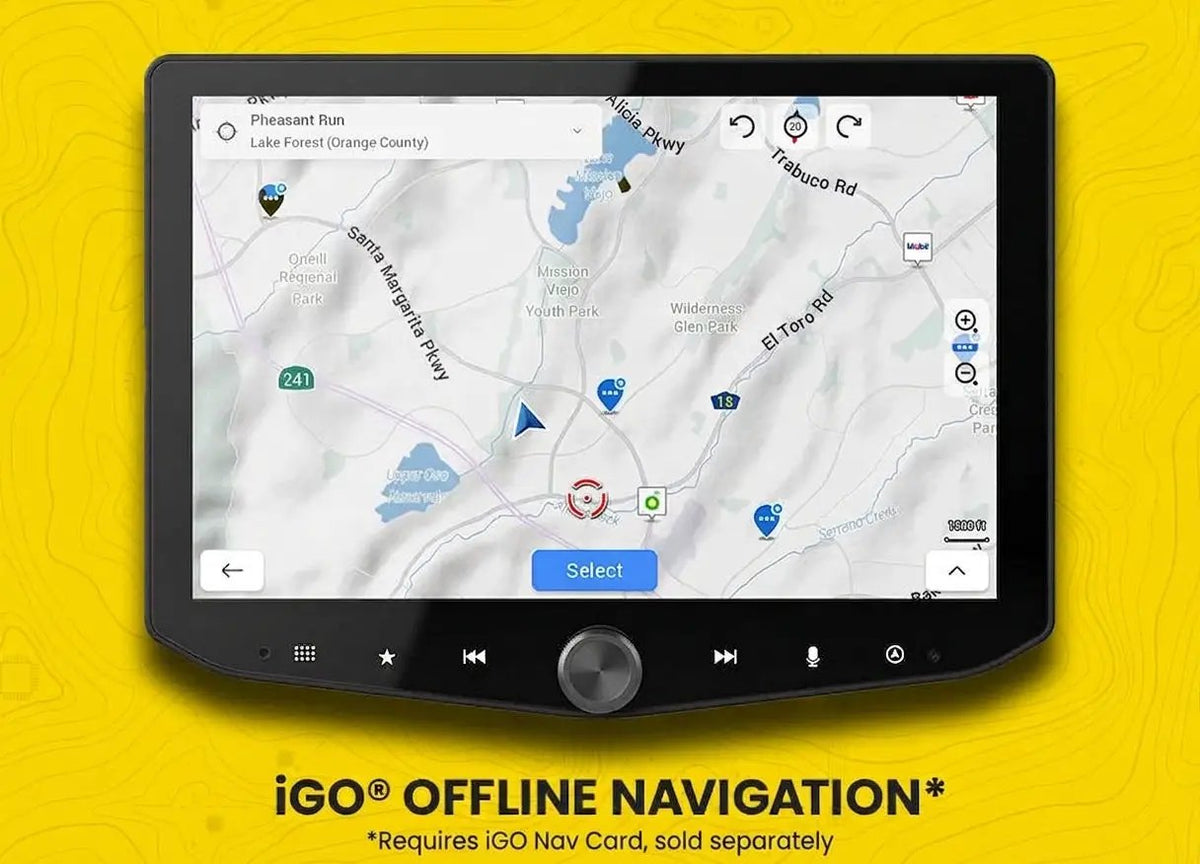

Optional iGO navigation requires a separately sold card. SiriusXM requires a compatible tuner and subscription, sold separately.
What is included in this radio kit?
HORIZON10 iX210 10.1-inch radio/display; SR-TAC16HX panel, 6/7-inch mounting plates and brackets.; RP4.2-TY11 interface, installation/radio harnesses, RPA-VA1 video adapter.; SAT-02 satellite, AM/FM, GPS and USB adapters plus mounting hardware..
