VFL Audio VFL COMP 12K 12,000 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- Amplifier class: D
- Frequency response: 20Hz~350Hz
- Input sensitivity: 0.2V~6V
- Subsonic filter: 10Hz~50Hz AT 24dB/OCT
- Low-pass filter: 35Hz ~ 250Hz AT 24dB/OCT
VFL Audio VFL COMP 12K 12,000 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The VFL Audio VFL COMP 12K is a Class D monoblock amplifier rated at 12,000W RMS. Its 1-ohm-stable design and linkable technology make it an option for high-output car audio systems.
Key Features & Benefits
- 12,000W RMS rating: Provides a clear power rating to consider when planning a compatible subwoofer system.
- Class D design: Identifies the amplifier’s circuit class when comparing installation options.
- 1-ohm stable: Supports operation at a 1-ohm load.
- Linkable technology: Offers a linkable design for systems planned around that feature.

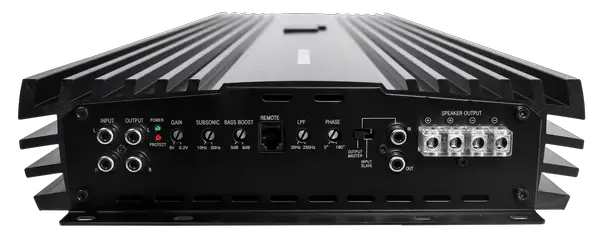

- Adjustable filters and controls: Lets you set subsonic filtering, low-pass filtering, bass boost, and phase shift within the listed ranges.
Technical Specifications
| FREQUENCY RESPONSE | 20hz~350hz |
| FUSE RATING | 800A |
| LINK FUSE RATING | 1600A |
| DIMENSIONS H x W x L | 2.25” X 9.5” X 32.28” |
| RMS POWER | 12,000W |
| VARIABLE SUBSONIC FILTER | 10Hz~50Hz AT 24dB/OCT |
| VARIABLE LOW PASS FILTER | 35Hz ~ 250Hz AT 24dB/OCT |
| VARIABLE BASS BOOST | 0~9dB AT 45Hz |
| VARIABLE PHASE SHIFT | 0~180 degrees |
| INPUT LEVEL | 0.2V~6V |
Why Choose This Product?
The VFL COMP 12K combines a high RMS power rating with adjustable signal controls. Its subsonic and low-pass filters provide different frequency adjustment ranges, while variable bass boost and phase shift add further tuning options.
The listed dimensions help you assess the available mounting space before choosing this amplifier. Its linkable design is another factor to consider when planning a system around linkable equipment.
Installation & Compatibility Notes
Check that your planned load is compatible with the amplifier’s 1-ohm-stable rating. Confirm the mounting area can accommodate its 2.25” X 9.5” X 32.28” dimensions.
Account for the listed 800A fuse rating and 1600A link fuse rating when planning the installation. Confirm the electrical system and connected equipment meet the requirements of your complete setup.
Frequently Asked Questions
What is the VFL COMP 12K’s RMS power rating?
Its listed RMS power is 12,000W.
Is this amplifier stable at 1 ohm?
Yes. The product description identifies it as 1-ohm stable.
What filter adjustments does it offer?
The subsonic filter is variable from 10Hz~50Hz AT 24dB/OCT. The low-pass filter is variable from 35Hz ~ 250Hz AT 24dB/OCT.
How much space should I allow for mounting?
The listed dimensions are 2.25” X 9.5” X 32.28” in H x W x L order.
