Wāvtech link1000.1mini 1,000 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 600.0 W
- RMS output at 2 ohms: 1000 W
- Maximum speaker-level input: 40 V RMS
- Low-pass crossover: Variable, 24 dB/octave
- Bass processing: Adjustable parametric EQ
Wāvtech link1000.1mini 1,000 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

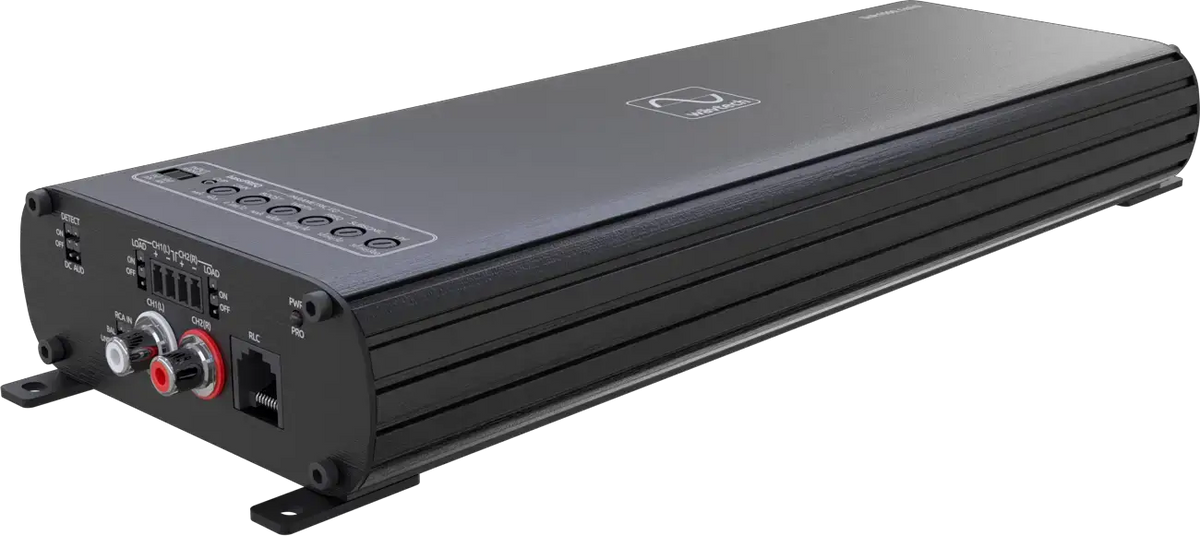

Bring substantial subwoofer power into a tight vehicle installation with the Wāvtech link1000.1mini monoblock amplifier. It delivers 1,000 watts RMS at 2 ohms in a compact chassis, with adaptive loading technology for integration with factory or aftermarket head units.
Its bass processing and adjustable filters help you shape the subwoofer signal to suit your system. The compact dimensions also make it a practical option when installation space is limited.
Key Features & Benefits
- Power at two loads: Choose between 600 watts x 1 at 4 ohms and 1,000 watts x 1 at 2 ohms for supported subwoofer systems.
- Compact chassis: The 12.2” x 4.5” x 1.65” footprint helps accommodate installations with limited space.
- Bass processing: The bassFREQ processor combines a 24dB-per-octave crossover with adjustable parametric EQ for bass shaping.
- Adjustable filtering: Variable low-pass and subsonic filters, each with a 24dB-per-octave slope, help tailor the signal for subwoofer use.

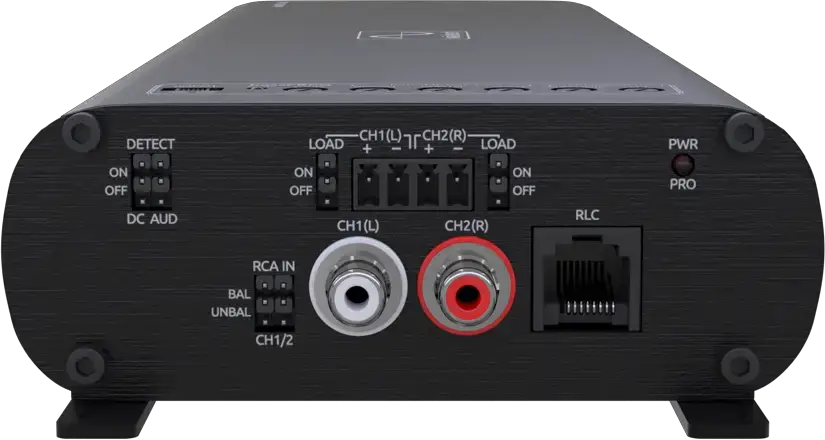

- Flexible signal integration: Adaptive OEM load technology and differential balanced inputs support connections with factory and aftermarket head units.
- Installation-focused controls: Variable gain adjustment with a clip LED helps you set input sensitivity while monitoring for distortion.
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier type | Monoblock |
| Power output | 600 watts x 1 @ 4 ohms; 1,000 watts x 1 @ 2 ohms |
| Chassis dimensions | 12.2” x 4.5” x 1.65” |
| Bass processor | bassFREQ Bass Processor with adjustable parametric EQ and 24dB-per-octave crossover |
| Low-pass crossover | Variable; -24dB/oct |
| Subsonic filter | Variable; -24dB/oct |
| Remote level control | RLC; optional linkRC |
| Input capability | 40V input capability; differential balanced inputs |
| Gain adjustment | Variable gain with clip LED |
| Auto turn-on | DC-offset or audio signal detect |
| Vehicle system compatibility | Start/stop system compatible |
| Thermal management | Active thermal management |
| High-level speaker terminals | Locking, detachable |
| Power and ground terminals | 4 gauge |
| RCA connections | Panel-mount RCAs |
| Chassis and mounting | Aluminum chassis with detachable mounting tabs |
Why Choose This Product?
The link1000.1mini is designed for subwoofer-focused car audio builds where space is at a premium. Its two stated power ratings let you compare output against your subwoofer system’s impedance and requirements.
Onboard bass processing, variable filters, and a remote level control give you several ways to adjust the subwoofer signal. Active thermal management and a compact aluminum chassis support its high-demand automotive use.
Installation & Compatibility Notes
Check that your subwoofer system’s impedance and power requirements match the amplifier’s stated ratings before installation. Measure the available mounting area against the 12.2” x 4.5” x 1.65” chassis dimensions, and account for the detachable mounting tabs.

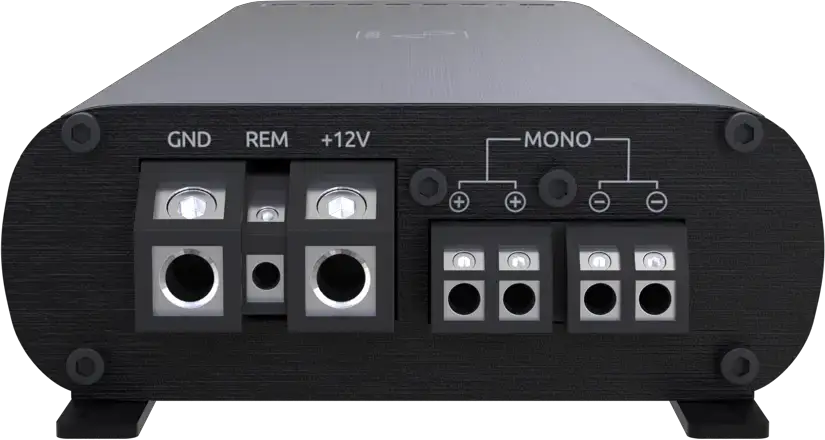

The amplifier supports factory and aftermarket head-unit connections. It can turn on through DC-offset or audio signal detect, and is compatible with vehicle start/stop systems. The source specifies 4 gauge power and ground terminals; confirm your installation’s electrical and connection requirements before wiring.
Frequently Asked Questions
How much power does the link1000.1mini produce?
It is rated at 600 watts x 1 at 4 ohms and 1,000 watts x 1 at 2 ohms. Match the applicable rating to your subwoofer system’s impedance.
Can I connect it to a factory head unit?
Adaptive OEM load technology supports connection to factory as well as aftermarket head units.
How much space does the amplifier need?
The chassis measures 12.2” x 4.5” x 1.65”. Check your planned mounting area against these dimensions.
Does it have subwoofer signal adjustments?
Yes. It includes bassFREQ processing with adjustable parametric EQ, plus variable low-pass and subsonic filters.
Can I adjust subwoofer output from the front seat?
The amplifier supports a remote level control (RLC). The linkRC is identified as optional.
