Wāvtech link1400.8plus 1400 Watt 8-Channel Amplifier
Key features
- Amplifier channels: 8
- RMS per channel at 4 ohms: 100 W
- RMS per channel at 2 ohms: 175 W
- Maximum speaker-level input: 40 V RMS
- Input processing: Eight-channel matrix summing
- Automatic turn-on: DC-offset or audio-signal detection
Wāvtech link1400.8plus 1400 Watt 8-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a multi-channel car audio system around the Wāvtech link1400.8plus, an 8-channel amplifier rated for up to 1400 watts total. Flexible signal routing, built-in crossovers, and bass processing give you control over a full-range or multi-woofer setup from one compact chassis.
Key Features & Benefits
- Flexible matrix summing: Assign any input to any output to shape signal routing without a separate DSP module.
- Integrated bass processing: bassFREQ provides crossover, subsonic filtering, and PEQ options for selected channel pairs.
- Multiple power configurations: Choose among the stated stereo or bridged ratings to match your system layout.
- Vehicle integration features: Adaptive OEM Load Technology, EV Ready capability, and Start/Stop compatibility support integration with modern vehicles.
- Compact installation footprint: The aluminum chassis measures 13.11" x 6.5" x 1.65" and has detachable mounting tabs.
Technical Specifications
| Product | Wāvtech link1400.8plus 8-channel car amplifier |
|---|---|
| Total power | 1400 watts |
| Power output | 175W x 8 @ 2 ohms; 100W x 8 @ 4 ohms; 350W x 4 @ 4 ohms BTL |
| Inputs and routing | Eight input channels; matrix summing allows any input to be assigned to any output |
| bassFREQ processor | 24dB crossover, subsonic filter, and PEQ; applies to channels 5/6, 7/8, or 5/6/7/8 |
| Auto bass processing | Patent-pending autoBASS circuit automatically corrects bass roll-off |
| Crossovers | HP/BP/LP crossover support on all channels; variable HP/BP/LP crossover (-12dB/oct) on all channels; variable LP (-24dB/oct) and subsonic (-24dB/oct) filtering |
| Input capability | 40V input capability; differential balanced inputs |
| Vehicle integration | Adaptive OEM Load Technology; EV Ready and Start/Stop System Compatible |
| Remote level control | Remote Level Control (RLC) with optional linkRC for adjusting channel levels from the dash or front of the vehicle |

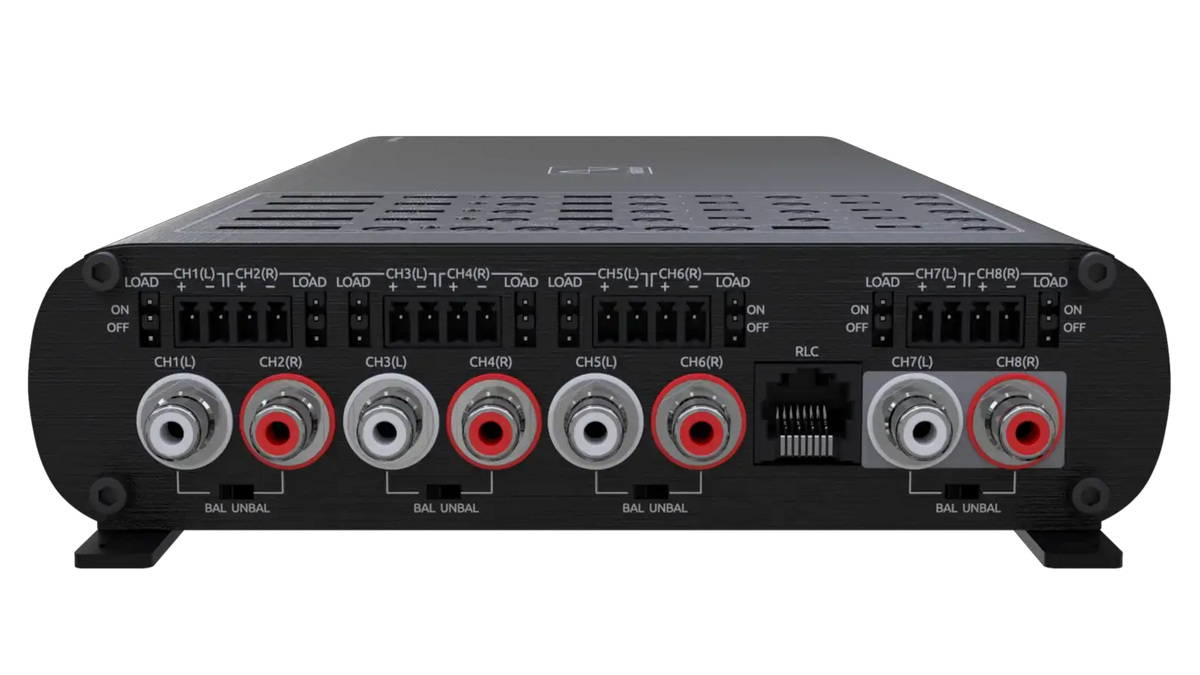

| Terminals and connectors | Locking detachable high-level speaker terminals; 4 gauge power/ground terminals; professional panel-mount RCAs |
| Channel 7/8 pre-out | Channel 7/8 RCA input can be converted to a 10V RCA output to feed a more powerful subwoofer amplifier while still using the bassFREQ preamp |
| Chassis | Compact aluminum chassis with detachable mounting tabs |
| Footprint | 13.11" x 6.5" x 1.65" |
Why Choose This Product?
The link1400.8plus combines eight channels, flexible input-to-output routing, and onboard bass management in one amplifier. That makes it a practical option for a full-range, four-way system or a multi-woofer setup when you want to shape front, rear, and subwoofer signals without a separate DSP module.
Its channel 7/8 RCA conversion can provide a 10V output for an additional subwoofer amplifier while retaining use of the bassFREQ preamp. The optional linkRC adds a way to adjust channel levels from the vehicle’s front seating area.
Installation & Compatibility Notes

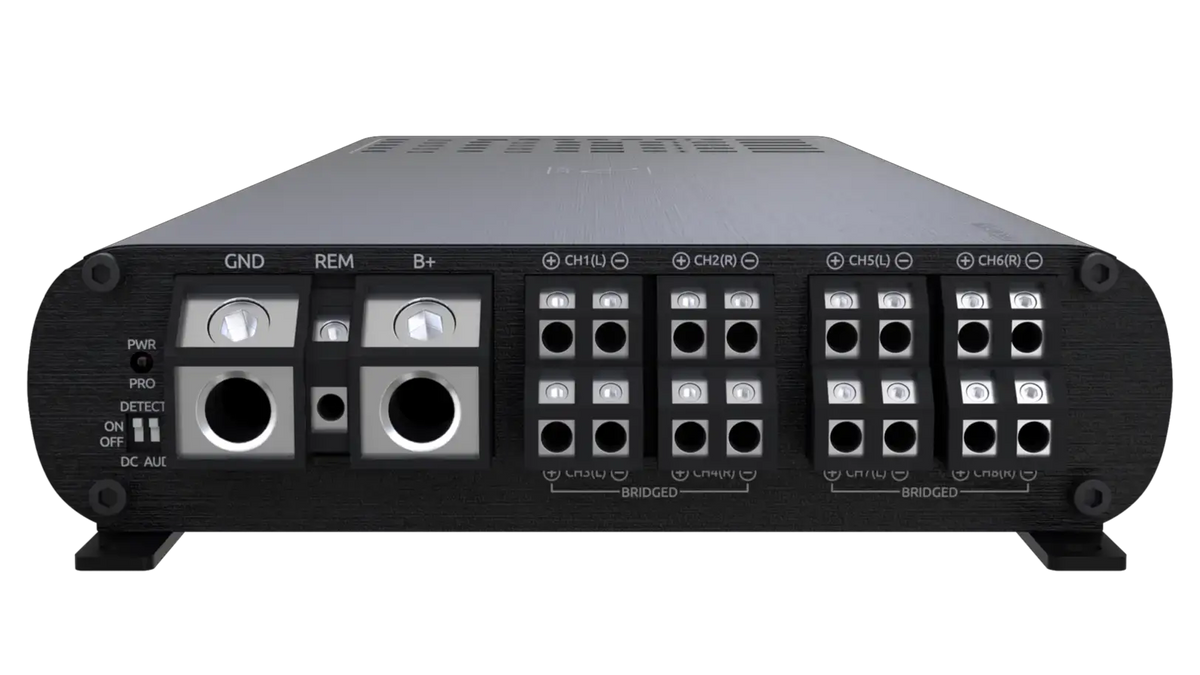

Allow for the 13.11" x 6.5" x 1.65" footprint and account for the detachable mounting tabs when planning placement. The amplifier has 4 gauge power and ground terminals, professional panel-mount RCAs, and locking detachable high-level speaker terminals.
Check your system’s speaker loads and signal connections against the power ratings and input options before installation. Adaptive OEM Load Technology, EV Ready capability, and Start/Stop compatibility are specified for modern-vehicle integration.
Frequently Asked Questions
What power ratings does the link1400.8plus provide?
It is rated at 175W x 8 @ 2 ohms, 100W x 8 @ 4 ohms, and 350W x 4 @ 4 ohms BTL. The stated total power is 1400 watts.
Can I use it in a multi-woofer system?
Yes. Its eight channels, matrix summing, and bassFREQ processing are designed to support multi-woofer configurations. Channel 7/8 can also be converted to a 10V RCA output for a more powerful subwoofer amplifier.
Which channels can use the bassFREQ processor?
Its 24dB crossover, subsonic filter, and PEQ can be applied to channels 5/6, 7/8, or 5/6/7/8.
Is the linkRC included?
The linkRC remote level control is optional. It allows channel-level adjustment from the dash or front of the vehicle.
Will it fit my installation location?
The listed footprint is 13.11" x 6.5" x 1.65". Check the available mounting space and connection access in your vehicle before installation.
