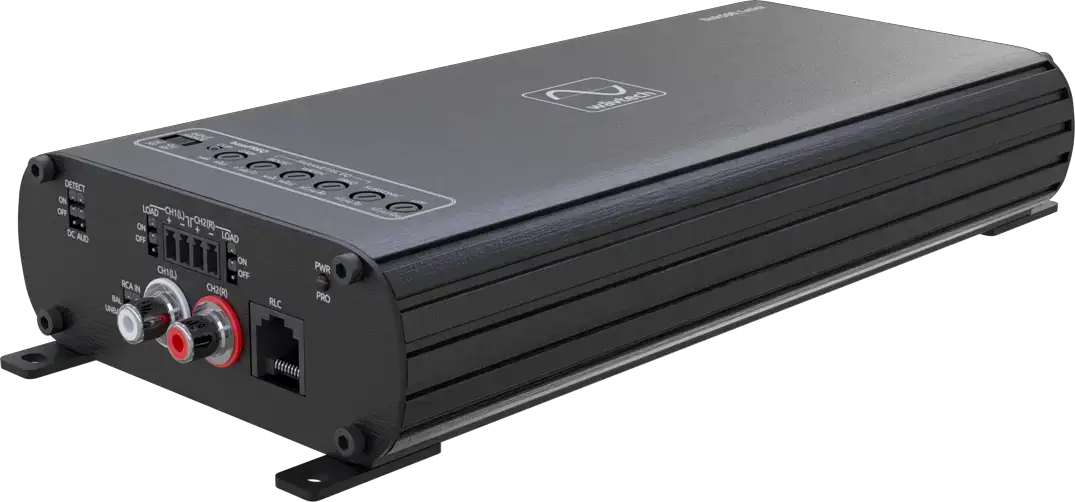

Wāvtech link500.1mini 500 Watt Monoblock Amplifier

Product Overview

Add controlled, adjustable bass to a car audio system with the Wāvtech link500.1mini 500-watt monoblock amplifier. It delivers 500W RMS at 2 ohms or 300W at 4 ohms, with a compact aluminum chassis measuring 9.2” x 4.5” x 1.65”.

Use its speaker-level inputs with a factory head unit or its RCA inputs with an aftermarket source. The bass processor, adjustable filters, and remote level control give you options for shaping and adjusting the subwoofer signal.

Key Features & Benefits

• Mono subwoofer power: Choose between 500W RMS at 2 ohms and 300W at 4 ohms.
• Flexible signal inputs: Speaker-level inputs accept up to 40V, while RCA inputs accept up to 10V.
• Bass tuning: The bassFREQ processor with Parametic EQ, low-pass crossover, and subsonic filter supports signal adjustment.
• Compact aluminum chassis: Its small footprint and detachable mounting tabs suit installations with limited space.
• In-cabin level control: The Remote Level Control allows adjustment from the vehicle cabin; linkRC is optional.
• Automatic turn-on options: DC-offset or audio signal detection supports automatic turn-on.

Technical Specifications

• Product type: Monoblock amplifier
• Power output: 500W RMS @ 2 ohms (mono); 300W x 1 @ 4 ohms
• Dimensions: 9.2” x 4.5” x 1.65”
• Chassis: Aluminum, with detachable mounting tabs
• Bass processor: bassFREQ Bass Processor w/ Parametic EQ
• Low-pass crossover: 24dB/oct
• Subsonic filter: -24dB/oct

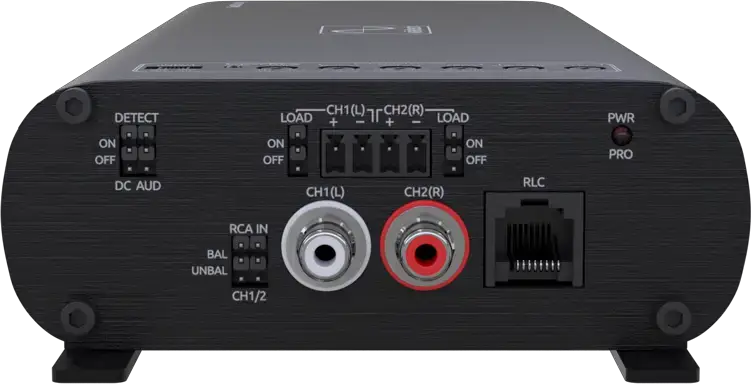

• Speaker-level inputs: Up to 40V; Adaptive OEM Load Technology; Differential Balanced Inputs
• RCA inputs: Up to 10V
• Remote control: Remote Level Control (RLC); optional linkRC
• Start/Stop: Compatible
• Auto turn-on: DC-Offset or Audio Signal Detect

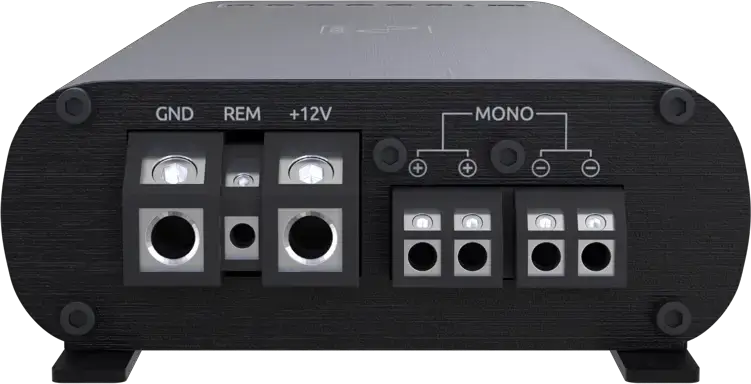

• Speaker terminals: Locking Detachable Hi-Level Speaker Terminals
• Power and ground terminals: 4 Gauge
• RCA connectors: Professional Grade Panel Mount RCAs
• Frequency response: <10 Hz to >500 Hz
• THD+N: <1% at rated power
• Signal-to-noise ratio: >81 dBA (1W, 4Ω)
• Thermal management: Active thermal management

Why Choose This Product?

The link500.1mini combines subwoofer amplification and bass tuning in a compact package. Its factory-level and RCA inputs let you connect it to different source types, while the bass processor and filters offer ways to shape the bass signal for your system.

Its listed dimensions make it worth considering when planning an under-seat or trunk installation. The aluminum chassis, detachable mounting tabs, and locking speaker terminals help define its installation layout.

Installation & Compatibility Notes

Plan space for the 9.2” x 4.5” x 1.65” amplifier and its connections. The product description identifies 4 Gauge power and ground terminals. Confirm that your source, subwoofer load, available mounting space, and installation plan suit the amplifier before purchase.

The amplifier is described as compatible with factory and aftermarket head units and Start/Stop systems. It supports auto turn-on through DC-offset or audio signal detection.

Frequently Asked Questions

How much power does the link500.1mini produce?

It is rated at 500W RMS at 2 ohms in mono, or 300W x 1 at 4 ohms.

Can I connect it to a factory head unit?

Yes. Its speaker-level inputs accept signals up to 40V and include Adaptive OEM Load Technology.

Can I use an aftermarket head unit?

Yes. RCA inputs accept up to 10V, and the amplifier also has differential balanced inputs.

What controls are available for bass adjustment?

It includes a bassFREQ Bass Processor w/ Parametic EQ, a 24dB/oct low-pass crossover, and a -24dB/oct subsonic filter. The Remote Level Control adjusts level from the cabin; linkRC is optional.

What are the amplifier’s dimensions?

The chassis measures 9.2” x 4.5” x 1.65”. Check your planned mounting space and connection clearances.

What comes with the amplifier?

The product details identify a Remote Level Control and describe linkRC as optional. They do not specify other included items.
