Wāvtech link500.4mini 500 Watt 4-Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 75 W
- RMS per channel at 2 ohms: 125 W
- Maximum speaker-level input: 40 V RMS
- Signal processing: Built-in summing with level trim
- Automatic turn-on: DC-offset or audio-signal detection
Wāvtech link500.4mini 500 Watt 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a front-speaker stage and subwoofer channel without giving up much installation space. The Wāvtech link500.4mini 500-watt 4-channel amplifier offers flexible channel configurations, built-in summing for factory-radio integration, and a compact 9.2” x 4.5” x 1.65” chassis.
Use it for four-channel playback or a three-channel front-stage-plus-sub setup. Channel-specific tuning controls help you shape the sound around your system.
Key Features & Benefits
- Flexible power configurations: Run four channels or use three-channel mode for main speakers and a subwoofer.
- Compact chassis: The 9.2” x 4.5” x 1.65” footprint suits installs where space is limited.
- Factory-radio integration: Built-in summing and high-level inputs support integration with factory systems.
- Channel-specific sound shaping: Channels 3/4 include paragraphic EQ and a variable subsonic filter for tuning the sub/satellite pair.
- Signal and level controls: Variable gain, a clip LED, and optional remote level control help manage input and sub/satellite levels.
- Installation flexibility: Auto turn-on options, detachable mounting tabs, and locking high-level terminals support a range of installation needs.
Technical Specifications
| Specification | Details |
|---|---|
| Model | link500.4mini |
| Product type | 500 Watt 4-Channel Amplifier |
| Power ratings | 75W x 4 @ 4 ohms; 125W x 4 @ 2 ohms; 250W x 2 @ 4 ohms (BTL) |
| 3-channel mode | 125 watts x 2 for the main speakers and 250 watts x 1 for the sub |
| Chassis dimensions | 9.2” x 4.5” x 1.65” |
| Paragraphic EQ | Adjustable; channels 3/4 |
| Subsonic filter | Variable; channels 3/4 |
| Hi/Low Pass Crossover | Variable; -12dB/oct |
| Remote level control | RLC with optional linkRC; channels 3/4 |
| Summing | Built-in summing with level trim adjustment |
| Input capability | 40V Input Capability |
| Inputs | Differential Balanced Inputs; Professional Grade Panel Mount RCA’s |
| Gain adjustment | Variable Gain Adjustment w/ Clip LED |
| Auto turn-on | Via DC-Offset or Audio Signal Detect |
| High-level terminals | Locking Detachable Hi-Level Terminals |
| Power and ground terminals | 4 Gauge Power/Ground Terminals |
| Thermal management | Active Thermal Management |
| Vehicle-system compatibility features | Start/Stop System Compatible; Adaptive OEM Load Technology |
| Chassis and mounting | Compact Aluminum Chassis w/ Detachable Mounting Tabs |
Why Choose This Product?
The link500.4mini brings multiple setup options together in a compact amplifier. Its 3-channel mode supports a front-stage-plus-sub arrangement, while four-channel ratings allow full-range configurations.
For factory-radio systems, built-in summing with level trim can combine signals without an external processor. Differential balanced inputs are designed to reduce noise and hum, while active thermal management helps guard against overheating during demanding playback.
Installation & Compatibility Notes
Check the available mounting space against the 9.2” x 4.5” x 1.65” chassis dimensions, and allow for the connections and mounting arrangement required by your installation. The detachable mounting tabs provide additional mounting options.

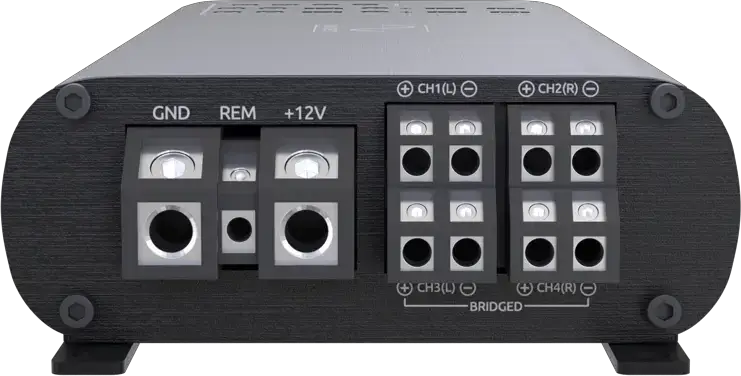

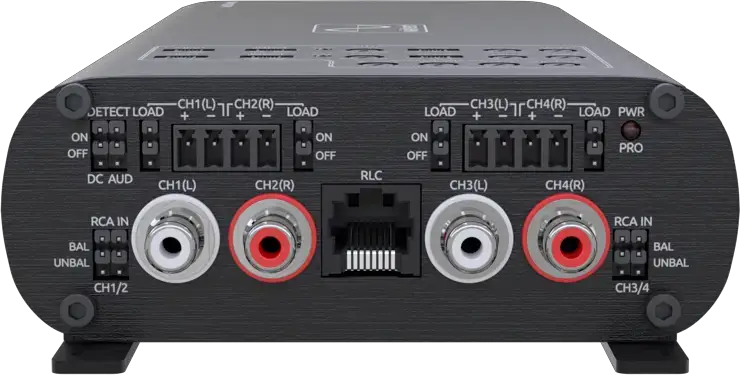

The amplifier has 4 Gauge power and ground terminals, locking detachable high-level terminals, and panel-mount RCA inputs. Confirm your source connections, speaker loads, and intended channel configuration before installation. The optional linkRC is for remote level adjustment on channels 3/4.
Frequently Asked Questions
What power configurations does the link500.4mini offer?
Its listed ratings are 75W x 4 @ 4 ohms, 125W x 4 @ 2 ohms, and 250W x 2 @ 4 ohms (BTL). In 3-channel mode, it delivers 125 watts x 2 for main speakers and 250 watts x 1 for a sub.
Can I use it with a factory radio?
Built-in summing with level trim supports factory radios that lack a full-range signal. The amplifier also has high-level terminals for source connections.
What tuning controls are available for a sub/satellite setup?
Channels 3/4 include adjustable paragraphic EQ, a variable subsonic filter, and a variable hi/low pass crossover rated at -12dB/oct.
Does it include a remote level control?
The amplifier supports an RLC, with optional linkRC for channels 3/4. The linkRC is identified as optional.
What should I check before choosing an installation location?
Compare the available space with the 9.2” x 4.5” x 1.65” chassis dimensions, and confirm the mounting and connection requirements for your vehicle and system.
