Wāvtech link700.4plus 700 Watt 4-Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 100 W
- RMS per channel at 2 ohms: 175 W
- Maximum speaker-level input: 40 V RMS
- Input summing: Up to six channels
- Automatic turn-on: DC-offset or audio-signal detection
Wāvtech link700.4plus 700 Watt 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Wāvtech link700.4plus is a 700-watt, four-channel car audio amplifier built for systems that need flexible outputs and onboard bass processing. Its six-channel input and summing support OEM-integrated builds, while its compact chassis measures 10.25" x 5.5" x 1.65".
Key Features & Benefits
- Flexible output power: Choose four-channel or bridged operation to suit your system’s speaker configuration.
- Six-channel input with summing: Combine signals from a multi-channel source to create front and rear full-range outputs plus a subwoofer pre-out.

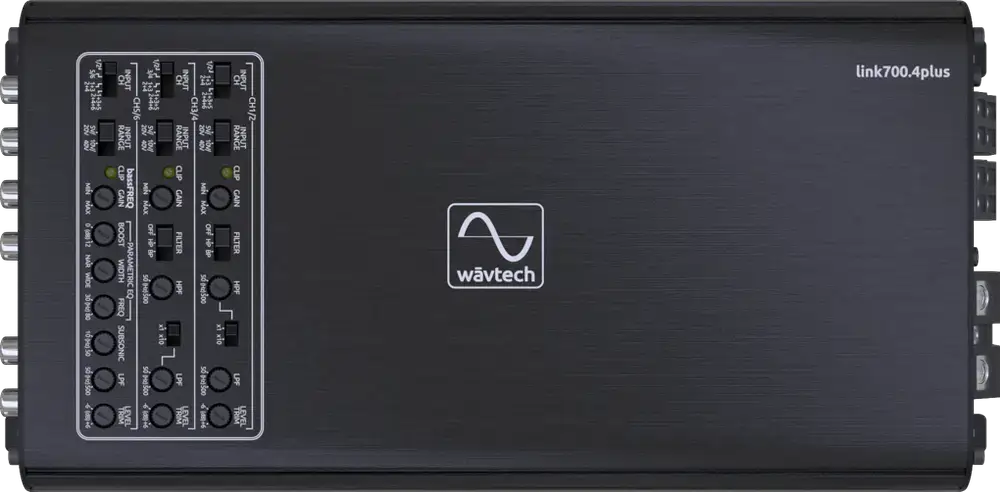

- Onboard bass processing: Use bassFREQ controls to shape bass with adjustable filtering and parametric EQ.
- Multiple crossover options: Separate channel filters help tailor signal ranges for connected speakers and subwoofer outputs.
- Vehicle integration features: DC-offset or audio-detect auto turn-on, Start/Stop readiness, and adaptive OEM load detection support modern vehicle installations.

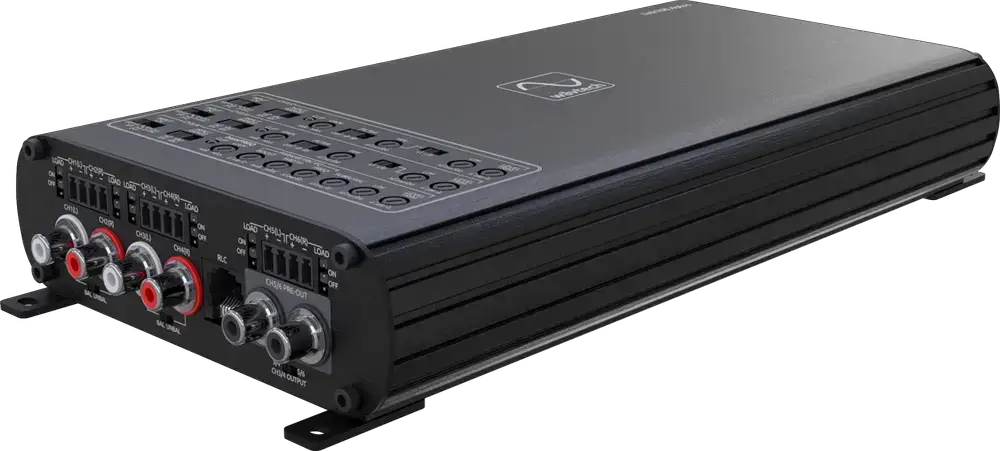

- Compact connections and chassis: Locking detachable speaker terminals, 4-gauge power and ground terminals, and panel-mount RCA connections fit within an aluminum chassis with detachable mounting tabs.
Technical Specifications
| Product | Wāvtech link700.4plus |
|---|---|
| Amplifier type | Four-channel |
| Power output | 100 watts x 4 @ 4 ohms |
| Power output | 175 watts x 4 @ 2 ohms |
| Bridged power output | 350 watts x 2 @ 4 ohms in Bridge-Tied Load (BTL) mode |

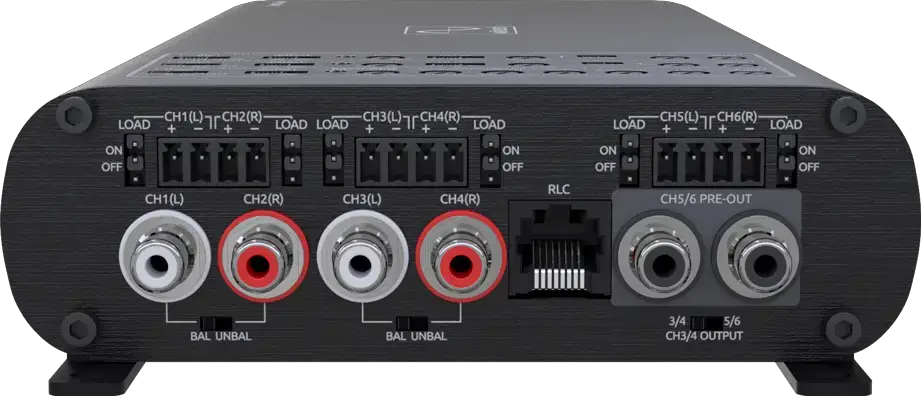

| Input channels | 6-channel input with summing |
| Outputs | Dedicated RCA Pre-Out; summed front and rear full-range outputs plus subwoofer pre-out for a 3-way OEM system |
| Remote control | Optional Remote Level Control (RLC) with linkRC for channels 3/4 or the Pre-Out |
| CH1/2 crossover | Variable HP crossover (-12 dB/oct) |
| CH3/4 crossover | HP/BP/LP crossover (-12 dB/oct) |
| Pre-Out filters | Variable LP crossover (-24 dB/oct) and variable subsonic filter (-24 dB/oct) |
| bassFREQ processing | 24 dB/octave lowpass and subsonic filters; fully adjustable 1-band parametric EQ |
| Input capability | 40V |
| Signal and gain features | Differential balanced inputs; variable gain with clip LED |
| Auto turn-on | DC-offset or audio detect |
| Thermal and vehicle features | Active thermal management; Start/Stop vehicle readiness; adaptive OEM load detection |

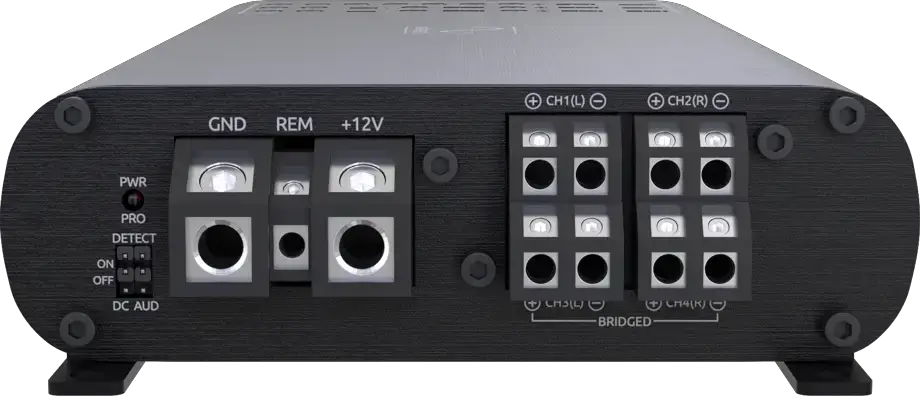

| Terminals and connections | Locking detachable hi-level speaker terminals; 4-gauge power/ground terminals; panel-mount RCA connections |
| Chassis | Aluminum, with detachable mounting tabs |
| Dimensions | 10.25" x 5.5" x 1.65" |
Why Choose This Product?
The link700.4plus is designed for multi-amped systems that combine factory audio signals with aftermarket amplification and a subwoofer. Its input summing and dedicated pre-out provide a route to full-range front and rear outputs alongside a subwoofer signal.
For bass adjustment, bassFREQ combines lowpass and subsonic filtering with a one-band parametric EQ. The variable channel crossovers offer additional control over the signals sent to connected components.
Installation & Compatibility Notes
Plan your installation around the amplifier’s 10.25" x 5.5" x 1.65" dimensions and its 4-gauge power and ground terminals. The source describes a compact 5.5"-wide package and detachable mounting tabs.
Check your source system’s output signals and speaker configuration when planning to use six-channel input summing. The optional RLC can adjust channels 3/4 or the Pre-Out when used with linkRC.
Frequently Asked Questions
What power does the link700.4plus produce?
It is rated at 100 watts x 4 at 4 ohms, 175 watts x 4 at 2 ohms, and 350 watts x 2 at 4 ohms in BTL mode.
What does the six-channel input with summing do?
It accommodates six input channels and sums signals on multi-channel systems. For a 3-way OEM system, this supports front and rear full-range outputs plus a subwoofer pre-out.
Does it include a remote level control?
An optional RLC is described for use with linkRC to adjust channels 3/4 or the Pre-Out.
What bass controls are built in?
bassFREQ includes 24 dB/octave lowpass and subsonic filters, plus a fully adjustable one-band parametric EQ.
How much space should I allow for the amplifier?
The listed dimensions are 10.25" x 5.5" x 1.65". Account for your installation space and connections when planning placement.
