Wāvtech linkDQ LOC/Line Driver with Parametric EQ (Remote Ready)
Key features
- Signal channels: 2
- Maximum speaker-level input: 40 V RMS
- Parametric EQ: 0 to +12 dB at 30–80 Hz
- Level setting: Adjustable gain with clip indicator
- Remote level control: Optional, sold separately
- Automatic turn-on: DC offset or audio-signal detection
Wāvtech linkDQ LOC/Line Driver with Parametric EQ (Remote Ready) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add adjustable bass correction and signal control to a factory audio system with the Wāvtech linkDQ 2-channel LOC/line driver. Its parametric EQ offers targeted low-frequency adjustment, while differential balanced inputs and low-impedance outputs support connection to aftermarket amplifiers.
Key Features & Benefits

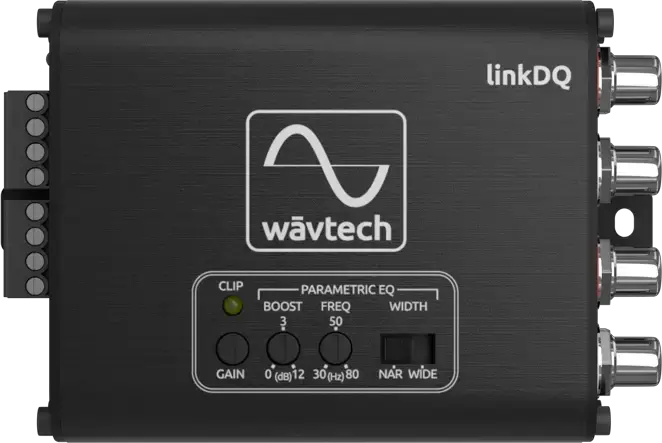

- Adjustable parametric EQ: Apply 0 to +12 dB of boost across a 30–80 Hz band, with narrow or wide range selection for focused bass tuning.
- Remote level control ready: The RJ45 port allows connection of an optional remote level control for front-seat bass adjustments.
- Gain and clip monitoring: Variable gain and a clip LED help you set input levels and watch for clipping during setup.

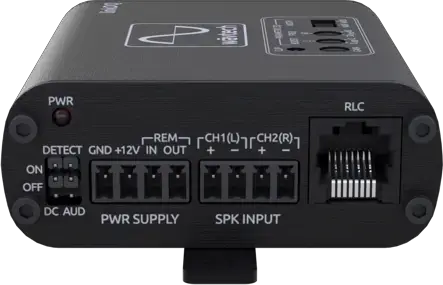

- Selectable turn-on options: Choose +12V, DC-offset, or Audio Detect triggering, with end-panel jumpers to disable a trigger as needed.
- Remote power output: The unit generates more than 500 mA of +12V remote output for ancillary devices.
- Installation-friendly construction: Locking detachable power/speaker terminals, panel-mount RCAs, a compact aluminum chassis, and detachable mounting tabs support flexible placement.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | 2-channel LOC / line driver |
| Inputs and outputs | Differential balanced inputs; low-impedance outputs |
| Parametric EQ | 0 to +12 dB boost on a 30–80 Hz band; selectable narrow or wide frequency range |
| Input gain | Variable gain with clip LED |
| Turn-on triggers | +12V, DC-offset, or Audio Detect; end-panel jumpers can disable a particular trigger |
| Remote output | >500 mA of +12V |
| Factory-system integration | OEM load-detect features |

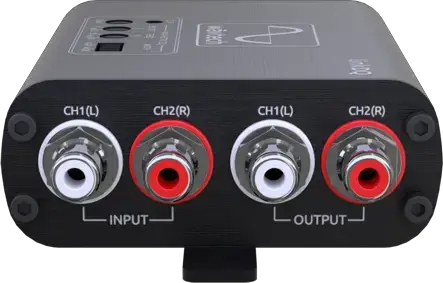

| Terminals and connectors | Locking detachable power/speaker terminals; professional-grade panel-mount RCAs; RJ45 port for optional remote level control |
| Chassis | Compact aluminum chassis with detachable mounting tabs |
| Output | >10 Vrms |
| Output impedance | <50 Ω |
| Frequency response | <10 Hz to >100 kHz |
| THD+N | <0.04% (SPK/RCA) |
| S/N | >115 dBA (SPK) / >116 dBA (RCA) |
| Input sensitivities | SPK 2–20/4–40 Vrms, RCA 0.5–5 Vrms |
| Maximum SPK input | 40 Vrms |
Why Choose This Product?
The linkDQ combines LOC/line-driver functions with adjustable bass EQ in one compact unit. It brings together features of the linkD, linkQ, and bassFREQ, giving you signal conversion and targeted low-frequency correction in a single component.
Differential balanced inputs help reject noise, while low-impedance outputs are designed to drive aftermarket amplifiers without excessive load on the signal. OEM load-detect features support factory-system integration.
Installation & Compatibility Notes
Check your source signal type and level against the listed SPK and RCA input sensitivities, and confirm that your amplifier accepts the linkDQ’s output. Select the turn-on trigger that suits your system; the end-panel jumpers let you disable a particular trigger.
A remote level control is an optional add-on, sold separately. Plan mounting around the compact chassis, detachable mounting tabs, and the locations of the power/speaker terminals and RCAs.
Frequently Asked Questions
What does the linkDQ do?
It functions as a 2-channel line output converter or line driver, with adjustable parametric EQ for low-frequency tuning.
How much bass boost can I set?
The EQ provides 0 to +12 dB of boost on a 30–80 Hz band, with narrow or wide range selection.
Can I adjust the bass from the front seat?
The RJ45 port supports an optional remote level control, which is sold separately.
Which turn-on methods does it support?
It supports +12V, DC-offset, and Audio Detect triggering. End-panel jumpers can disable a particular trigger.
What should I check when planning an installation?
Compare your source signal type and level with the listed input sensitivities, and confirm the amplifier’s input requirements before connecting the system.
