Audiopipe APCLE-2004 4 Chanel Mofset Power Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 100 W
- RMS per channel at 2 ohms: 150 W
- Flexible channel options: Stereo and bridged ratings let you plan around different system configurations.

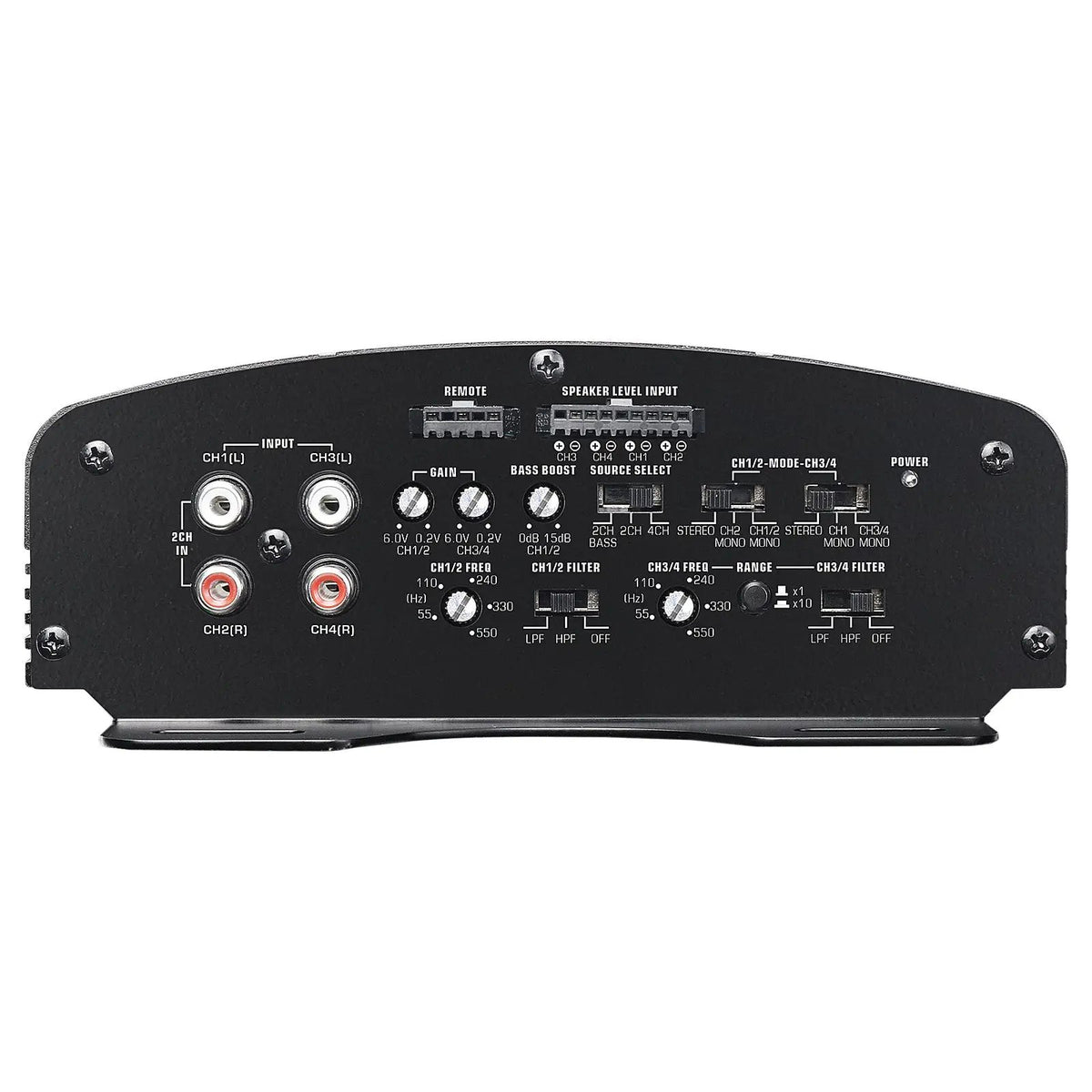

- Noise-conscious controls: Adjustable input levels and ground loop isolation help minimize noise and distortion.
- Soft-start muting: Remote turn-on with soft-start muting helps prevent turn-on thump.
Audiopipe APCLE-2004 4 Chanel Mofset Power Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

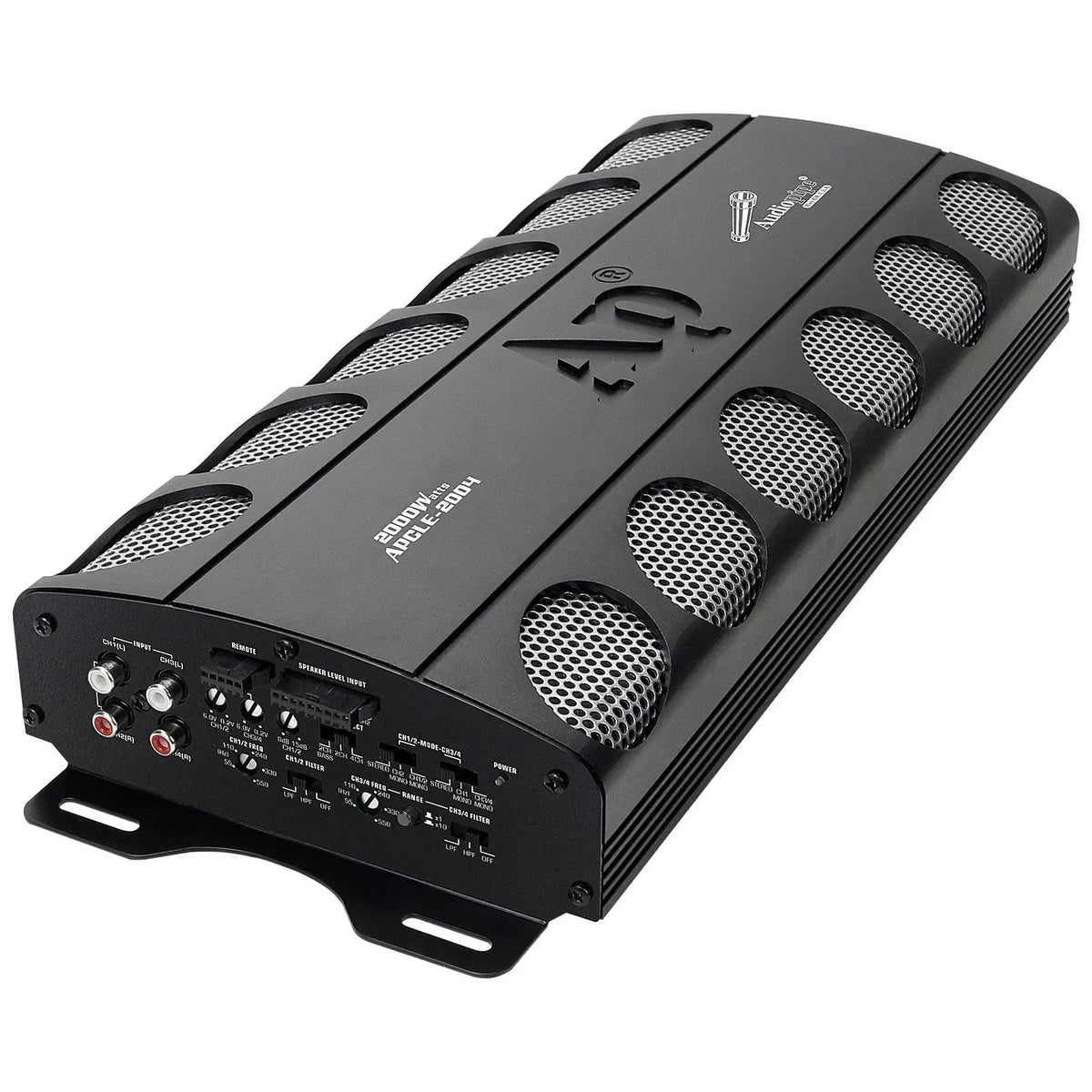

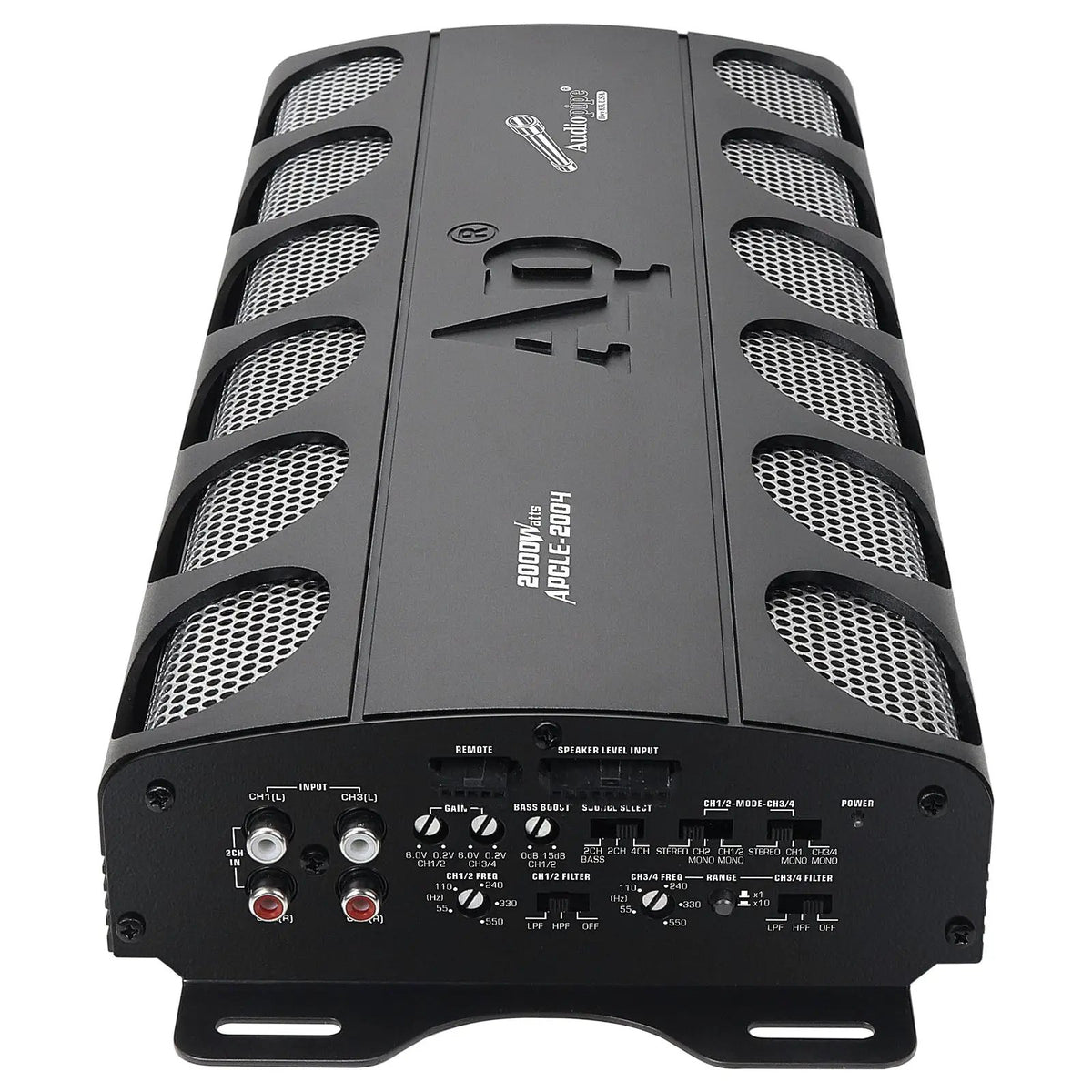

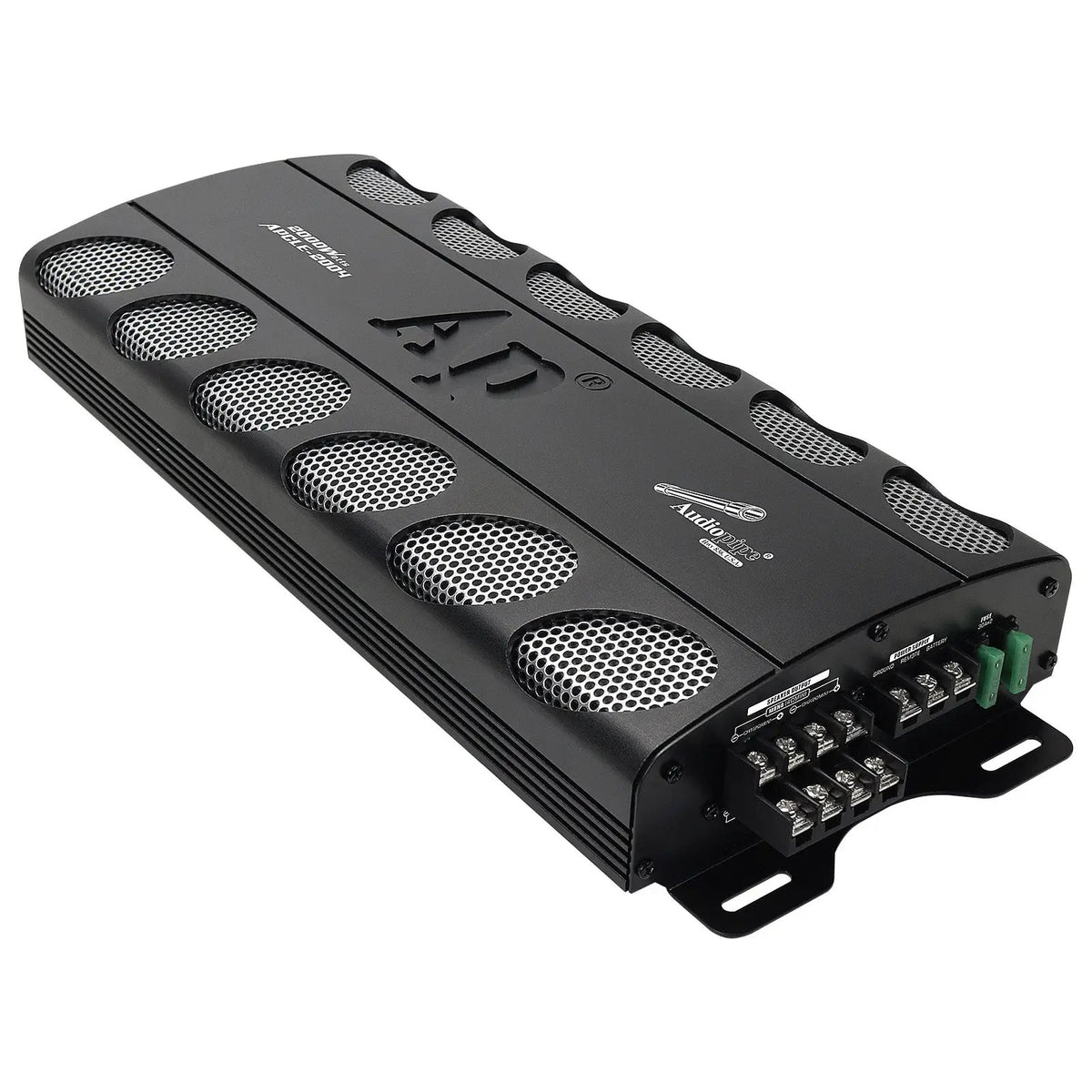

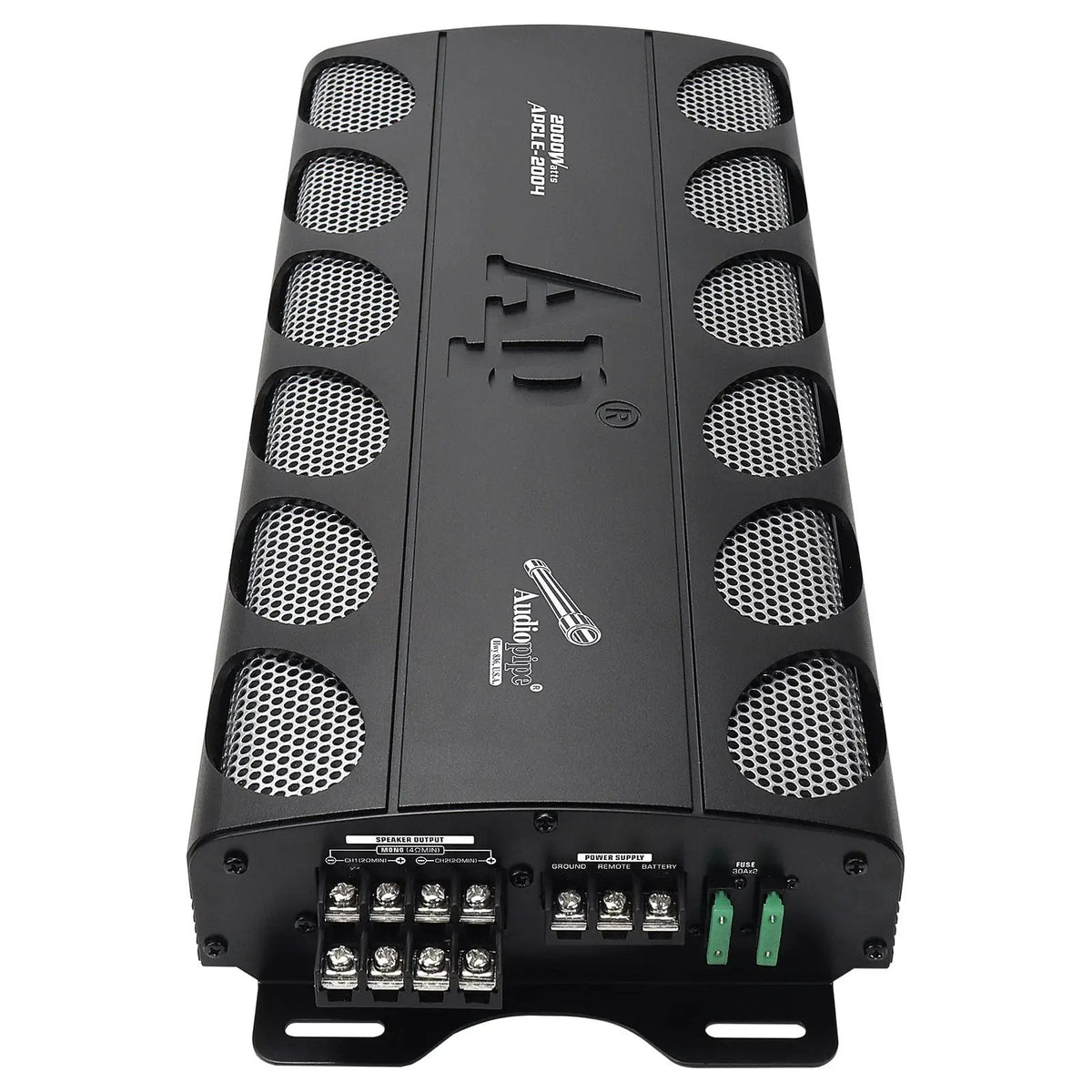

The Audiopipe APCLE-2004 4-channel power amplifier gives you multiple stereo and bridged output options for a car audio system. Its low-profile design and aluminum heat sink help manage heat while fitting installations where space matters.
Key Features & Benefits
- Flexible channel options: Stereo and bridged ratings let you plan around different system configurations.
- Noise-conscious controls: Adjustable input levels and ground loop isolation help minimize noise and distortion.
- Soft-start muting: Remote turn-on with soft-start muting helps prevent turn-on thump.
- Multiple input types: Speaker-level input supports a choice of connection type.

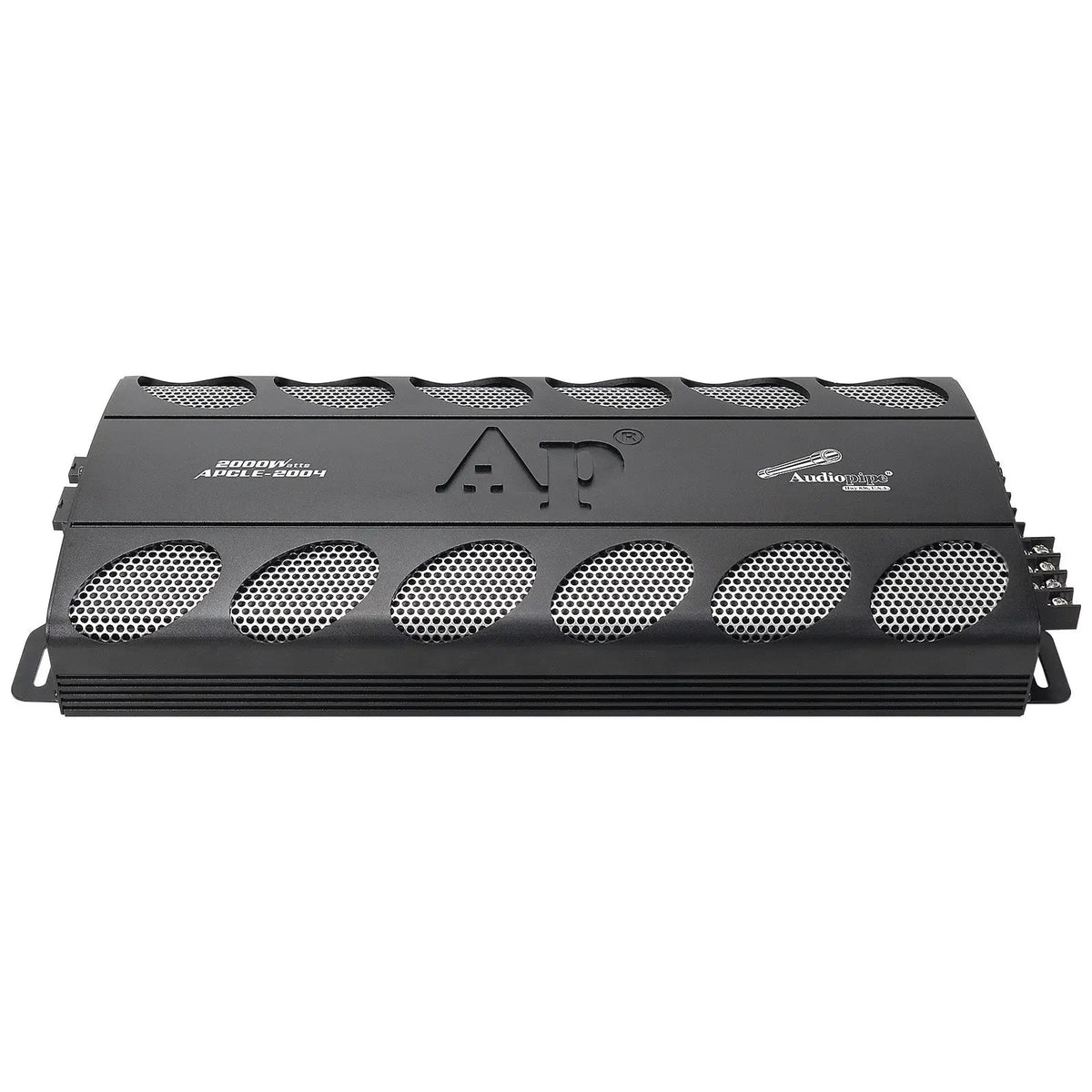

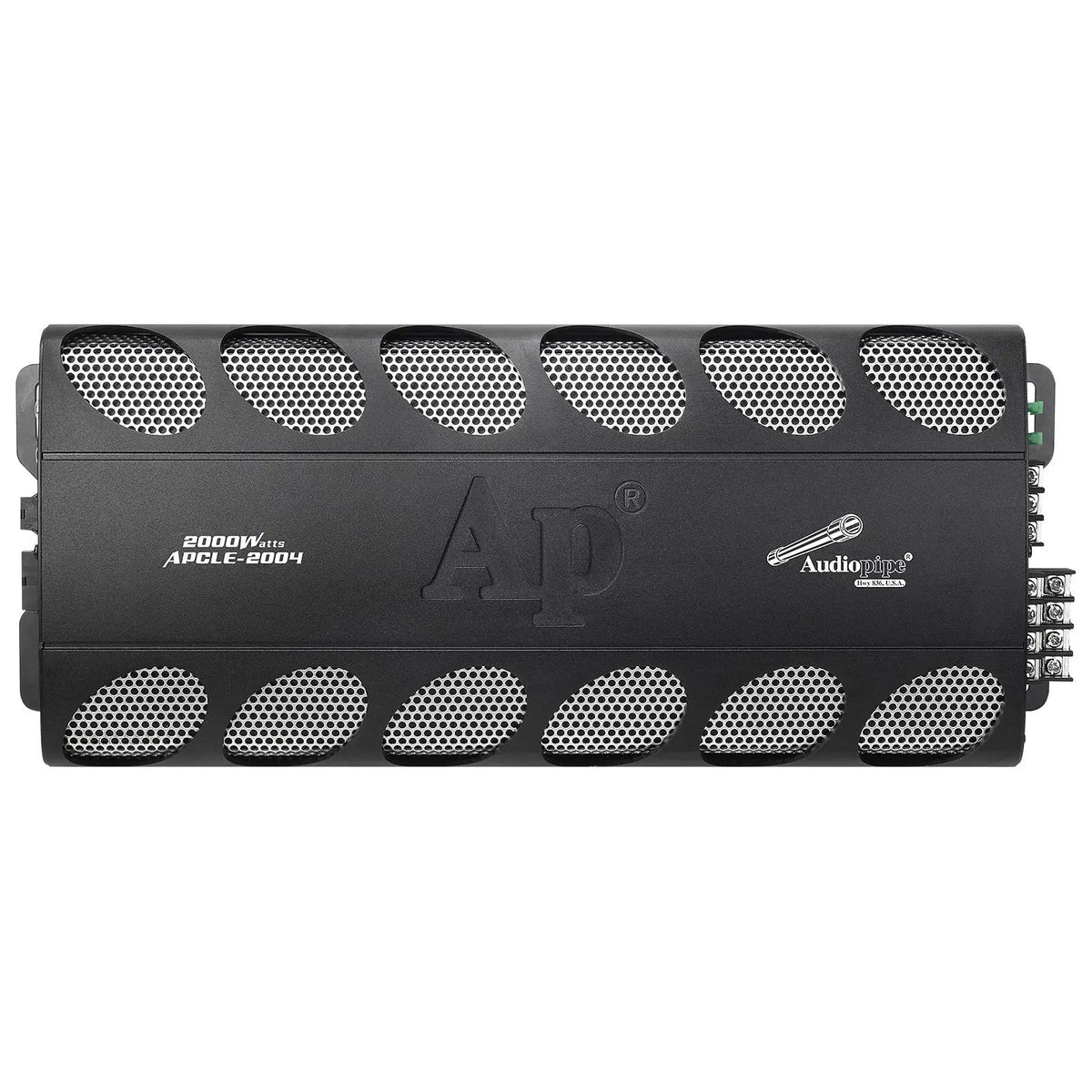

- Heat-managing design: The aluminum heat sink supports efficient heat dissipation in the low-profile chassis.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Power Output | 2000 Watts |
| Continuous Power Output | Stereo 4 Ch - 100W x 4 @ 4 Ohm Stereo 4 Ch - 150W x 4 @ 2 Ohm Bridge 2 Ch - 300W x 2 @ 4 Ohm |
| Frequency Response | 20Hz – 20KHz |
| Input Sensitivity | 0.2V – 6V |
| Crossover Range | 55Hz – 5.5KHz |
| THD | <0.05% |
| Signal Noise Ratio | >95dB |
| Power Supply | Pulse-Width Modulated (PWM) MOFSET power supply |
| Stability | 2 Ohm stereo stable, 4 Ohm mono stable |

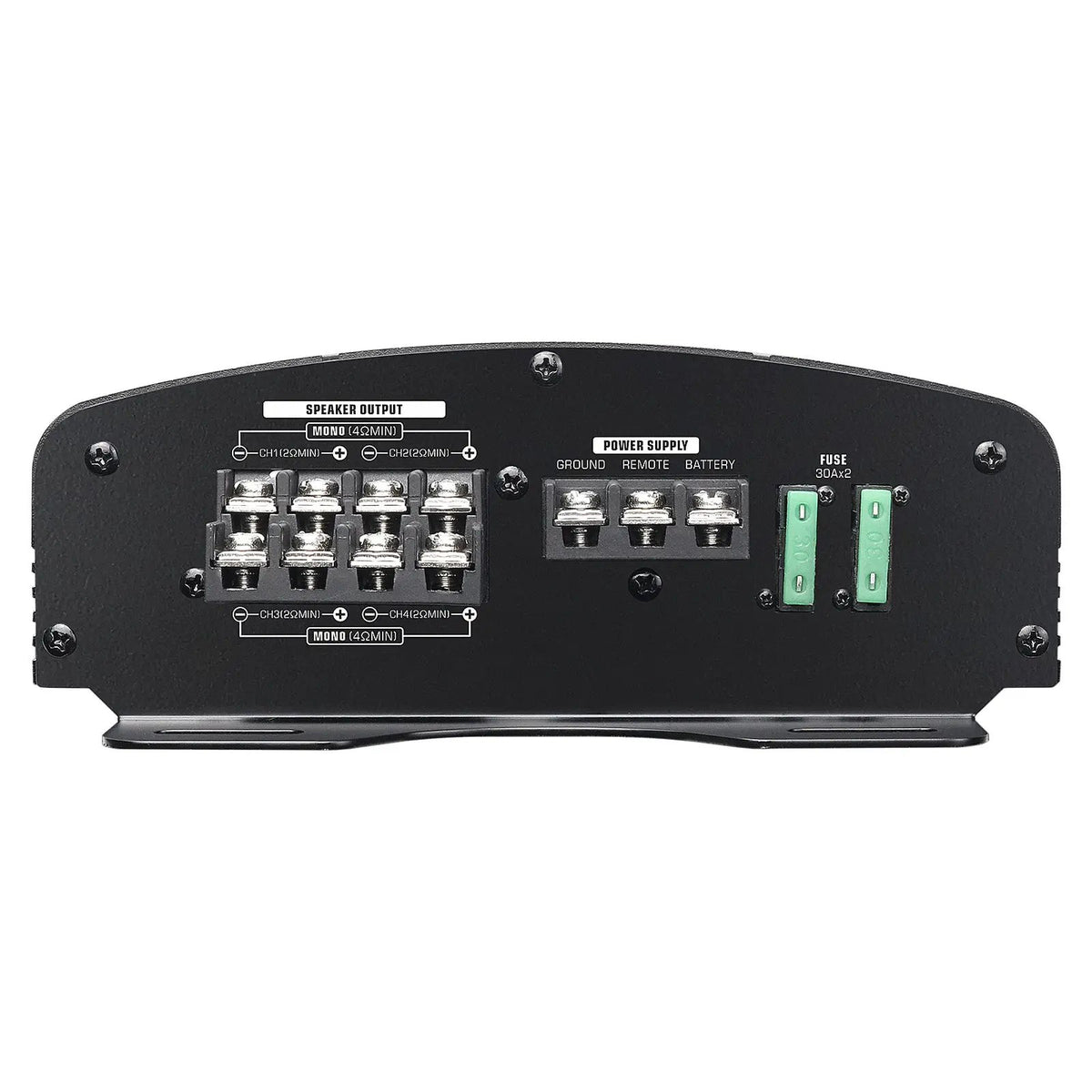

| Connectors | Platinum-plated power, speaker, and RCA connectors |
| Additional Features | Remote turn-on with “soft start” muting; adjustable input level controls with ground loop isolation; low-profile construction with aluminum heat sink; speaker level input |
Why Choose This Product?
The APCLE-2004 combines four-channel operation with bridged output ratings, giving you options when planning an amplifier setup. Its platinum-plated power, speaker, and RCA connectors provide clearly identified connection types, while the adjustable input controls give you a way to set input level.
Installation & Compatibility Notes
Plan your system around the amplifier’s stated stereo and mono stability limits and the corresponding continuous power ratings. Check your speakers’ impedance and the intended wiring configuration before installation. The amplifier accepts speaker-level input and has RCA connectors.
Frequently Asked Questions
What continuous power does the APCLE-2004 provide?
It is rated at 100W x 4 at 4 Ohm or 150W x 4 at 2 Ohm in stereo. Bridged output is rated at 300W x 2 at 4 Ohm.
What speaker loads is this amplifier stable at?
It is 2 Ohm stereo stable and 4 Ohm mono stable. Match the load to the intended stereo or bridged configuration.
Can I connect a speaker-level signal?
Yes. Speaker-level input is listed as a feature, along with RCA connectors.
What crossover range is available?
The stated crossover range is 55Hz – 5.5KHz.
