Audiopipe APHD-6160-H2 3000 Watts 6 Channel Full Range Class D High Power Amplifier 2 Ohms
Key features
- Amplifier channels: 6
- RMS per channel at 4 ohms: 160 W
- RMS per channel at 2 ohms: 270 W
- Six-channel output: Use its six channels to support a multi-channel car audio system.
- Class D design: Class D technology powers the amplifier’s full-range, six-channel configuration.

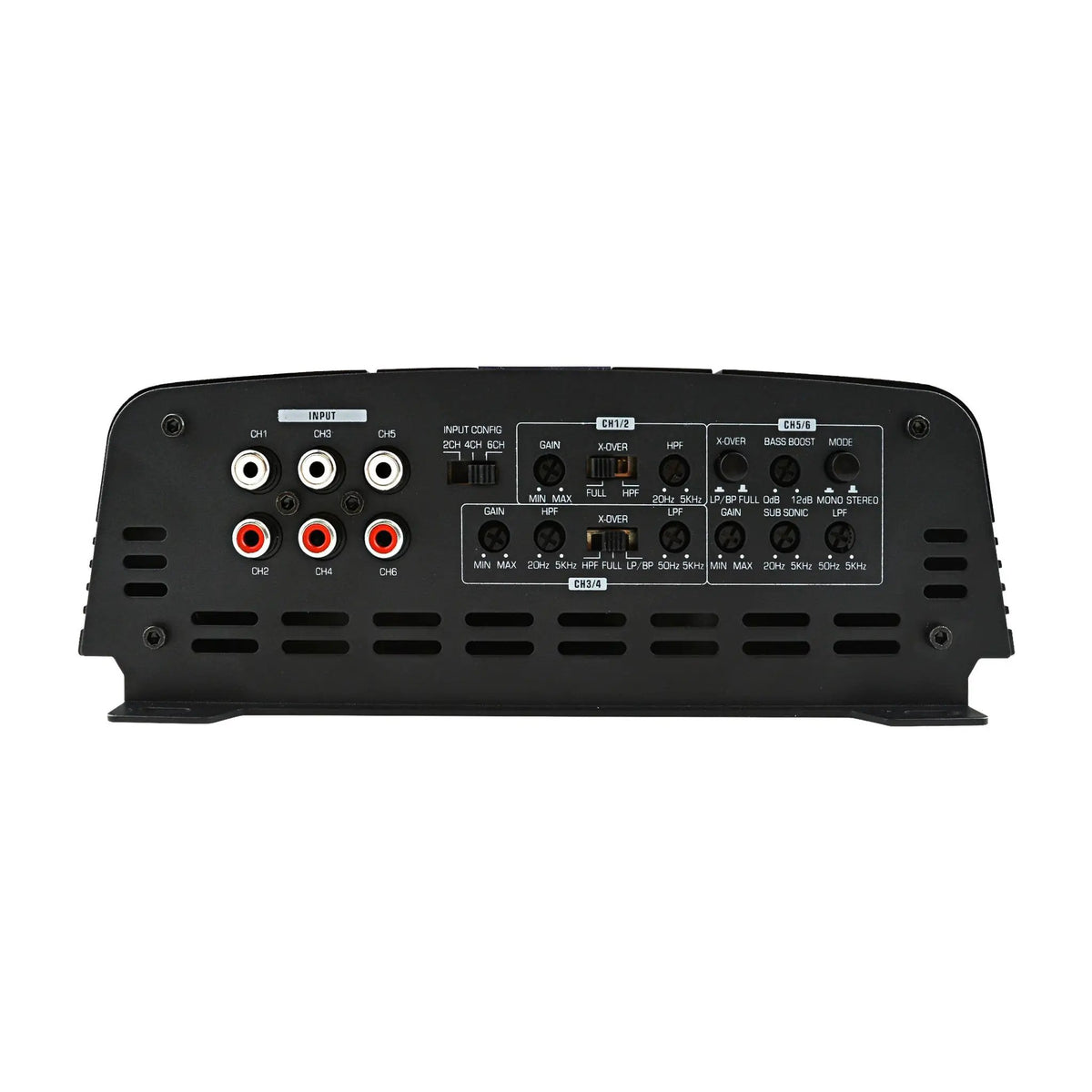

- Adjustable crossovers: High-pass and low-pass ranges let you set crossover frequencies for your system.
Audiopipe APHD-6160-H2 3000 Watts 6 Channel Full Range Class D High Power Amplifier 2 Ohms is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Power multiple channels from one amplifier with the Audiopipe APHD-6160-H2, a 6-channel full-range Class D car amplifier. It delivers up to 3000 watts of maximum power output and supports stereo operation at 2 ohms.
Key Features & Benefits
- Six-channel output: Use its six channels to support a multi-channel car audio system.
- Class D design: Class D technology powers the amplifier’s full-range, six-channel configuration.
- Adjustable crossovers: High-pass and low-pass ranges let you set crossover frequencies for your system.
- Built-in protection: Short-circuit, supply-voltage, and thermal protection address common operating fault conditions.

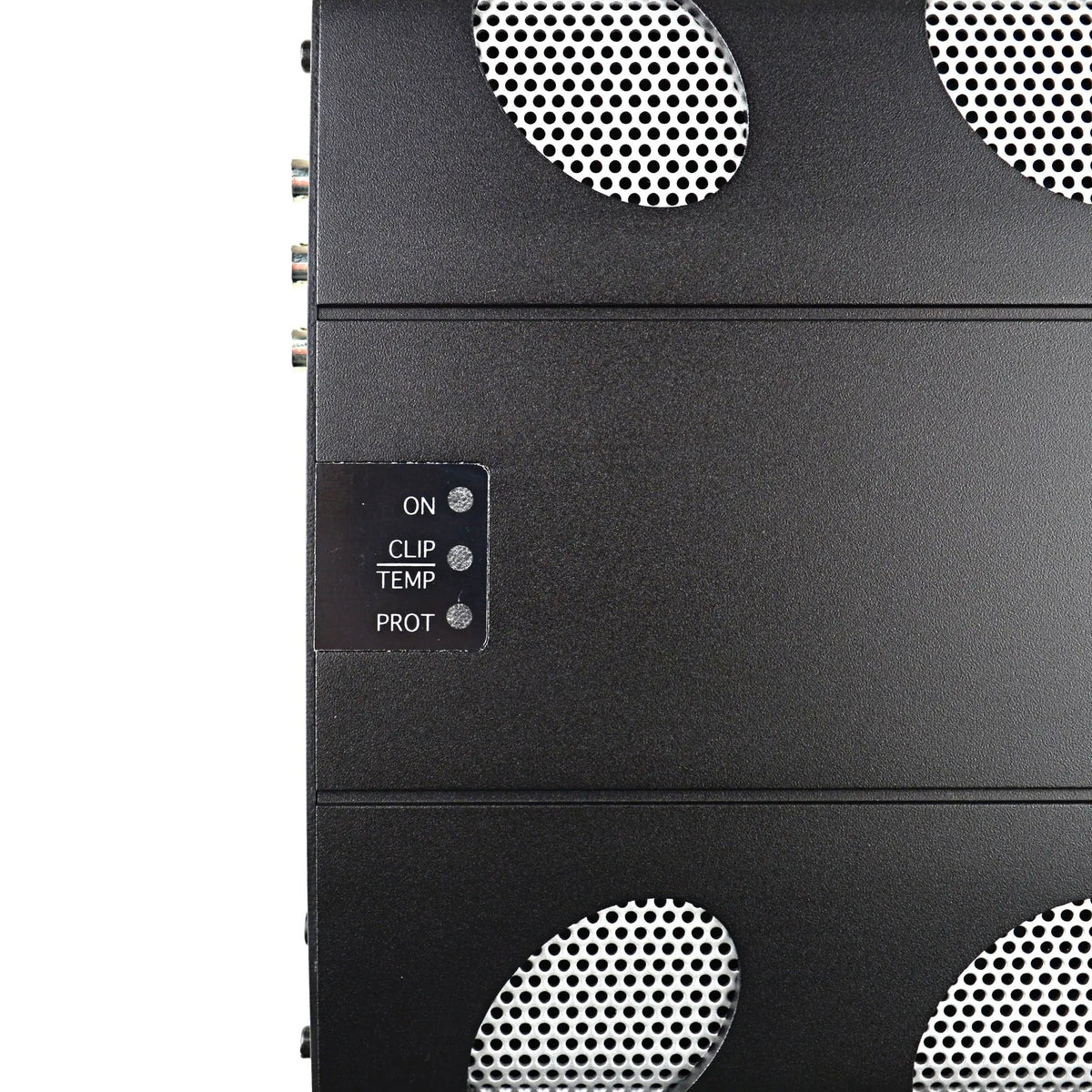

- Visual status monitor: Check the amplifier’s operational status on its built-in display.
- Fuse block included: The package includes a fuse block and 100A ANL fuse.
Technical Specifications
| Product | Audiopipe APHD-6160-H2 |
|---|---|
| Amplifier type | Full range Class D high power amplifier |
| Channels | 6 |
| Maximum power output | Up to 3000 Watts |
| Continuous power output @ 1% 1KHz, 14.4V | Stereo @4ohms: 6x160W; Stereo @2ohms: 6x270W; Mono @4ohms: 3x550W |
| Frequency response -1dB | 10Hz–25kHz |
| Crossover range, high pass | 20Hz–5kHz @12dB/Oct |
| Crossover range, low pass | 50Hz–5kHz @12dB/Oct |
| Signal to noise ratio (A wtg) | >90dB |
| Input sensitivity | 0.2–6V |
| Working voltage | 9–16V |
| Protection system | Short circuit protection, high/low supply voltage protection, and thermal protection |
| Status monitoring | Built-in visual status monitor |
| Included | Fuse block and 100A ANL fuse |
| Dimensions (L x W x H) | 11.8" x 8.2" x 2.6" (300 x 209 x 67 mm) |
Why Choose This Product?
The APHD-6160-H2 combines six-channel amplification with a full-range design, giving you several rated output options in one unit. Its built-in status monitor and protection features provide useful operating information and protection against short circuits, supply-voltage issues, and overheating.
Use the listed continuous ratings to compare the amplifier’s output with your system’s impedance and setup. The 3000-watt figure is the stated maximum output; the continuous ratings are listed separately above.
Installation & Compatibility Notes
Plan for the amplifier’s 11.8" x 8.2" x 2.6" dimensions and a 9–16V working voltage. Check your available mounting space and confirm that your system’s load matches the applicable ratings before installation.
Frequently Asked Questions
What is the continuous stereo output at 2 ohms?
The listed continuous output is 6x270W at 2 ohms in stereo mode, measured at 1% 1KHz and 14.4V.
What continuous output is listed for mono operation?
The specification lists 3x550W at 4 ohms in mono mode, measured at 1% 1KHz and 14.4V.
What crossover ranges does the APHD-6160-H2 provide?
The high-pass range is 20Hz–5kHz at 12dB/Oct. The low-pass range is 50Hz–5kHz at 12dB/Oct.
What comes with the amplifier?
A fuse block and 100A ANL fuse are included.
