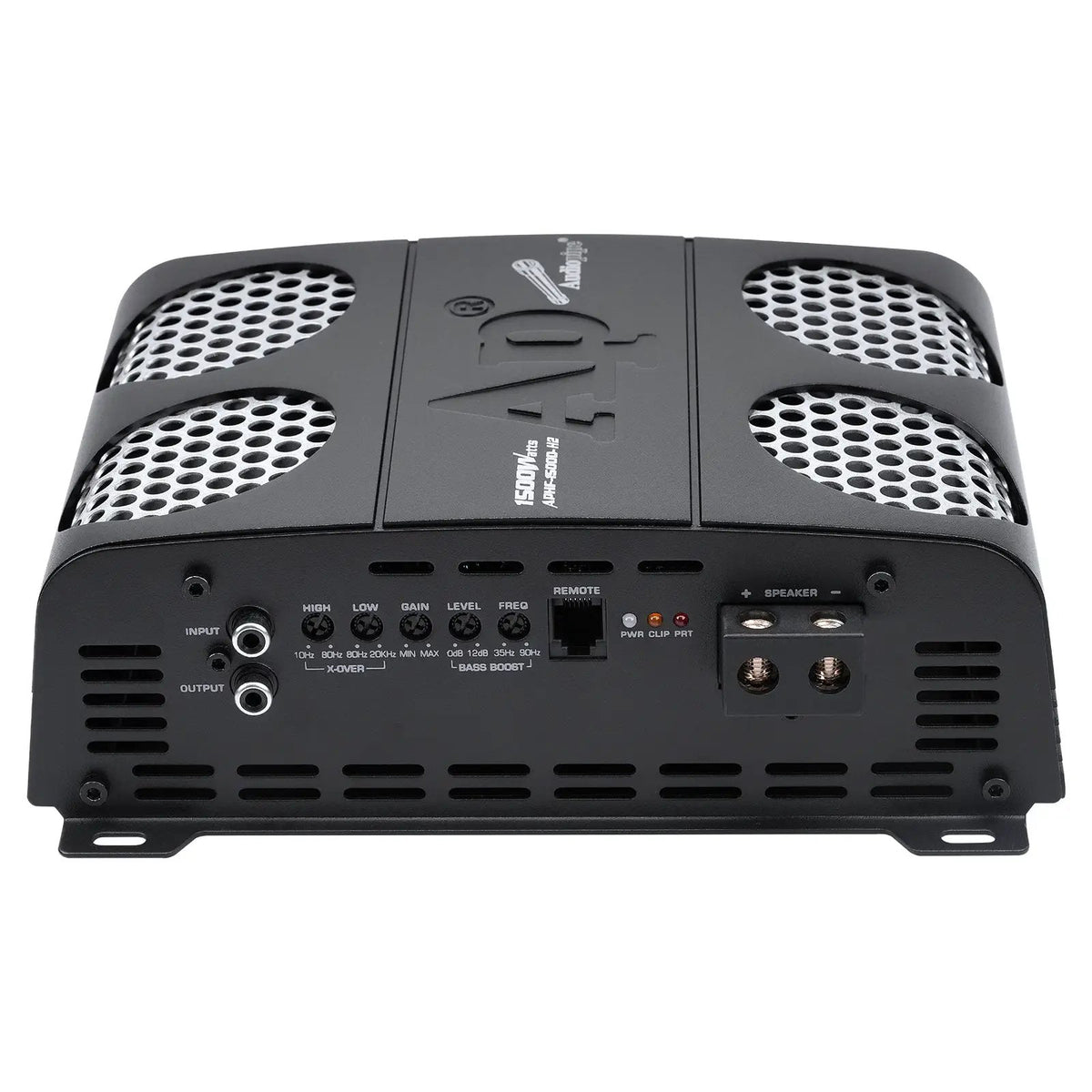

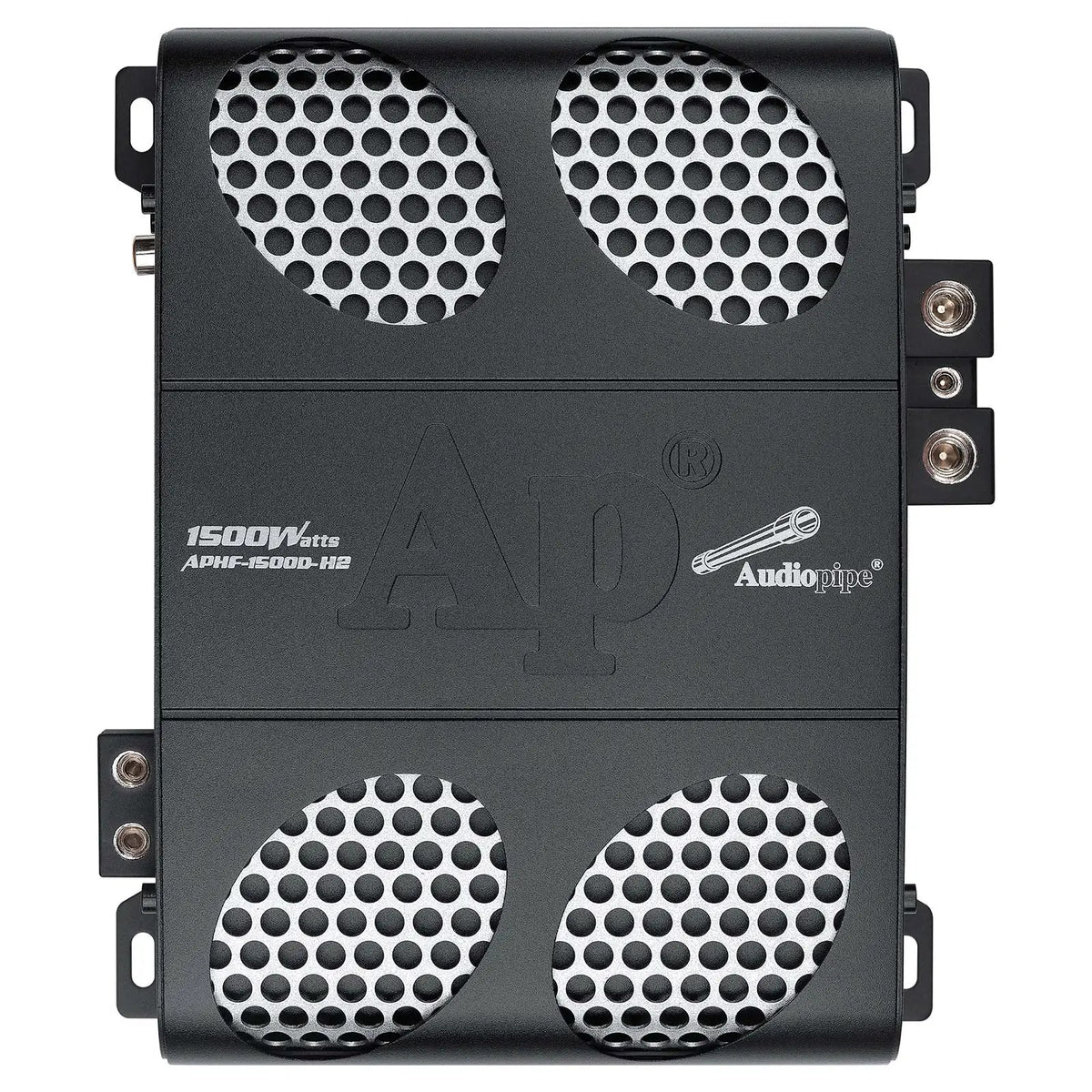

Audiopipe APHF-1500D-H2 1500 Watts Full Range Class D Mosfet Amplifier 2 Ohms
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 970.0 W
- RMS output at 2 ohms: 1600 W
- Full-bridge Class D design: PWM technology and dual internal amplifiers in BTL mode deliver power efficiently in a compact heatsink footprint.
- Broad frequency response: The 10Hz–20KHz response supports full-range amplification.

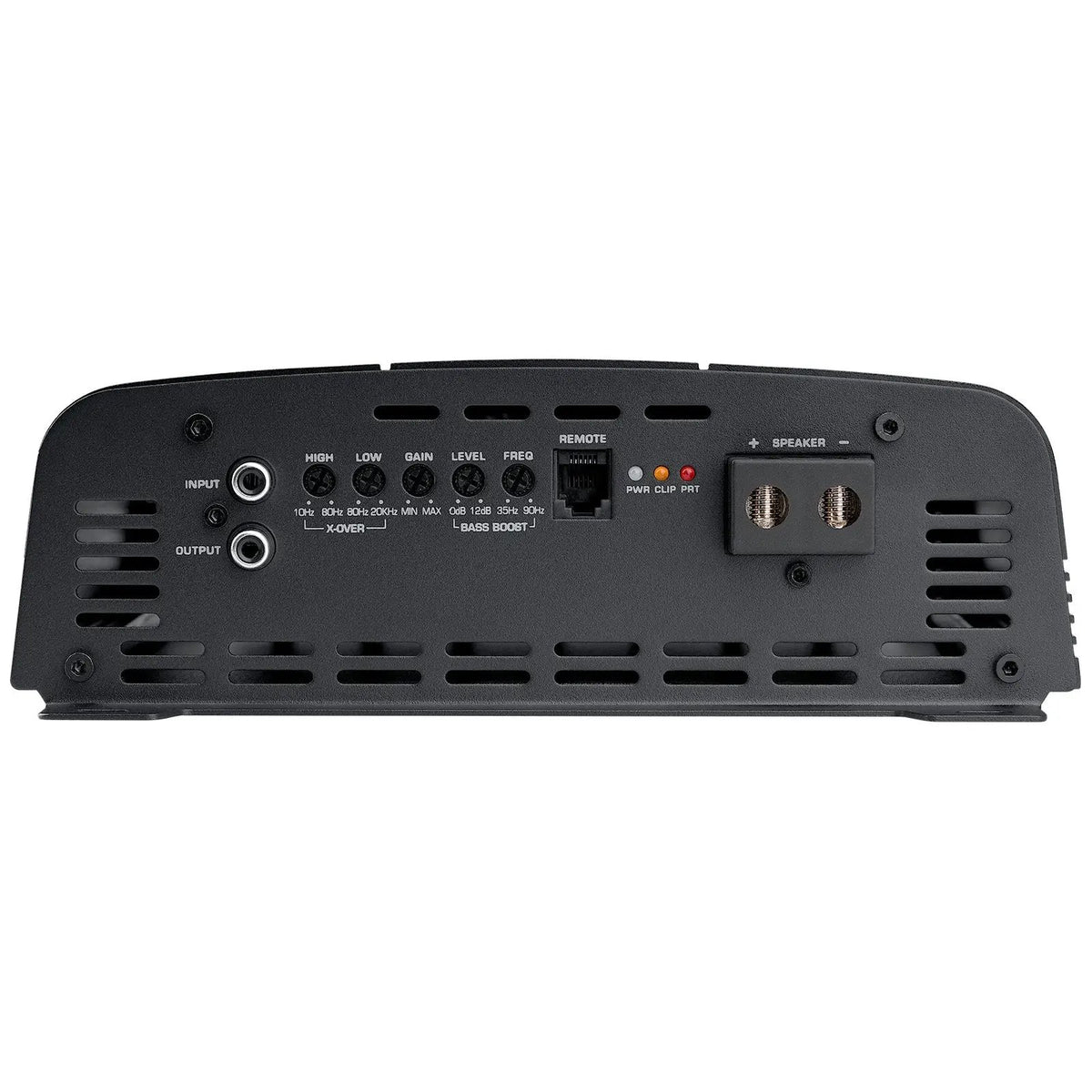

- Adjustable filters: High-pass and low-pass controls help shape the signal for your system.
Audiopipe APHF-1500D-H2 1500 Watts Full Range Class D Mosfet Amplifier 2 Ohms is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get powerful, adjustable car audio from the Audiopipe APHF-1500D-H2 full range Class D MOSFET amplifier. Its full-bridge design, built-in protection, and remote bass control give you practical control over your system’s sound.
Key Features & Benefits
- Full-bridge Class D design: PWM technology and dual internal amplifiers in BTL mode deliver power efficiently in a compact heatsink footprint.
- Broad frequency response: The 10Hz–20KHz response supports full-range amplification.
- Adjustable filters: High-pass and low-pass controls help shape the signal for your system.

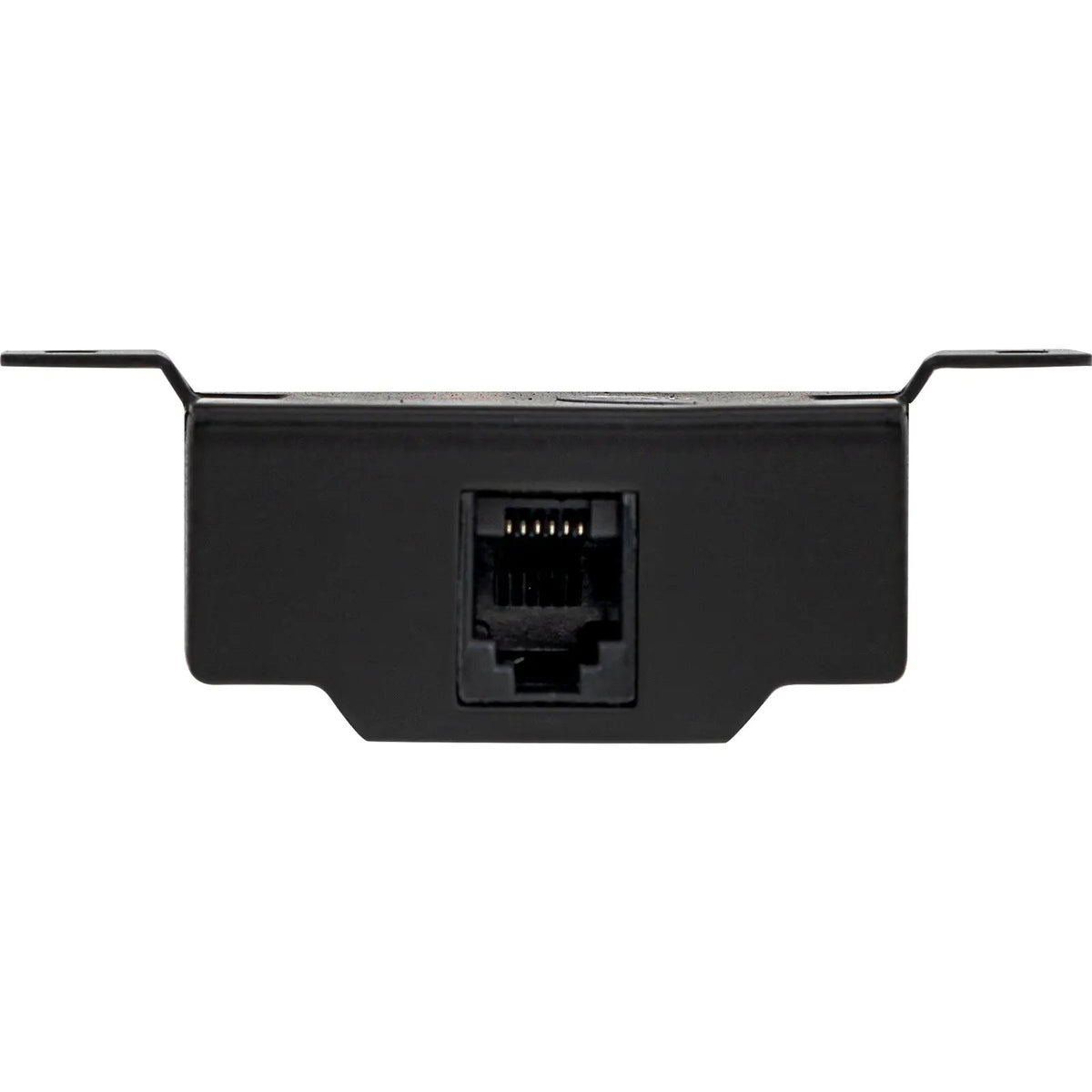

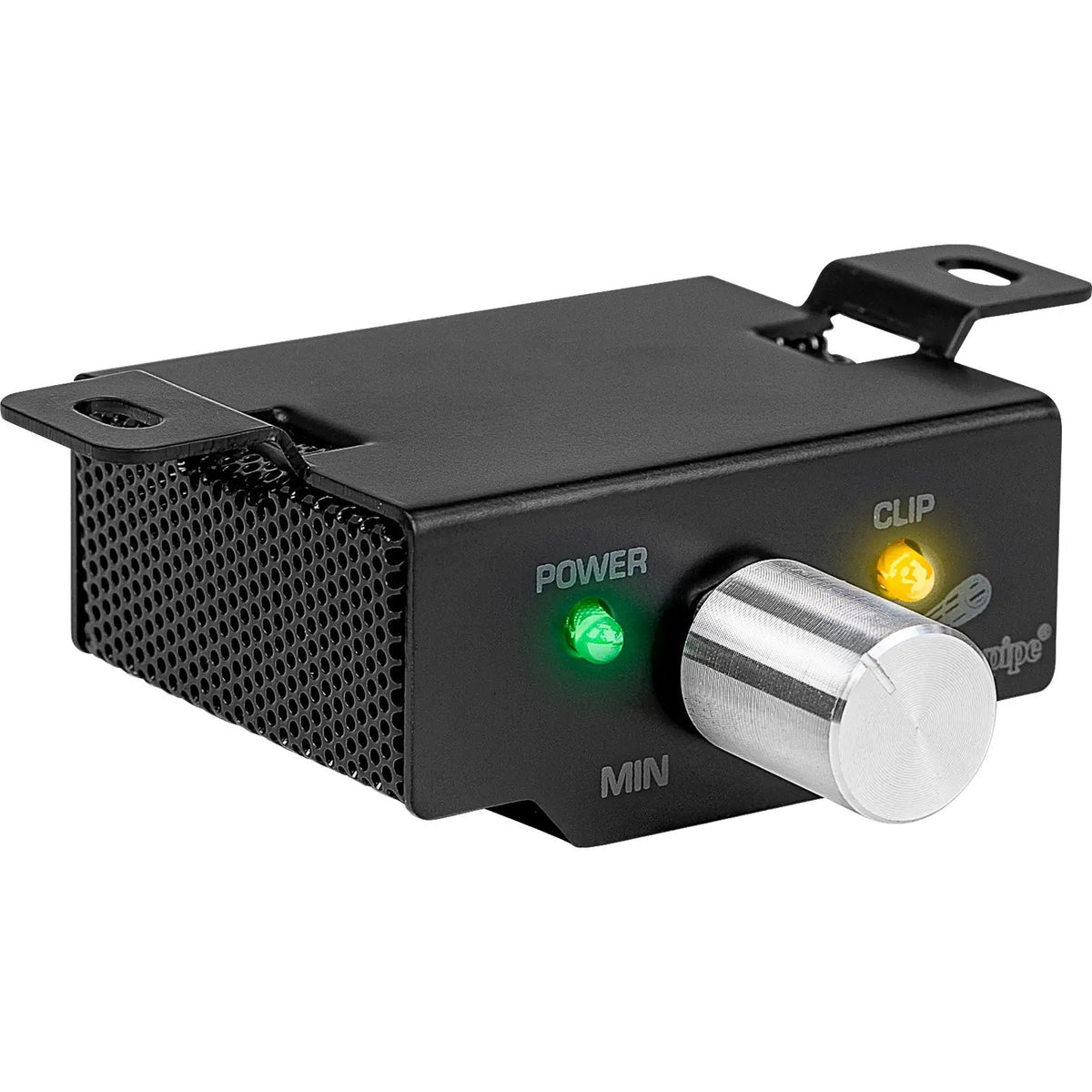

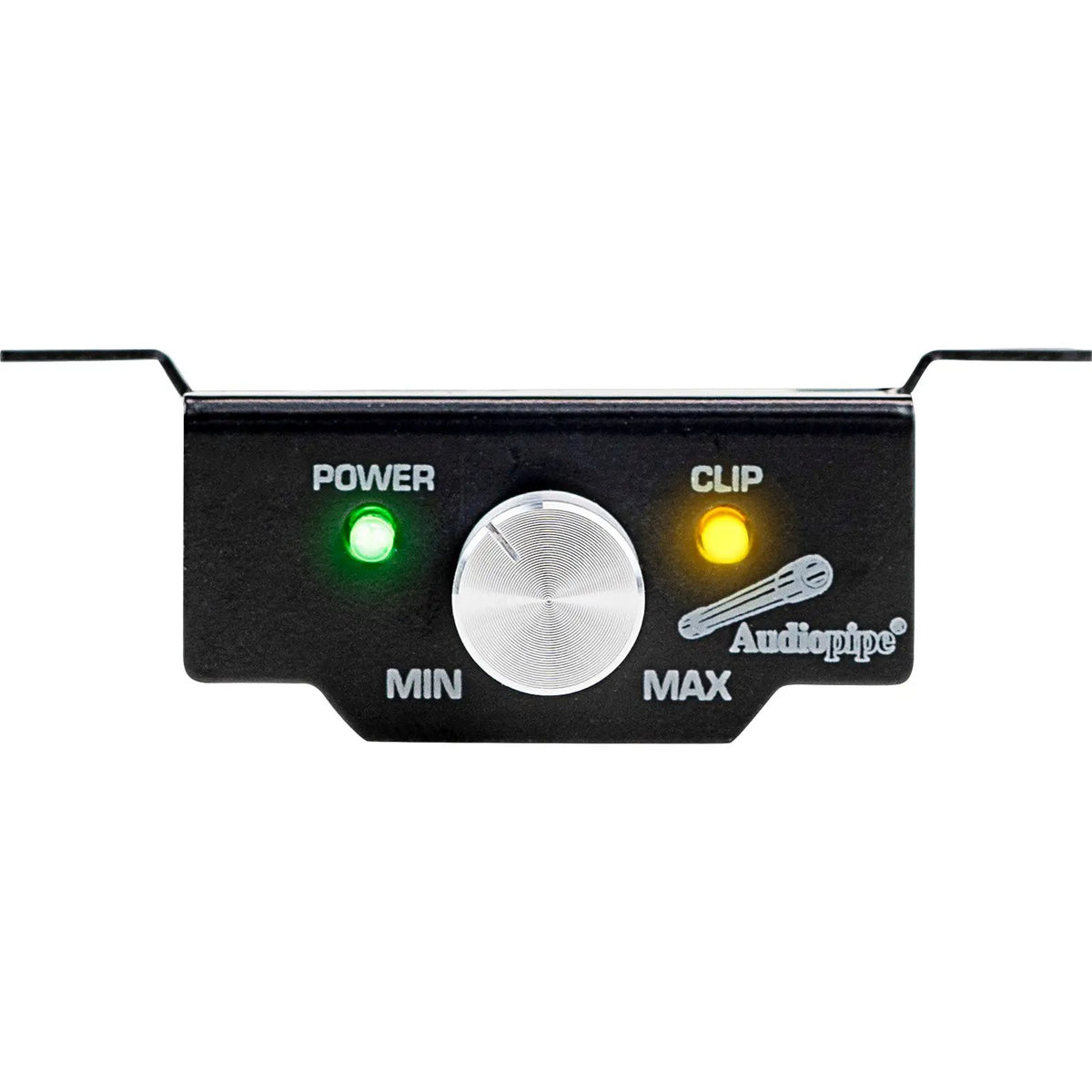

- Remote bass control: Adjust bass from the driver’s seat, while the clip LED and power indicator help you monitor the amplifier.
- Four-point protection: Overload, overheat, over-voltage, and under-voltage protection help guard the amplifier against listed operating conditions.
Technical Specifications
| Product type | Full Range Class D MOSFET amplifier |
|---|---|
| Model | APHF-1500D-H2 |
| Maximum power output | 1500 Watts |
| Continuous power output @ 1% 1KHz, 14.4V, mono @ 4 Ohm | 1 x 970 WATTS (76A) |
| Continuous power output @ 1% 1KHz, 14.4V, mono @ 2 Ohm | 1 x 1600 WATTS (134A) |
| Frequency response -3dB | 10Hz-20KHz |
| Signal to noise ratio | ≥85dB |
| Input sensitivity | 0.25 - 4V |
| Overload protection | Yes |
| Overheat protection | Yes |
| Over-voltage protection | 16V |
| Under-voltage protection | 9.5V |
| Remote control and indicators | Remote subwoofer volume control, clip LED, and power on/off LED indicator |
| High pass | 10Hz-80Hz 12dB/Octave |
| Low pass | 80Hz-20KHz 12dB/Octave |
| Bass boost | 0-12 dB @ 35Hz-90Hz |
| Dimensions (L x W x H) | 5.9" x 9" x 2.9"( 150 x 229 x 73 mm) |
Why Choose This Product?
The APHF-1500D-H2 combines full-range Class D amplification with MOSFET circuitry in a compact heatsink design. Its full-bridge approach uses the power supply voltage to deliver more power to the load than a single-ended amplifier, according to the product description.
Use the remote bass knob to adjust bass from the driver’s seat, and watch the clip indicator while monitoring your system. The listed high-pass, low-pass, and bass boost controls give you options for shaping the amplifier’s output.
Installation & Compatibility Notes

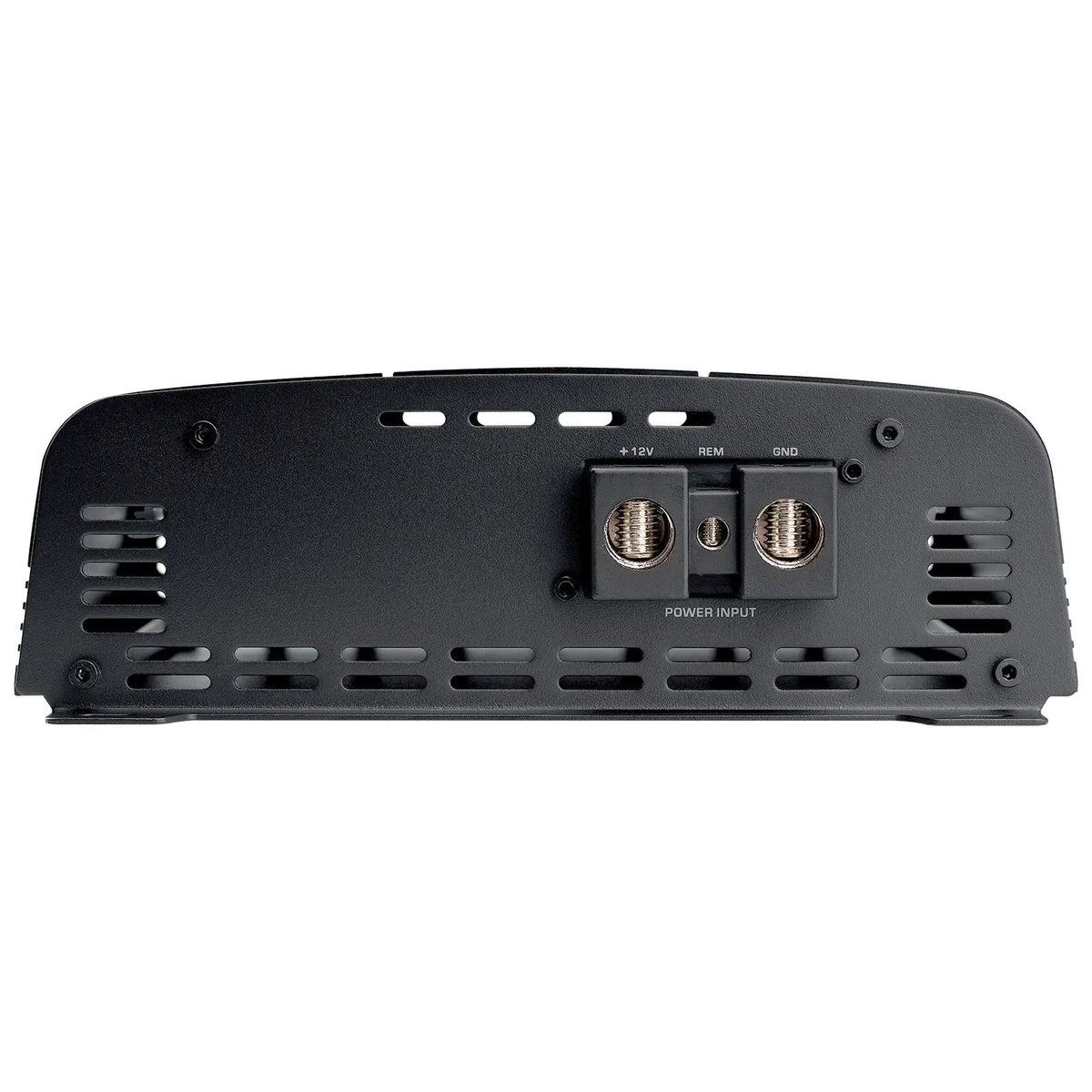

Check the amplifier’s 5.9" x 9" x 2.9" dimensions against your planned mounting space. Match the speaker load to the stated 2-ohm or 4-ohm power ratings, and account for the listed current draw at 14.4V when planning the electrical installation.
Confirm that your system’s signal level falls within the 0.25 - 4V input sensitivity range. The product includes a remote bass control knob, clip LED, and power on/off LED indicator.
Frequently Asked Questions
What power does the APHF-1500D-H2 produce?
The product is described as a 1500-watt amplifier. Its listed continuous output at 14.4V and 1% 1KHz is 1 x 970 WATTS (76A) at 4 Ohm and 1 x 1600 WATTS (134A) at 2 Ohm.
What speaker impedance is listed?
Continuous output ratings are provided for mono operation at 4 Ohm and 2 Ohm. Match the connected load to the rating that applies to your setup.
Can I adjust bass from the driver’s seat?
Yes. The amplifier comes with a remote subwoofer volume control, along with a clip LED and power on/off LED indicator.
What are the amplifier’s dimensions?
It measures 5.9" x 9" x 2.9" (150 x 229 x 73 mm). Compare these measurements with your available mounting space.
What protection features are included?
The listed protections cover overload, overheating, over-voltage at 16V, and under-voltage at 9.5V.
