Audiopipe APHF-3000D-H2 3000 Watts Full Range Class D Mosfet Amplifier 2 Ohms
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 1600.0 W
- RMS output at 2 ohms: 3100 W
- Full-range Class D design: PWM technology efficiently delivers power to speakers across the stated frequency response.
- Full-bridge MOSFET circuitry: Dual internal amplifiers in BTL mode provide high output in a compact heatsink footprint.
- Power ratings at two loads: Compare the 4-ohm and 2-ohm continuous output ratings when planning your system.
Audiopipe APHF-3000D-H2 3000 Watts Full Range Class D Mosfet Amplifier 2 Ohms is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

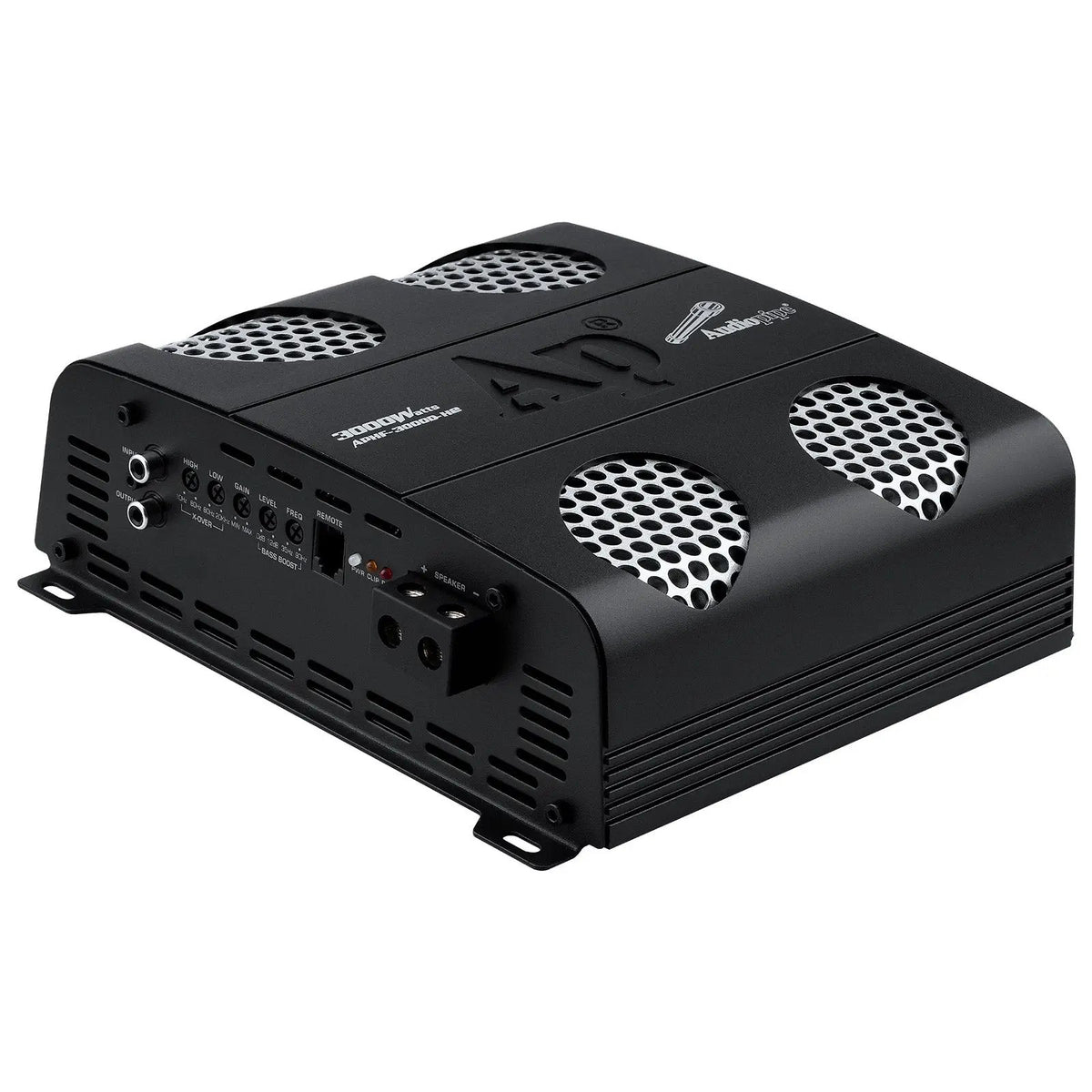

The Audiopipe APHF-3000D-H2 full-range Class D MOSFET amplifier delivers mono car-audio power in a compact heatsink design. Its full-bridge circuitry combines dual internal amplifiers in BTL mode, with output ratings specified at both 4-ohm and 2-ohm loads.
Use its adjustable filters and bass boost to shape the signal for your system, then monitor the clip and power indicators from the included remote control.
Key Features & Benefits
- Full-range Class D design: PWM technology efficiently delivers power to speakers across the stated frequency response.
- Full-bridge MOSFET circuitry: Dual internal amplifiers in BTL mode provide high output in a compact heatsink footprint.
- Power ratings at two loads: Compare the 4-ohm and 2-ohm continuous output ratings when planning your system.

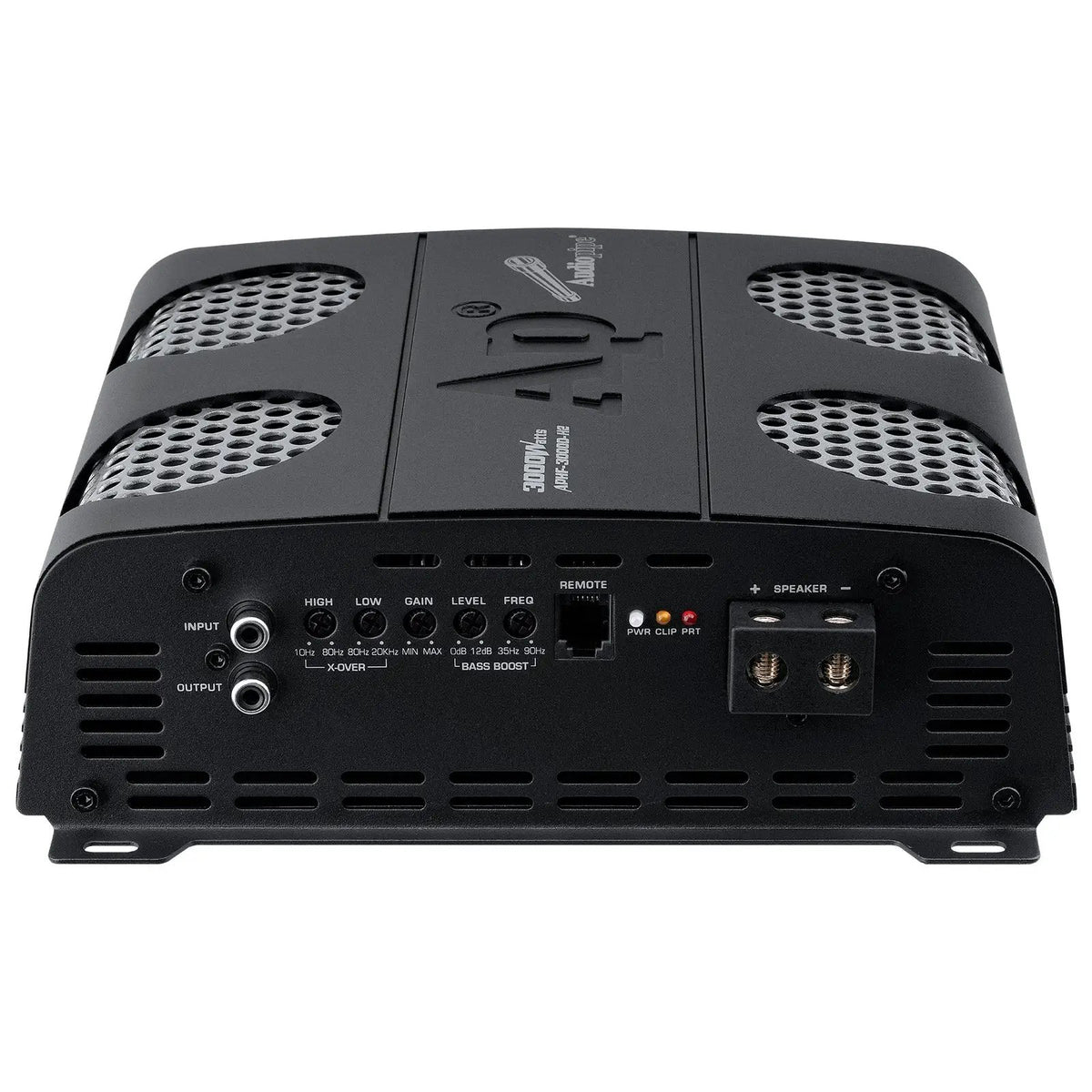

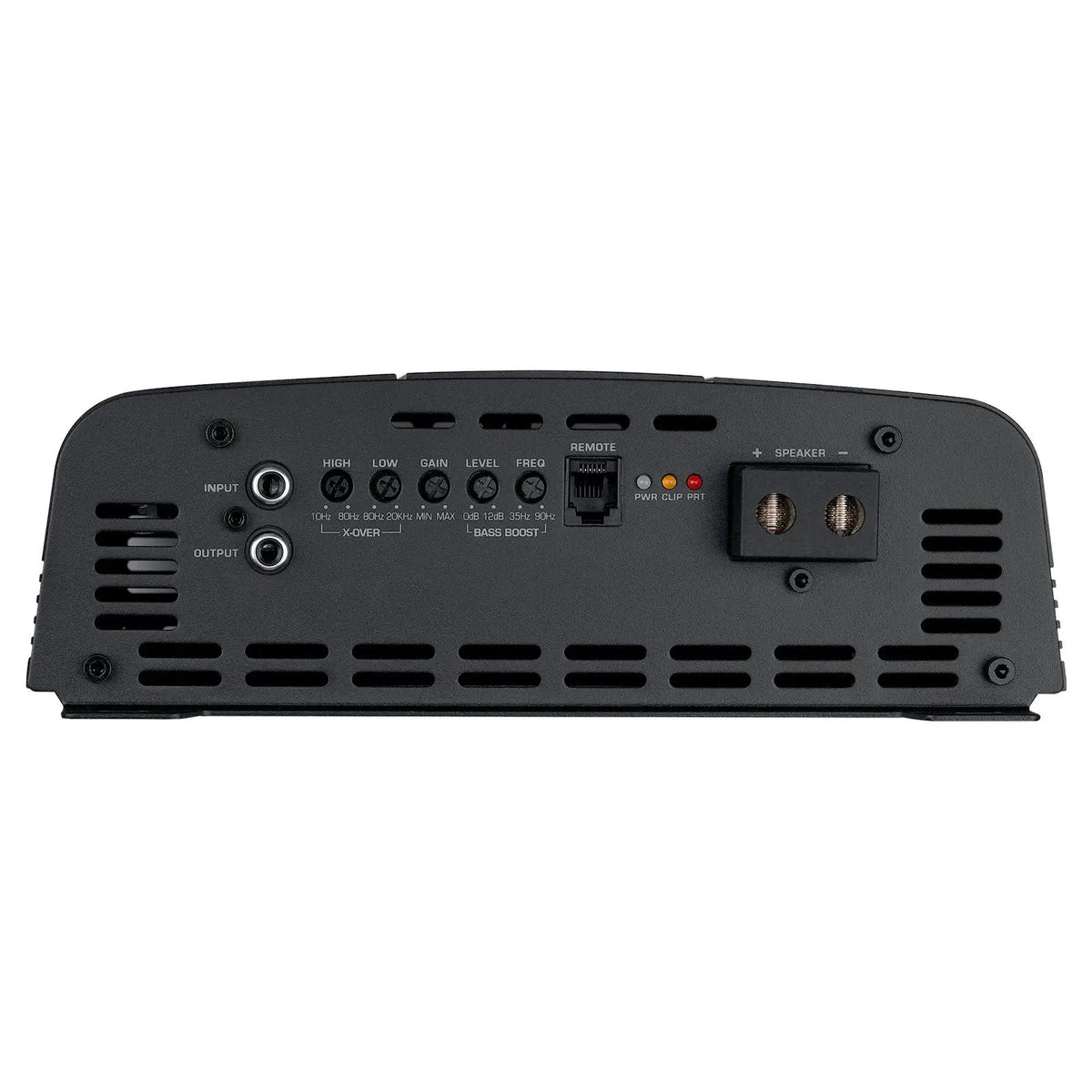

- Adjustable filters and bass boost: High-pass, low-pass, and bass boost controls offer options for shaping the signal.

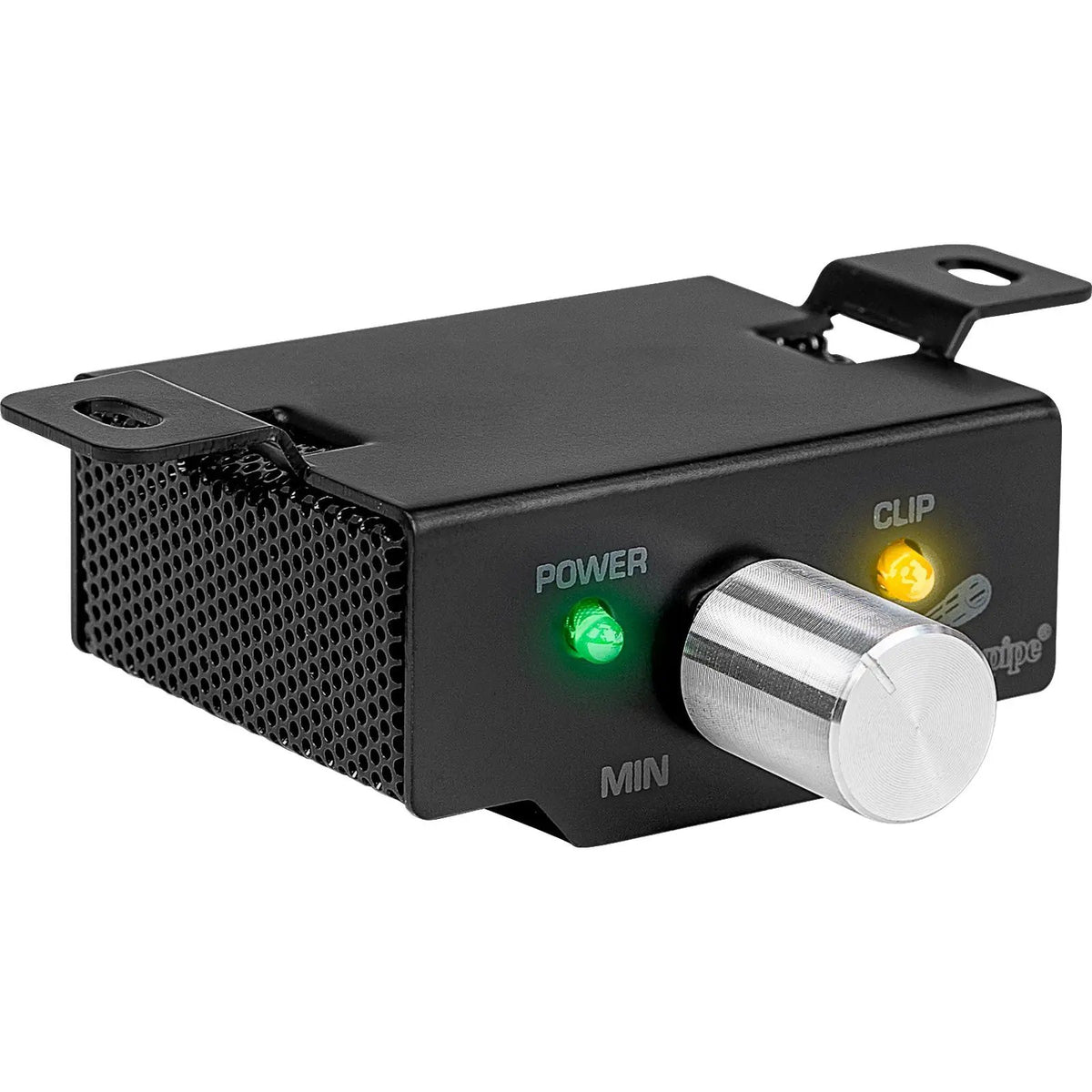

- Remote monitoring and control: The bass control knob and clip and power LEDs let you adjust and monitor the amplifier from the driver’s seat.
- Protection features: Overload, heat, and voltage protections address the operating conditions listed below.
Technical Specifications
| Product type | Full Range Class D MOSFET Amplifier |
|---|---|
| Amplifier configuration | Mono; dual internal amplifiers in BTL mode |
| Technology | Full Bridge Class D; pulse-width modulation (PWM) |
| Maximum power output | Up to 3000 Watts |
| Continuous power output @ 1% 1KHz, 14.4V | Mono @ 4 Ohm: 1 x 1600 WATTS (130A) Mono @ 2 Ohm: 1 x 3100 WATTS (265A) |
| Frequency response -3dB | 10Hz-20KHz |
| Signal to noise ratio | ≥85dB |
| Input sensitivity | 0.25 - 4V |
| High pass | 10Hz-80Hz 12dB/Octave |
| Low pass | 80Hz-20KHz 12dB/Octave |
| Bass boost | 0-12 dB @ 35Hz-90Hz |
| Overload protection | Equipped |
| Overheat protection | Advanced heatsink design |
| Over-voltage protection | 16V |
| Under-voltage protection | 9.5V |
| Additional protection described | Four-point protection against electrical shortages, overheating, low voltage, and overvoltage |

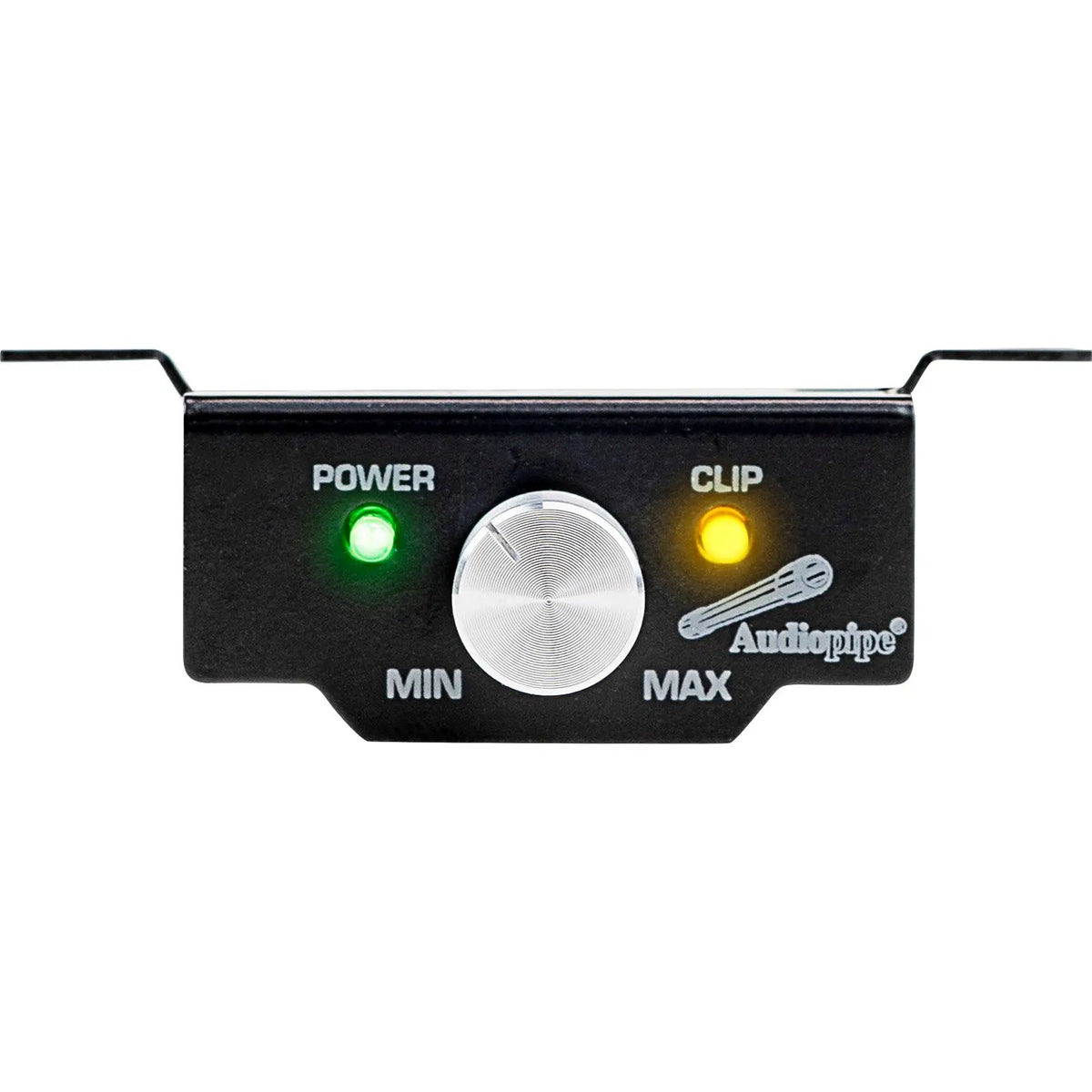

| Remote control and indicators | Remote bass control knob, clip LED, and power on/off LED indicator |
| Dimensions (L x W x H) | 7.4" x 9" x 2.9" (189 x 229 x 73 mm) |
Why Choose This Product?
The APHF-3000D-H2 pairs full-range Class D operation with a mono, full-bridge design. Its stated continuous output ratings help you compare performance at different loads, while the compact heatsink design suits installations where amplifier space matters.
Use the adjustable filter ranges and bass boost to tailor the signal to your setup. The remote bass knob and clip indicator keep adjustment and monitoring within reach from the driver’s seat.
Installation & Compatibility Notes

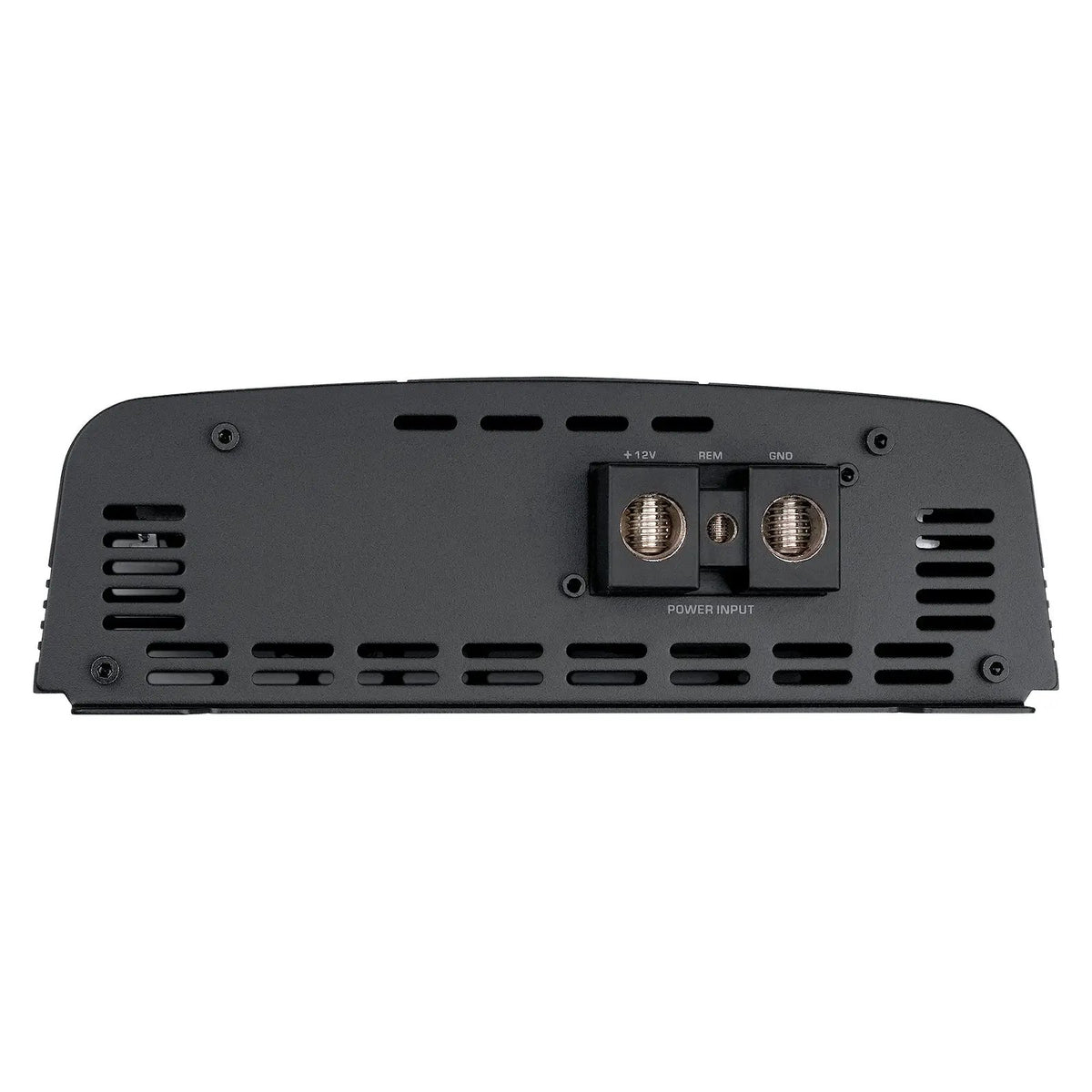

Check that your speaker load matches the amplifier’s supported 2-ohm or 4-ohm rating before installation. The continuous output figures are specified at 14.4V; account for the listed current draw of 130A at 4 ohms and 265A at 2 ohms when planning the electrical system.
Allow space for the amplifier’s 7.4" x 9" x 2.9" dimensions. Follow the product’s installation requirements for connections and electrical protection.
Frequently Asked Questions
What is the continuous power output at 2 ohms?
At 14.4V and 1% 1KHz, the listed mono output at 2 ohms is 1 x 3100 WATTS (265A).
What is the continuous power output at 4 ohms?
At 14.4V and 1% 1KHz, the listed mono output at 4 ohms is 1 x 1600 WATTS (130A).
Can I adjust the amplifier’s filters?
Yes. The listed high-pass range is 10Hz-80Hz 12dB/Octave, and the low-pass range is 80Hz-20KHz 12dB/Octave. Bass boost is adjustable from 0-12 dB @ 35Hz-90Hz.
What comes with the remote control?
The amplifier is described as equipped with a remote bass control knob, clip LED, and power on/off LED indicator.
How much installation space should I allow?
The listed dimensions are 7.4" x 9" x 2.9" (189 x 229 x 73 mm). Allow additional room as required by your installation.
