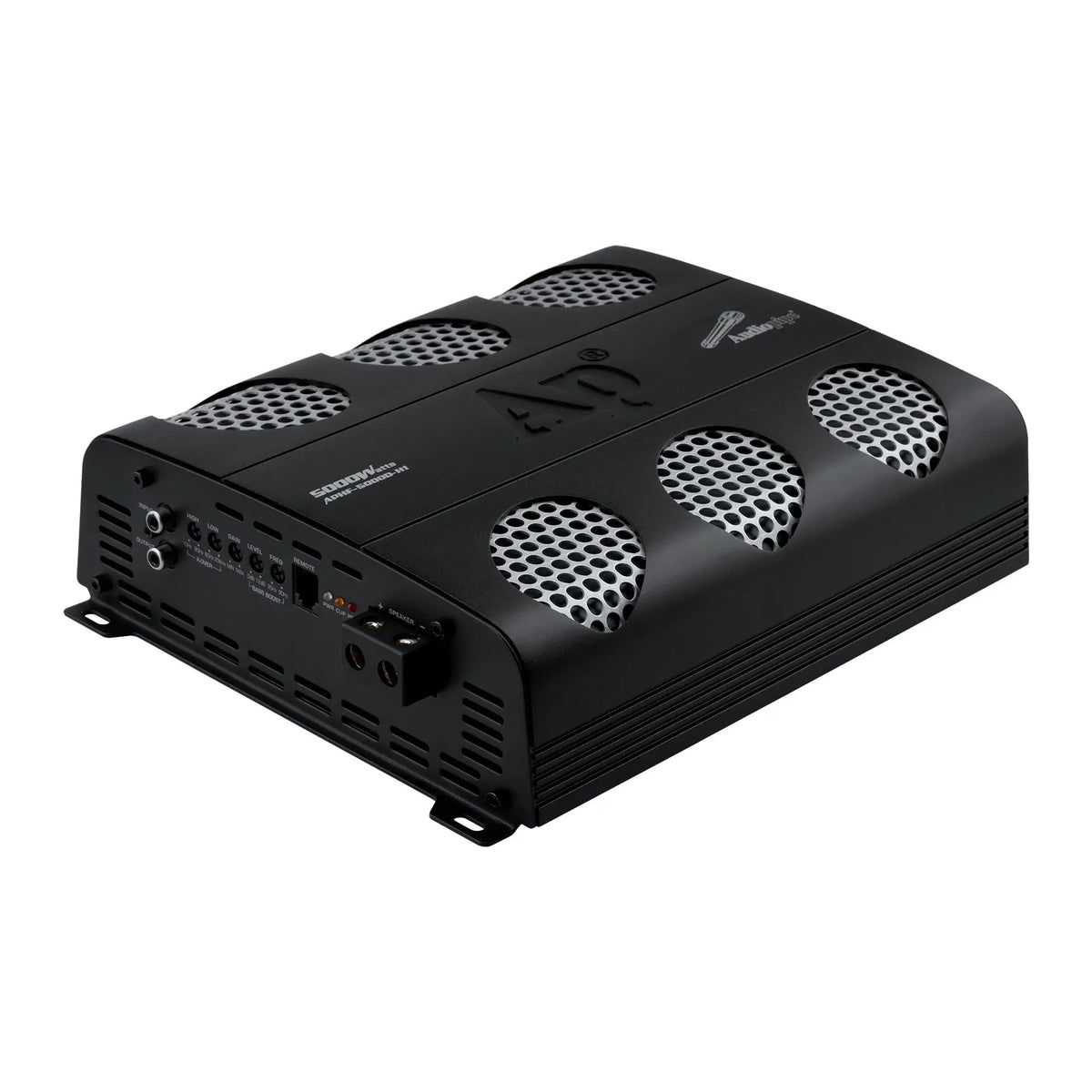

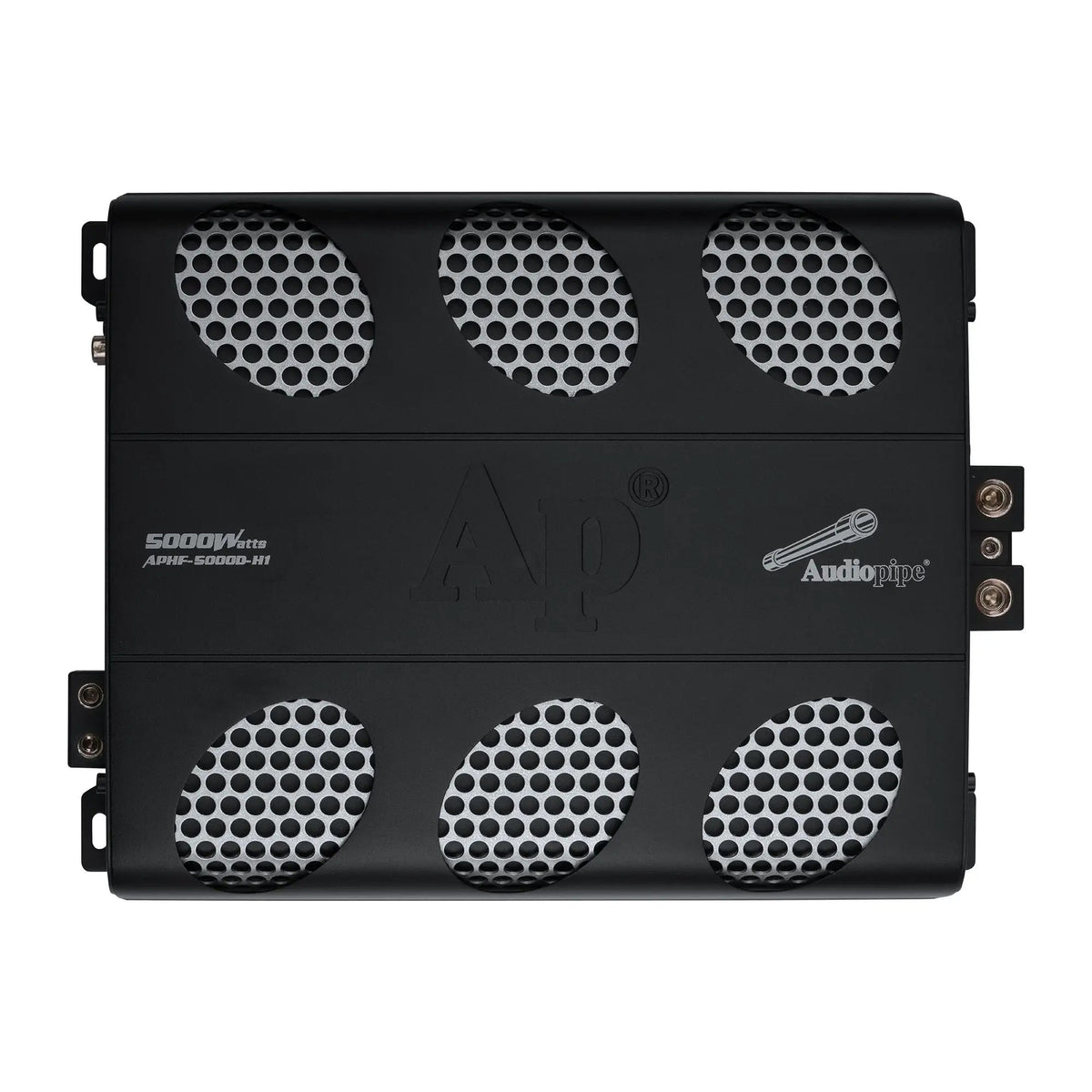

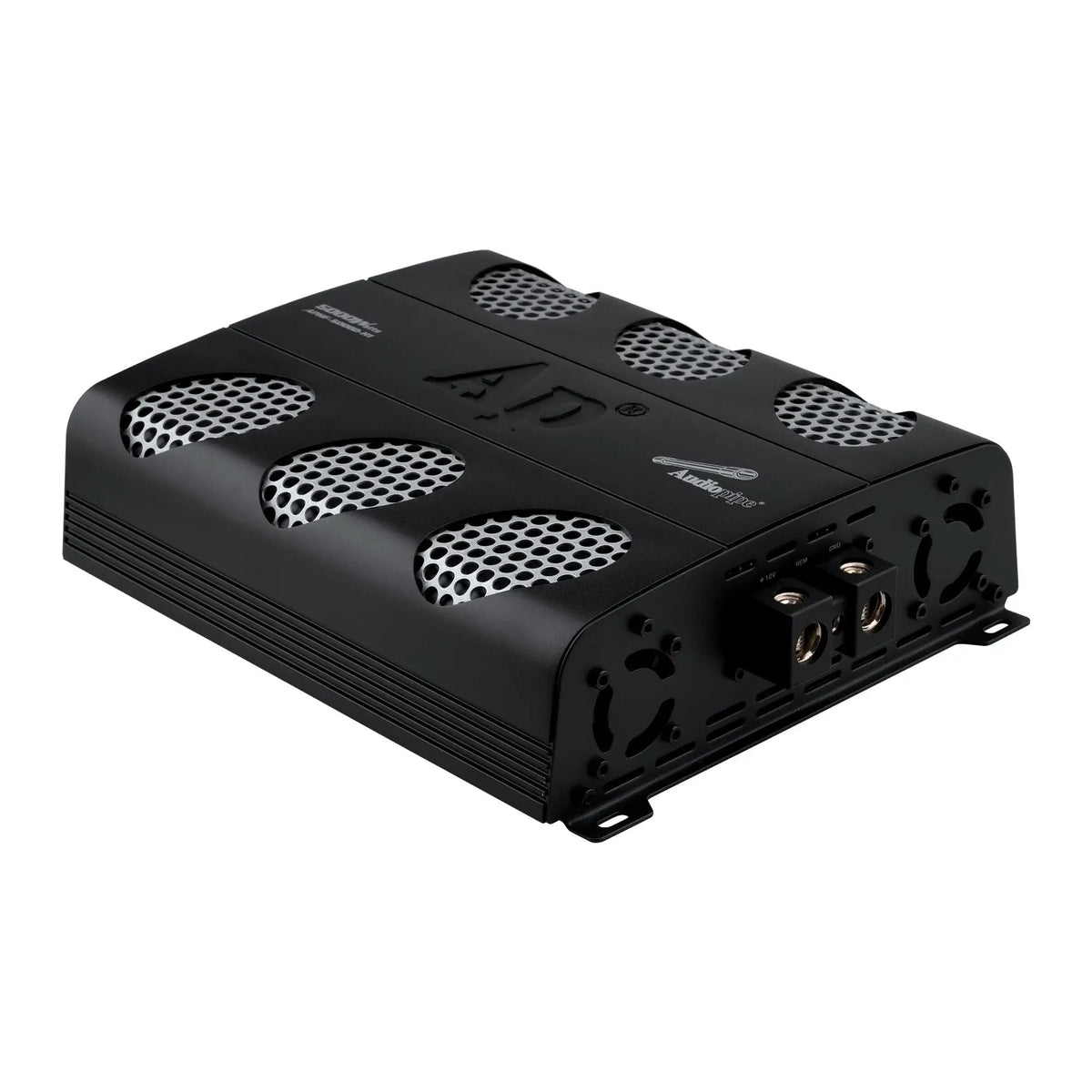

Audiopipe APHF-5000D-H1 5000 Watts Full Range Class D Mosfet Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 1600.0 W
- RMS output at 2 ohms: 3200 W
- RMS output at 1 ohm: 5000 W
- FREQUENCY RESPONSE: 10Hz-20KHz
Audiopipe APHF-5000D-H1 5000 Watts Full Range Class D Mosfet Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

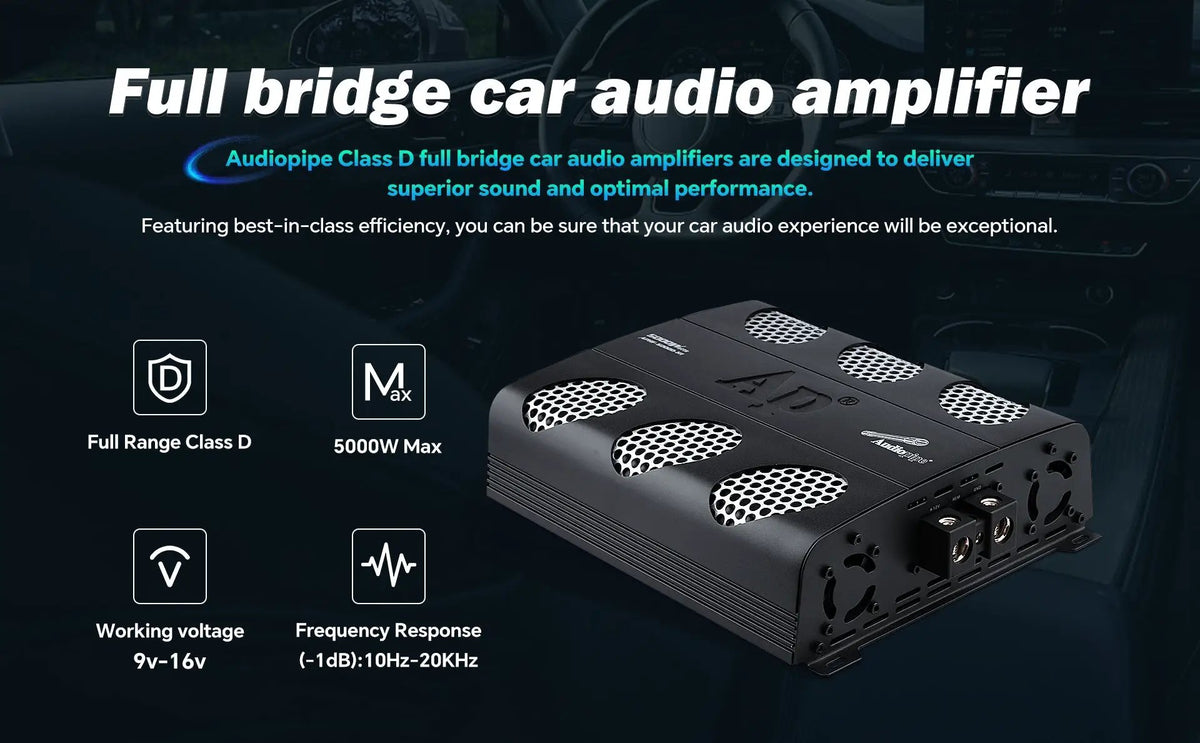

The Audiopipe APHF-5000D-H1 is a full-range Class D MOSFET mono amplifier built for high-output car audio. It delivers up to 5000 watts, with a 5000W RMS rating at 1 ohm and 14.4V.
Its full-bridge design uses dual internal amplifiers in BTL mode, while adjustable filters and bass boost let you shape the signal for your system.
Key Features & Benefits
- High output: Choose from 1600W, 3200W, or 5000W RMS ratings at 14.4V, depending on the load.

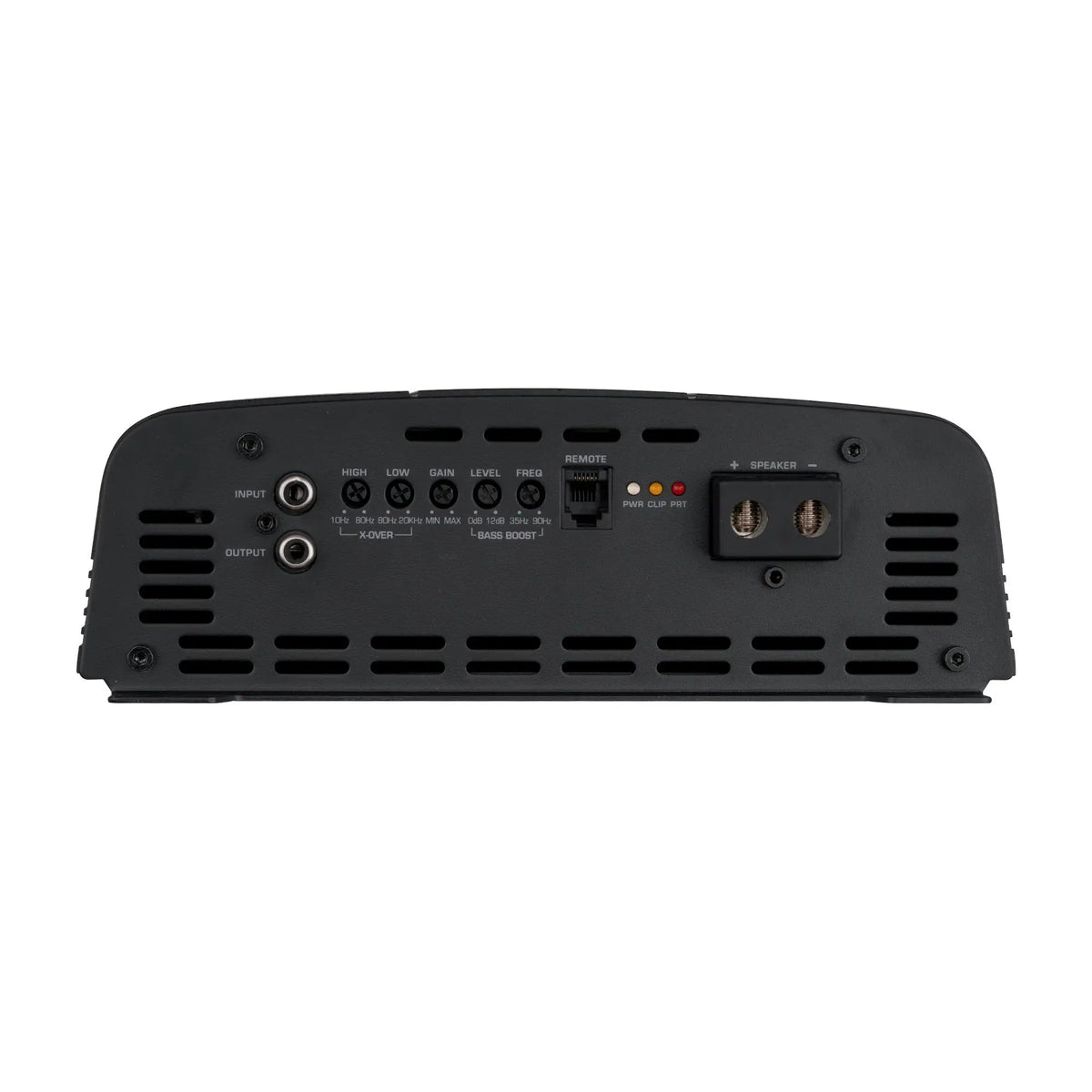

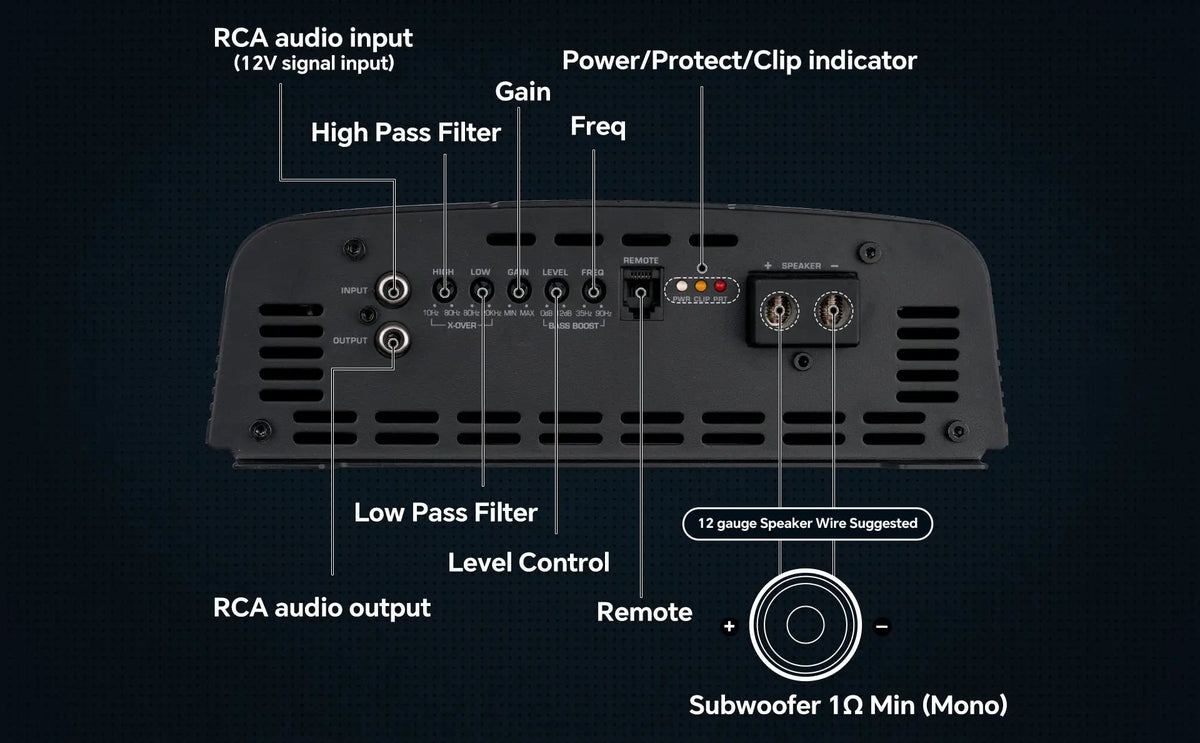

- Adjustable filters: High-pass and low-pass controls help tailor the frequency range sent through your system.
- Bass adjustment: Set bass boost from 0 to 12 dB across 35Hz–90Hz.

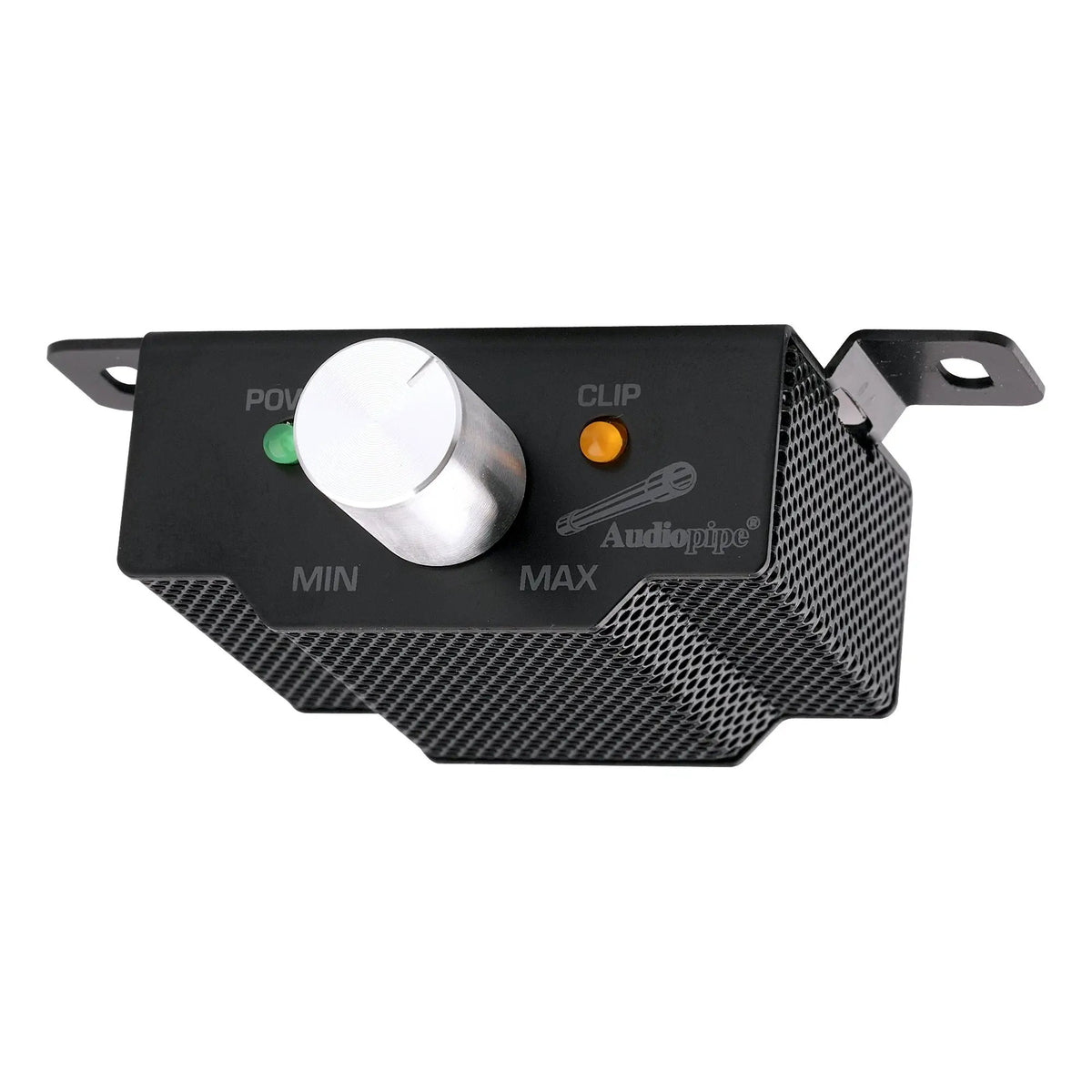

- Remote monitoring: The remote bass control includes a clip LED and power on/off LED indicator.
- Protection features: Overload, overheating, low-voltage, and over-voltage protection help guard the amplifier.
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier type | Full-range Class D MOSFET mono amplifier |
| Maximum power output | Up to 5000 Watts |
| RMS power output at 4 Ohm | 1600W (14.4V), <1% distortion |
| RMS power output at 2 Ohm | 3200W (14.4V), <1% distortion |
| RMS power output at 1 Ohm | 5000W (14.4V), <1% distortion |
| Frequency response | 10Hz-20KHz |
| Signal-to-noise ratio | ≥85dB |
| Input sensitivity | 0.25 - 4V |
| High-pass filter | 10Hz-80Hz, 12dB/Octave |
| Low-pass filter | 80Hz-20KHz, 12dB/Octave |
| Bass boost | 0-12 dB @ 35Hz-90Hz |
| Protection | Overload protection; overheat protection; over-voltage protection: 16V; under-voltage protection: 9V |
| Remote control and indicators | Remote subwoofer volume control, clip LED, and power on/off LED indicator |
| Dimensions (L x W x H) | 10.2" x 9" x 2.9" (259 x 229 x 73 mm) |
Why Choose This Product?

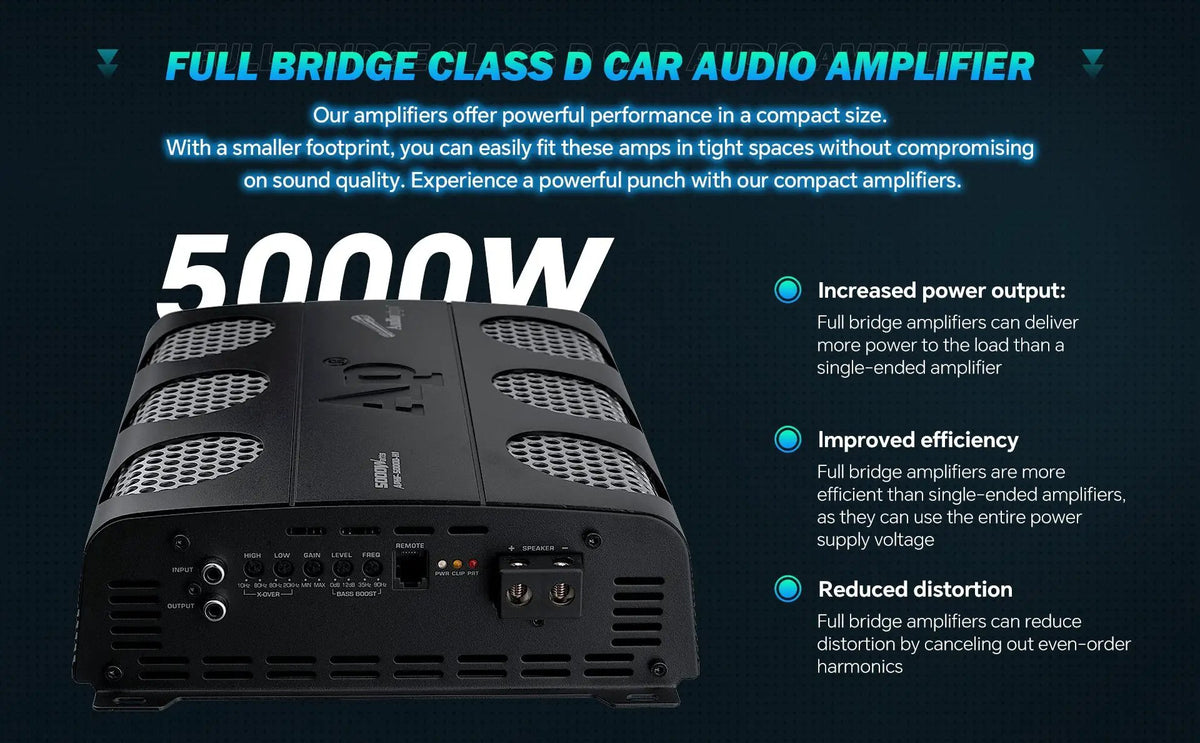

The APHF-5000D-H1 pairs full-range Class D amplification with a full-bridge design and dual internal amplifiers in BTL mode. The design uses pulse-width modulation (PWM) and delivers power through a compact heatsink. Its remote bass control and clip indicator give you adjustment and monitoring from the driver’s seat.
Audiopipe describes this amplifier as suited to “Brazilian Style” amplification. Its three RMS ratings make the specified output at each listed load easy to compare.
Installation & Compatibility Notes
Check that your connected speakers’ or subwoofers’ impedance matches a listed load rating. Confirm the available mounting space against the amplifier’s dimensions, and plan the installation around the listed voltage protection thresholds.
Frequently Asked Questions
What is the RMS power at each listed load?
At 14.4V, the amplifier is rated at 1600W RMS at 4 ohms, 3200W RMS at 2 ohms, and 5000W RMS at 1 ohm. Each rating is listed at <1% distortion.
What frequency range does the amplifier cover?
Its stated frequency response is 10Hz-20KHz. The high-pass filter adjusts from 10Hz to 80Hz, and the low-pass filter from 80Hz to 20KHz.
Can I adjust bass from the driver’s seat?
Yes. The amplifier comes with a remote subwoofer volume control featuring a clip LED and a power on/off LED indicator.
What are the amplifier’s dimensions?
It measures 10.2" x 9" x 2.9" (259 x 229 x 73 mm), listed as length x width x height.
