Audiopipe APMOX-800.1 800 Watts Full Range Class D Mini Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 560.0 W
- RMS output at 2 ohms: 800 W
- Class D design: Pulse-width modulation helps deliver power efficiently to your speakers.
- MOSFET circuitry: Designed for performance with minimal distortion.
- Adjustable bass: Set bass boost from 0 dB to 12 dB to tailor your sound.
Audiopipe APMOX-800.1 800 Watts Full Range Class D Mini Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add powerful, adjustable full-range amplification in a compact space with the Audiopipe APMOX-800.1 Class D mini amplifier. Its mono output, variable bass boost, and selectable high-pass and low-pass filters let you shape the sound for your setup.
Its compact design is intended for car, motorcycle, golf cart, and off-road vehicle interiors where installation space is limited.
Key Features & Benefits
- Class D design: Pulse-width modulation helps deliver power efficiently to your speakers.
- MOSFET circuitry: Designed for performance with minimal distortion.
- Adjustable bass: Set bass boost from 0 dB to 12 dB to tailor your sound.

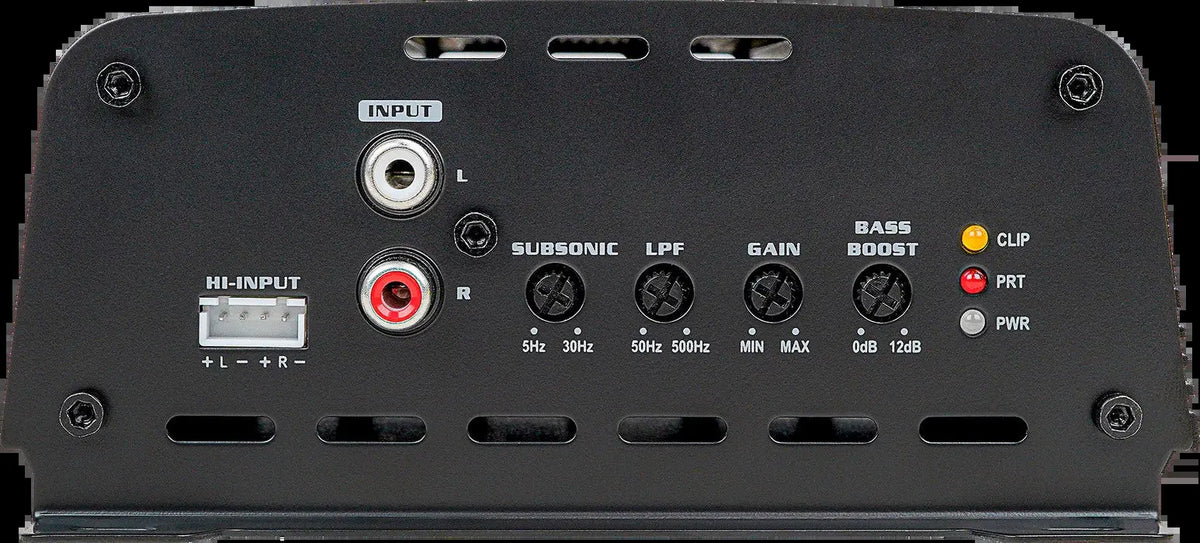

- Frequency controls: A high-pass and low-pass filter switch and X-over control let you adjust crossover settings.

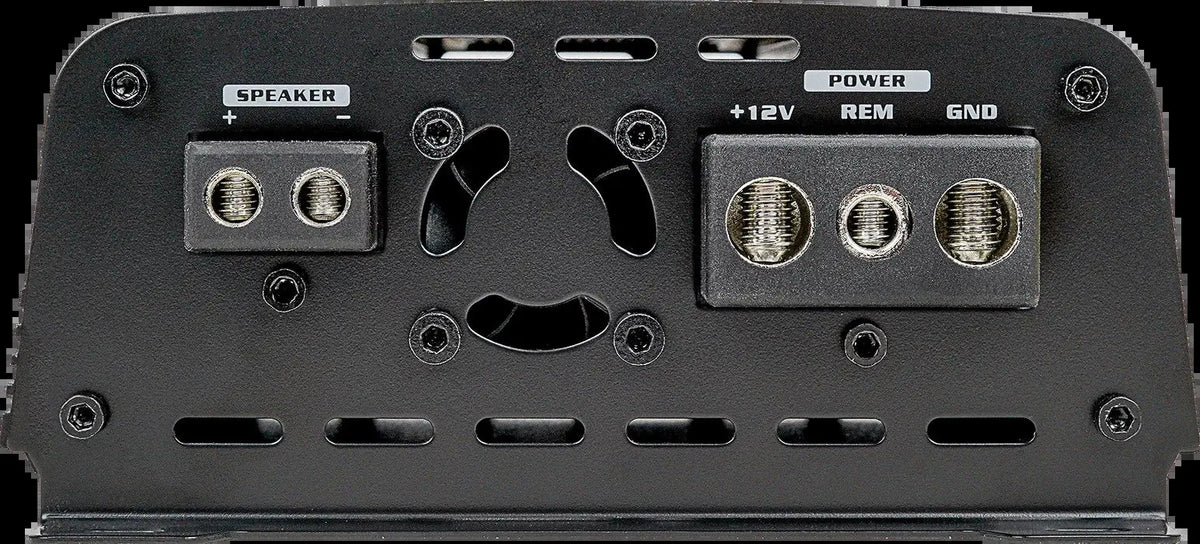

- Protection features: Overload protection and a heatsink designed to provide overheat protection support reliable operation.
- Remote control and indicators: The remote bass control knob, clip LED, and power on/off LED help you adjust and monitor the amplifier.
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier type | Full range Class D |
| Model | APMOX-800.1 |
| Continuous power output (R.M.S.) @ 1% — Mono @ 4 Ohms | 1 x 560W |
| Continuous power output (R.M.S.) @ 1% — Mono @ 2 Ohms | 1 x 800W |
| Crossover range, high and low | 50 Hz-500Hz |
| THD | 0.08% |
| PASS: S/N Rated (A WTG) | 87dB |
| Variable bass boost | 0dB to 12dB |
| Working voltage | 9-16V |
| Dimensions (L x W x H) | 4.6” x 5.7” x 2.5” (117 x 144 x 64 mm) |
Why Choose This Product?
The APMOX-800.1 combines adjustable crossover controls and bass boost with a compact chassis. That makes it a practical option when you want mono amplification and sound-shaping controls in a vehicle interior with limited space. Its two listed RMS power ratings also let you compare output at 4-ohm and 2-ohm loads when planning your system.
Installation & Compatibility Notes
Plan your installation around the amplifier’s 4.6” x 5.7” x 2.5” dimensions and 9-16V working voltage. The product is described for car, motorcycle, golf cart, and off-road vehicle interiors; check available mounting space and your system’s electrical and speaker-load requirements before choosing a location.
Frequently Asked Questions
What are the APMOX-800.1’s RMS power ratings?
It is rated at 1 x 560W RMS mono at 4 ohms and 1 x 800W RMS mono at 2 ohms. Match the speaker load to your system requirements.
Can I adjust the bass and crossover settings?
Yes. Bass boost is variable from 0dB to 12dB. The amplifier also has a high-pass and low-pass filter switch and an X-over control.
What voltage and space should I plan for?
Its working voltage is 9-16V. Allow space for its listed dimensions of 4.6” x 5.7” x 2.5” (117 x 144 x 64 mm).
What controls and indicators are included?
The amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator.
