Audiopipe APMQ-15001 Mini Design Class D Mono Mosfet Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 615.0 W
- RMS output at 2 ohms: 950 W
- RMS output at 1 ohm: 1500 W
- FREQUENCY RESPONSE: 15Hz~180Hz
Audiopipe APMQ-15001 Mini Design Class D Mono Mosfet Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

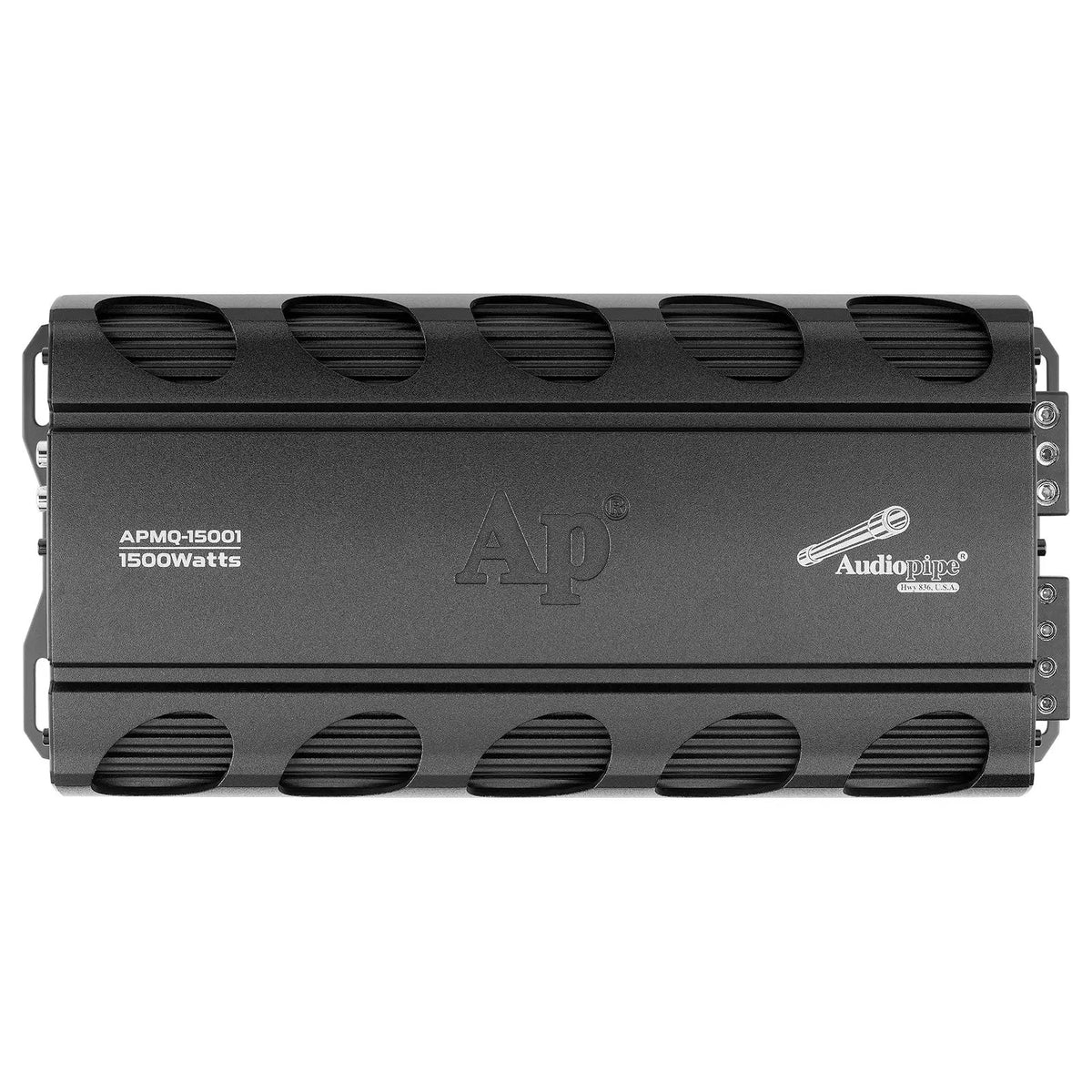

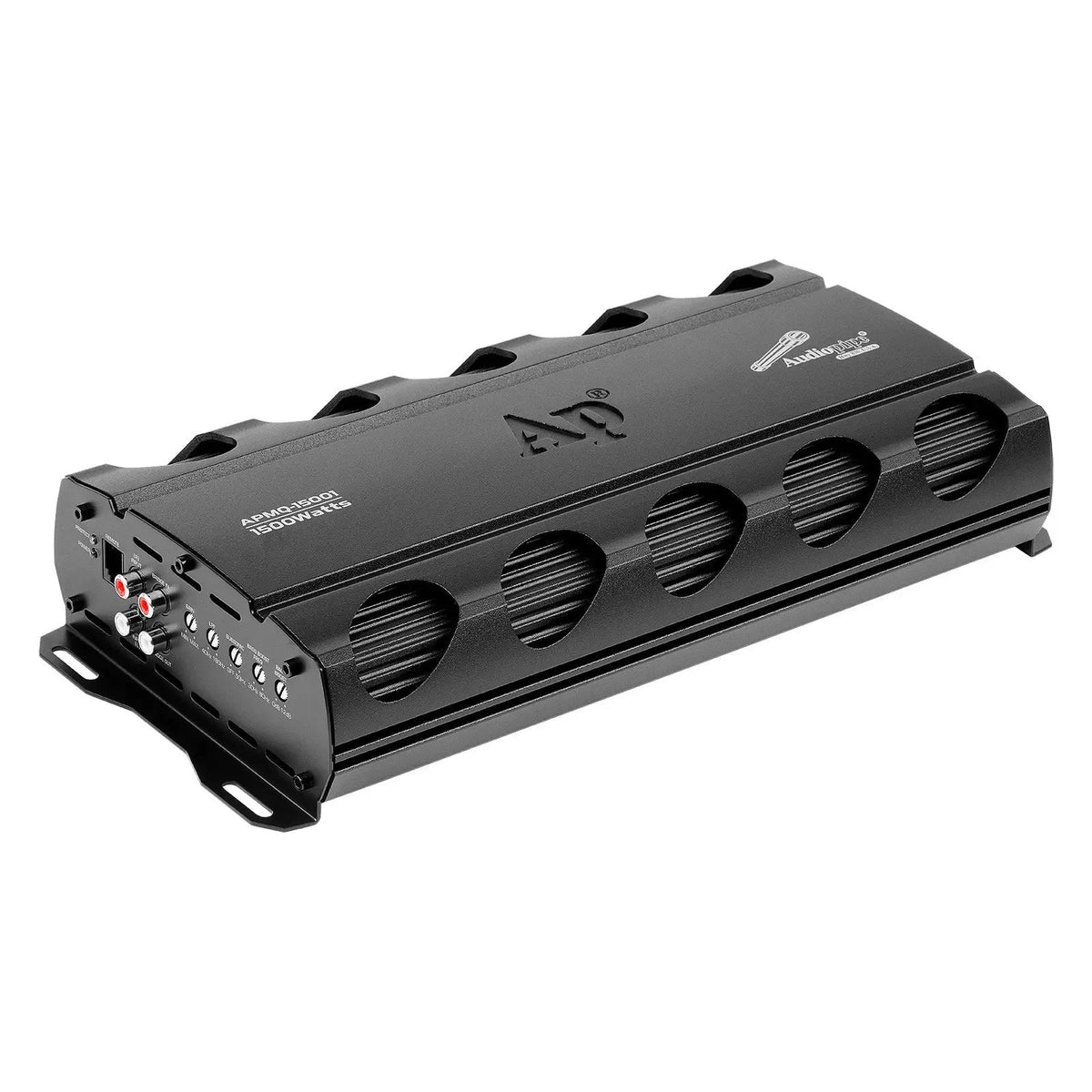

The Audiopipe APMQ-15001 is a compact Class D mono car amplifier for powering a subwoofer system. Its MOSFET circuitry, adjustable filters, and included remote bass knob give you control over your system’s low-frequency output.
Key Features & Benefits
- Class D mono design: Efficient amplifier circuitry suits a single-channel audio setup.
- MOSFET circuitry: Designed for performance with minimal distortion.

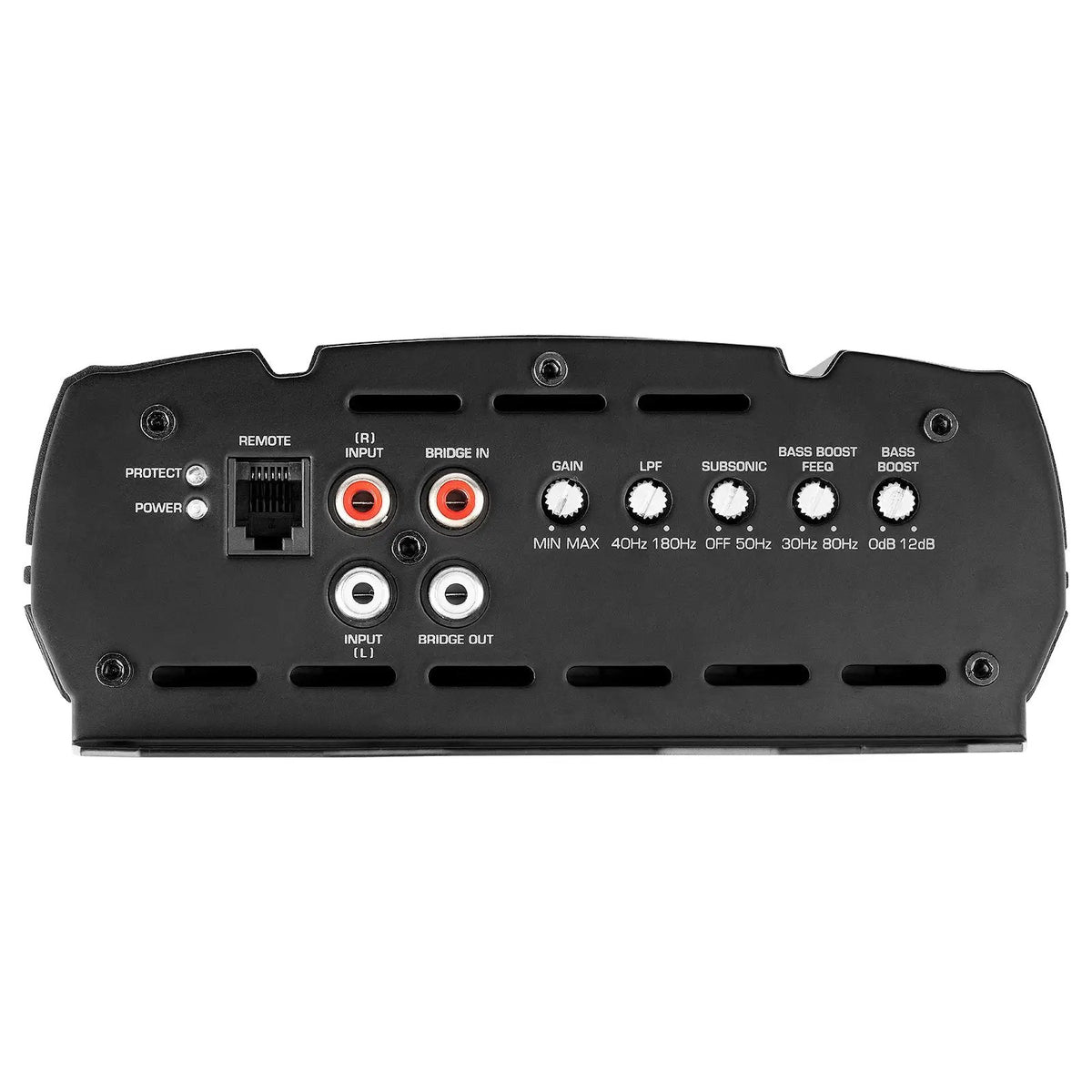

- Variable low-pass filter: Adjust frequency control to suit your audio setup.
- Variable subsonic filter: The stated 15Hz–180Hz range provides adjustment for low-frequency filtering.

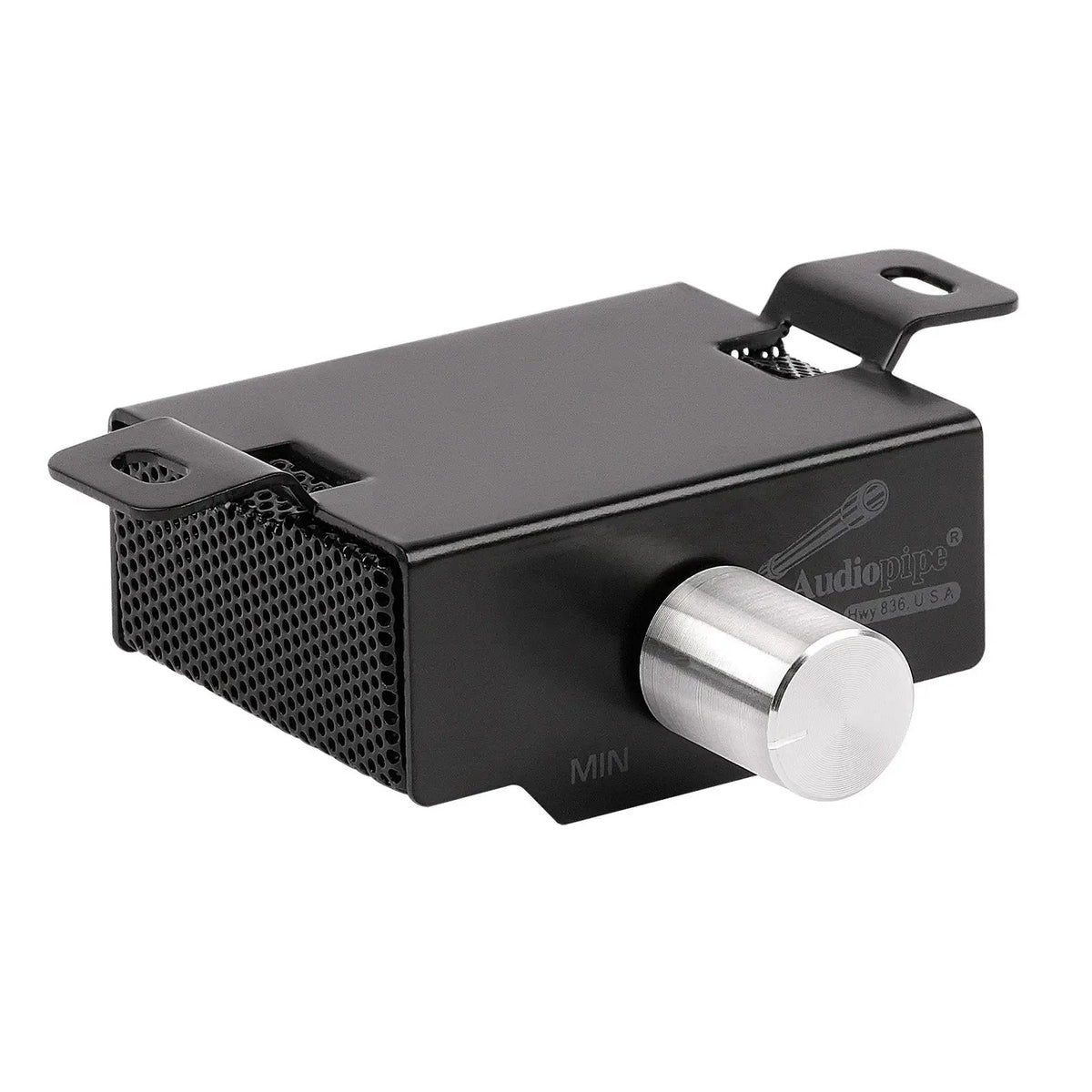

- Remote bass knob: Adjust subwoofer volume from the dashboard.
- Built-in protection: Overload, overheat, short-circuit, and low-voltage protection are included.
Technical Specifications
| Amplifier type | Class D mono MOSFET |
|---|---|
| Peak power | 1500 watts |
| Continuous power | RMS @ 1 Ohm (<1% Distortion): 1500W RMS @ 2 Ohm (<2% Distortion): 950W RMS @ 4 Ohm (<1% Distortion): 615W |
| Frequency response | 15Hz~180Hz |
| S/N ratio | >90dB |
| Input sensitivity | 0.2-6V |
| Variable subsonic filter | 15Hz-180Hz |
| Variable low-pass filter | Variable |
| Protection | Overload, overheat, short circuit, and low voltage |
| Remote bass control | Remote bass knob included |
| THD | ≤0.9% |
| Working voltage | 9V~16V |
| Dimensions (L x W x H) | 13.4” x 6.3“ x 2.3” 341 x 160 x 57mm |
Why Choose This Product?
The APMQ-15001 combines a compact chassis with power ratings listed across 1-ohm, 2-ohm, and 4-ohm loads. Its variable filters let you adjust frequency control, while the remote bass knob puts subwoofer volume adjustments within reach from the dashboard.
Installation & Compatibility Notes
Check that your installation space accommodates the amplifier’s listed dimensions and that your vehicle’s electrical supply falls within its 9V~16V working-voltage range. Match your system’s load to the listed power ratings and confirm installation requirements for your specific setup.
Frequently Asked Questions
What power does the APMQ-15001 deliver at different loads?
Its continuous ratings are 1500W RMS at 1 Ohm (<1% distortion), 950W RMS at 2 Ohm (<2% distortion), and 615W RMS at 4 Ohm (<1% distortion). The listed peak power is 1500 watts.
What do the variable filters do?
The amplifier has a variable low-pass filter and a variable subsonic filter with a stated range of 15Hz-180Hz.
Can I adjust bass from the dashboard?
Yes. A remote bass knob is included for controlling subwoofer volume remotely from the dashboard.
What should I check before installation?
Check the amplifier’s dimensions, your system’s load, and the vehicle’s electrical supply against the listed specifications.
