Audiopipe APSB-12112PX Single 12” High-Performance Compact Sealed Enclosure
Key features
Drivers and amplifier included
- Compatible woofer size: 12 inches
- Included subwoofers: 1 × 12-inch subwoofer in a loaded enclosure
- Enclosure design: Sealed
- Included amplifier: Separate APMCRO-1500 Micro Class D MOSFET amplifier
- Construction: High-grade MDF enclosure
- Installation kit: BMS-750SX amplifier wiring kit included
Audiopipe APSB-12112PX Single 12” High-Performance Compact Sealed Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

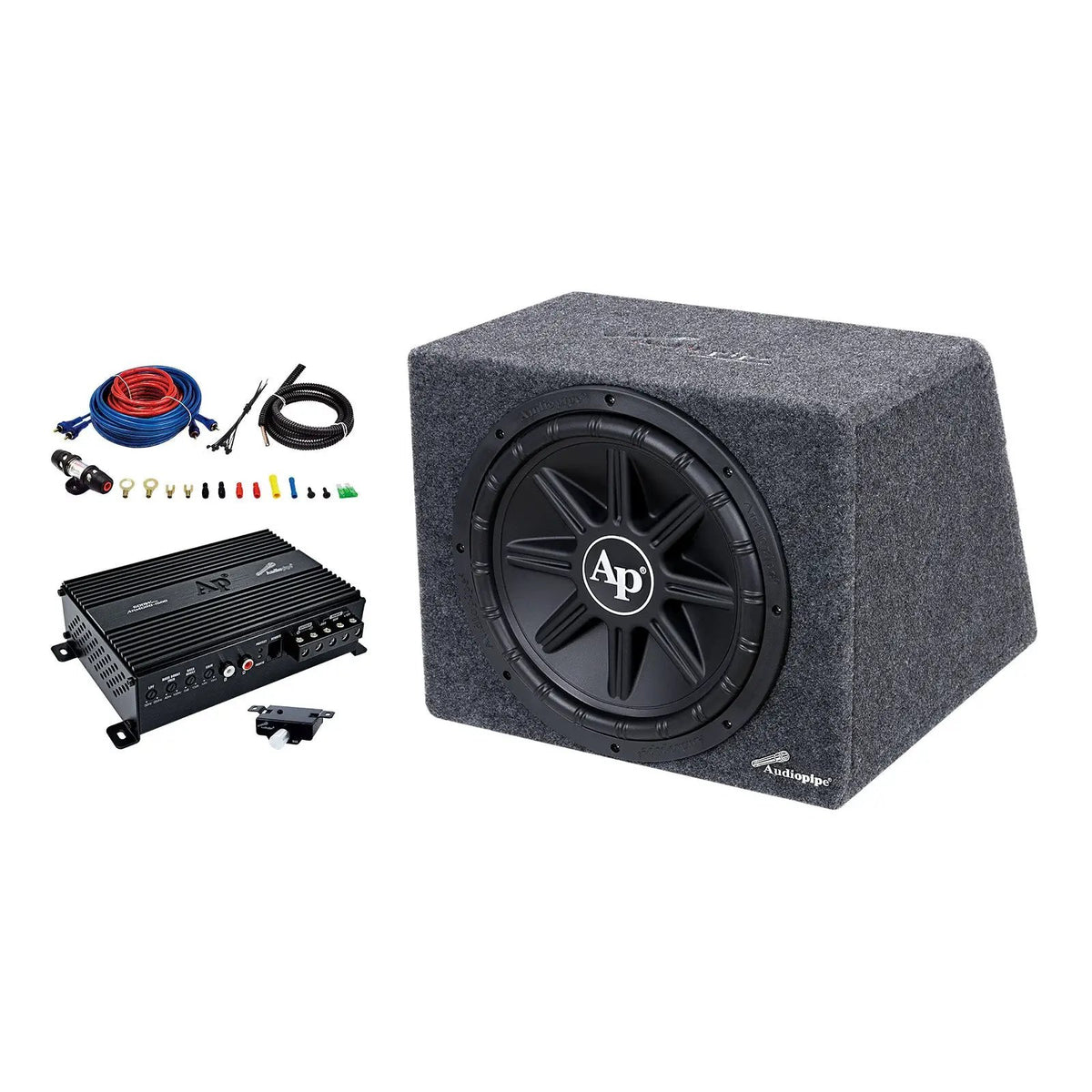

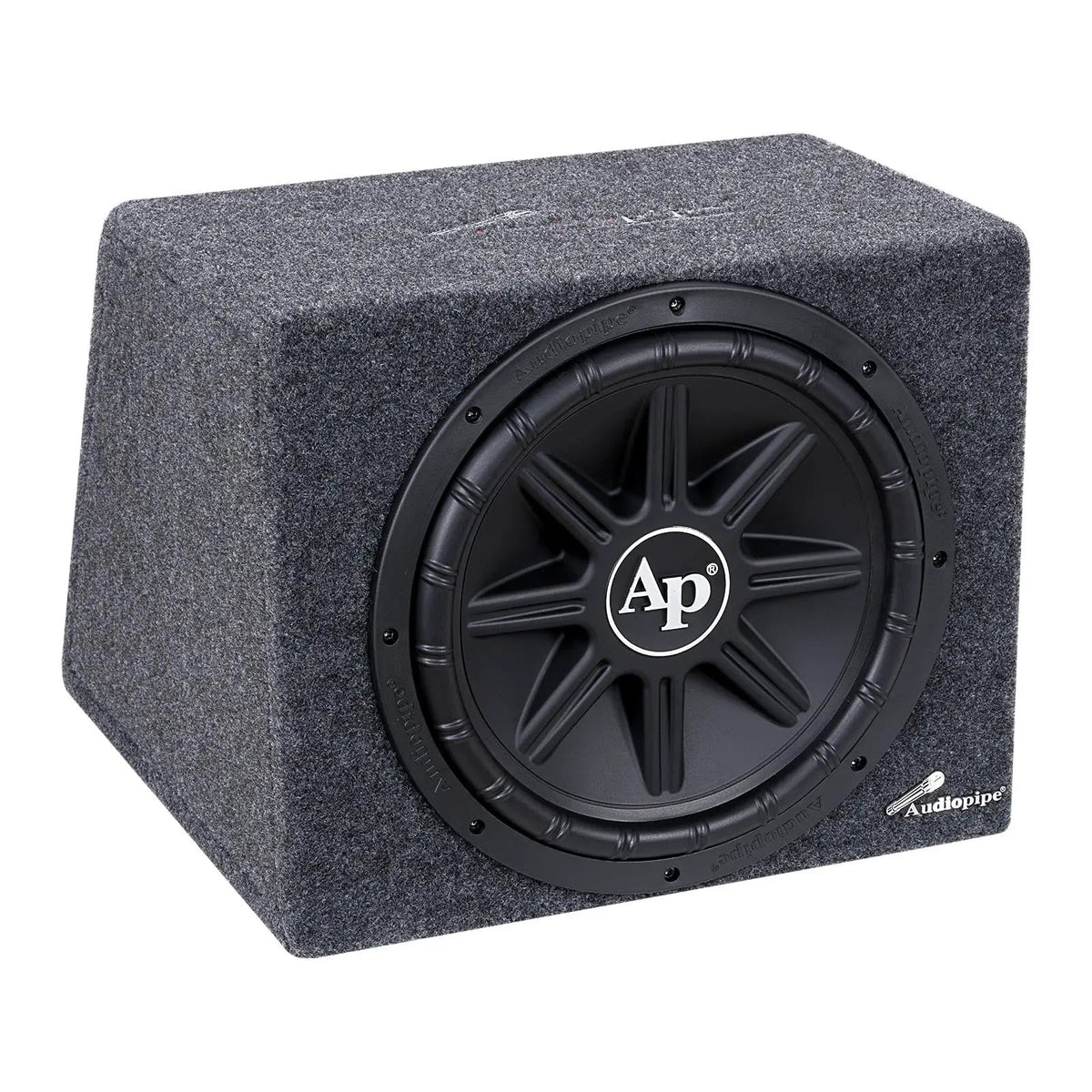

Bring deeper bass to your vehicle without giving up as much cargo space with the Audiopipe APSB-12112PX compact sealed enclosure package. It combines a loaded single 12-inch subwoofer enclosure, a Micro Class D MOSFET amplifier, and an amplifier installation kit.
The sealed enclosure is designed for tight, controlled bass, while the compact amplifier and enclosure dimensions support planning for space-conscious installations.
Key Features & Benefits

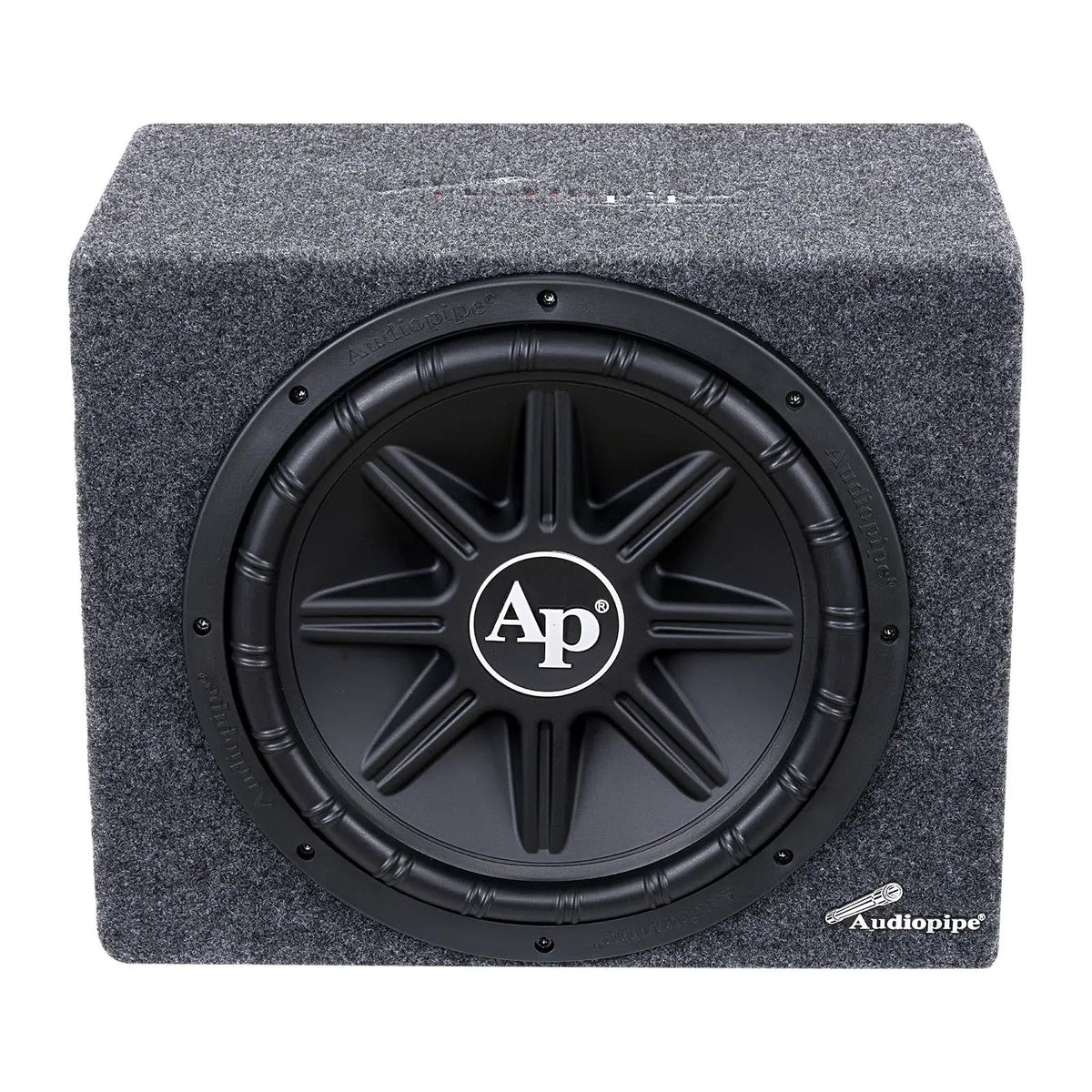

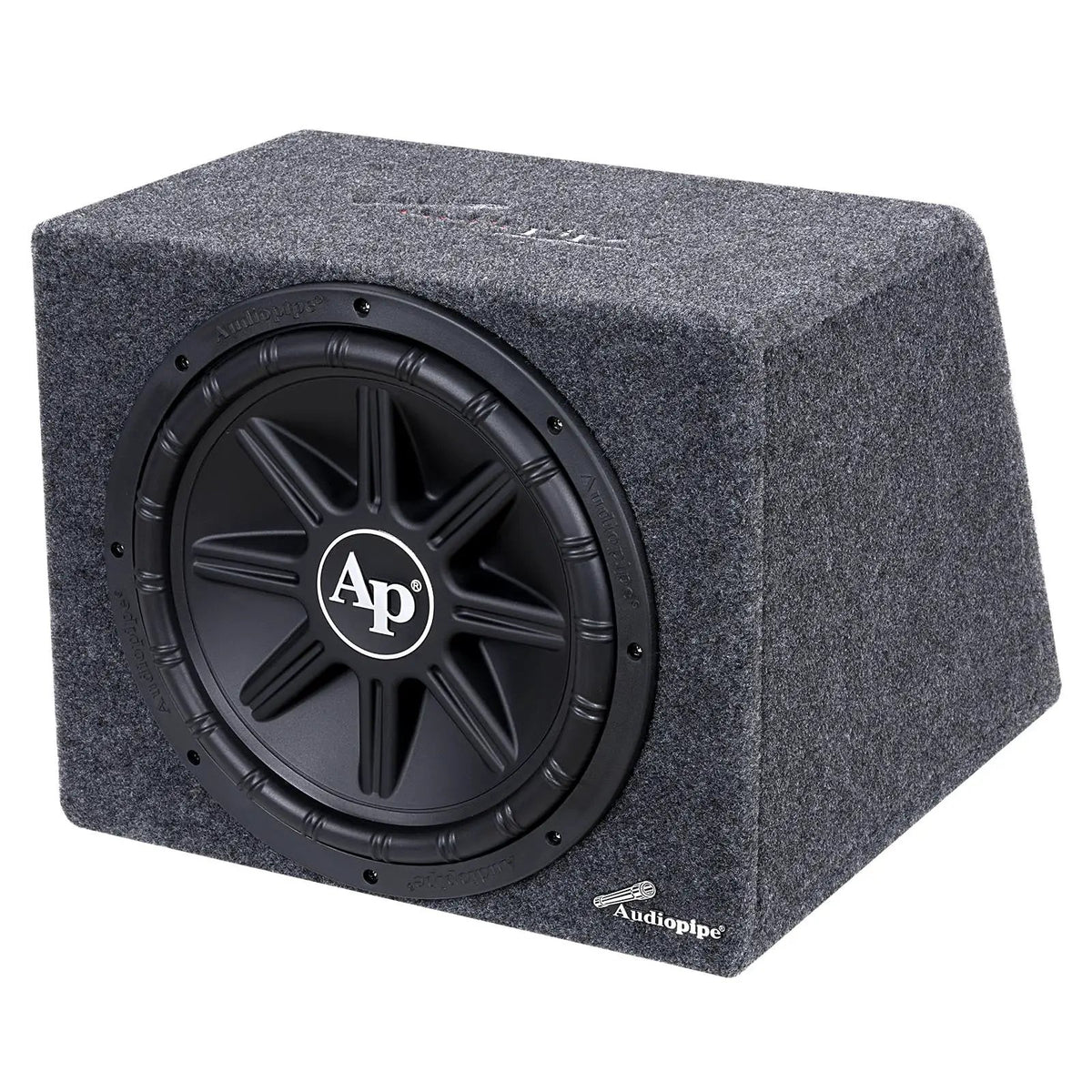

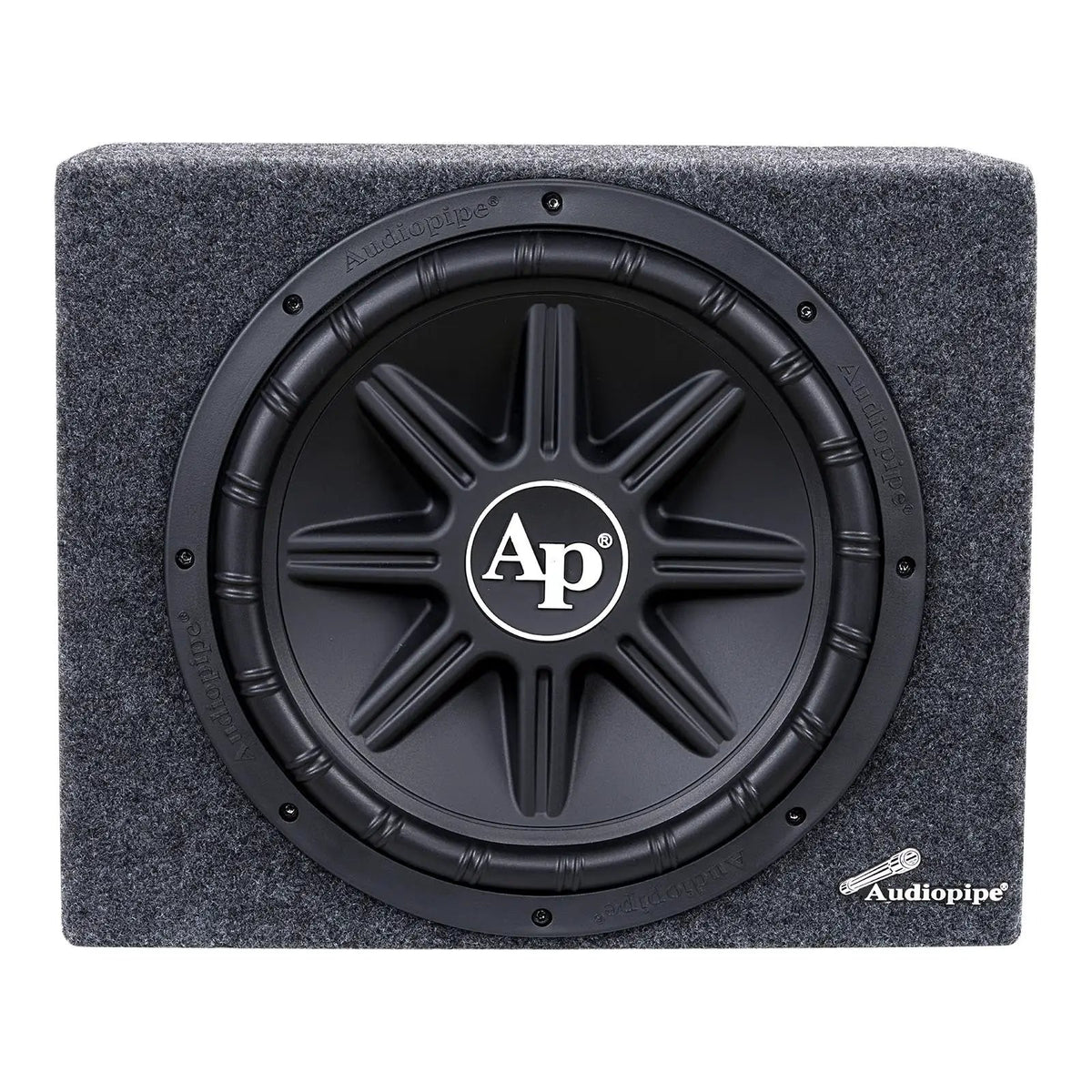

- Loaded 12-inch enclosure: The sealed design delivers controlled low-frequency sound in a compact package.
- High-grade MDF: The enclosure’s construction supports durability and acoustic performance.
- Micro Class D amplifier: Multiple RMS ratings at different impedances help you assess its output for your system.

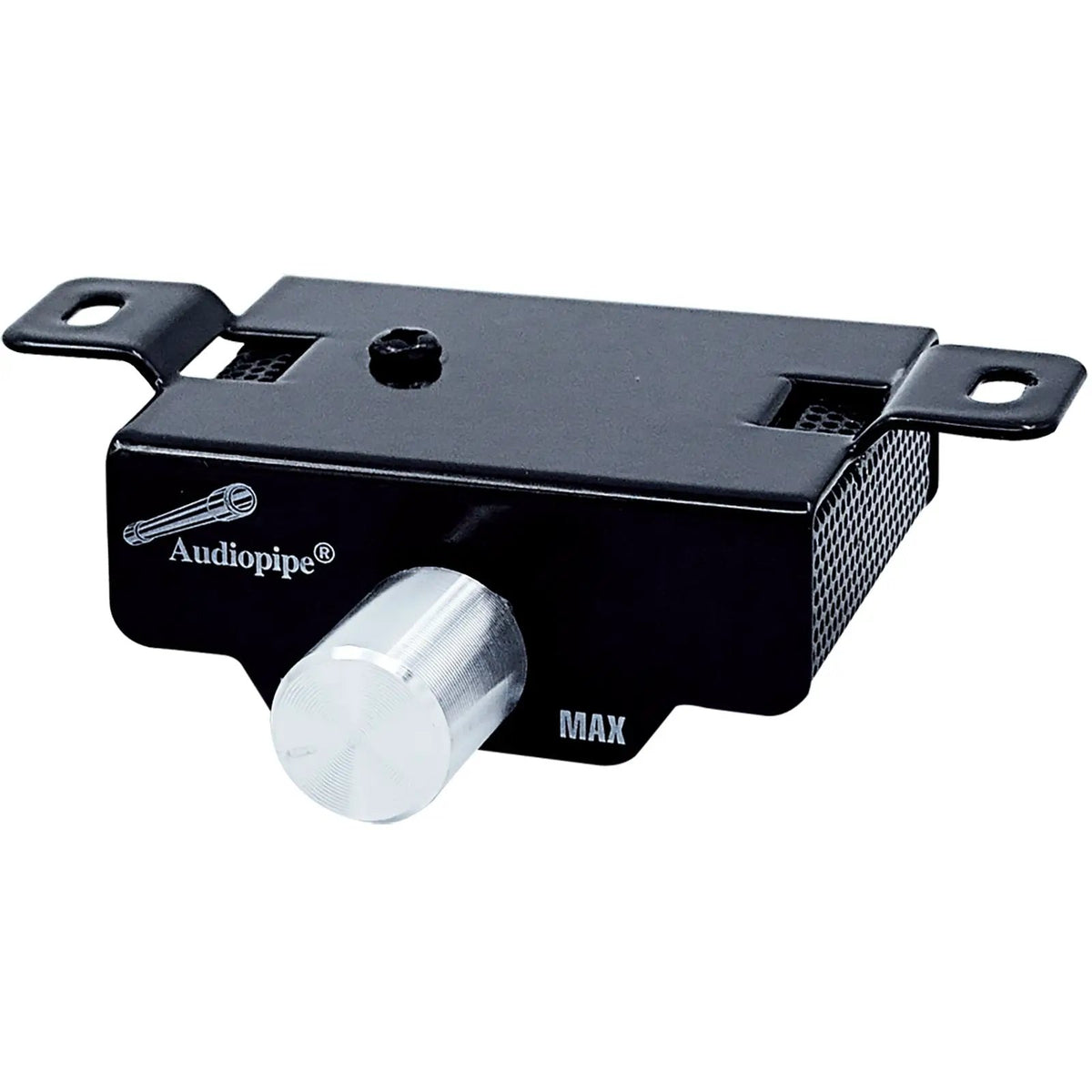

- Remote bass knob: Adjust bass level conveniently from the included control.
- Amplifier protection: Overload protection circuitry is built into the amplifier.
- Installation kit included: The package includes power, ground, signal, fuse, terminals, ties, and split loom for amplifier installation.
Technical Specifications
| Product | Audiopipe APSB-12112PX Single 12” High-Performance Compact Sealed Enclosure |
|---|---|
| Enclosure model | APSB-1201X |
| Enclosure type | Loaded single 12-inch sealed subwoofer enclosure |
| Enclosure power handling | 1000 Watts (P.M.P.O.); 500 Watts (R.M.S.) |
| Enclosure frequency response | 25Hz–1,000Hz |
| Enclosure impedance | 4 Ohms |
| Enclosure material | High-grade MDF |

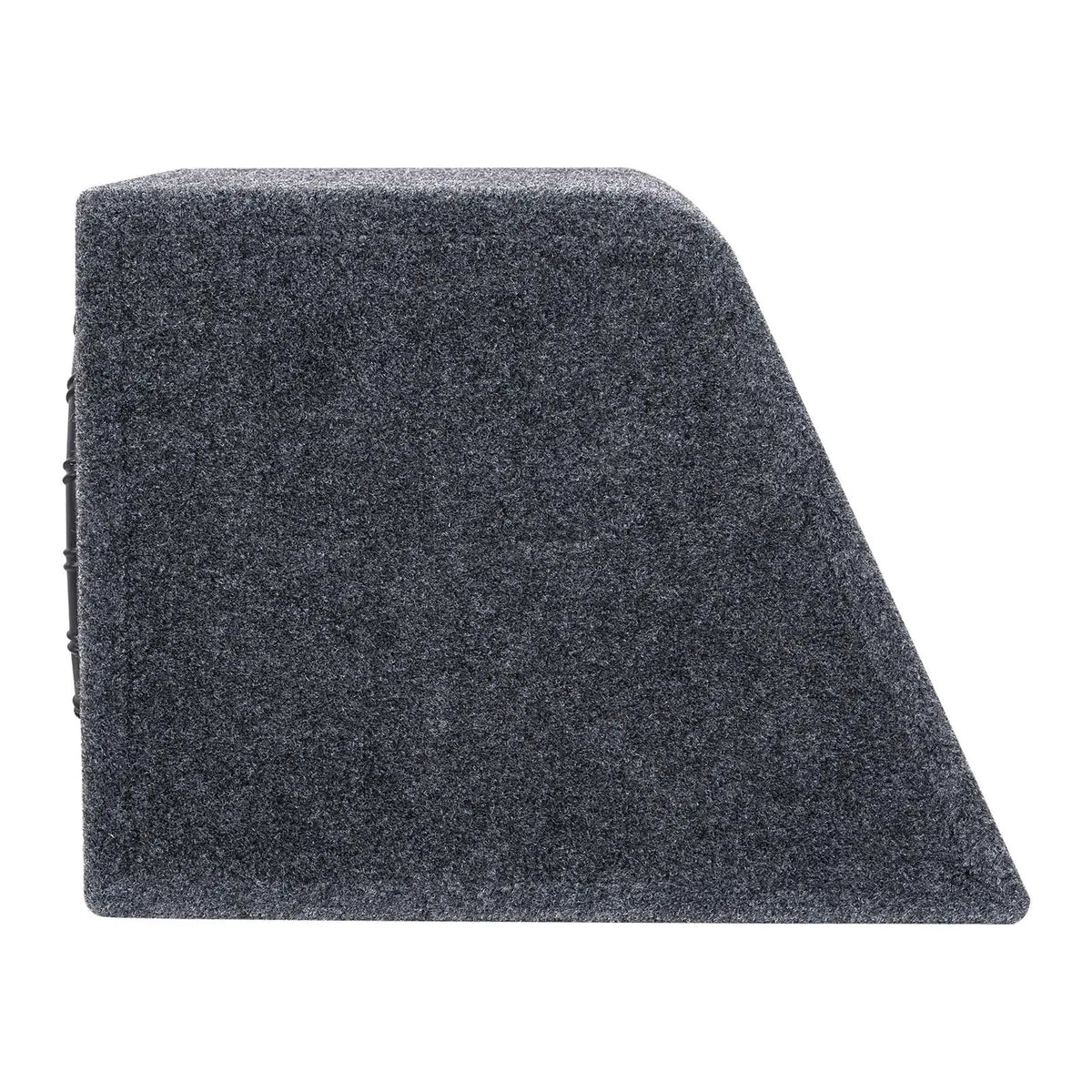

| Enclosure dimensions | 12.9” (H) x 16.9” (D) x 16” (L) |

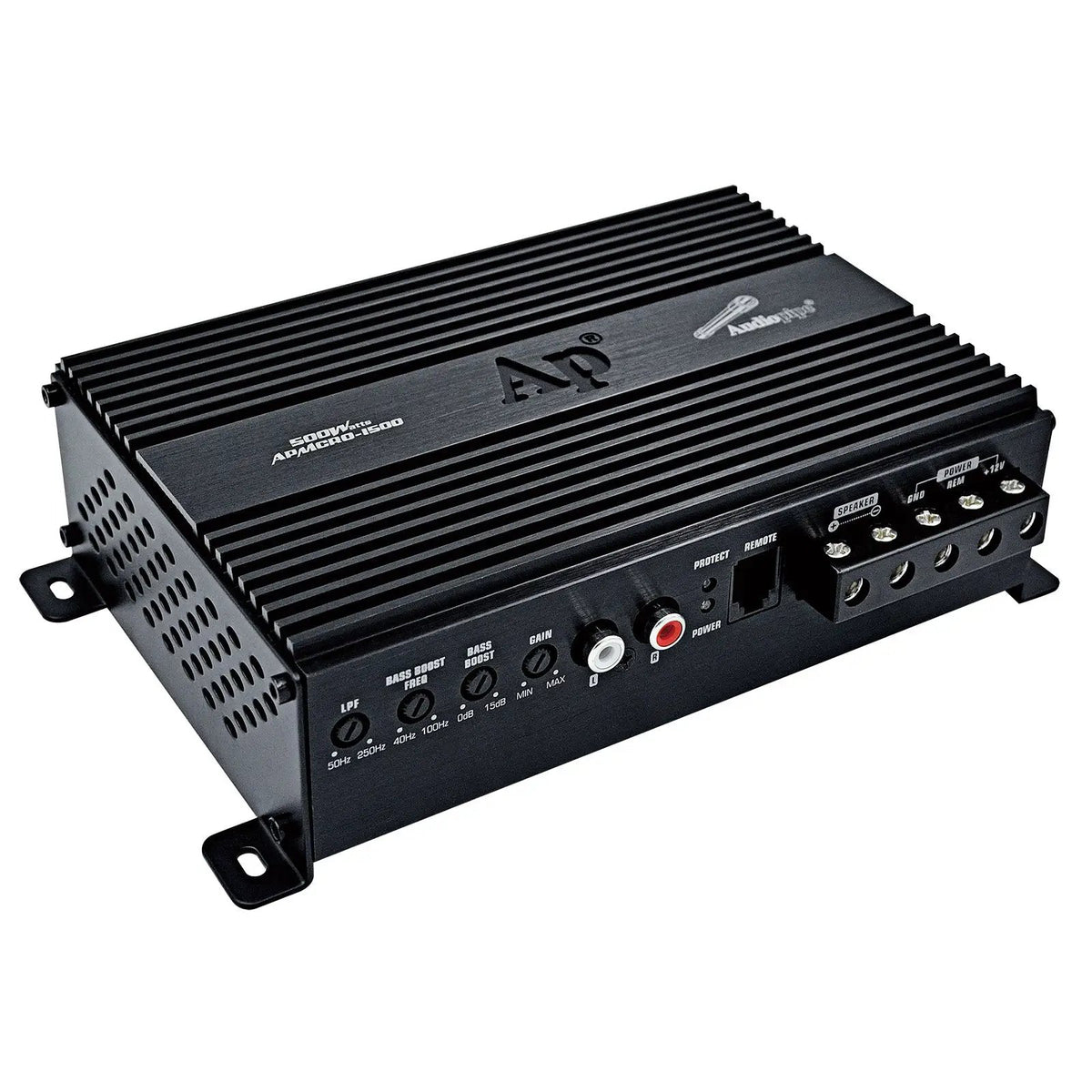

| Amplifier model | APMCRO-1500 |
| Amplifier type | Micro Class D MOSFET |
| Amplifier output | 500W RMS @ 1 Ohm; 364W RMS @ 2 Ohms; 189W RMS @ 4 Ohms |
| Amplifier frequency response | 10Hz–250kHz |
| Signal-to-noise ratio | Greater than 80dB |
| THD | Less than 0.5% |
| Amplifier features | Overload protection circuitry; remote bass knob |
| Amplifier dimensions | 6.8” x 4.8” x 1.9” |

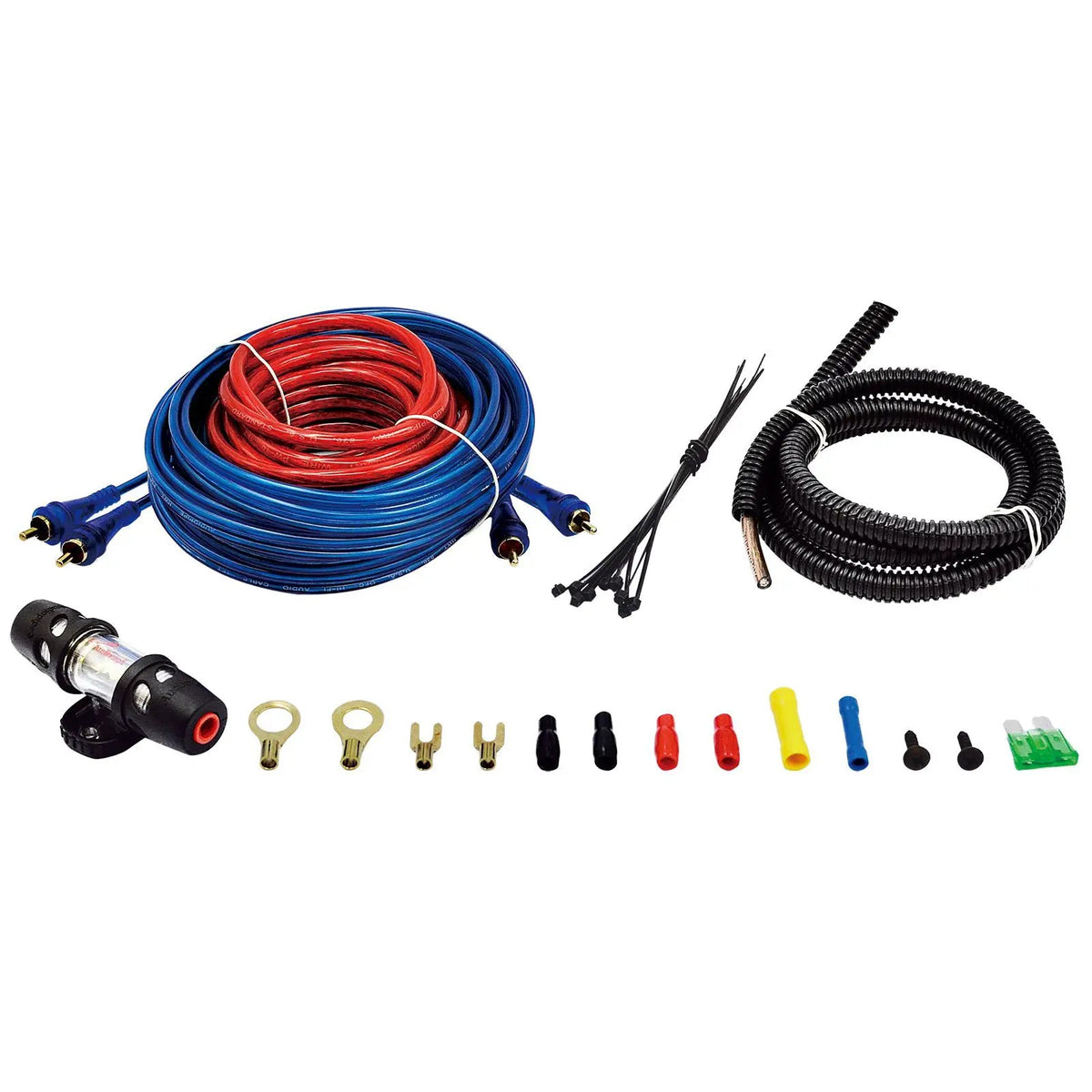

| Installation kit model | BMS-750SX |
| RCA cable | 17 Ft. 2 RCA Plug-to-2 RCA Plug cable with signal wire |
| Power wire | 17 Ft. 10 AWG red primary wire |
| Ground wire | 3 Ft. 10 AWG black primary wire |
| Fuse and holder | 30 Amp AGU fuse with 10 AWG fuse holder |
| Other kit components | Gold-plated ring and spade terminals, butt splices, assorted cable ties, and split loom tubing |
Why Choose This Product?
The APSB-12112PX brings three major parts of a bass upgrade together: a loaded subwoofer enclosure, an amplifier, and an installation kit. Its sealed enclosure is intended for controlled bass response, and the supplied dimensions make it easier to plan around available vehicle space.
The amplifier’s output ratings are listed at 1, 2, and 4 Ohms. The enclosure is rated at 4 Ohms, so these figures help you compare the amplifier’s stated output with the subwoofer’s impedance and power-handling rating.
Installation & Compatibility Notes
Check the enclosure’s 12.9” (H) x 16.9” (D) x 16” (L) dimensions and the amplifier’s 6.8” x 4.8” x 1.9” dimensions against your available installation spaces. Confirm that your vehicle and audio system can accommodate the package and its connections before installation.
The included kit lists 10 AWG power and ground wire, a 30 Amp AGU fuse and holder, and RCA connections with signal wire. Installation requirements can vary by vehicle and system.
Frequently Asked Questions
What comes with the Audiopipe APSB-12112PX?
The package includes a loaded single 12-inch sealed enclosure, a Micro Class D MOSFET amplifier, and the BMS-750SX amplifier installation kit.
What is the subwoofer enclosure’s impedance and RMS power handling?
The enclosure is rated at 4 Ohms and 500 Watts (R.M.S.) power handling. Its 1000 Watts (P.M.P.O.) rating is listed separately.
How much power does the included amplifier produce?
Its stated output is 500W RMS @ 1 Ohm, 364W RMS @ 2 Ohms, and 189W RMS @ 4 Ohms.
Will the enclosure fit in my vehicle?
Compare its listed height, depth, and length with your intended installation space, and account for the space needed to position and connect the equipment.
