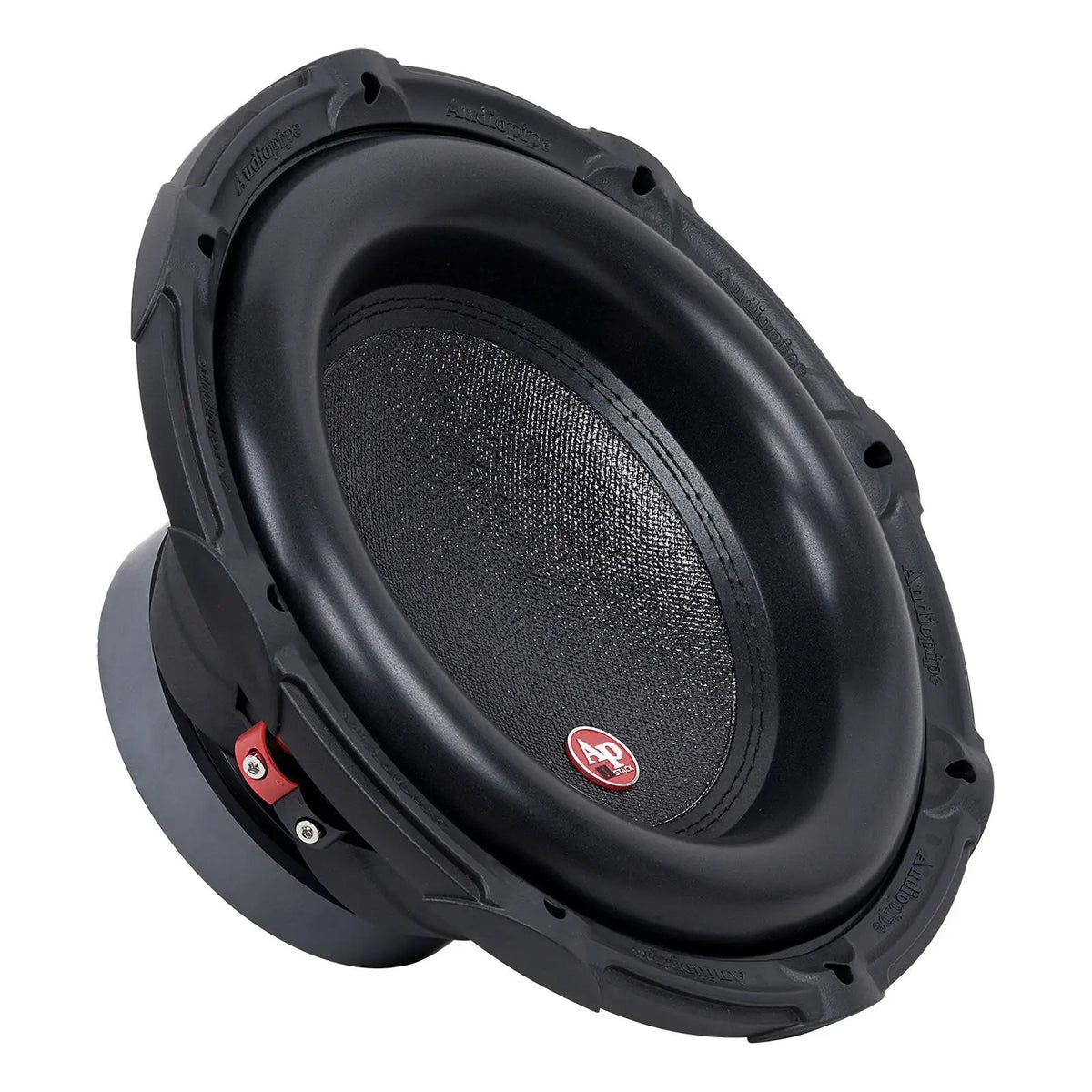

Audiopipe TXX-BDC-I-12 12" Single Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 600 W
- Voice-coil options: D4
- MAGNET: Boasting 1 magnet, 60 Oz
- FREQUENCY RESPONSE: 35-900Hz
- SENSITIVITY: 88dB
Audiopipe TXX-BDC-I-12 12" Single Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

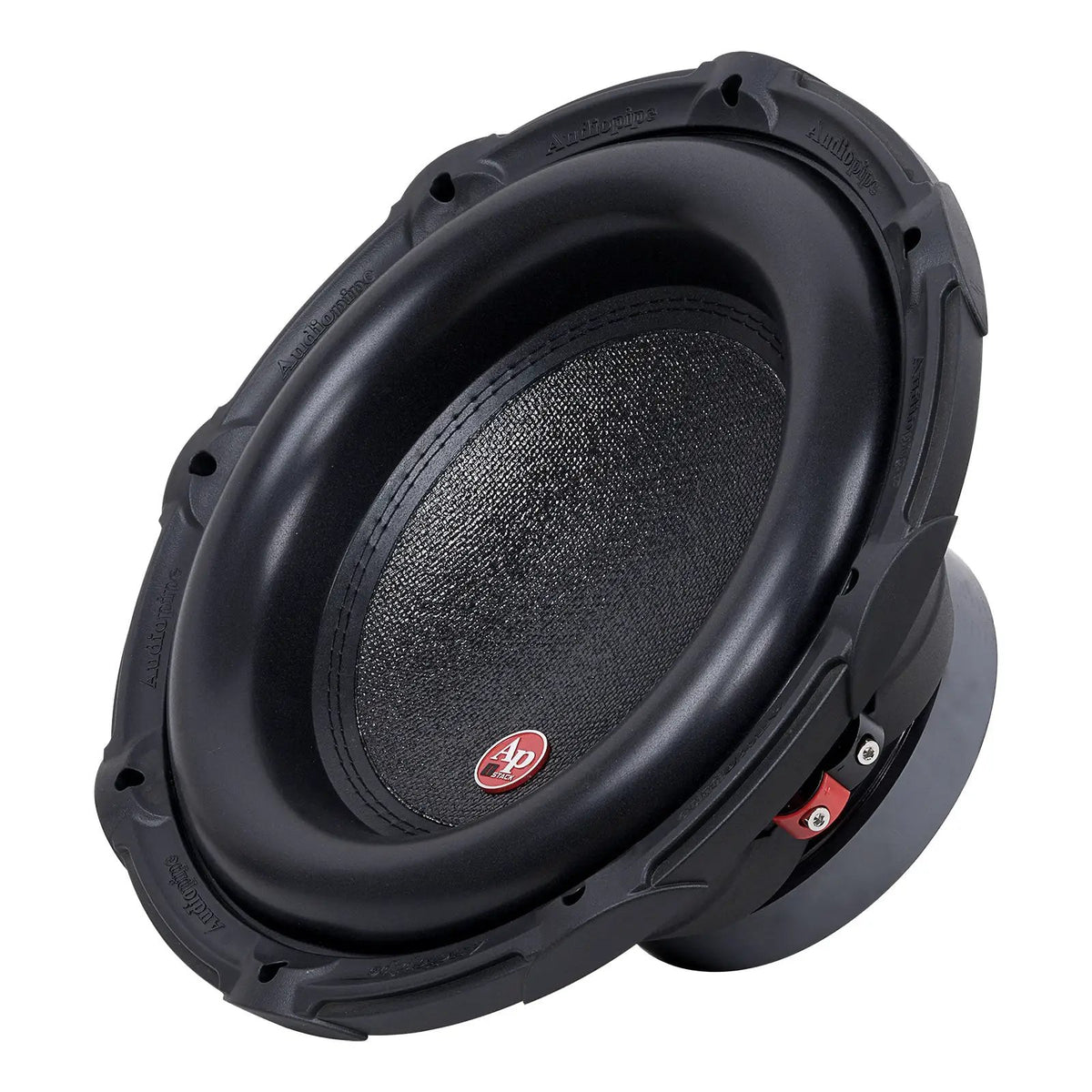

Add a 12-inch Audiopipe TXX-BDC-I-12 subwoofer to your car audio system, with 1200 watts peak power and a Kevlar fiber composite non-press paper cone. Its dual 4-ohm voice coils and multi-connect terminals support parallel or series wiring configurations.

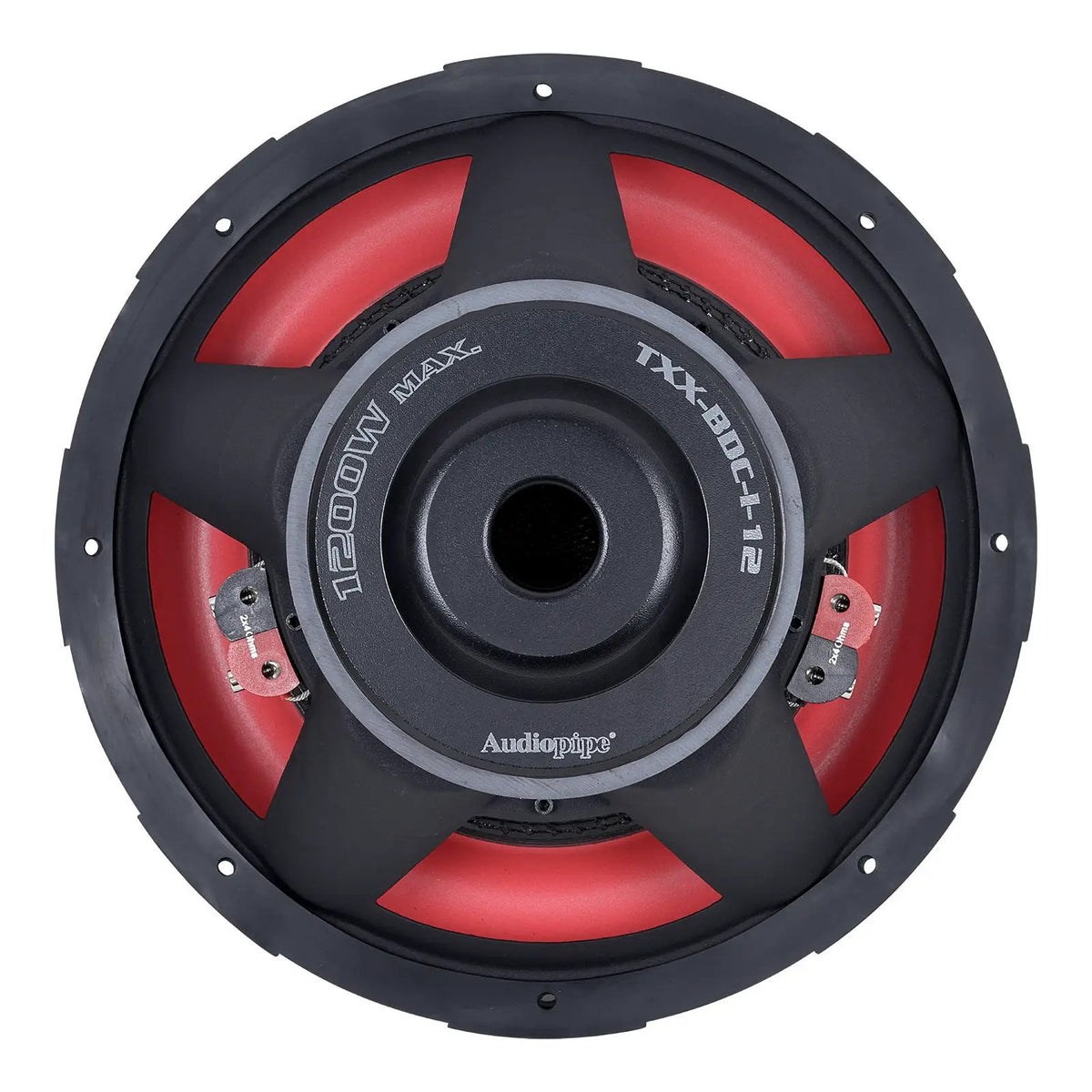

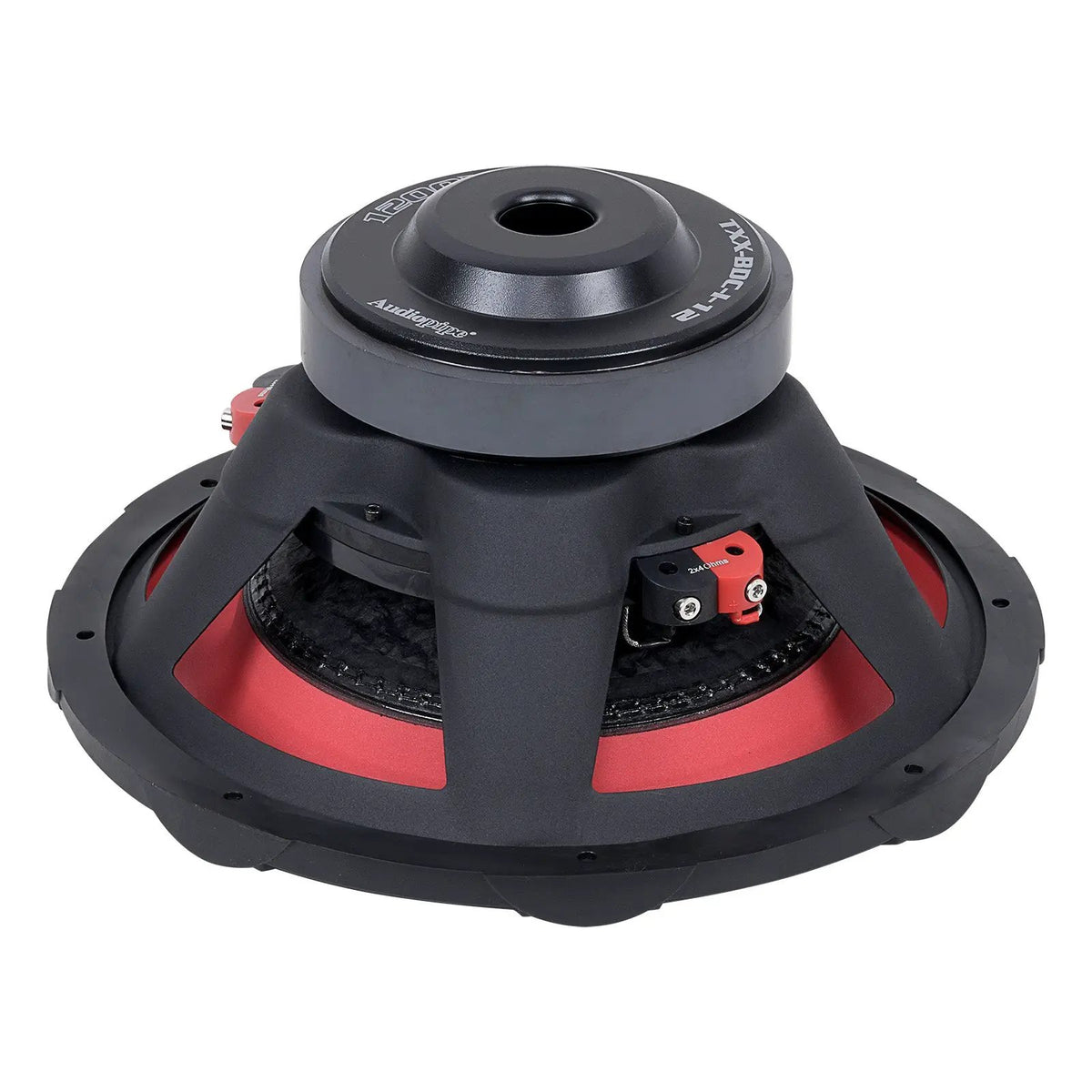

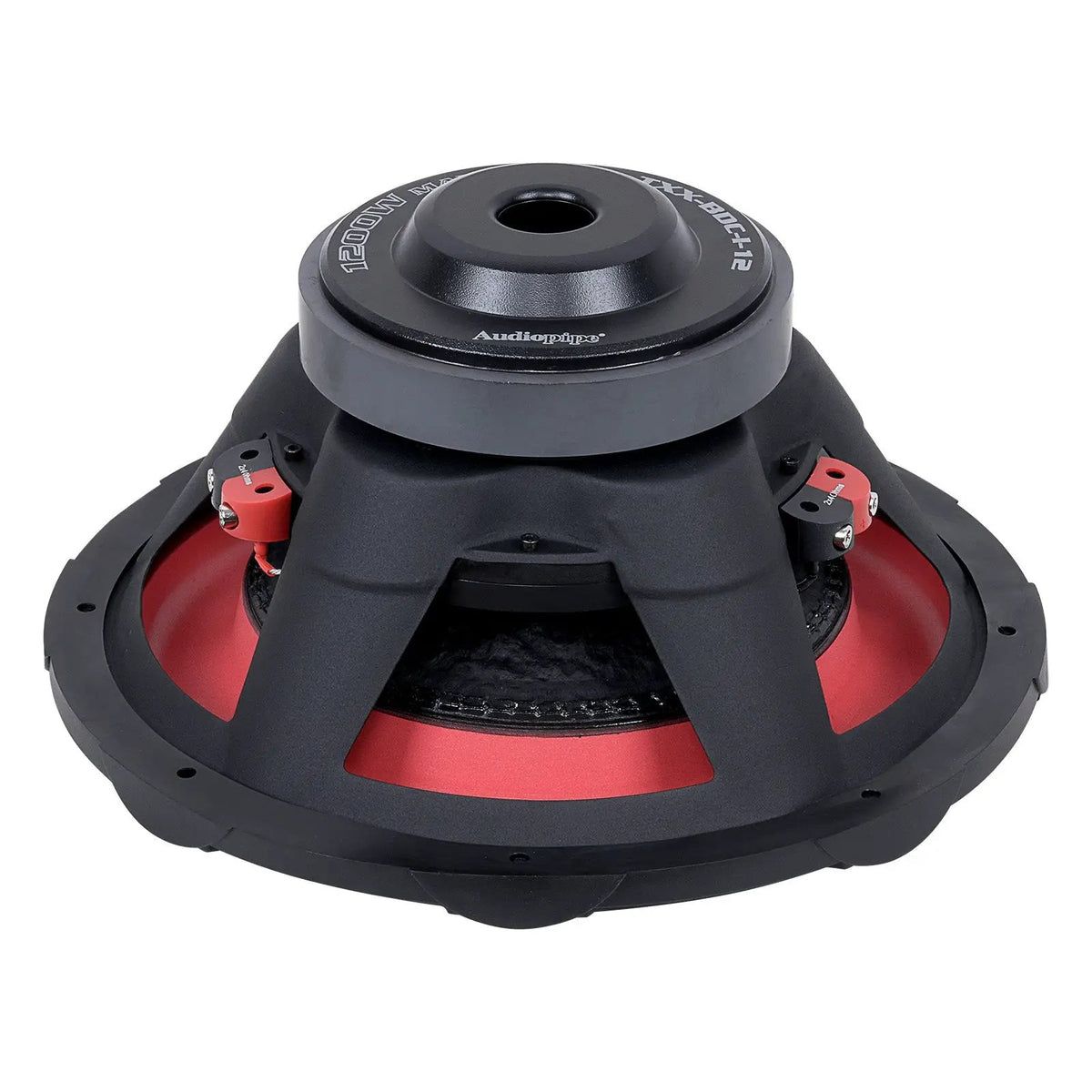

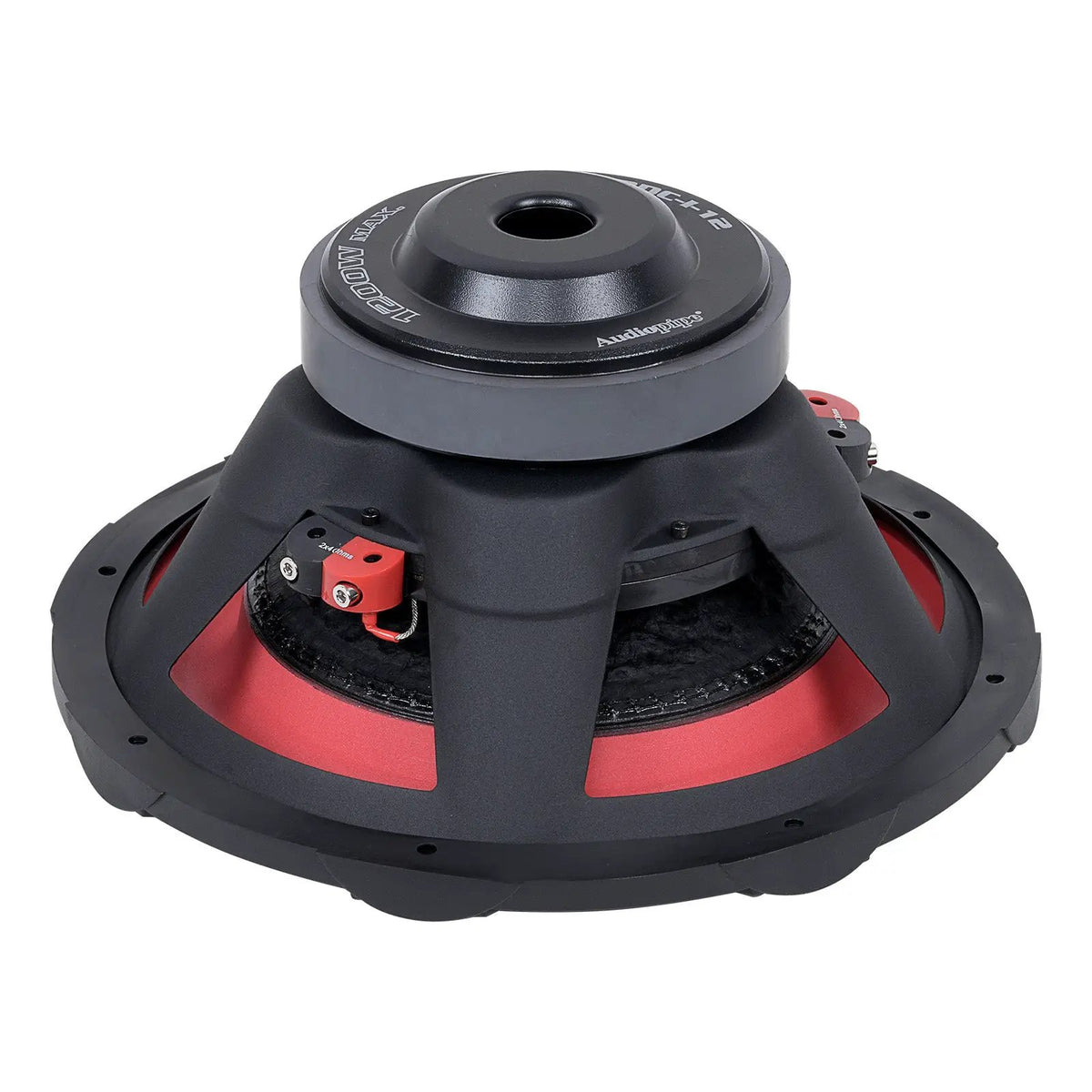

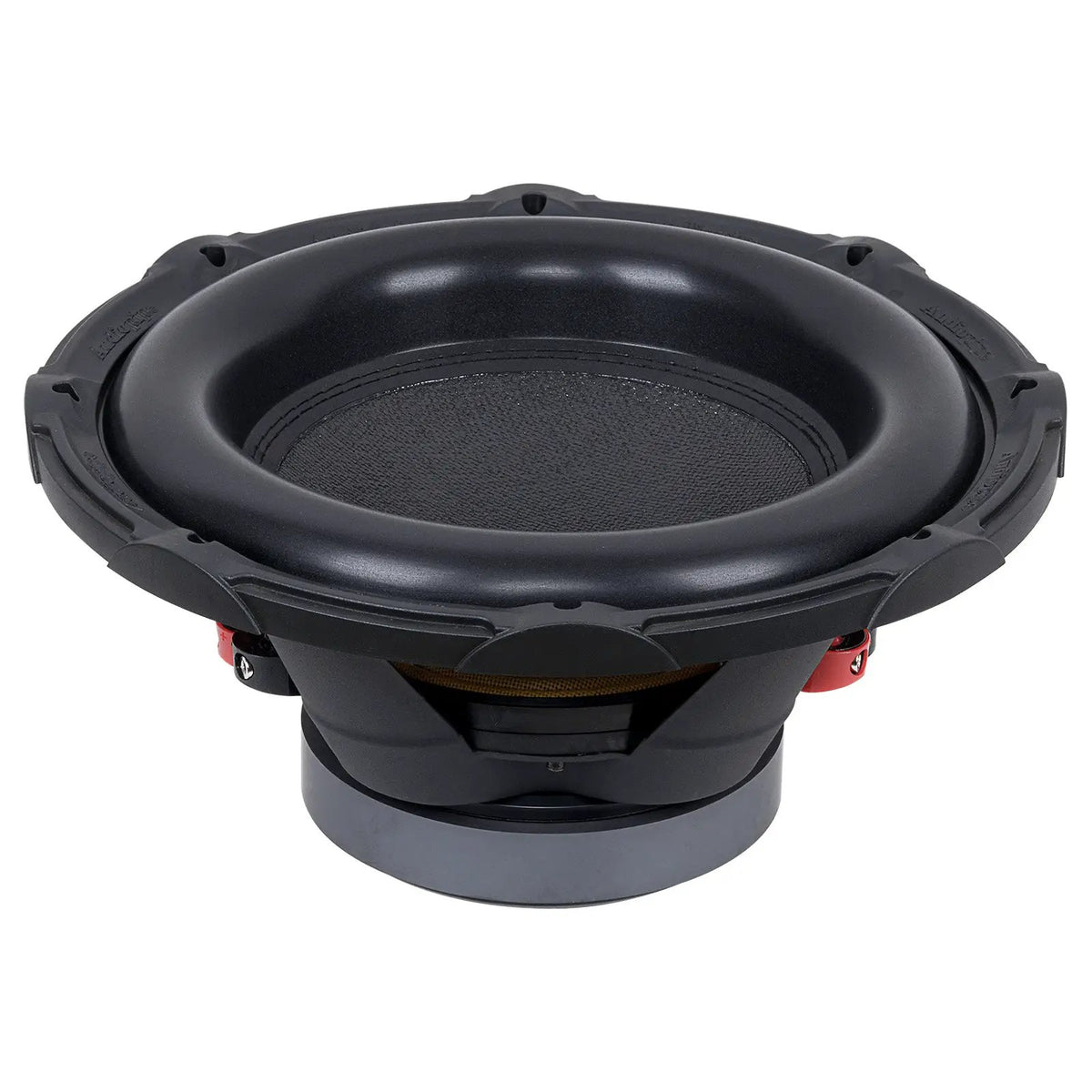

A single 60-ounce magnet, increased voice coil ventilation, and a dust-proof heat sink are part of its design. The textured cone is designed for improved rigidity, while the aluminum basket has a powdered black paint finish.
Key Features & Benefits
- Power handling: The subwoofer is rated at 600 watts RMS and 1200 watts peak, helping you compare it with your amplifier.
- Dual voice coils: The two 4-ohm coils offer parallel or series wiring options through the multi-connect terminals.
- Ventilated voice coil: Increased ventilation is designed to support performance and endurance.

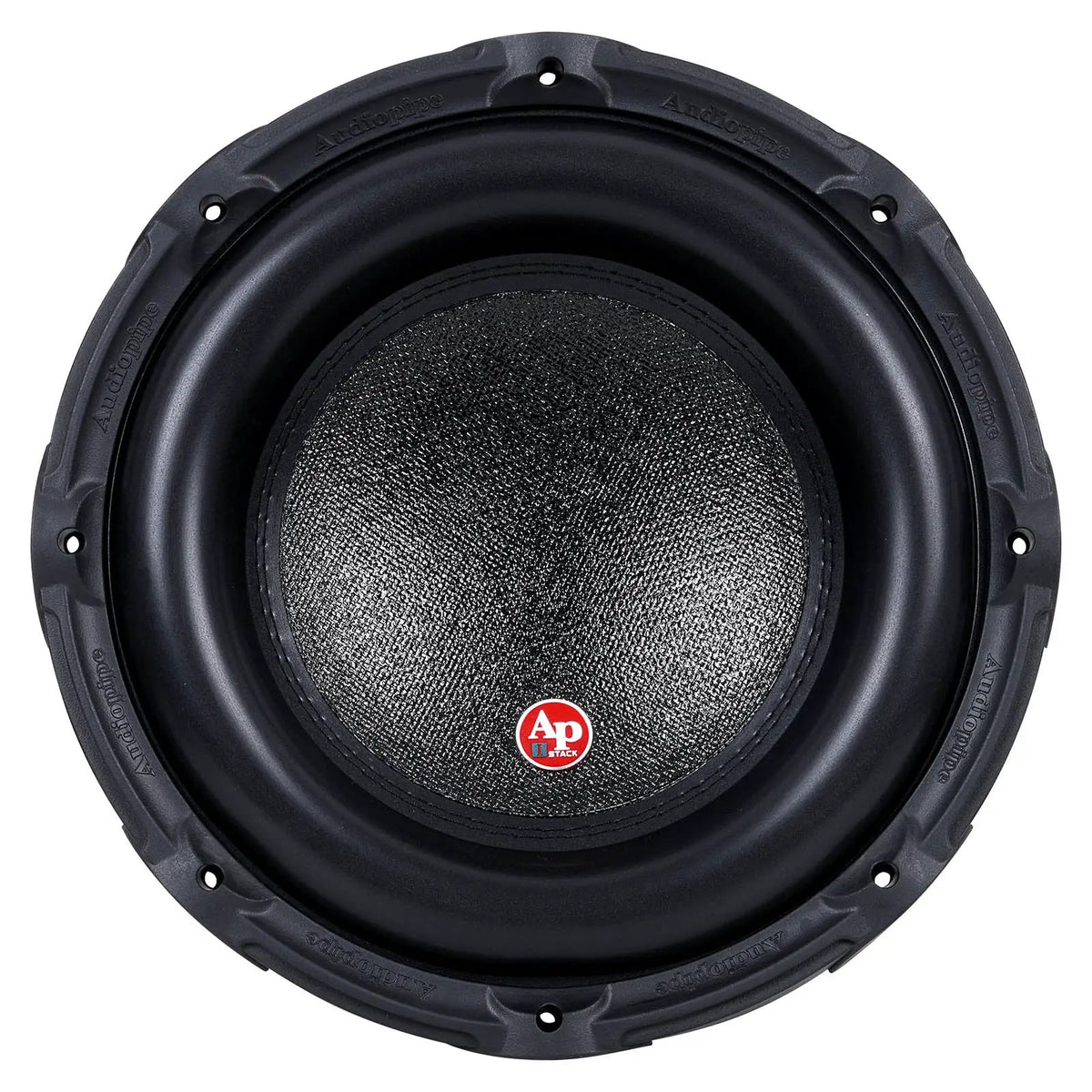

- Composite cone: The textured Kevlar fiber composite non-press paper cone is designed for improved rigidity.
- Subwoofer construction: The aluminum basket, composite glass fiber dust cap, and dust-proof heat sink are designed for this model.
- Quad-weaved tinsel leads: Progressive woven leads on each side support the subwoofer’s electrical connections.
Technical Specifications
| Product | Audiopipe TXX-BDC-I-12 12" Single Stack Composite Cone Subwoofer |
|---|---|
| Peak power | 1200 Watts |
| RMS power | 600 watts |
| Magnet | 1 magnet, 60 Oz |
| Frequency response | 35-900Hz |
| Sensitivity | 88dB |
| Voice coil | Dual 4 ohm, 2.5 inch, 4-layer high temperature black aluminum (BASV) voice coil |
| Impedance | 2 x 4 Ohms |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Basket | Powdered black paint aluminum basket |
| Dust cap | Composite glass fiber |
| Terminals | Patented pipe multi-connect terminals |
| Tinsel leads | Progressive weaved tinsel leads on each side |

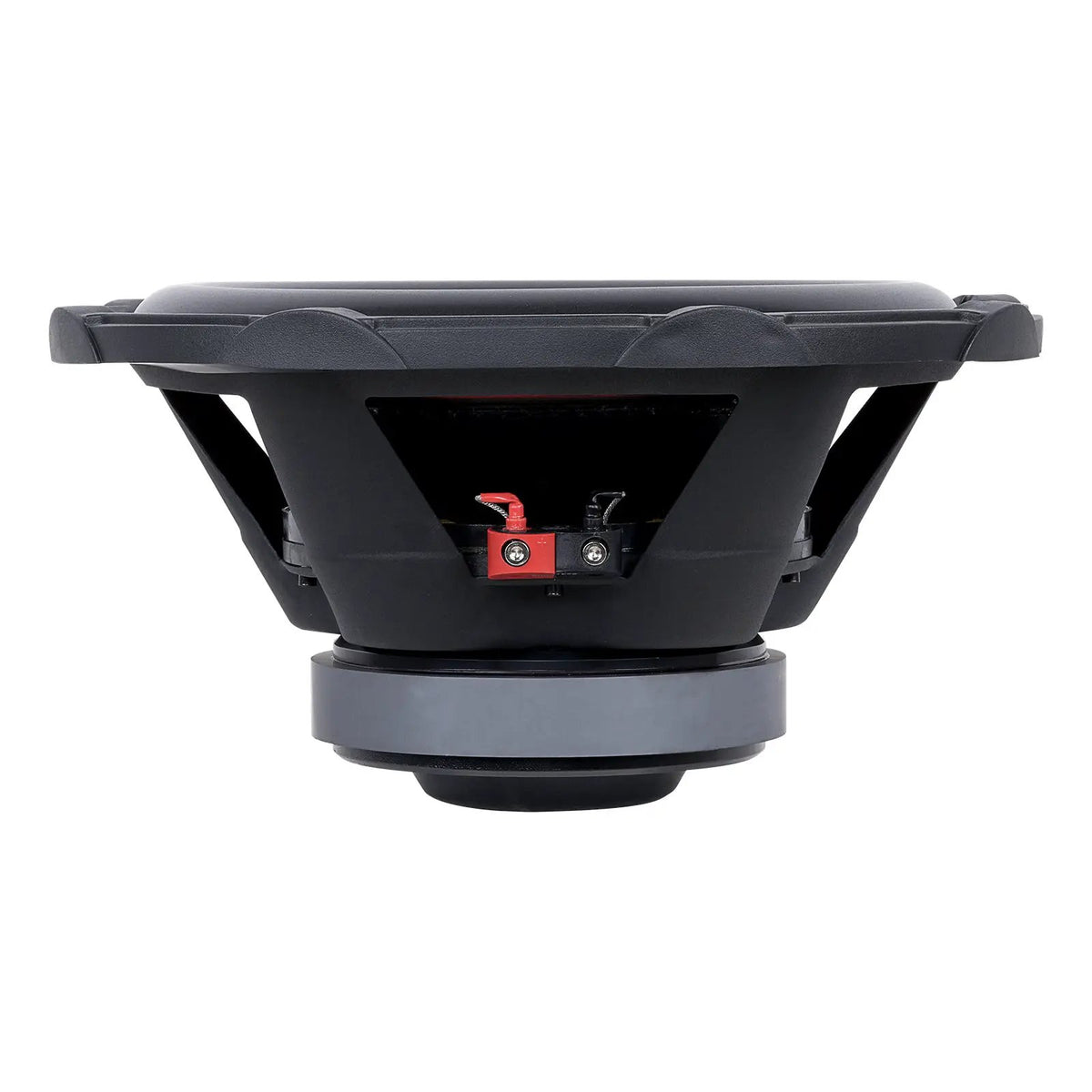

| Mounting depth | 150mm (6”) |
Why Choose This Product?
The TXX-BDC-I-12 combines a single-stack design with dual voice coils, giving you wiring options when planning your system. Its stated RMS and peak ratings let you assess amplifier matching using the rating that applies to continuous power handling.
The textured composite cone, ventilated voice coil, and heat-sink design are specific construction features to consider when choosing a 12-inch car audio subwoofer.
Installation & Compatibility Notes
Check that your available mounting space accommodates the 150mm (6”) mounting depth. Confirm your amplifier supports the subwoofer’s final load before wiring the dual 4-ohm voice coils in parallel or series.
Use the product’s multi-connect terminals for the chosen wiring configuration. Confirm enclosure requirements and installation clearances for your setup before installation.
Frequently Asked Questions
What do the power ratings mean?
The TXX-BDC-I-12 is rated for 600 watts RMS and 1200 watts peak. Compare amplifier output with the RMS rating when planning your system.
What is the subwoofer’s impedance?
It has two 4-ohm voice coils, listed as 2 x 4 Ohms. The final load depends on how the coils are wired.
Can I wire the voice coils in parallel or series?
Yes. Its patented pipe multi-connect terminals are designed to support parallel or series wiring configurations.
How much mounting depth should I allow?
The stated mounting depth is 150mm (6”). Check the available space in your installation location.
What enclosure should I use?
Confirm the enclosure type and volume for the TXX-BDC-I-12 before choosing or building a box.
