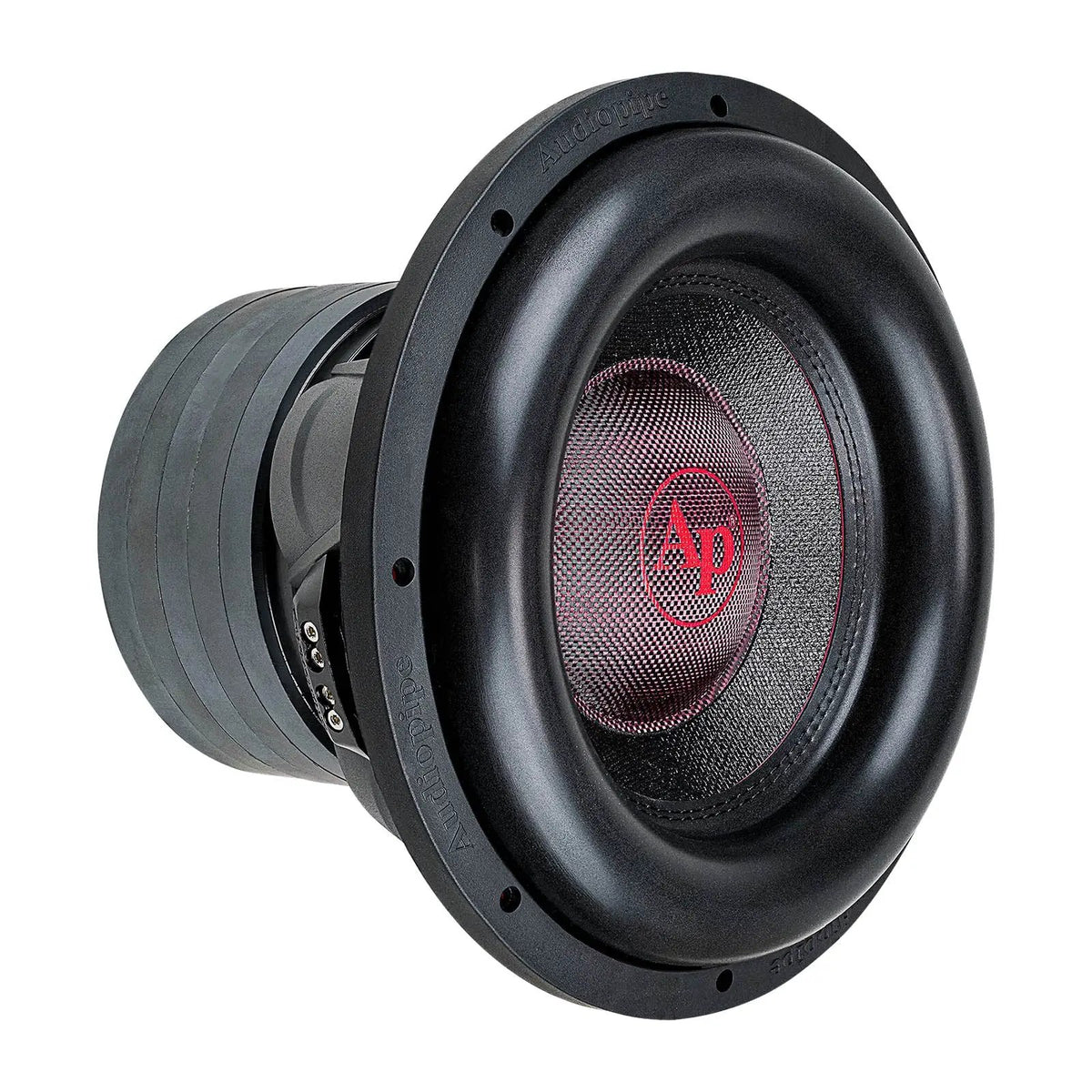

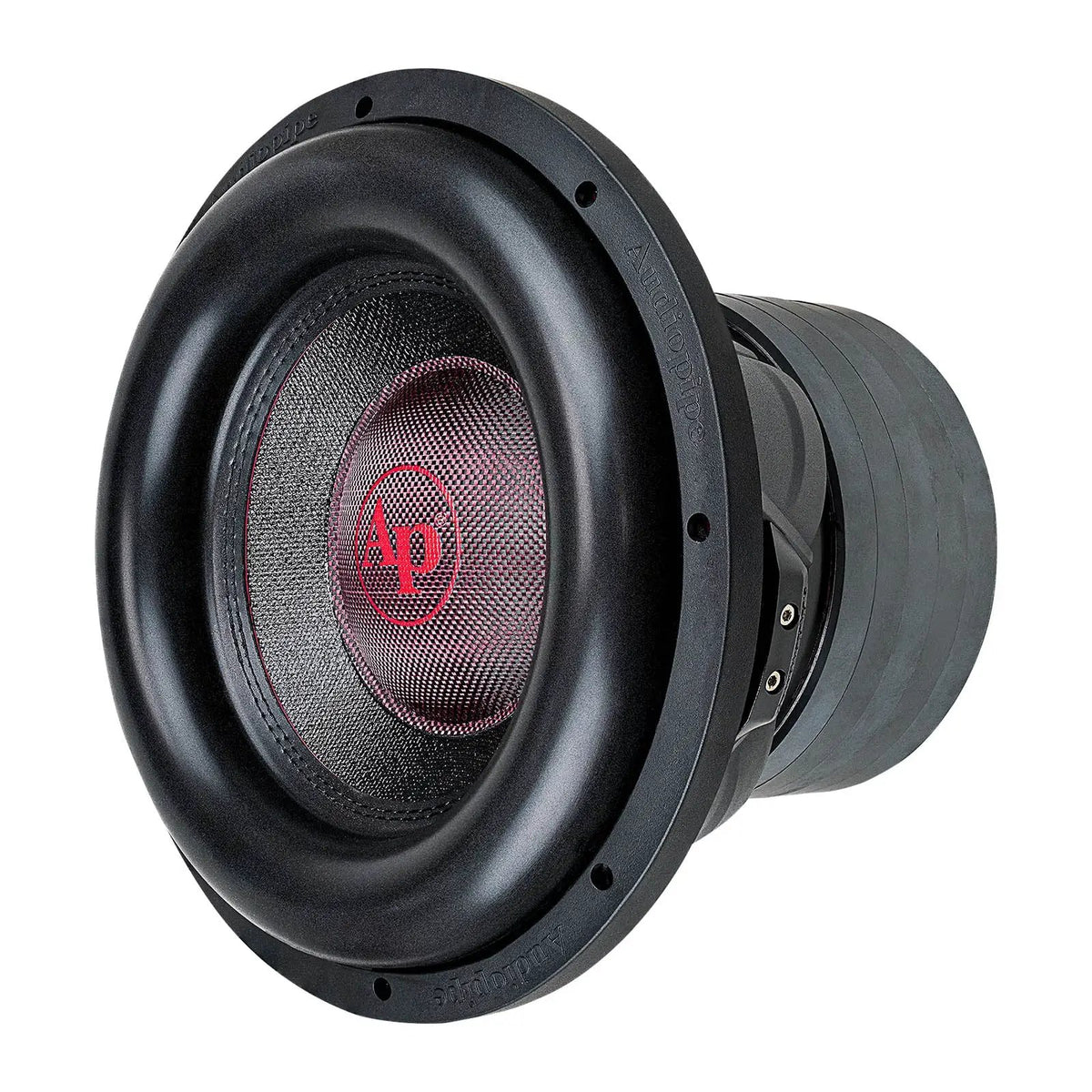

Audiopipe TXX-BDC-V-12 12" Quinta Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1200 W
- Voice-coil options: D4

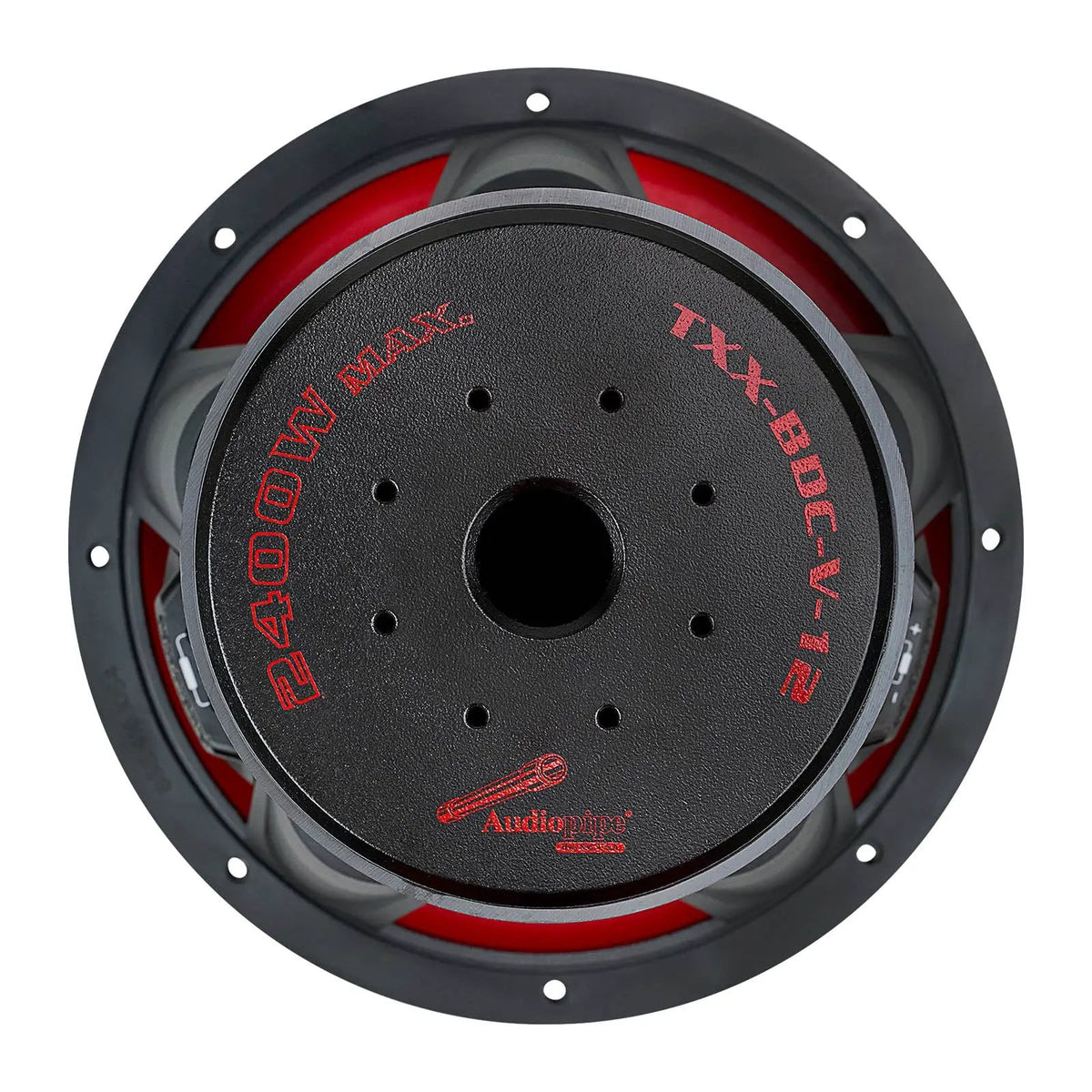

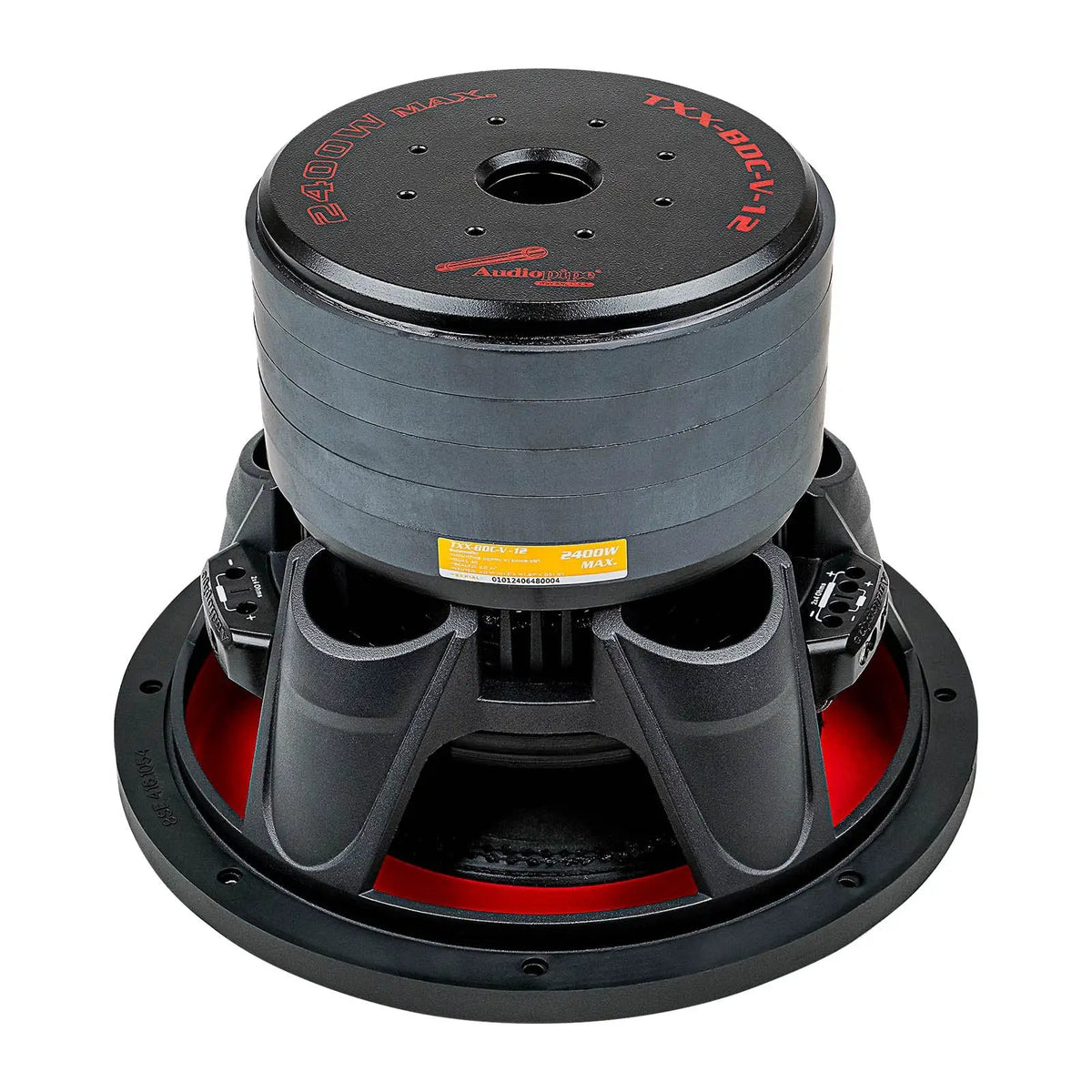

- MAGNET: Boasting 5 magnets for strong power handling, 320 Oz
- FREQUENCY RESPONSE: 18-1,500Hz
- SENSITIVITY: 88dB
Audiopipe TXX-BDC-V-12 12" Quinta Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a 12-inch subwoofer with a 1200-watt RMS rating to your car audio system with the Audiopipe TXX-BDC-V-12 Quinta Stack. Its dual 4-ohm voice coils, ventilated design, and Kevlar fiber composite cone are built for demanding low-frequency use.
Key Features & Benefits
- Power handling: 1200 watts RMS and 2400 watts peak give you clear ratings to consider when matching an amplifier.

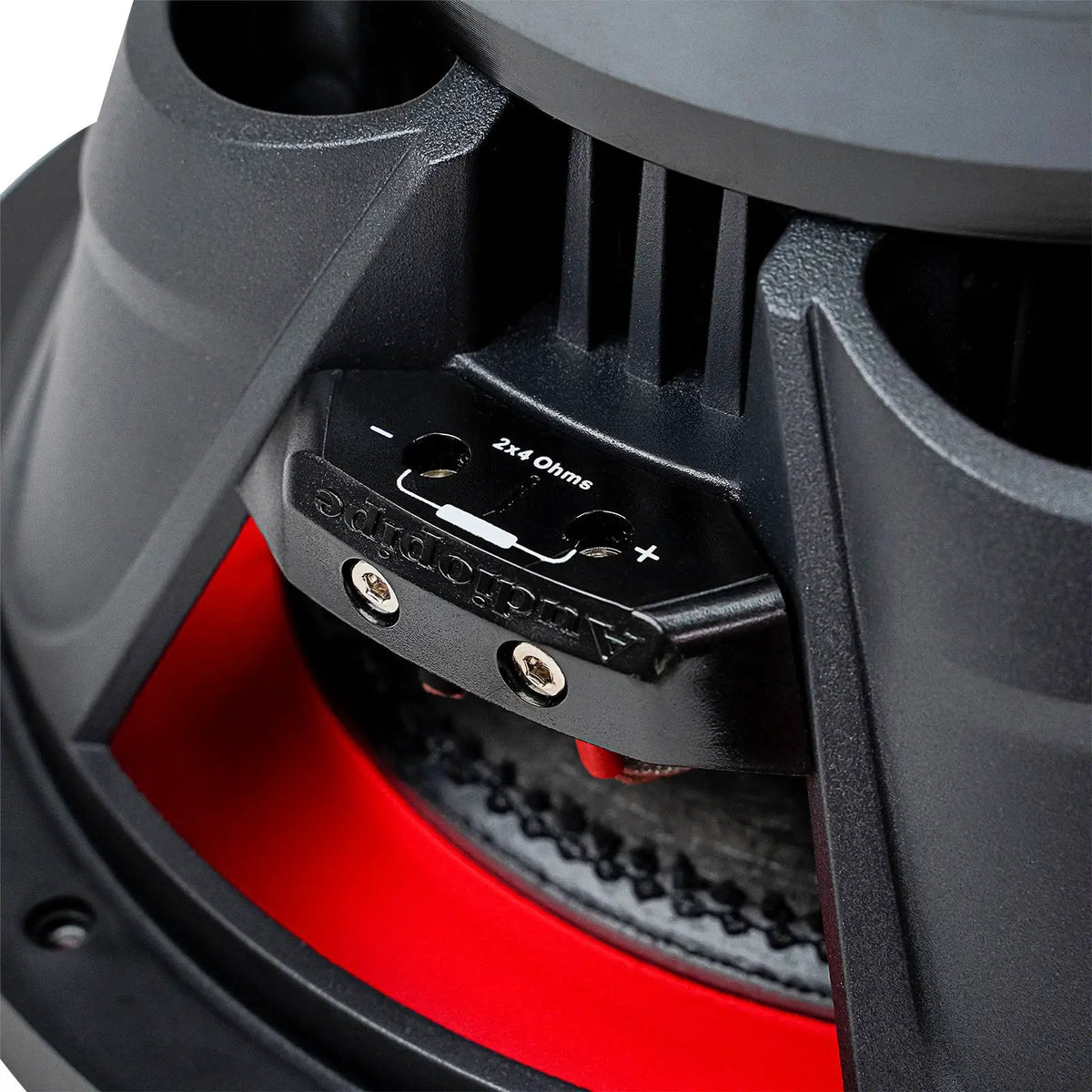

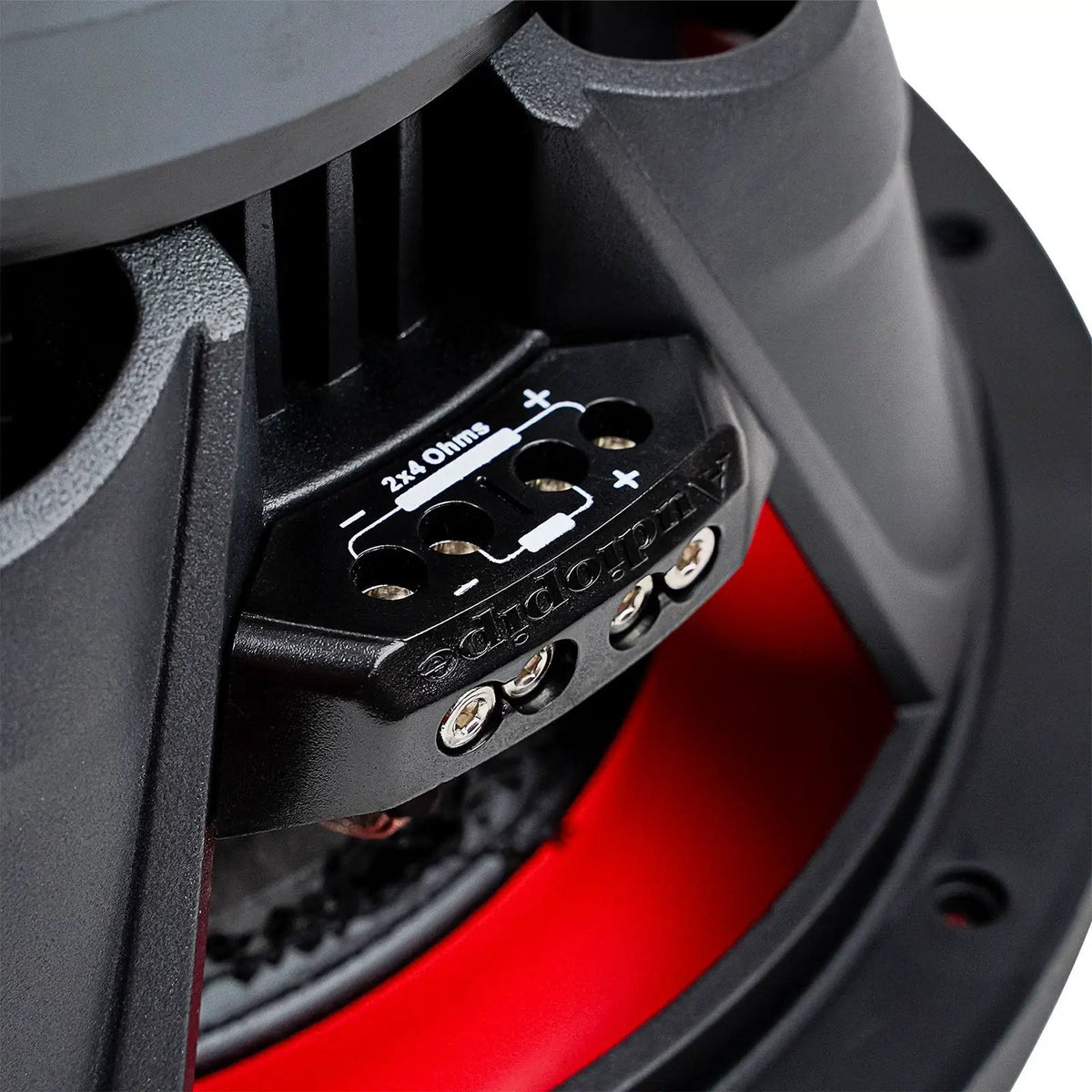

- Dual voice coils: The 2 x 4-ohm configuration and multi-connect terminals support series or parallel wiring choices.
- Ventilated design: Increased voice coil ventilation and a dust-proof heat sink support airflow around the assembly.

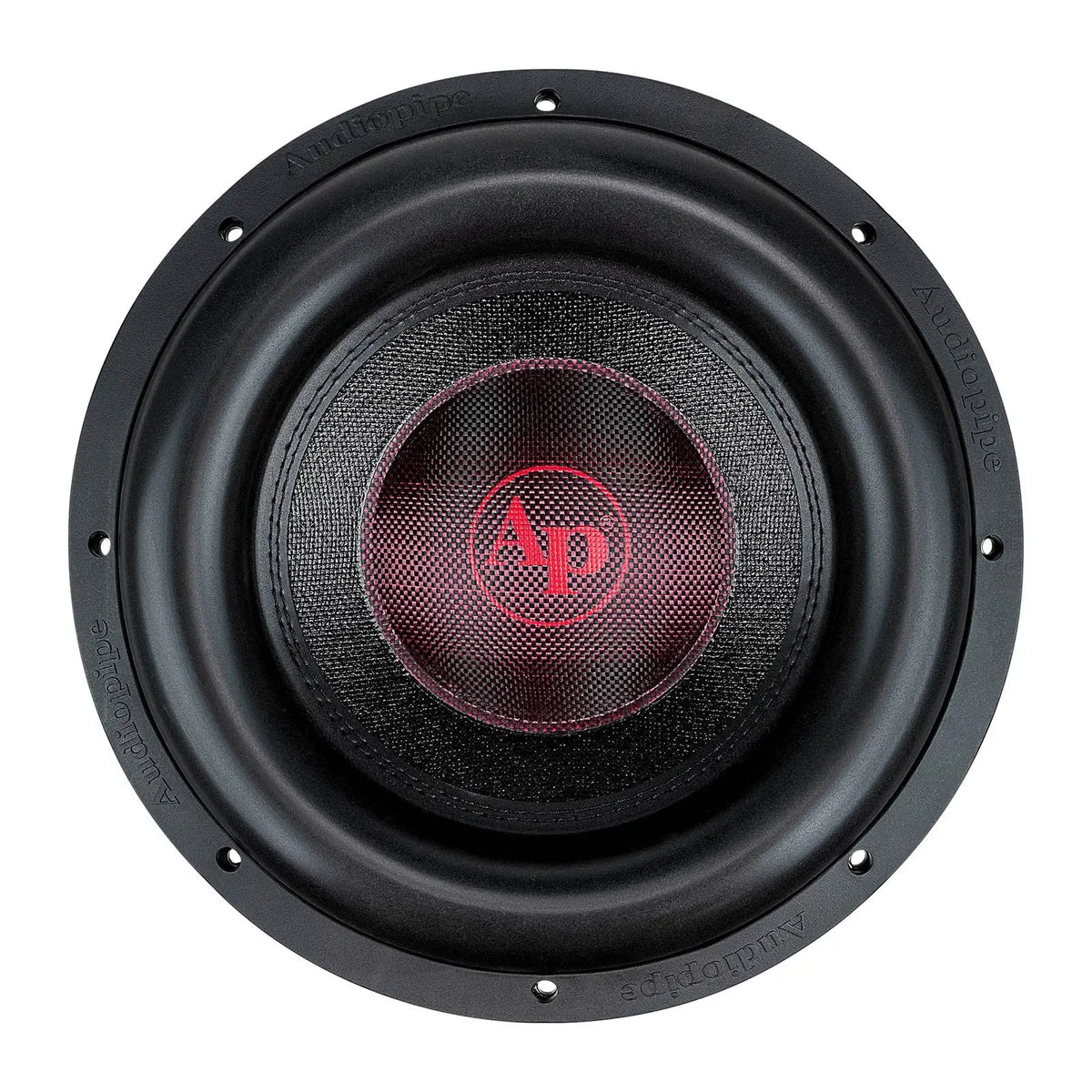

- Composite cone: The textured Kevlar fiber composite non-press paper cone is designed for improved rigidity.
- Aluminum basket: The powdered black paint basket provides a sturdy frame for the subwoofer assembly.
- Quad-weaved tinsel leads: Progressive weaved leads on each side are designed for sound performance and durability.
Technical Specifications
| Specification | Value |
|---|---|
| Model | TXX-BDC-V-12 |
| Category | 12-inch subwoofer |
| Peak power | 2400 watts |
| RMS power | 1200 watts |

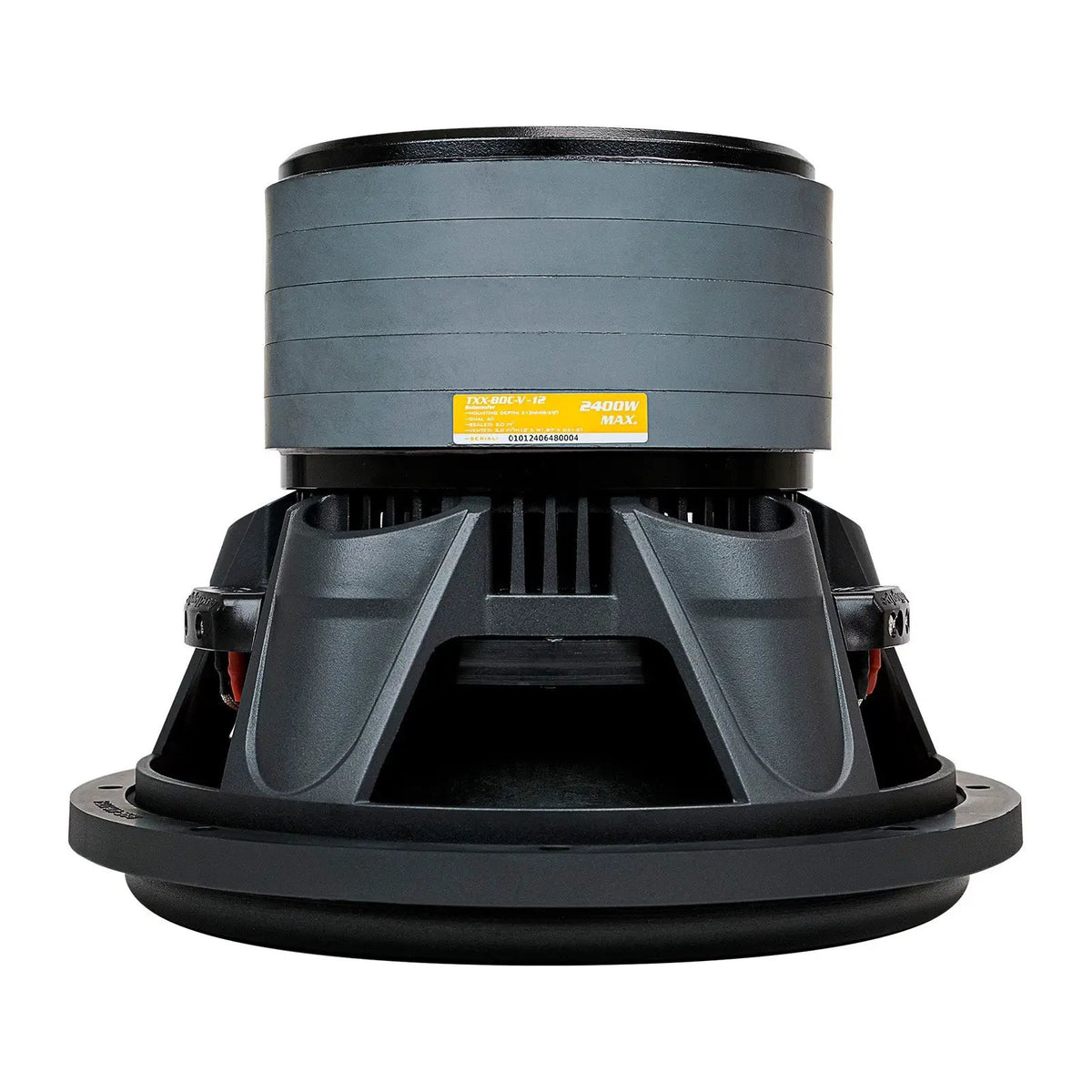

| Magnets | 5 magnets; 320 Oz |
| Frequency response | 18-1,500Hz |
| Sensitivity | 88dB |
| Voice coil | Dual 4 ohm; 3 inch, 4-layer, high temperature black aluminum (BASV) |
| Impedance | 2 x 4 Ohms |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Basket | Powdered black paint aluminum |
| Dust cap | Composite glass fiber |
| Terminals | Patented pipe multi-connect terminals |
| Mounting depth | 217mm (8-9/16”) |
Why Choose This Product?
The TXX-BDC-V-12 combines a high stated power rating with construction details aimed at ventilation and cone rigidity. Its dual voice coils and multi-connect terminals give you series and parallel wiring options when planning the subwoofer’s connection to your system.
The 18-1,500Hz frequency response and 88dB sensitivity provide useful figures for comparing this model with other components. Consider those figures alongside your amplifier and system design rather than choosing by peak power alone.
Installation & Compatibility Notes
Allow for the 217mm (8-9/16”) mounting depth when checking available space. Confirm that your amplifier supports the final load created by the selected series or parallel wiring configuration.
Check your enclosure and installation requirements before purchase. The listed specifications do not include enclosure dimensions or volume.
Frequently Asked Questions
What are the power ratings of the TXX-BDC-V-12?
It is rated at 1200 watts RMS and 2400 watts peak. Match the RMS rating with your amplifier’s output and supported load.
What is the voice coil impedance?
This subwoofer has dual 4-ohm voice coils, listed as 2 x 4 Ohms. Its multi-connect terminals allow series or parallel wiring.
How much mounting depth should I allow?
The listed mounting depth is 217mm (8-9/16”). Check the available installation space against this measurement.
What enclosure should I use?
Confirm the enclosure volume and design requirements for this model before selecting a box.
