Audiopipe TXX-BDC-V-12D2 12" Quinta Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1200 W
- Voice-coil options: D2
- MAGNET: Boasting 5 magnets for strong power handling, 320 Oz
- FREQUENCY RESPONSE: 18-1,500Hz
- SENSITIVITY: 88dB
Audiopipe TXX-BDC-V-12D2 12" Quinta Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a high-power 12-inch subwoofer to your car audio system with the Audiopipe TXX-BDC-V-12D2 Quinta Stack composite cone subwoofer. It combines 2400 watts peak power, a textured Kevlar fiber composite non-press paper cone, and increased voice coil ventilation.
Key Features & Benefits
- Power ratings: 1200 watts RMS and 2400 watts peak give you the listed power figures when comparing system components.
- Dual voice coils: The 2-ohm coils can be wired in series or parallel using the multi-connect terminals.
- Ventilated coil design: The 3-inch, four-layer high-temperature black aluminum BASV voice coil has increased ventilation.
- Composite cone: The textured Kevlar fiber composite non-press paper cone is designed for improved rigidity.
- Aluminum basket: The powdered black-painted basket includes a dust-proof heat sink designed for high ventilation.
- Quad-weaved tinsel leads: Progressive weaved leads on each side support the subwoofer’s connections.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Audiopipe |
| Model | TXX-BDC-V-12D2 |
| Product category | 12-inch subwoofer |
| Series | Quinta Stack Composite Cone |
| Peak power | 2400 watts |
| RMS power | 1200 watts |

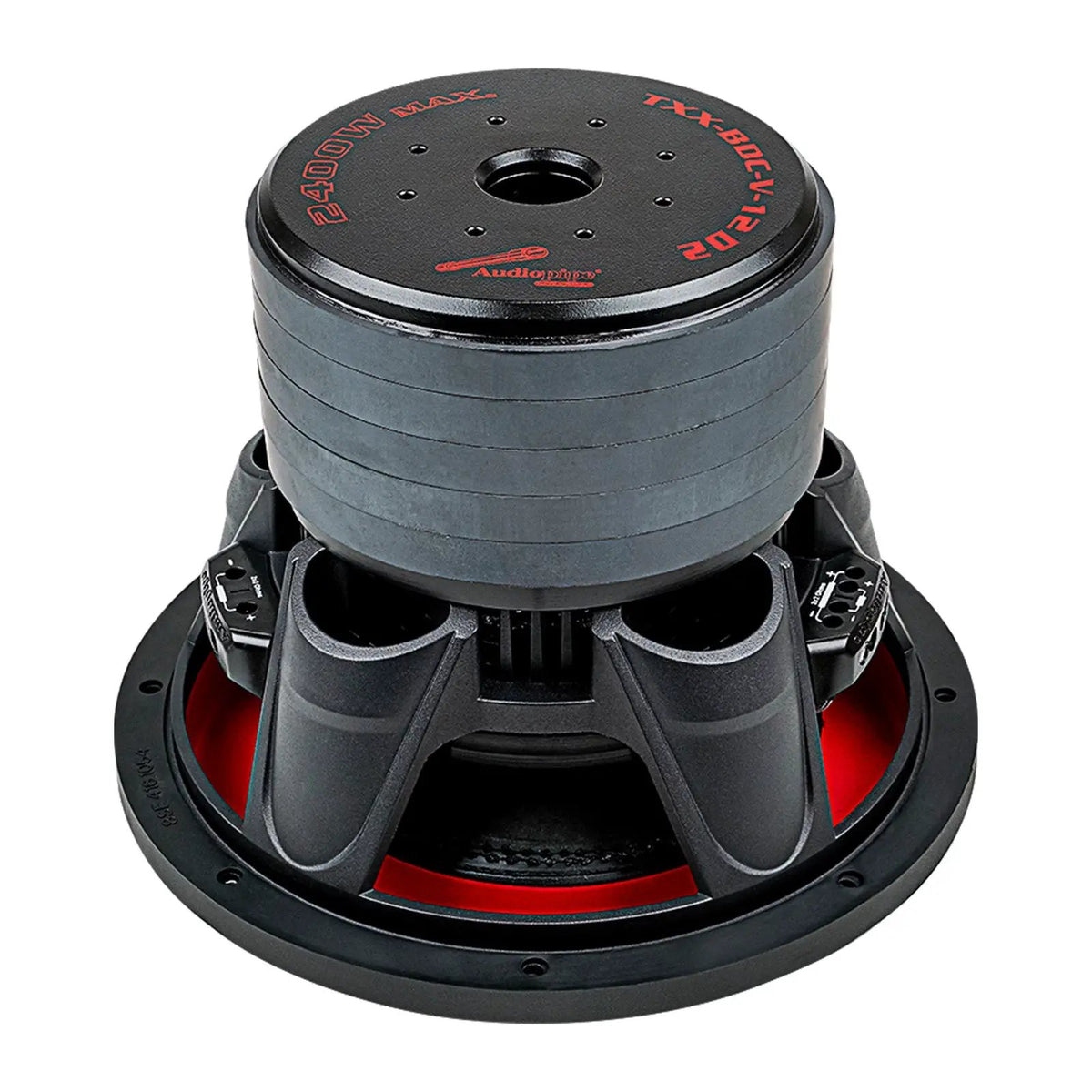

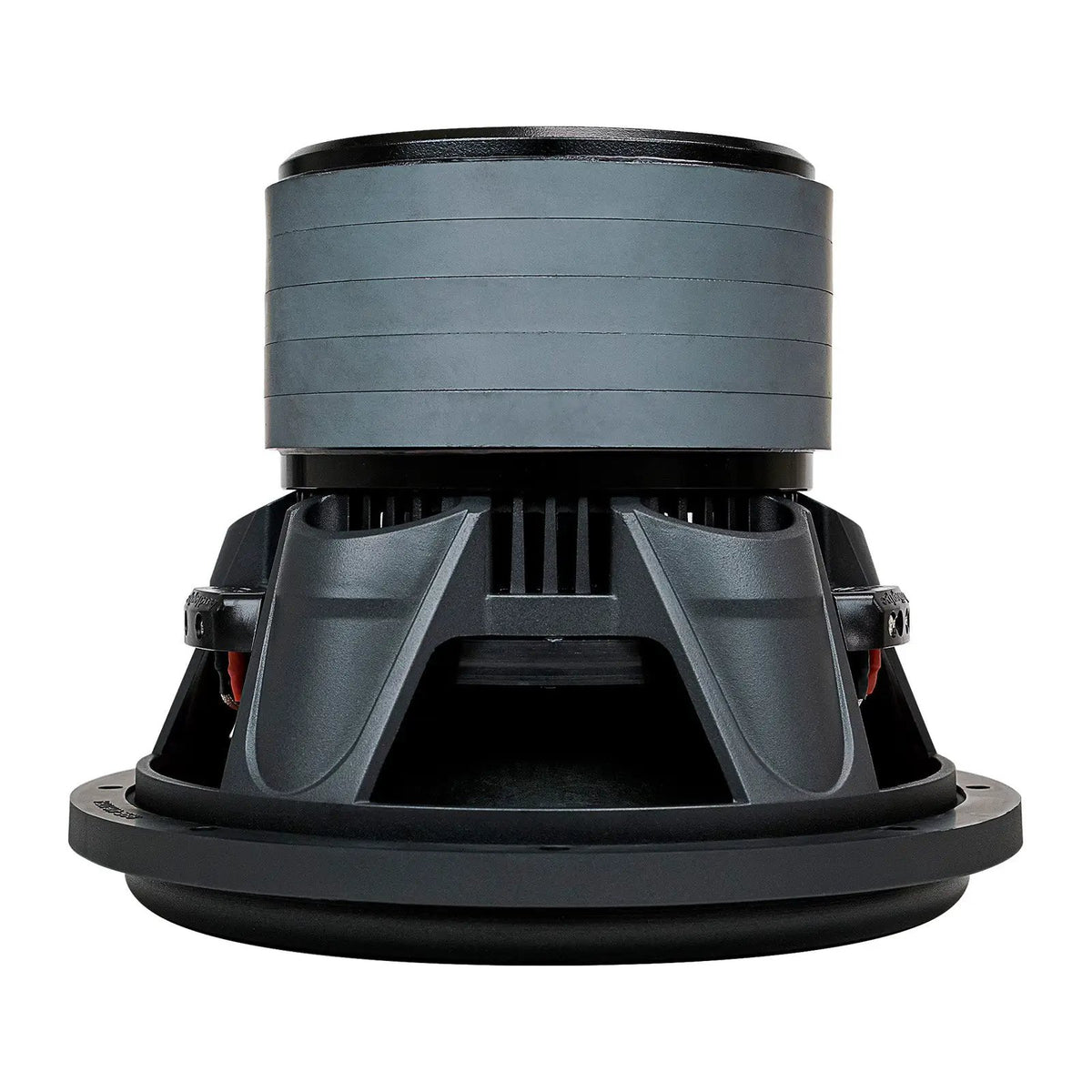

| Magnet | 5 magnets; 320 Oz |
| Frequency response | 18-1,500Hz |
| Sensitivity | 88dB |
| Voice coil | Dual 2 ohm, 3 inch, 4-layer high-temperature black aluminum (BASV) |
| Impedance | 2 x 2 Ohms |

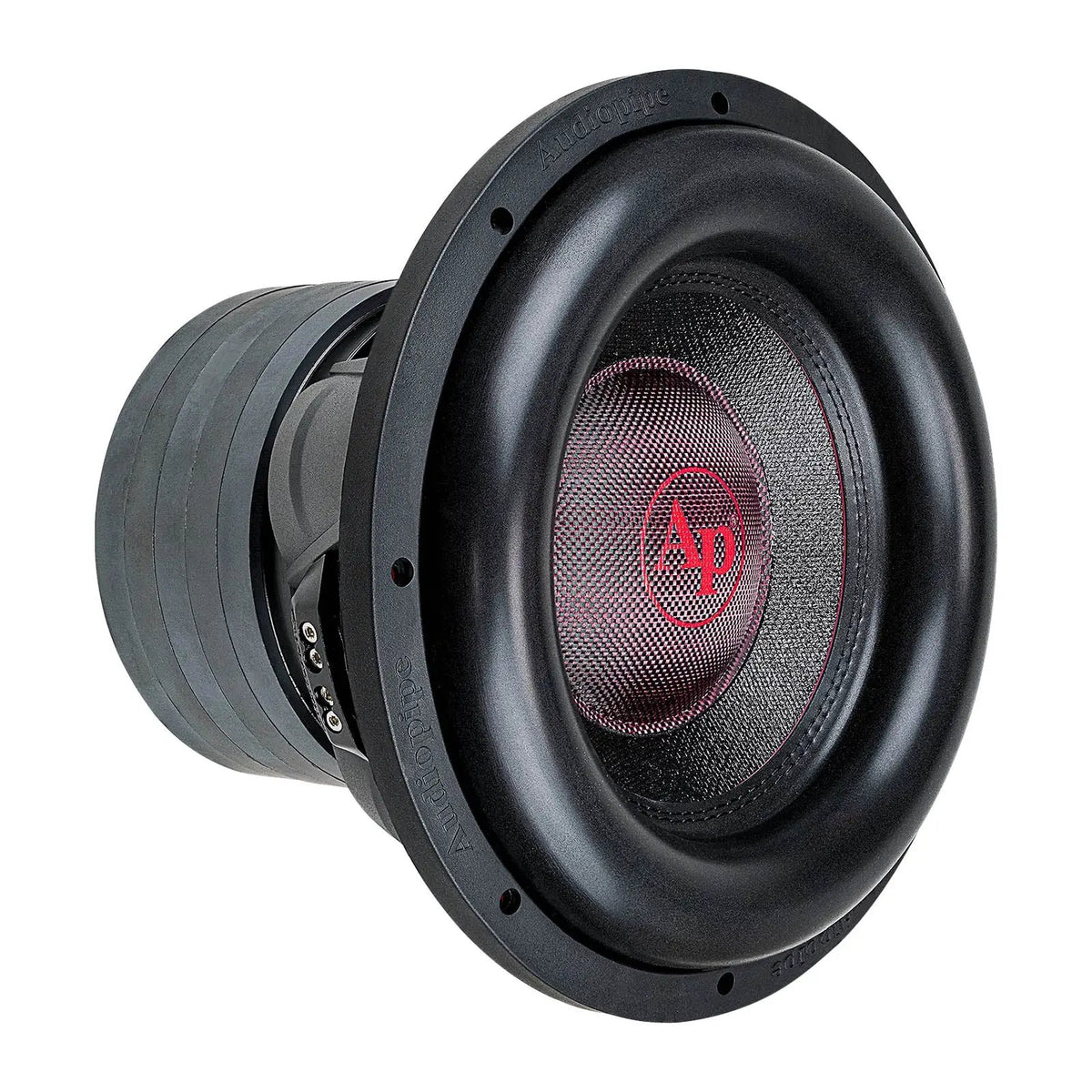

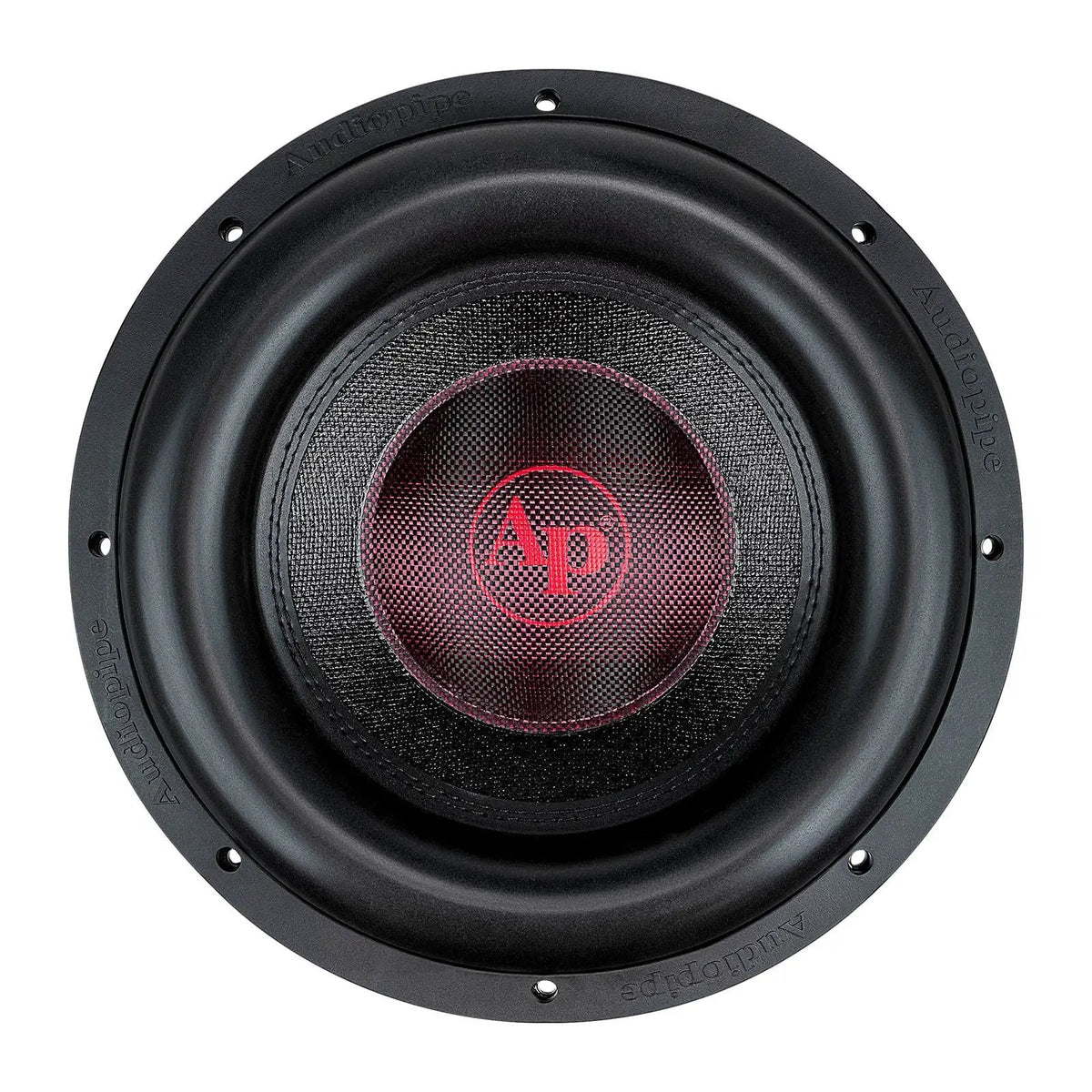

| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Basket | Powdered black paint aluminum basket |
| Dust cap | Composite glass fiber |
| Heat sink | Dust-proof heat sink, strongly constructed for high ventilation |
| Tinsel leads | Progressive weaved tinsel leads on each side |

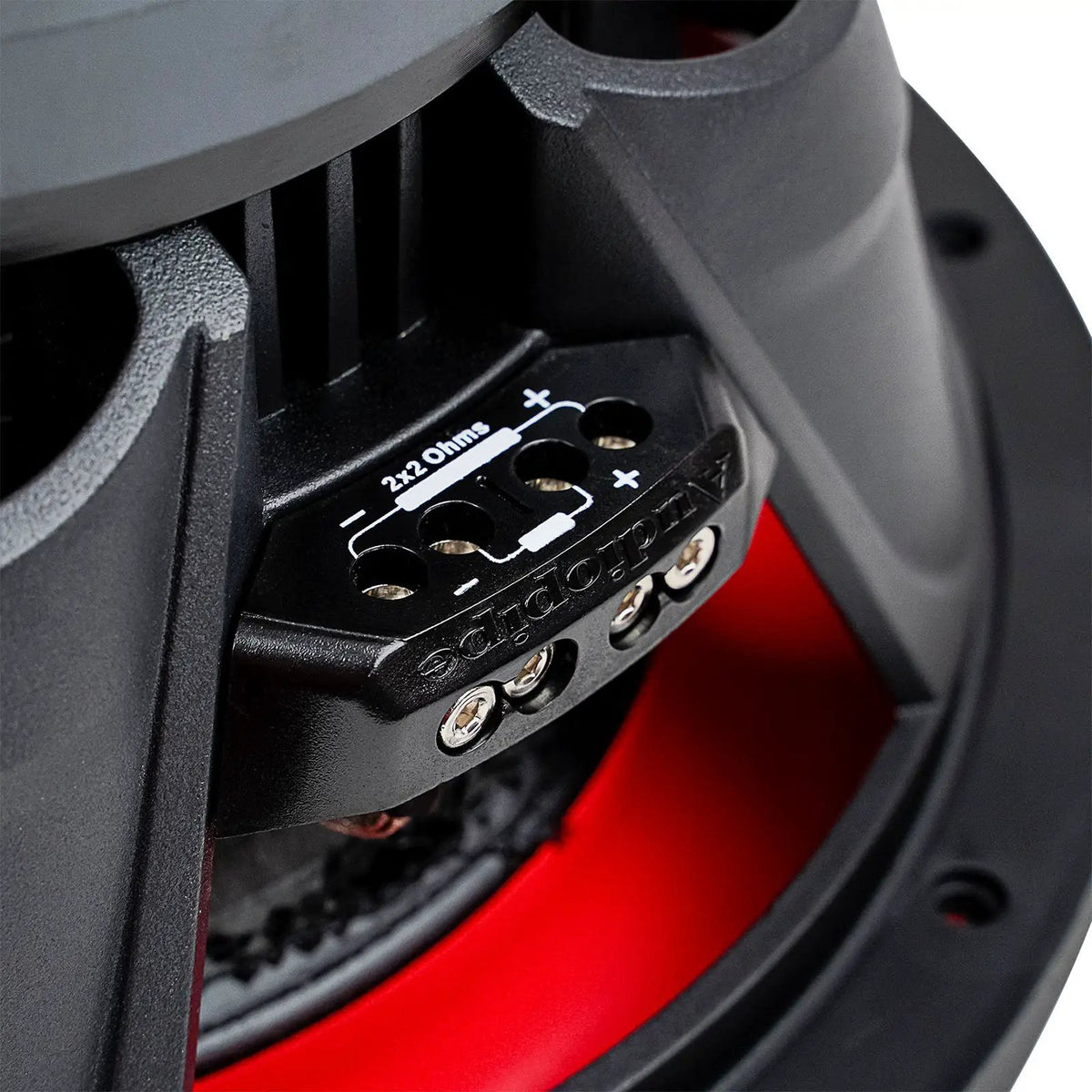

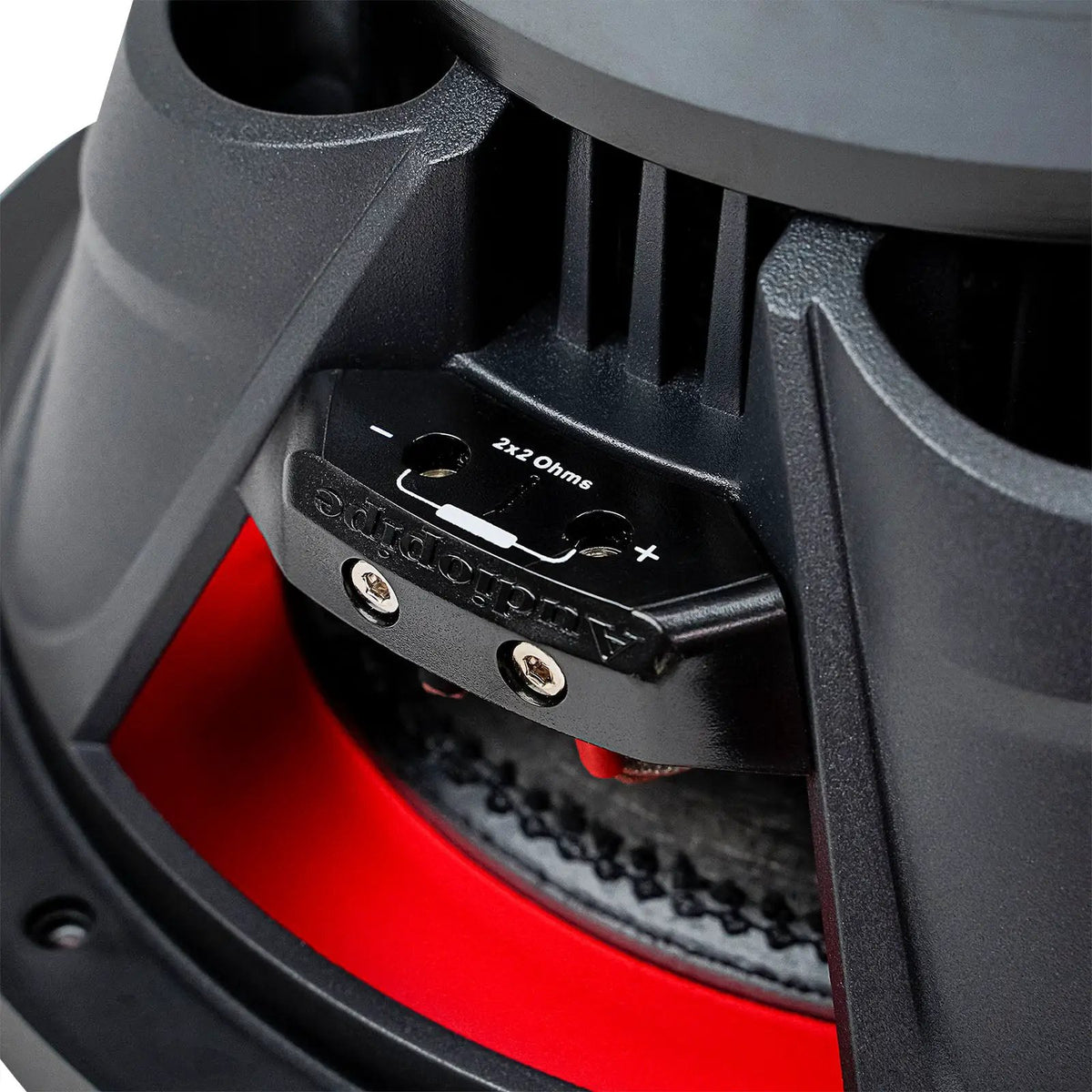

| Terminals | Patented pipe multi-connect terminals; accept up to 8 gauge speaker wire; support series or parallel wiring |
| Mounting depth | 217mm (8-9/16”) |
Why Choose This Product?
The TXX-BDC-V-12D2 pairs its dual-coil design with terminals made for series or parallel wiring. That gives you two connection options when planning the subwoofer’s place in your system.
Its cone, ventilated voice coil, aluminum basket, and dust-proof heat sink are specific design features for shoppers comparing high-power car audio subwoofers. The 88dB sensitivity and 18-1,500Hz frequency response also provide useful figures for comparing listed specifications.
Installation & Compatibility Notes
Allow for the listed 217mm (8-9/16”) mounting depth and check the available mounting space before installation. Confirm that your system’s power and impedance requirements suit the subwoofer’s 1200-watt RMS rating and dual 2-ohm coils.
The multi-connect terminals accept speaker wire up to 8 gauge and support series or parallel coil wiring. Choose a wiring arrangement that matches your system’s requirements.
Frequently Asked Questions
What are the RMS and peak power ratings?
The subwoofer is rated at 1200 watts RMS and 2400 watts peak. Keep the two ratings distinct when comparing equipment.
What impedance are the voice coils?
It has dual 2-ohm voice coils, listed as 2 x 2 Ohms. The terminals support series or parallel wiring.
How deep is the subwoofer?
The listed mounting depth is 217mm (8-9/16”). Check this against the space available for installation.
What speaker wire do the terminals accept?
The patented pipe multi-connect terminals accept up to 8 gauge speaker wire.
What cone and basket does it use?
It has a textured Kevlar fiber composite non-press paper cone and a powdered black-painted aluminum basket. The description also lists a composite glass fiber dust cap.
