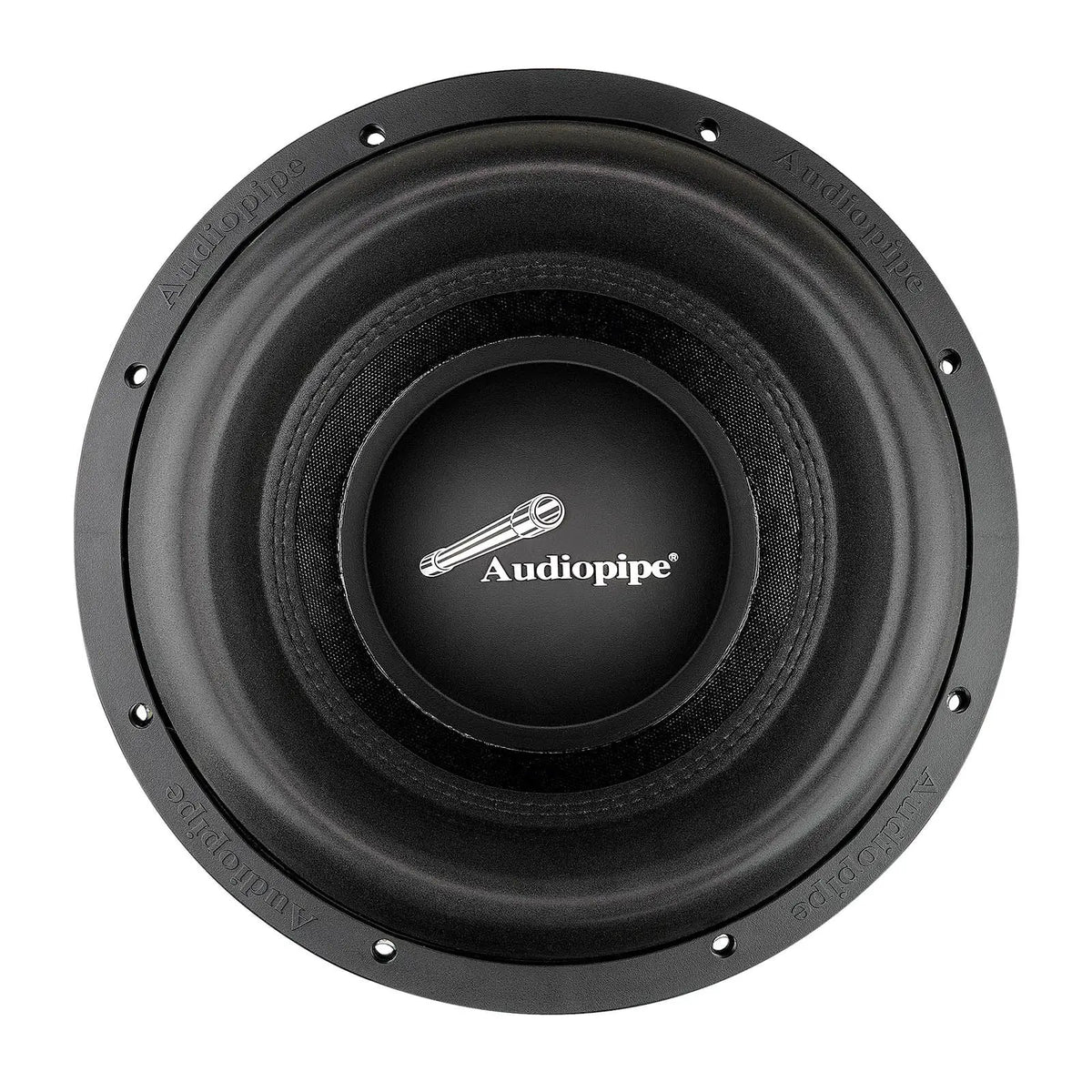

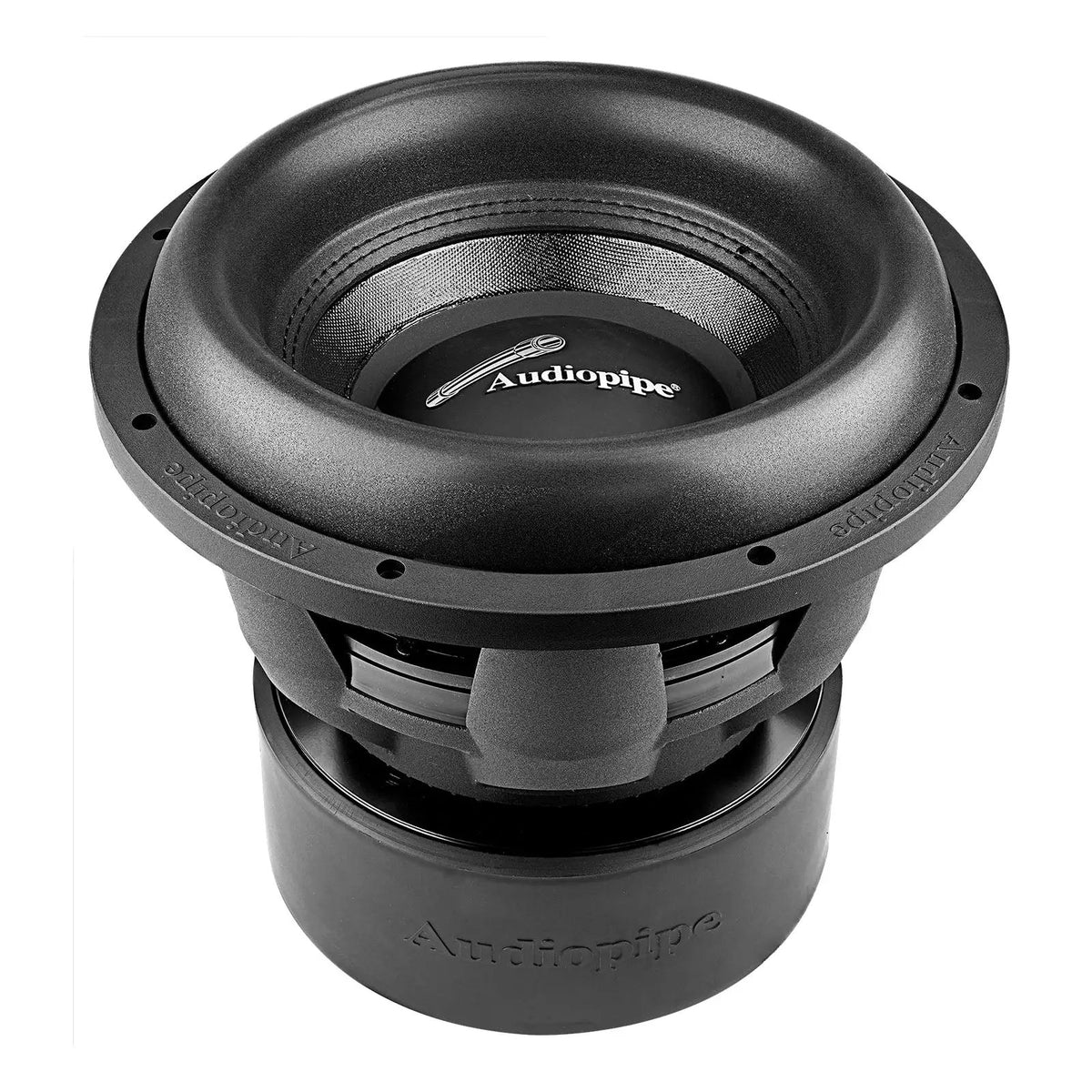

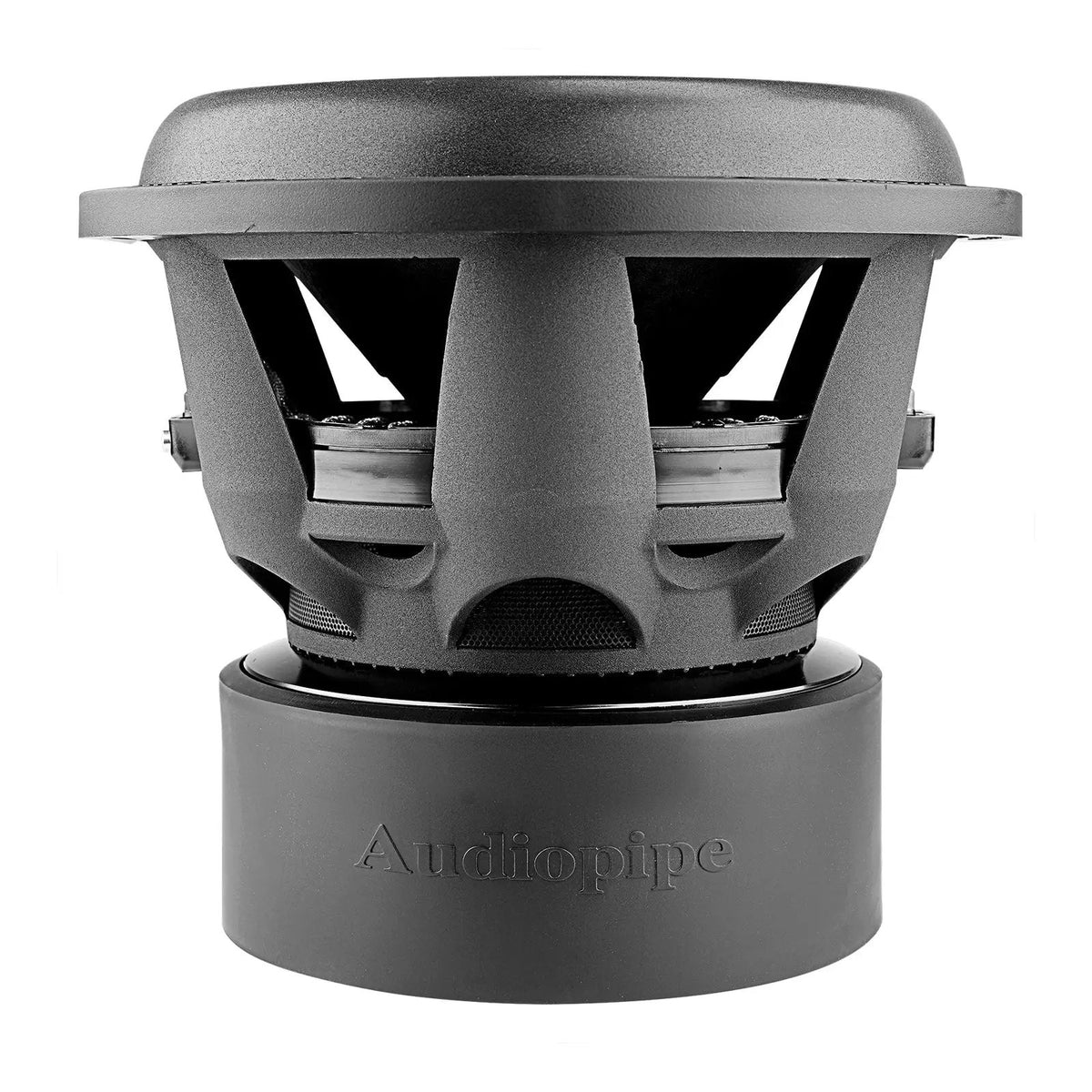

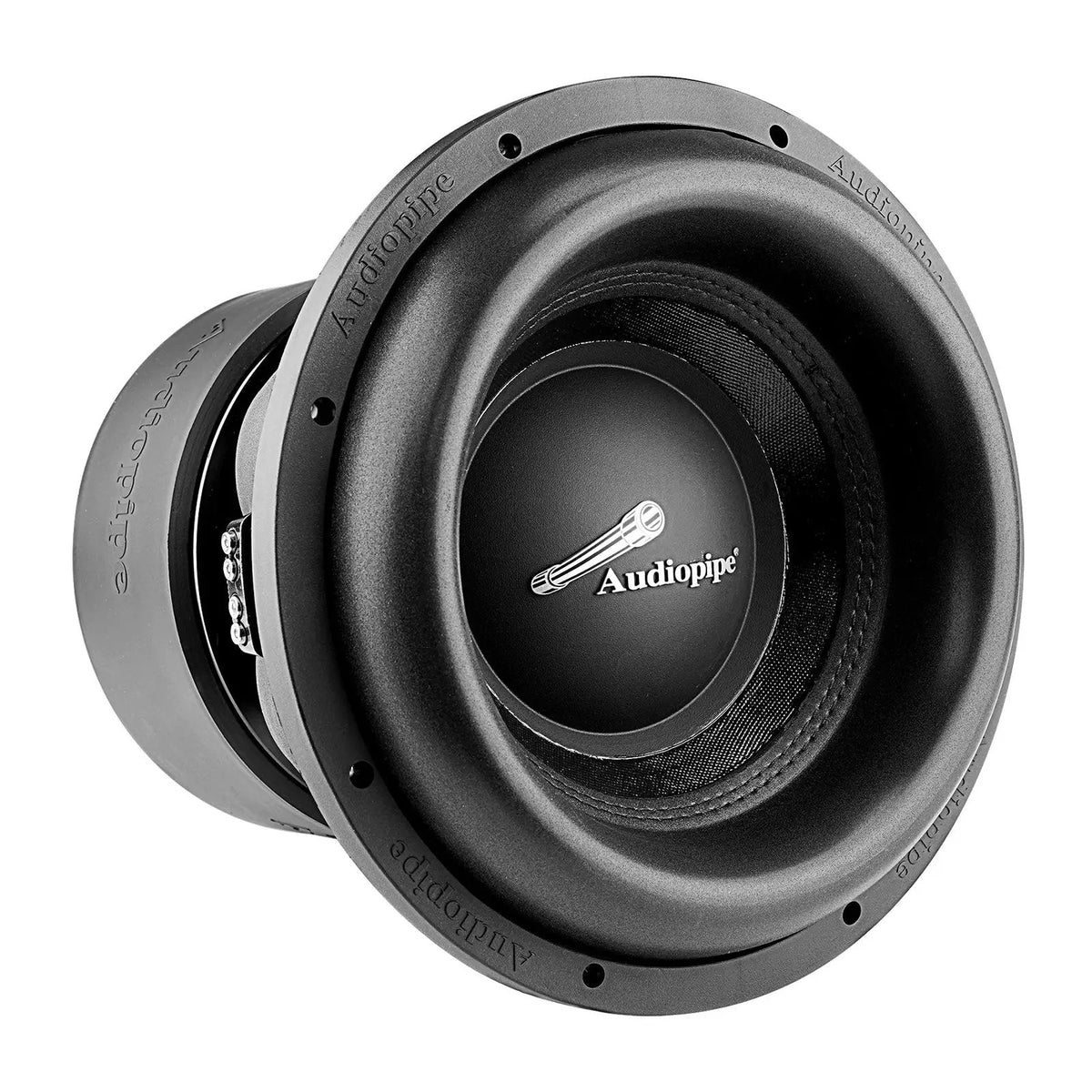

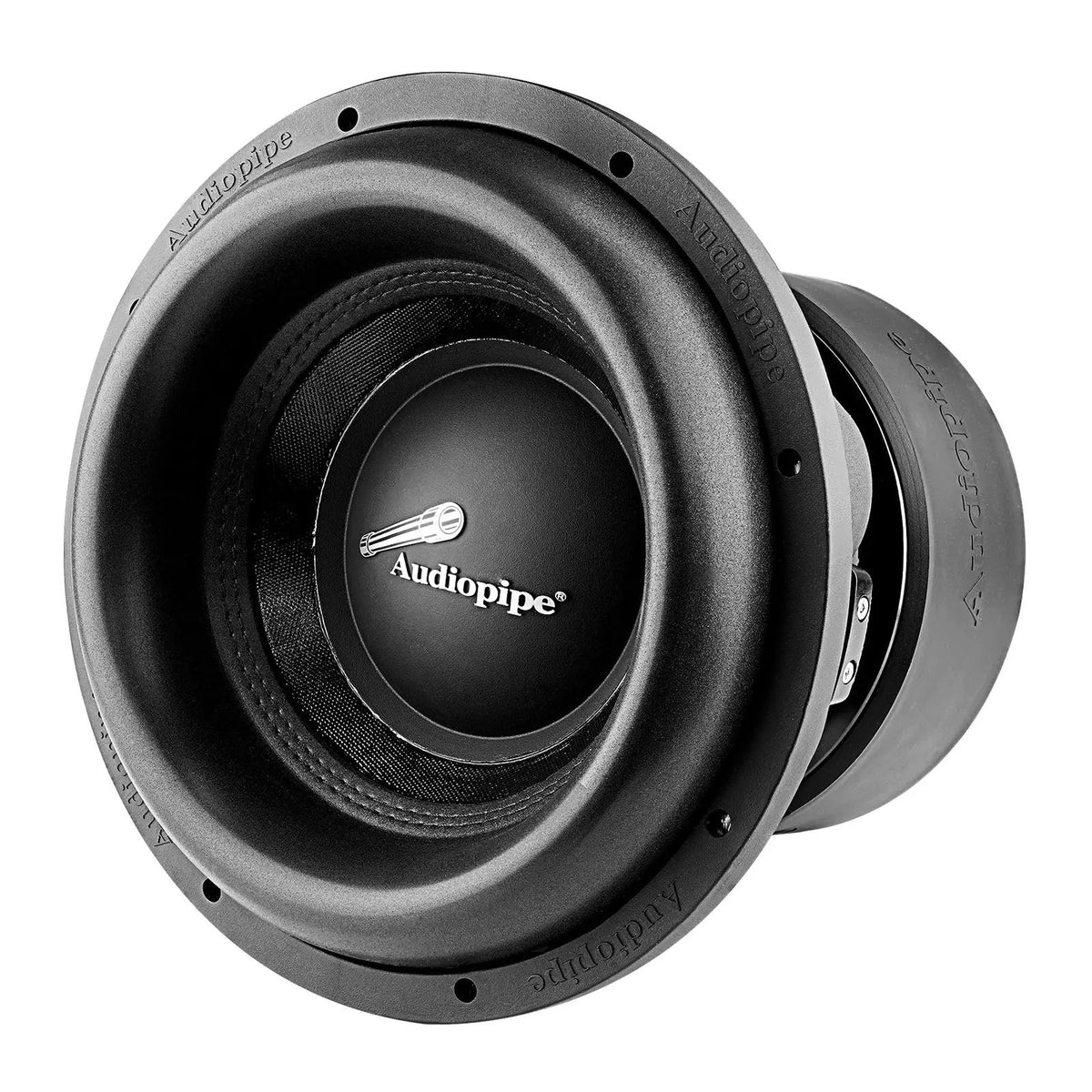

Audiopipe TXX-BDX-12 12" Competition Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1500 W
- Voice-coil options: D4
- MAGNET: Boasting 3 magnets for strong power handling, 375 Oz
- FREQUENCY RESPONSE: 30-1,200Hz
- SENSITIVITY: 86dB
Audiopipe TXX-BDX-12 12" Competition Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring a 12-inch competition subwoofer with 1,500 watts RMS power to your car audio system. The Audiopipe TXX-BDX-12 combines a dual 4-ohm voice coil, three magnets and ventilation features designed to support heat dissipation.
Key Features & Benefits
- Power ratings: 3,000 watts peak and 1,500 watts RMS give you clearly stated power figures for system planning.
- Dual voice coil: The 3-inch, 4-layer high-temperature black aluminum BASV voice coil is rated at dual 4 ohms.
- Ventilation: Increased voice coil ventilation and vented T-yoke holes are designed to help dissipate heat.
- Reinforced cone: The black non-press paper cone has a sand-blasted finish and is designed for improved rigidity.

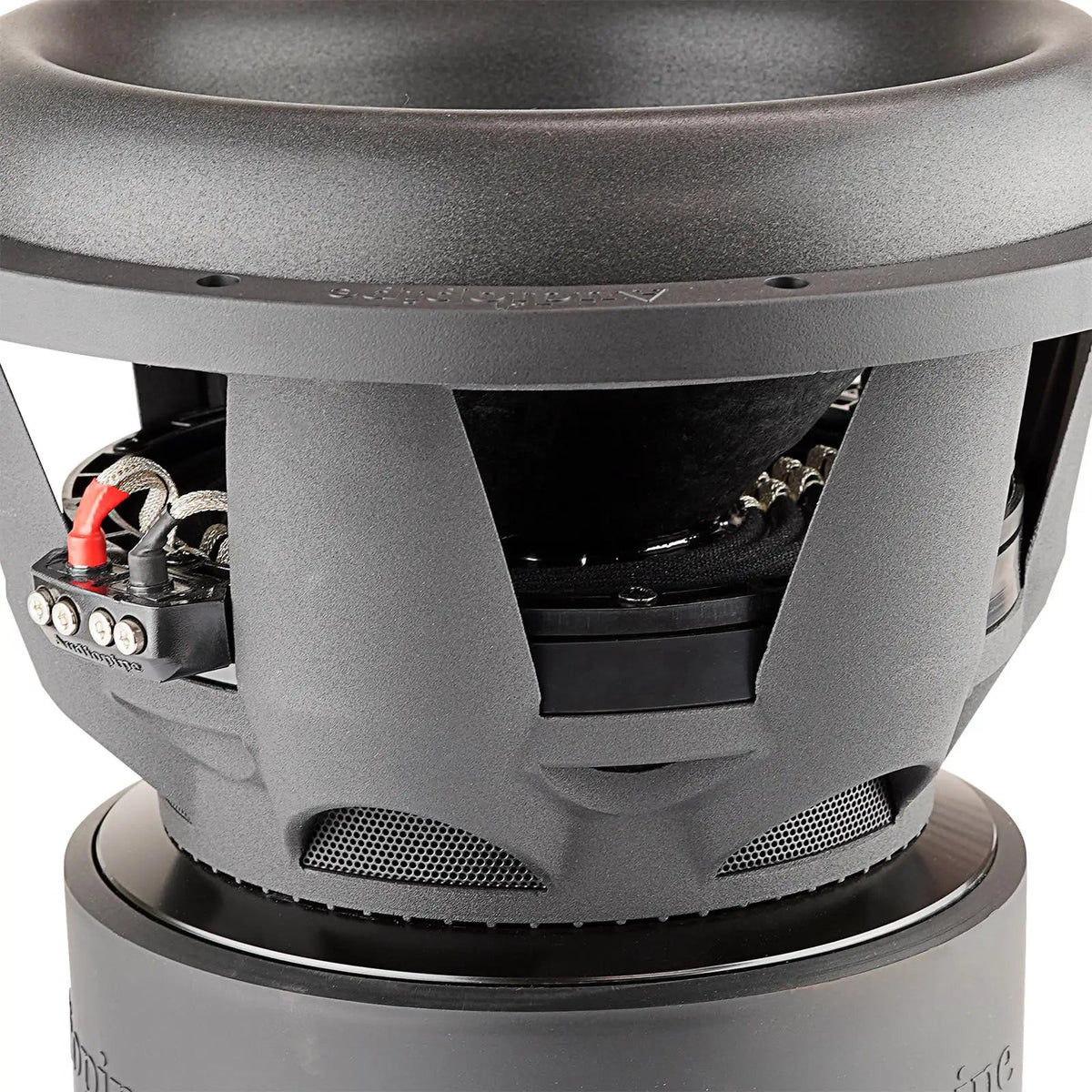

- Built-in construction details: The aluminum basket, IMPP dust cap, dust-proof heat sink and black stitching surround provide the specified structural features.

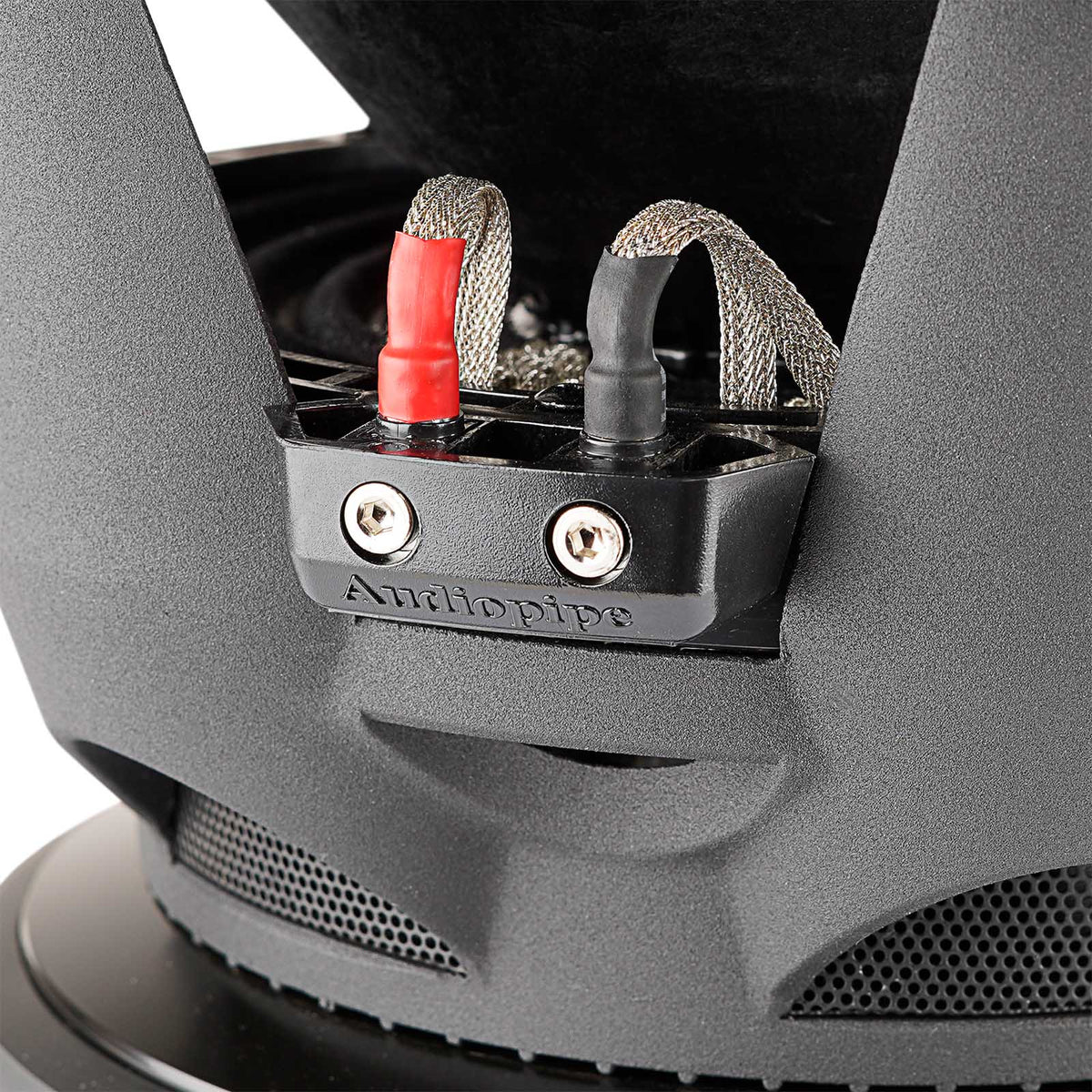

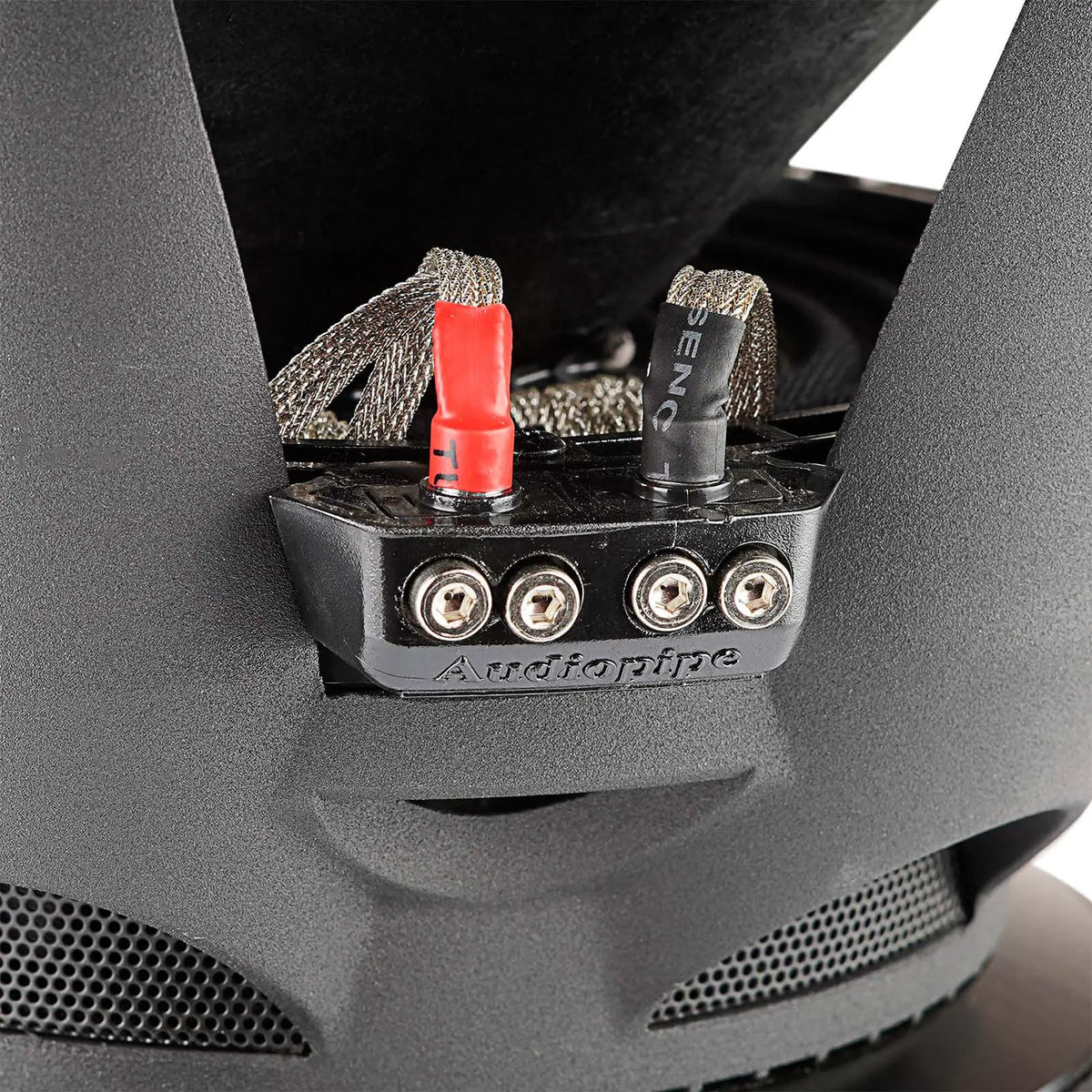

- Multi-connect terminals: The patented terminals support parallel or series wiring configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Audiopipe |
| Model | TXX-BDX-12 |
| Product category | 12-inch competition subwoofer |
| Peak power | 3000 Watts |
| RMS power | 1500 Watts |
| Magnets | 3 magnets; 375 Oz |
| Frequency response | 30–1,200 Hz |
| Sensitivity | 86 dB |
| Voice coil | Dual 4 ohm, 3 inch, 4-layer high-temperature black aluminum (BASV) |
| Basket | Powdered black paint aluminum |
| Dust cap | Ultra-stiff injection molded PP (IMPP) |
| Heat sink | Dust-proof |
| Surround | Black stitching surround |
| Cone | Black non-press paper cone with sand-blasted finish |
| Terminals | Patented pipe multi-connect terminals; parallel or series configurations |

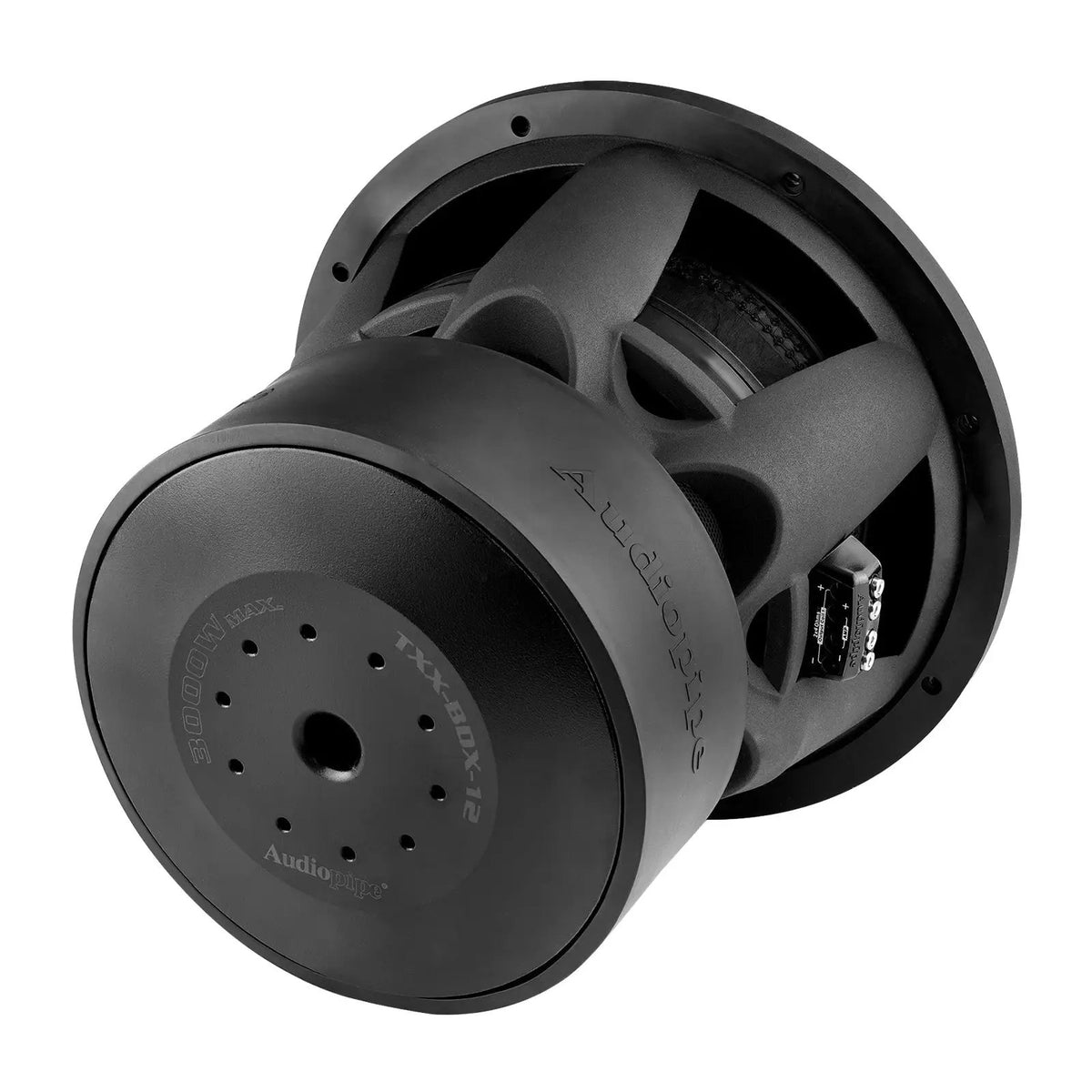

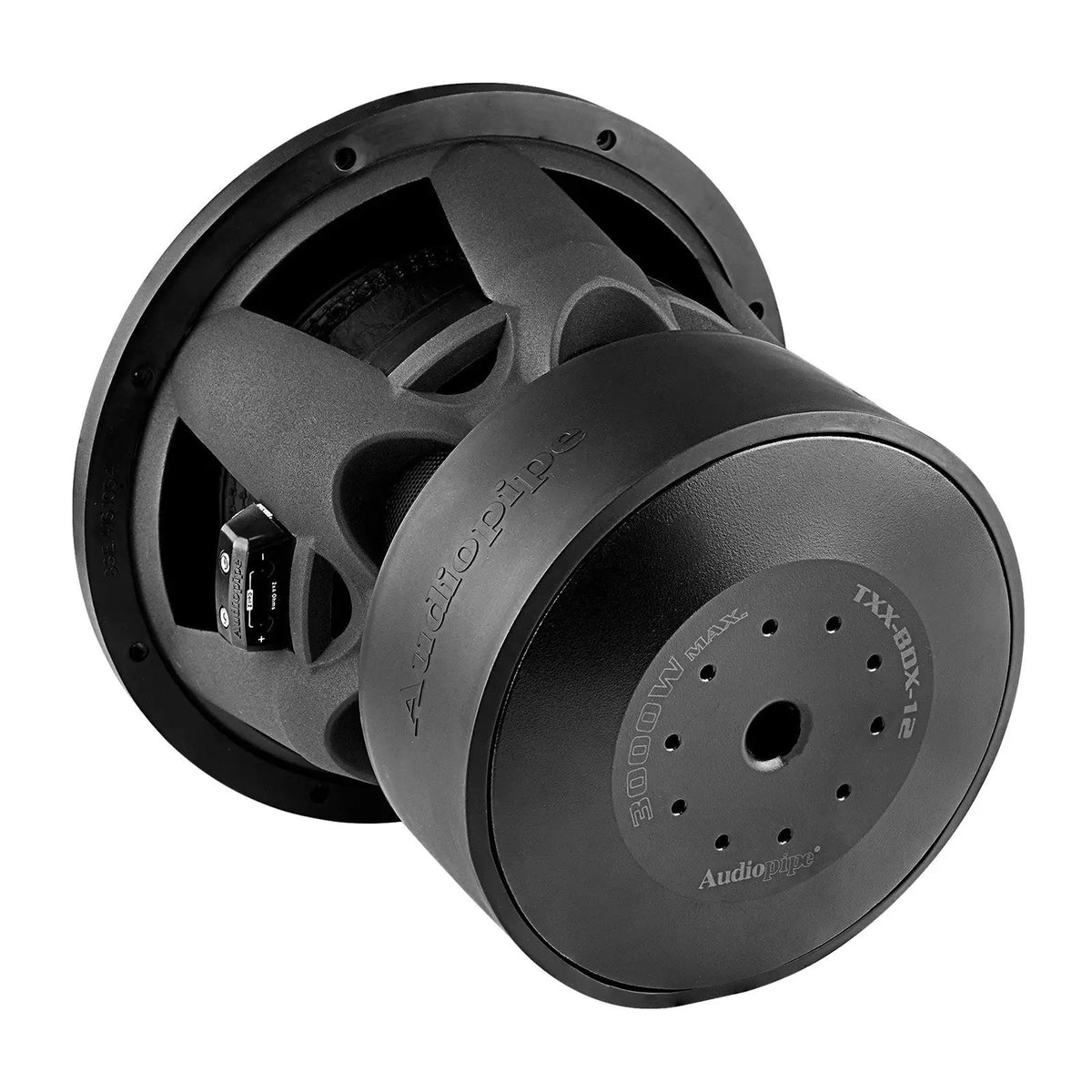

| T-yoke | Vented holes designed to enhance heat dissipation and improve sound quality |
| Mounting depth | 242 mm (9-1/2”) |
| Impedance | 2 x 4 Ohms |
Why Choose This Product?
The TXX-BDX-12 brings its power rating, dual voice coil impedance and wiring-terminal options together in one 12-inch subwoofer. Its vented T-yoke and increased voice coil ventilation are design details to consider when choosing a subwoofer for a system where heat management matters.
The reinforced paper cone and black stitching surround add specific construction features, while the aluminum basket and dust-proof heat sink complete the stated design. Check the mounting depth and your amplifier’s requirements when comparing it with your available space and system components.
Installation & Compatibility Notes
Allow for the stated 242 mm (9-1/2”) mounting depth. The subwoofer has a dual 4-ohm voice coil and terminals for parallel or series configurations; confirm your intended wiring and amplifier load requirements before installation.
Frequently Asked Questions
What are the peak and RMS power ratings?
The TXX-BDX-12 is rated at 3,000 watts peak power and 1,500 watts RMS power.
What impedance does this subwoofer have?
It has a dual 4-ohm voice coil, listed as 2 x 4 Ohms.
How deep is the subwoofer?
The stated mounting depth is 242 mm (9-1/2”). Check available mounting space against this measurement.
Can the terminals be wired in series or parallel?
Yes. The patented pipe multi-connect terminals are designed for parallel or series configurations. Confirm the resulting load suits your amplifier before wiring.
