12 Volt Tools WG-015 8-Inch Wire Stripper, Cutter and Crimper
Key features

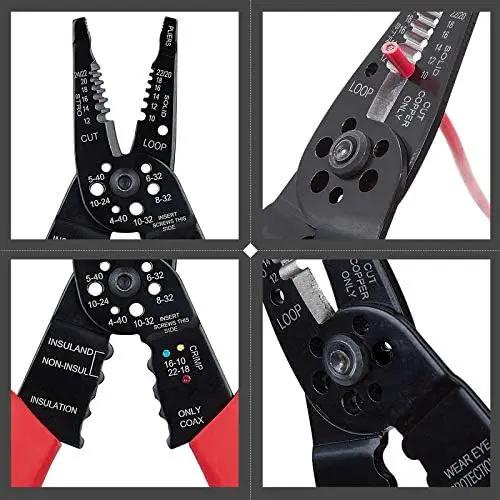

- Multiple wire tasks: Strip, cut, loop, crimp, and shear screws without switching between separate tools.
- Wire range: Manufacturer-listed for 10–22 AWG solid copper or aluminum wire.
- Terminal crimping: Works with insulated and non-insulated terminals.
- Serrated nose: Helps grip and bend wire during hands-on work.
- Screw shearing: Sized positions accommodate six listed screw sizes.
- Tool construction: A high-carbon alloy-steel body pairs with curved PP/TPR grips.
12 Volt Tools WG-015 8-Inch Wire Stripper, Cutter and Crimper is backordered and will ship as soon as it is back in stock.
12 Volt Tools WG-015 8-Inch Wire Stripper, Cutter and Crimper is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

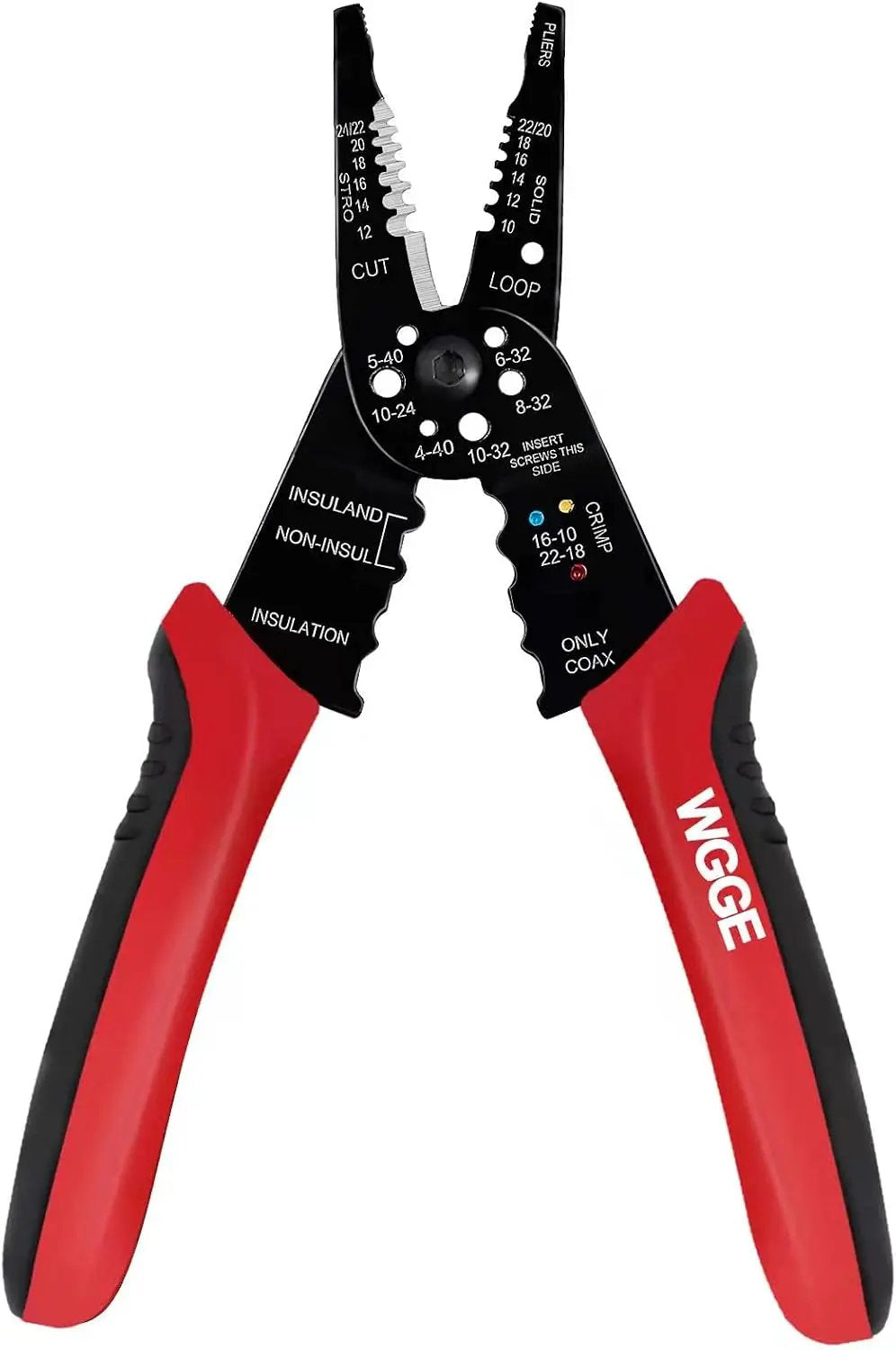

The 12 Volt Tools WG-015 combines five wire-work functions in one 8-inch hand tool: stripping, cutting, looping, crimping, and screw shearing. Its serrated nose helps you grip and bend wire, while curved grips provide a shaped surface to hold during bench or installation work.
Key Features & Benefits
- Multiple wire tasks: Strip, cut, loop, crimp, and shear screws without switching between separate tools.
- Wire range: Manufacturer-listed for 10–22 AWG solid copper or aluminum wire.
- Terminal crimping: Works with insulated and non-insulated terminals.
- Serrated nose: Helps grip and bend wire during hands-on work.
- Screw shearing: Sized positions accommodate six listed screw sizes.
- Tool construction: A high-carbon alloy-steel body pairs with curved PP/TPR grips.
Technical Specifications
| Specification | Details |
|---|---|
| Model | WG-015 |

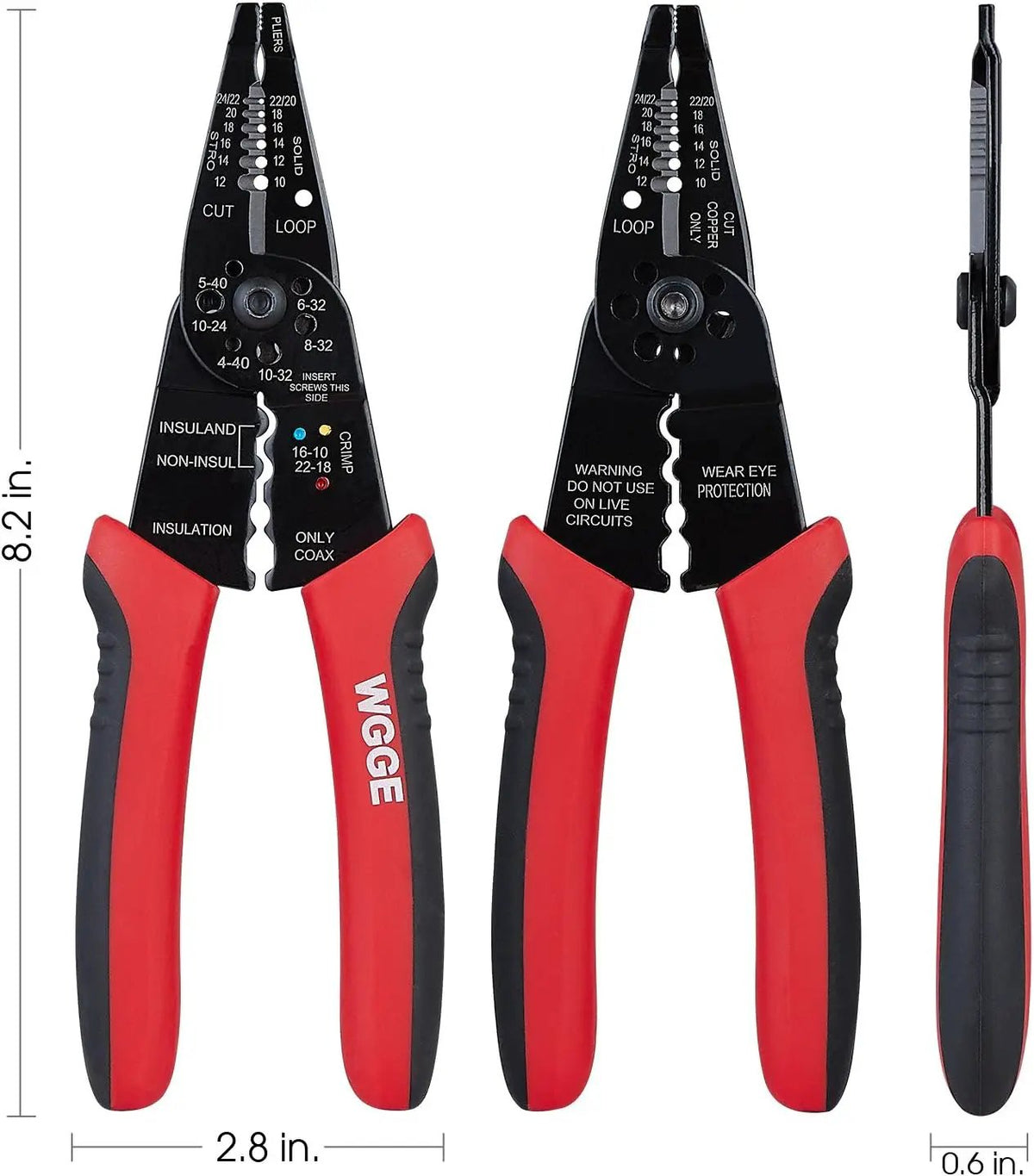

| Tool length | 8 inches |
| Functions | Stripping, cutting, looping, crimping, and screw shearing |
| Manufacturer-listed wire range | 10–22 AWG solid copper/aluminum wire |
| Terminal types | Insulated and non-insulated |
| Screw-shearing positions | 4-40, 5-40, 6-32, 8-32, 10-24, and 10-32 |
| Body material | High-carbon alloy steel |
| Grip material | PP/TPR |
| Wire gauge note | Solid and stranded wire use different gauge scales. Follow the markings on the tool. |
| Live-work rating | The grips do not establish a live-work insulation rating. |
Why Choose This Product?
The WG-015 brings several common wire-preparation and terminal tasks together in one hand tool. Its listed wire range, terminal types, and screw-shearing positions help you check whether its functions match the work at hand before you begin.
Installation & Compatibility Notes
Check the wire type and gauge against the tool’s markings. Solid and stranded wire use different gauge scales, and the listed 10–22 AWG range applies to solid copper or aluminum wire. The grips do not establish a live-work insulation rating.
Before using the screw-shearing positions, match the screw to one of the six listed sizes. The product details do not establish compatibility with other screw sizes or wire types.
Frequently Asked Questions
What tasks does the WG-015 perform?
It strips, cuts, loops, and crimps wire, and shears screws at the listed positions.
What wire range is listed for this tool?
The manufacturer-listed range is 10–22 AWG solid copper or aluminum wire. Follow the markings on the tool, since solid and stranded wire use different gauge scales.
Which terminals can it crimp?
It crimps insulated and non-insulated terminals.
Which screw sizes fit the shearing positions?
The listed sizes are 4-40, 5-40, 6-32, 8-32, 10-24, and 10-32.
Are the grips rated for live electrical work?
No live-work insulation rating is established by the grips.
