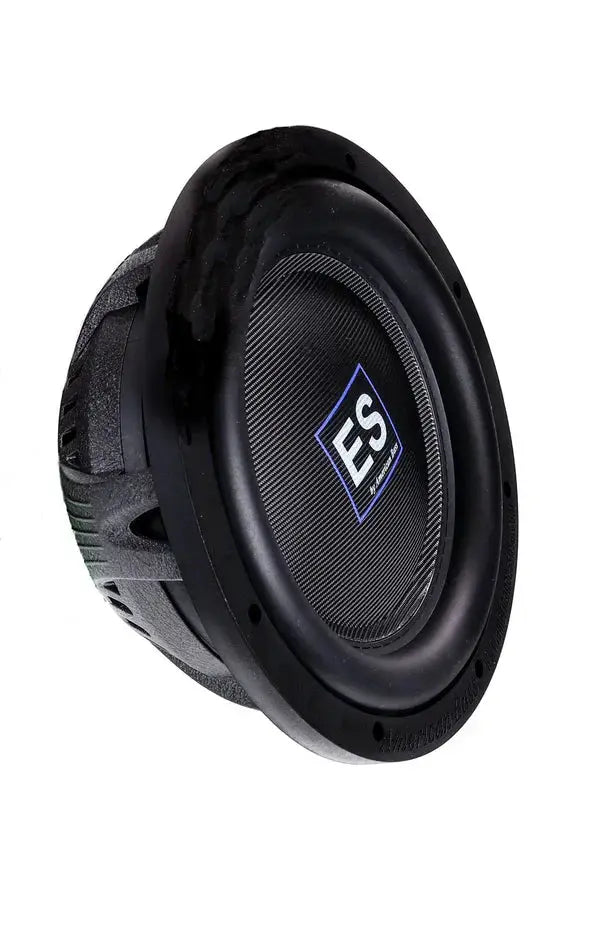

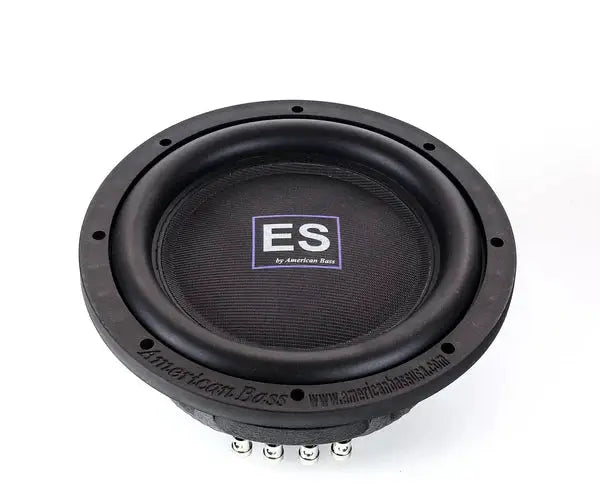

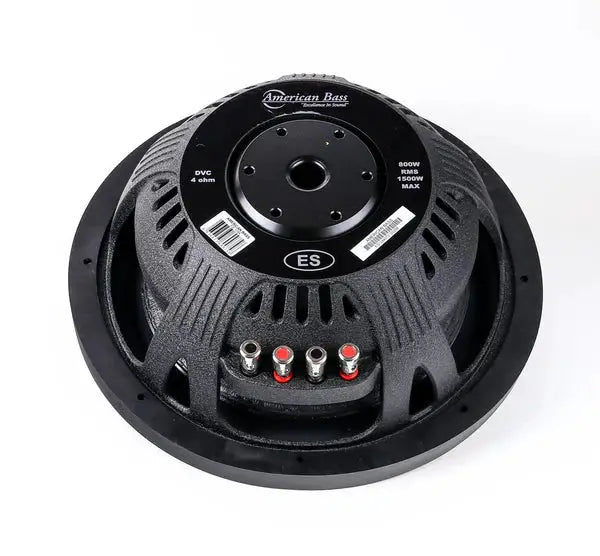

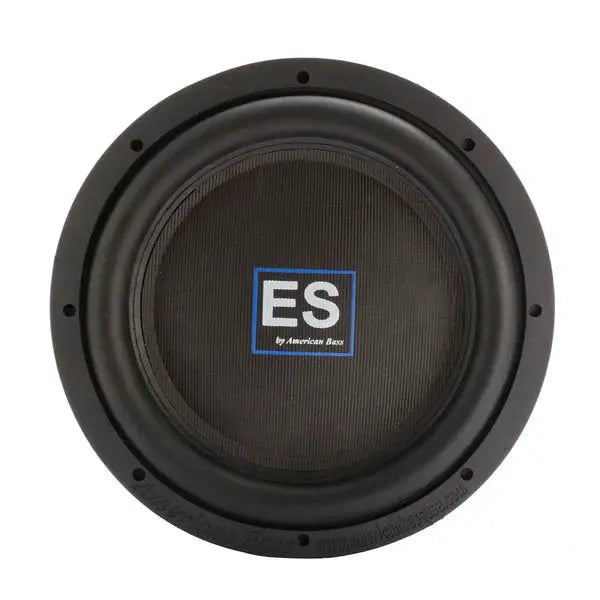

American Bass ES Series Shallow 12" Subwoofer Dual 4 Ohm
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 800 W
- Voice-coil options: D4
- Mounting depth: 4.33 inches
- Cutout size: 10.79 inches
- Basket construction: Cast
American Bass ES Series Shallow 12" Subwoofer Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
American Bass ES Series Shallow 12" Subwoofer Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring substantial bass to a compact build with the American Bass ES Series Shallow 12" Dual 4 Ohm subwoofer. It handles 800W RMS and has a 4.3-inch mounting depth, making it suited to installations where space is tight.
Key Features & Benefits
- 800W RMS power handling: Supports sustained power for bass in demanding music playback.
- 1500W max power: Handles brief peak power during dynamic bass passages.
- Dual 4-ohm voice coils: Give you wiring options for different amplifier and system layouts.
- Shallow mounting profile: The 4.3-inch depth helps with space-conscious installation planning.
- Cast basket: Provides a rigid basket structure for the subwoofer.
Technical Specifications
| RMS POWER | 800W |
| MAX POWER | 1500W |
| IMPEDANCE (OHMS) | D4 |
| SENSITIVITY DB | 84 |
| MOUNTING DEPTH (IN) | 4.3 |
| CUTOUT SIZE (IN) | 10.79 |
| PORTED BOX (FT3) | 0.75 |
| MAGNET SIZE (OZ) | 65 |
| VOICE COIL SIZE | 2.5 |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | PH 4000 |
Why Choose This Product?
This 12-inch subwoofer combines high power handling with a shallow mounting depth for builds where a deeper driver may not fit. Its dual 4-ohm coils offer flexibility when planning your amplifier and system layout.
Installation & Compatibility Notes
Allow for the 4.3-inch mounting depth and 10.79-inch cutout when checking available space. The listed ported enclosure volume is 0.75 ft³. Confirm your enclosure dimensions and amplifier’s supported load before installation. The recommended amplifier for a pair is the PH 4000.
Frequently Asked Questions
What do the 800W RMS and 1500W max ratings mean?
800W RMS is the continuous power rating. 1500W max refers to peak power for brief transients.
What impedance does this subwoofer have?
It has dual 4-ohm voice coils. Check your amplifier’s supported load and plan the wiring for your system.
How much mounting space should I allow?
Plan for a 4.3-inch mounting depth and a 10.79-inch cutout diameter.
What ported enclosure volume is listed?
The recommended ported box volume is 0.75 ft³.
Which amplifier is recommended for a pair?
The listed pair recommendation is the PH 4000. Confirm that the amplifier and planned wiring suit your system.
Explore More
Want to learn more about American Bass? Explore our American Bass brand profile.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
