American Bass Godzilla Series 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 4700 W
- Voice-coil options: D1, D2
- Voice-coil diameter: 3.5 inches
- Basket construction: Cast
- Mounting depth: 9.65 inches
American Bass Godzilla Series 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
American Bass Godzilla Series 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

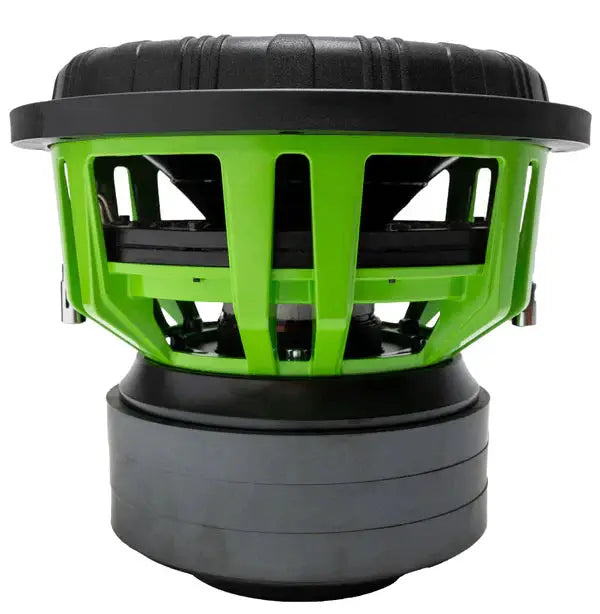

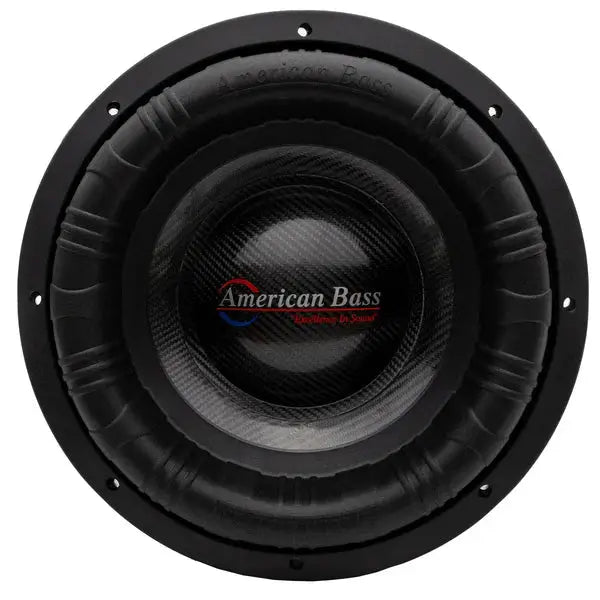

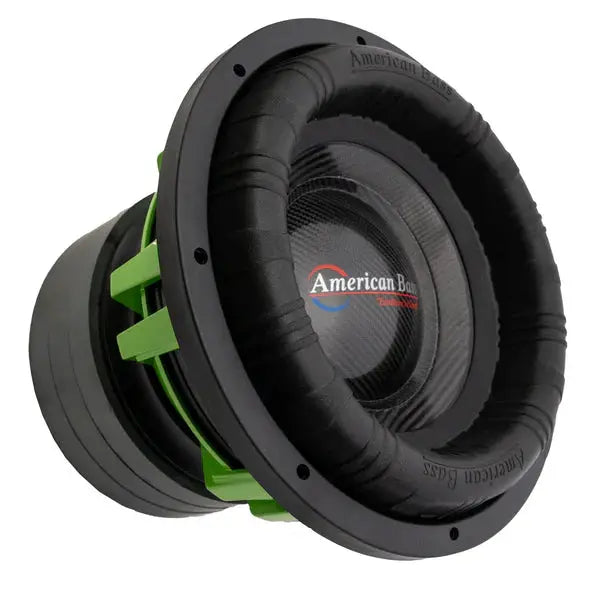

Build a high-output car audio system around the American Bass Godzilla Series 12" Subwoofer. Its design combines a pure carbon fiber cone with a cast basket for controlled bass in demanding builds.
Key Features & Benefits
- Pure carbon fiber cone: Its high stiffness-to-weight ratio supports cone control and helps reduce distortion at high excursion.
- Double silicone spiders: The suspension is designed for durability and linearity under heavy excursion and power.
- Green textured diecast basket: The rigid mounting platform helps spread heat and supports the subwoofer in demanding installations.
- 3.5-inch high-temperature voice coil: The large coil is designed to dissipate heat during aggressive play and long sessions.
- 4GA copper push terminals: These terminals provide connections intended to support high-current operation.
Technical Specifications
| RMS POWER | 4700 |
| MAX POWER | 12000 |
| IMPEDANCE (OHMS) | D1 / D2 |
| SENSITIVITY DB | 81.7/81 |
| MOUNTING DEPTH (IN) | 9.65 |
| CUTOUT SIZE (IN) | 5.12 |
| PORTED BOX (FT3) | 2.75 |
| MAGNET SIZE (OZ) | 425 |
| VOICE COIL SIZE | 3.5" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | Godfather 11D |
Why Choose This Product?
The Godzilla Series brings together a 425 oz triple-stack magnet, cast frame, and high-temperature coil for builds focused on powerful, controlled bass. Its D1 / D2 impedance options give you a choice of load when matching the subwoofer to an amplifier.
The listed ported enclosure volume makes this a practical choice when your build is planned around a vented box. The recommended amplifier pairing for a pair is the Godfather 11D.
Installation & Compatibility Notes
Plan the enclosure and mounting panel around the listed dimensions and ported-box volume. Check available mounting depth, cutout size, enclosure space, and amplifier load compatibility before installation. The D1 / D2 options affect the load presented to your amplifier.
Frequently Asked Questions
What enclosure volume is listed for this subwoofer?
The listed ported-box volume is 2.75 ft³.
What does D1 / D2 mean?
These are the listed impedance options. Match the selected option and resulting load to your amplifier’s requirements.
Which amplifier is recommended for a pair?
The listed recommended amplifier for a pair is the Godfather 11D.
What mounting measurements should I check?
Check the listed 9.65-inch mounting depth and 5.12-inch cutout size against your installation space.
