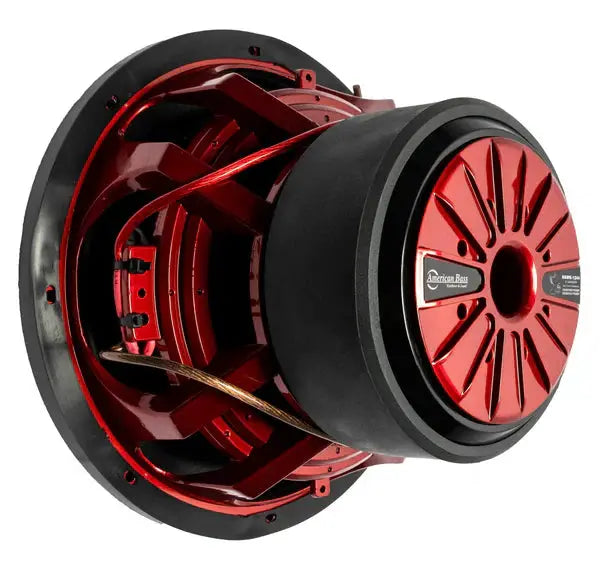

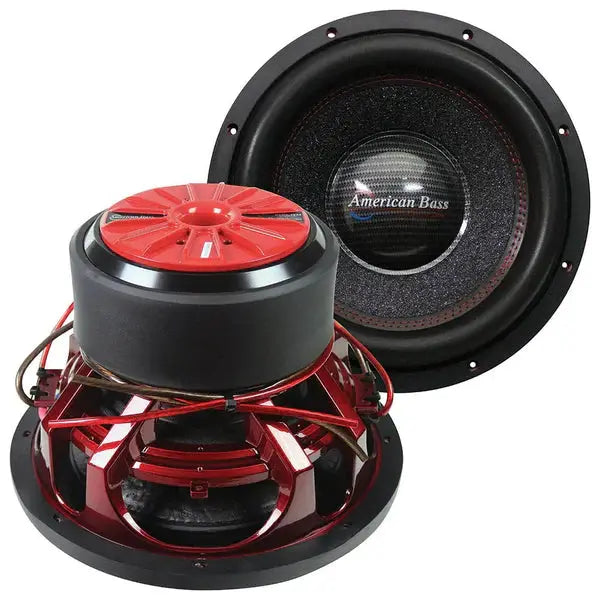

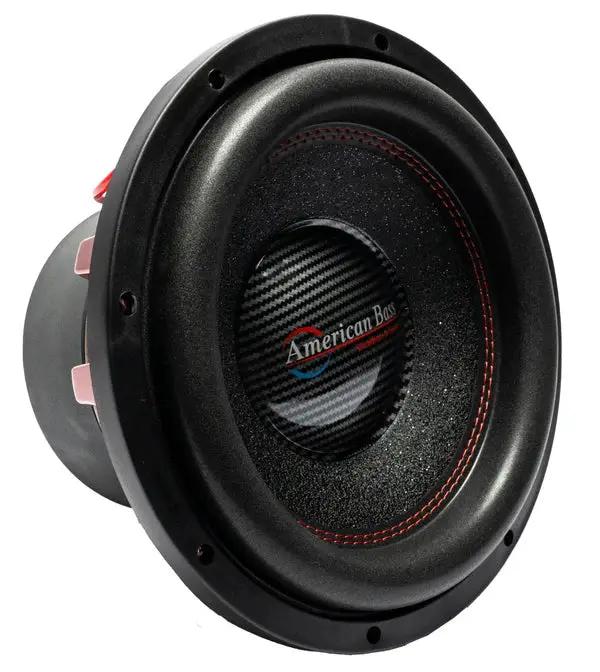

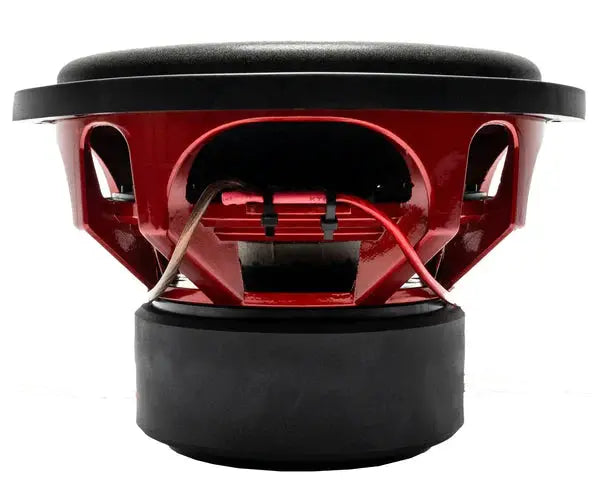

American Bass HAWK Series 12" Subwoofer Dual 4 Ohm
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1500 W
- Voice-coil options: D4
- Mounting depth: 7.68 inches
- Cutout size: 11.34 inches
- Voice-coil diameter: 3 inches
American Bass HAWK Series 12" Subwoofer Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
American Bass HAWK Series 12" Subwoofer Dual 4 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring high-output bass to a car audio system with the American Bass HAWK Series 12-inch subwoofer. Its dual 4-ohm voice coils, 1500-watt RMS rating, and 240-ounce magnet suit demanding bass playback and SPL-focused installations.
A magnet-back heat sink and 3-inch voice coil support thermal management during high-power use. Plan your enclosure and mounting space around the specified dimensions before installation.
Key Features & Benefits
- 1500 W RMS power: The continuous rating supports sustained bass when paired with an appropriate amplifier.
- 3000 W maximum power: The peak rating indicates capacity for brief high-power bursts.
- Dual 4-ohm voice coils: The D4 configuration provides wiring flexibility for different amplifier and enclosure plans.
- 240 oz magnet and heat sink: These features contribute to cone control and thermal management during demanding playback.
- Cast basket and foam surround: The cast basket provides rigidity, while the surround supports cone alignment and controlled movement.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | 12-inch dual 4-ohm subwoofer (D4) |
| RMS power | 1500 W |
| Maximum power | 3000 W |
| Impedance (ohms) | D4 |
| Sensitivity | 86.8 dB |
| Mounting depth | 7.68" |
| Cutout size | 11.34" |
| Ported box (net) | 2.2 ft³ |
| Magnet size | 240 oz |
| Voice coil size | 3" |
| Basket type | Cast |
| Suspension | Foam surround and spider suspension |
| Heat sink | Back-of-magnet heat sink |
| Recommended amplifier for a pair | VFL Comp 2K |
Why Choose This Product?
The HAWK combines a high RMS rating with a large magnet, a 3-inch voice coil, and a back-of-magnet heat sink. These design details make it a distinct option for shoppers planning a high-power car audio or SPL-oriented setup.
Its recommended net ported-box volume is 2.2 ft³. Use that figure when planning enclosure space, and keep the recommendation for a pair of subwoofers in mind when selecting an amplifier.
Installation & Compatibility Notes
Allow for a mounting depth of 7.68" and a cutout diameter of 11.34". Check these measurements against your mounting location before installation.
For enclosure planning, the stated recommendation is a 2.2 ft³ net ported box. The dual 4-ohm coils affect wiring options, so match the final wiring and amplifier setup to your system’s requirements.
Frequently Asked Questions
What do the 1500 W RMS and 3000 W maximum ratings mean?
1500 W is the continuous RMS rating. 3000 W is the maximum peak rating for brief bursts.
What impedance configuration does this subwoofer have?
It has dual 4-ohm voice coils, identified as D4. The available wiring options depend on your installation and amplifier requirements.
What enclosure volume is recommended?
The specified recommendation is a net volume of 2.2 ft³ for a ported box.
What amplifier is recommended?
The VFL Comp 2K is listed as the recommended amplifier for a pair of these subwoofers.
What mounting space should I allow?
Plan for 7.68" of mounting depth and an 11.34" cutout diameter.
Explore More
Shop American Bass products at 12 Volt Outlet. Want to learn more about American Bass? Explore our American Bass brand profile.
| RMS POWER | 1500 |
| MAX POWER | 3000 |
| IMPEDENCE (OHMS) | D4 |
| SENSITIVITY DB | 86.8 |
| MOUNTING DEPTH (IN) | 7.68 |
| CUTOUT SIZE (IN) | 11.34 |
| PORTED BOX (FT3) | 2.2 net |
| MAGNET SIZE (OZ) |
240 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL Comp 2K |
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
