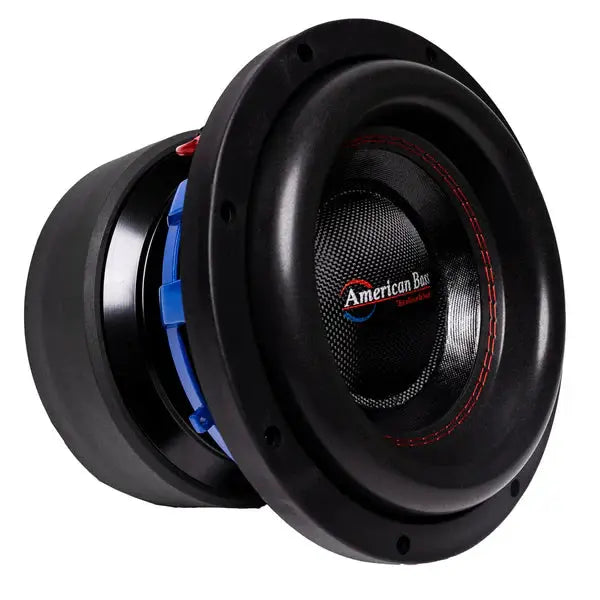

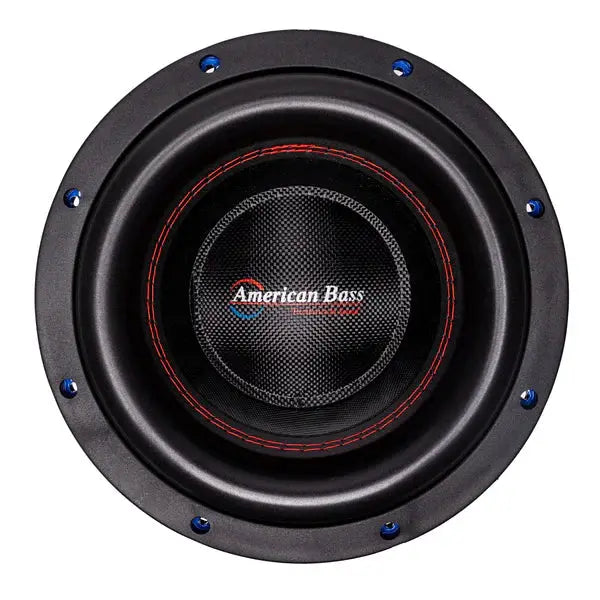

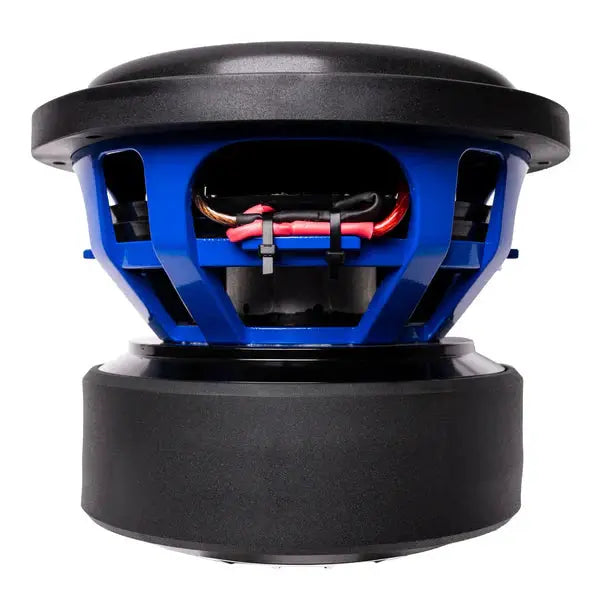

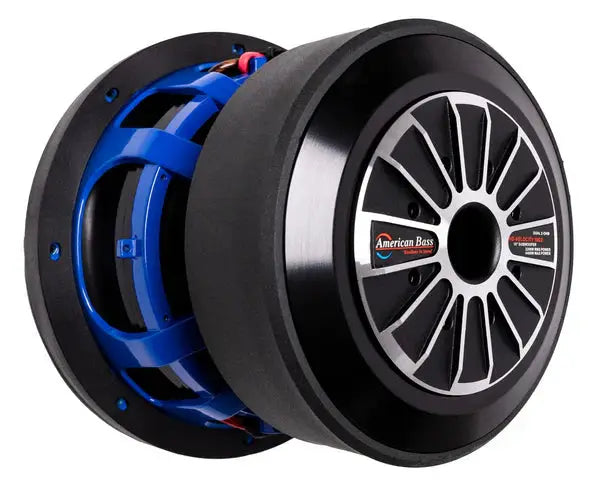

American Bass HD-VELOCITY Series 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 2200 W
- Voice-coil options: D1, D2
- Mounting depth: 7.72 inches
- Voice-coil diameter: 3 inches
- Basket construction: Cast
American Bass HD-VELOCITY Series 10" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
American Bass HD-VELOCITY Series 10" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get powerful low-frequency output from the American Bass HD-VELOCITY Series 10" subwoofer, built for high-power car audio systems. Its carbon-fiber-enhanced cone, cast basket, and triple-stacked magnet are designed for controlled bass during demanding playback.
The blue basket adds a visible accent in an exposed installation. For a vented enclosure, the listed internal volume is 1.8–2.5 ft³.
Key Features & Benefits
- High power handling: The 2200 W RMS rating supports sustained power when matched with suitable system equipment.
- Dual impedance: The D1/D2 configuration offers 1 Ω or 2 Ω options for matching a compatible amplifier.
- Heat-ready voice coil: The 3" high-temperature voice coil is designed to handle heat during extended listening.
- Rigid construction: A cast basket and carbon-fiber-enhanced cone support controlled movement at high output.
- Reinforced suspension: Multi-layer poly-cotton spiders help maintain stable voice-coil alignment during repeated movement.
- Triple-stacked magnet: The 315 oz magnet system provides the motor strength behind the subwoofer’s bass response.
Technical Specifications
| RMS POWER | 2200 |
| MAX POWER | 4400 |
| IMPEDANCE (OHMS) | D1/D2 |
| SENSITIVITY DB | 84.4/84.3 |
| MOUNTING DEPTH (IN) | 7.72 |
| CUTOUT SIZE (IN) | 9.25 |
| PORTED BOX (FT3) | 1.8-2.5 |
| MAGNET SIZE (OZ) | 315 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | Godfather 5D |
Why Choose This Product?
This 10" subwoofer combines a high RMS power rating with construction details intended for demanding bass playback. Its cast basket, reinforced spider assembly, and triple-stacked magnet make it a considered choice when you are planning a high-power car audio installation.
The blue basket can also suit an installation where the subwoofer remains visible. Its listed vented-box volume gives you a useful starting point when planning enclosure space.
Installation & Compatibility Notes
Allow for the 7.72" mounting depth and 9.25" cutout size when checking available space. The recommended ported enclosure volume is 1.8–2.5 ft³.
Match the D1/D2 impedance option to an amplifier that supports the resulting load. The Godfather 5D is listed as the recommended amplifier for a pair.
Frequently Asked Questions
What do D1/D2 impedance options mean?
The listing identifies D1/D2 and describes the options as 1 Ω or 2 Ω. Match the selected configuration to an amplifier that supports that load.
What enclosure volume is listed for this subwoofer?
The recommended ported-box volume is 1.8–2.5 ft³.
How much mounting space should I allow?
Plan for a 7.72" mounting depth and a 9.25" cutout diameter.
What amplifier is recommended for a pair?
The listed recommendation is the Godfather 5D for a pair.
What do the power ratings indicate?
The subwoofer is rated at 2200 W RMS and 4400 W maximum power. Pair it with suitable equipment for the system configuration.
