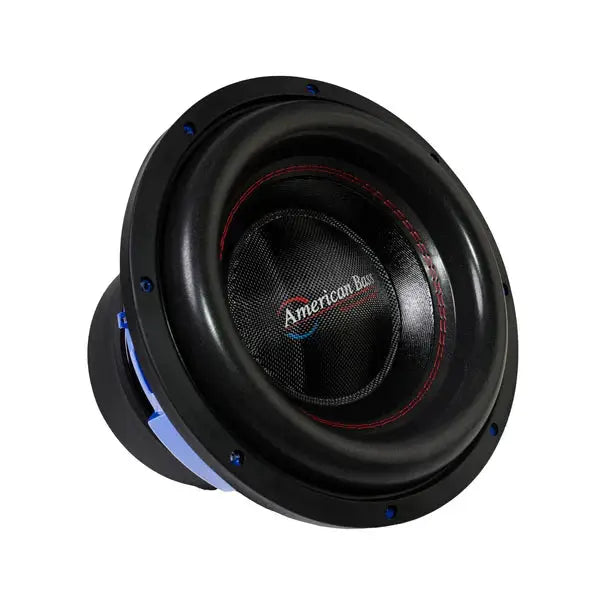

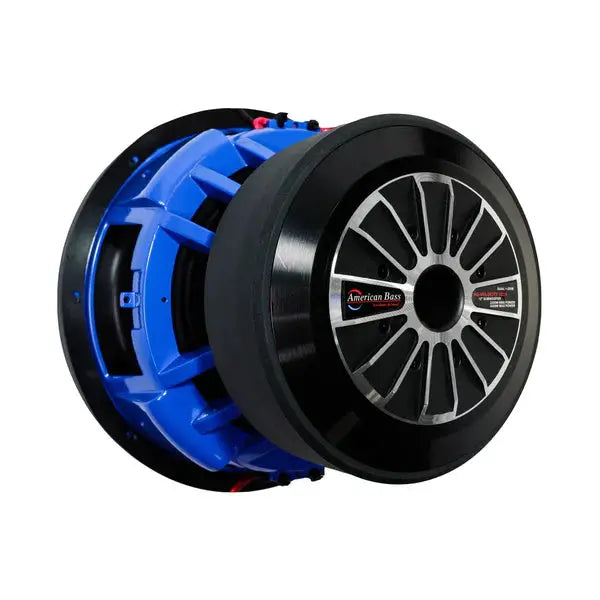

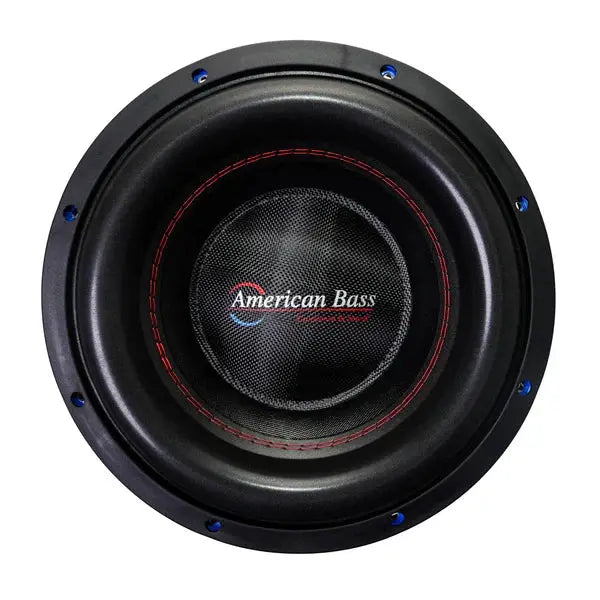

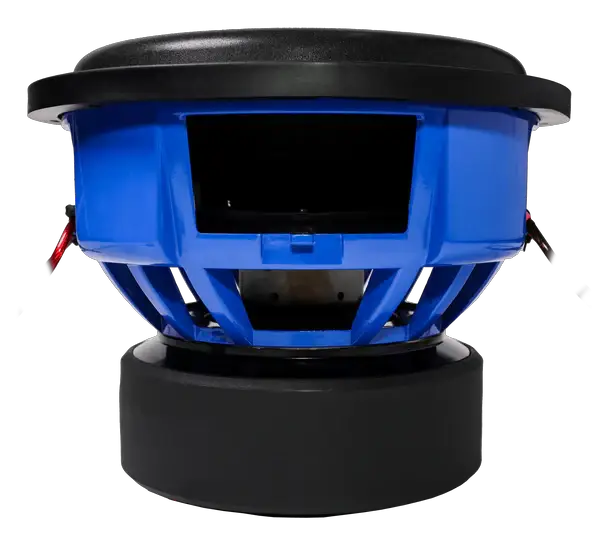

American Bass HD-VELOCITY Series 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 2200 W
- Voice-coil options: D1, D2
- Mounting depth: 9.02 inches
- Voice-coil diameter: 3 inches
- Basket construction: Cast
American Bass HD-VELOCITY Series 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
American Bass HD-VELOCITY Series 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, powerful bass to your car-audio system with the American Bass HD-VELOCITY Series 12" subwoofer. Its 2200 W RMS power handling, 3" high-temperature voice coil, and dual-impedance design suit demanding bass setups.
Key Features & Benefits
- 2200 W RMS power handling: Built to handle sustained power when matched with a suitable amplifier.
- D1/D2 impedance: Choose a 1-ohm or 2-ohm wiring configuration to suit your system design.
- 3" high-temperature voice coil: Supports heat management during high-power listening.
- Cast blue basket and carbon-fiber-enhanced cone: Combine a rigid frame with distinctive styling.
- Multi-layer poly-cotton spiders and triple-stacked magnet: Designed for stable performance in demanding bass applications.
Technical Specifications
| RMS POWER | 2200 |
| MAX POWER | 4400 |
| IMPEDANCE (OHMS) | D1/D2 |
| SENSITIVITY DB | 84.4/84.3 |
| MOUNTING DEPTH (IN) | 9.02 |
| CUTOUT SIZE (IN) | 11.34 |
| PORTED BOX (FT3) | 2-2.5 |
| MAGNET SIZE (OZ) | 315 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | Godfather 5D |
Why Choose This Product?
The HD-VELOCITY pairs high power handling with a large 315 oz magnet and a cast basket. Its D1/D2 options give you a choice of impedance configuration when planning your amplifier and enclosure setup. For a ported enclosure, the listed volume is 2–2.5 ft³.
Installation & Compatibility Notes
Check that your enclosure provides an 11.34-inch cutout and 9.02 inches of mounting depth. Match the subwoofer’s D1/D2 impedance configuration to your amplifier and system plan. The recommended amplifier for a pair is the Godfather 5D.
Frequently Asked Questions
What is the power handling?
The listed rating is 2200 W RMS, with a maximum power rating of 4400 W.
What impedance options does this subwoofer offer?
It is listed as D1/D2, with 1-ohm or 2-ohm wiring options. Choose the configuration that matches your amplifier and system design.
What enclosure volume is listed for a ported box?
The recommended ported enclosure volume is 2–2.5 ft³.
What mounting space does it require?
Allow for a mounting depth of 9.02 inches and a cutout size of 11.34 inches.
Which amplifier is recommended for a pair?
The listed recommendation for a pair is the Godfather 5D.
