American Bass HD-VELOCITY Series 15" Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 2200 W
- Voice-coil options: D1, D2
- Mounting depth: 9.68 inches
- Voice-coil diameter: 3 inches
- Basket construction: Cast
American Bass HD-VELOCITY Series 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
American Bass HD-VELOCITY Series 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The American Bass HD-VELOCITY Series 15" subwoofer brings high-power bass capability to a car audio system. Its 2200W RMS rating, dual-voice-coil design, and 3" high-temperature voice coil are built for demanding audio setups.

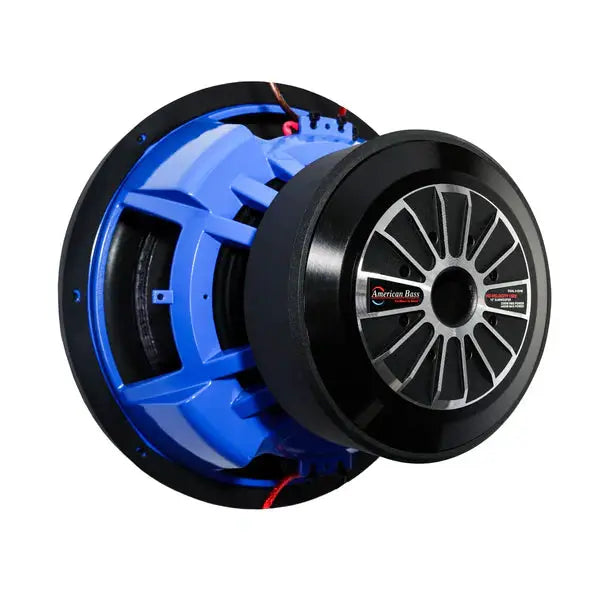

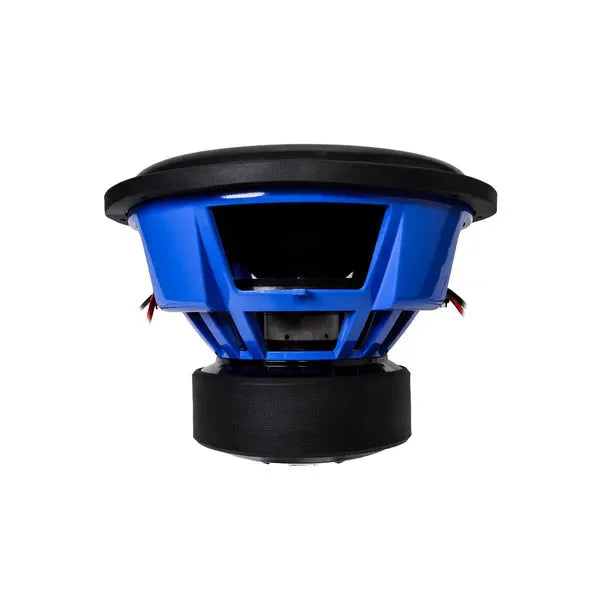

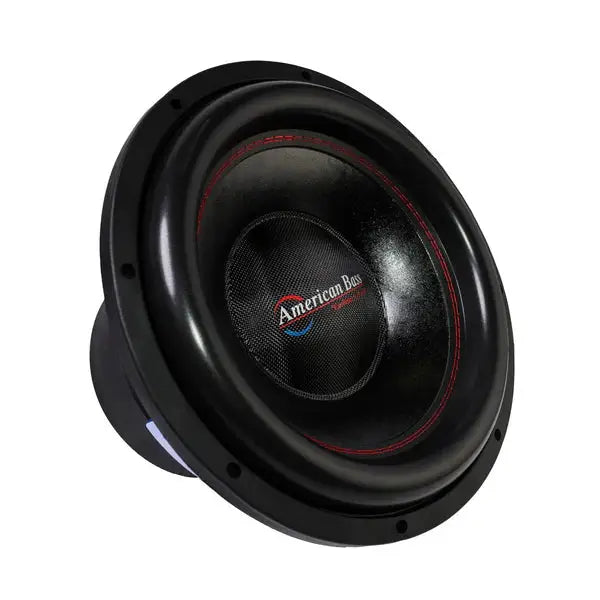

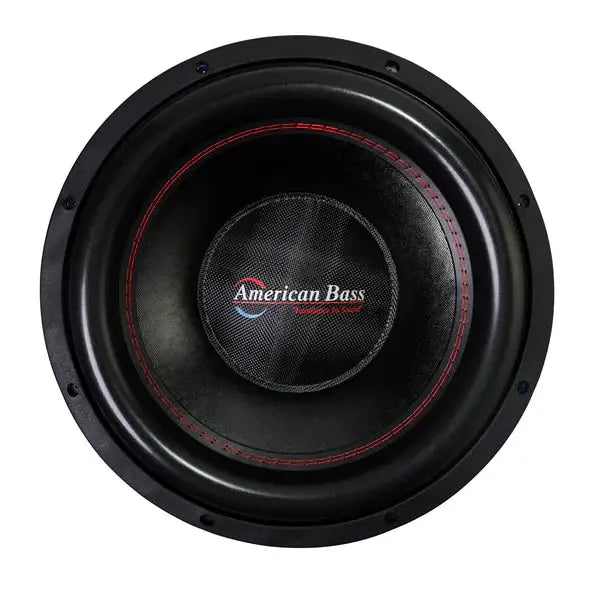

A blue die-cast basket and carbon-fiber-enhanced cone give this 15-inch subwoofer its distinctive construction. Plan your enclosure and amplifier around its listed specifications before installation.
Key Features & Benefits
- 2200W RMS power: Matches high-power system planning with the subwoofer’s continuous power rating.
- Dual voice coil: D1/D2 impedance options offer wiring flexibility when matching the subwoofer to an amplifier.
- 3" high-temperature voice coil: Supports heat management during demanding use.
- Cast blue basket: The die-cast frame provides a rigid structure for the subwoofer assembly.
- Carbon-fiber-enhanced cone: Adds a distinctive visual detail to the subwoofer’s construction.
- Multi-layer spiders and triple-stacked magnet: These components form part of the subwoofer’s excursion-control and magnet system.
Technical Specifications
| RMS POWER | 2200 |
| MAX POWER | 4400 |
| IMPEDANCE (OHMS) | D1/D2 |
| SENSITIVITY DB | 84.4/84.3 |
| MOUNTING DEPTH (IN) | 9.68 |
| CUTOUT SIZE (IN) | 13.78 |
| PORTED BOX (FT3) | 3.5-3.75 |
| MAGNET SIZE (OZ) | 315 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | Godfather `11D |
Why Choose This Product?
The HD-VELOCITY combines a 15-inch format with a 2200W RMS rating and a 315 oz magnet. Its dual-voice-coil design provides D1/D2 options for system planning, while the recommended amplifier for a pair is the Godfather `11D.
For a vented enclosure, the listed internal volume is 3.5–3.75 ft³. The blue cast basket and carbon-fiber-enhanced cone also give the subwoofer a distinctive look when visible in an installation.
Installation & Compatibility Notes
Allow for the 9.68-inch mounting depth and 13.78-inch cutout size when planning the enclosure. The listed ported-box volume is 3.5–3.75 ft³.
Check the selected D1/D2 impedance against your amplifier and system design. The product details recommend the Godfather `11D for a pair; confirm your amplifier and wiring plan are appropriate for the intended configuration.
Frequently Asked Questions
What do the 2200W RMS and 4400W MAX ratings mean?
2200W RMS is the listed continuous power rating. 4400W MAX is the listed maximum rating; match your system to the RMS rating and amplifier requirements.
What enclosure volume is listed for a ported box?
The recommended ported-box volume is 3.5–3.75 ft³.
What space should I allow for installation?
Allow for a 9.68-inch mounting depth and a 13.78-inch cutout.
Which amplifier is recommended for a pair?
The listed recommendation is the Godfather `11D. Check amplifier compatibility with your chosen D1/D2 impedance configuration.
