American Bass King Series 15" Subwoofer
American Bass King Series 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
American Bass King Series 15" Subwoofer
American Bass King Series 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

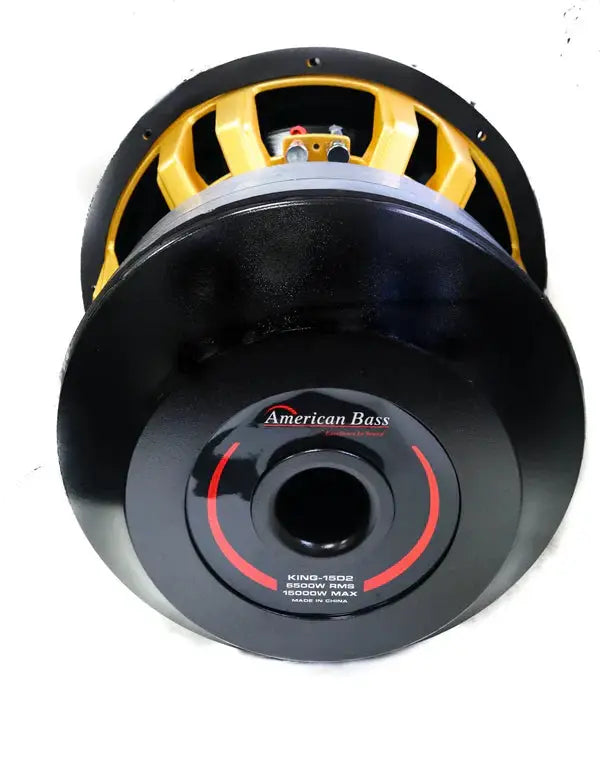

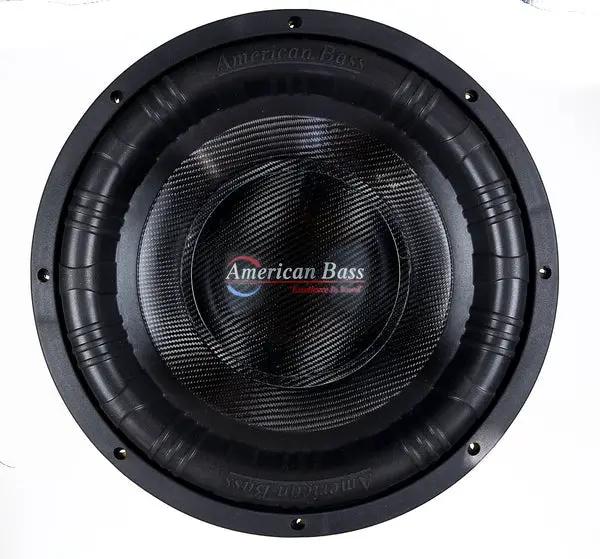

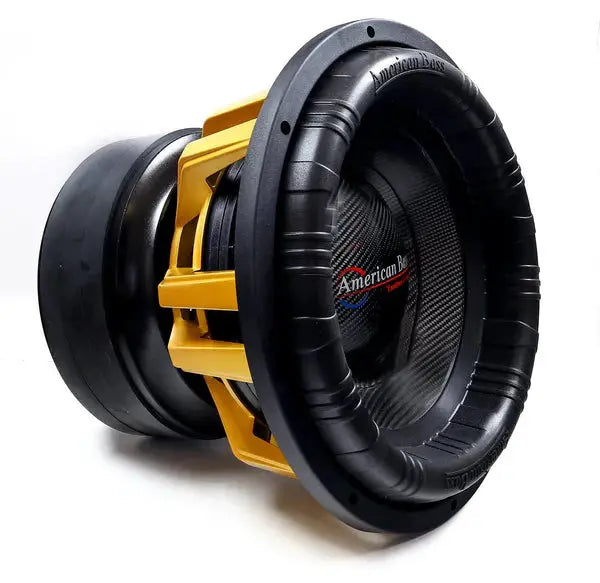

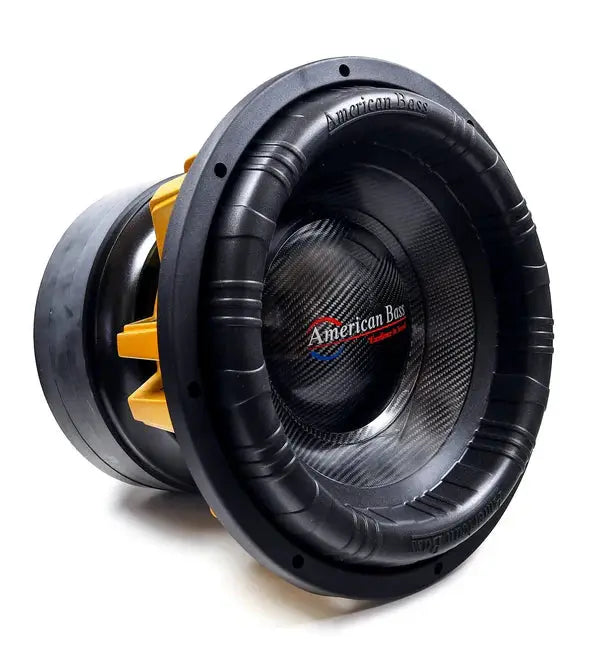

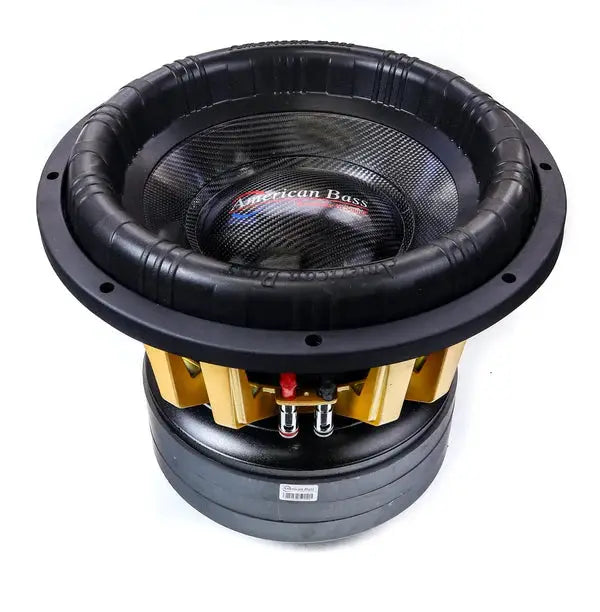

The American Bass KING Series 15" Subwoofer is built for power-hungry installs, delivering earth-shaking bass from a rigid die-cast basket and a high-performance 4.5" voice coil with a carbon fiber dust cap. Its triple-stacked 613 oz magnets and direct cooling system sustain high output with durable construction.
- RMS Power: 6500 W continuous power handling for long, loud bass when paired with a capable amp and enclosure.
- Max Power: 15000 W peak power handling for brief transients and dynamic bass bursts.
- Impedance: D1 / D2; dual-voice-coil configuration offers wiring flexibility to match amps and enclosure plans.
- Sensitivity: 85.7 dB; efficiency rating that guides how much amplifier power is needed to reach target SPL.
- Voice Coil Size: 4.5" high-temperature flat-wire coil designed for heat dissipation under heavy power.
- Magnet Size: 613 oz triple-stacked magnets provide strong motor force for controlled, deep bass.
- Basket Type: Cast; delivers rigidity and precise geometry to minimize distortion.
- Mounting Depth: 12.2 in; requires sufficient enclosure depth to fit in the vehicle.
- Cutout Size: 13.78 in; diameter needed for proper panel installation.
- Ported Box (ft³): 4; internal volume recommended for tuned ported enclosure performance.

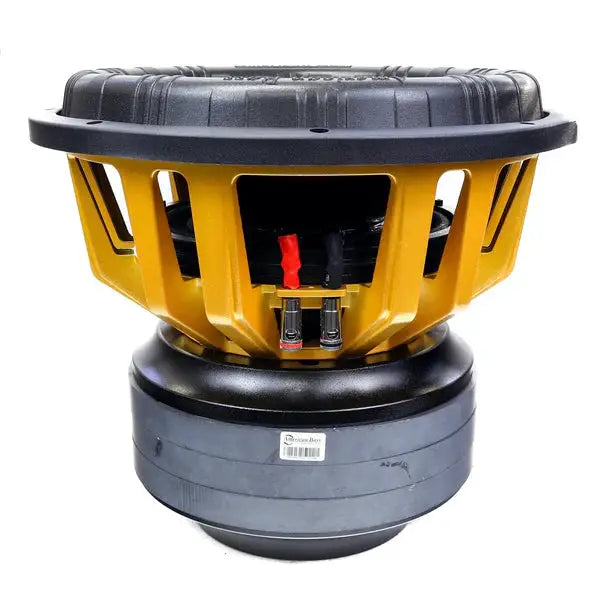

- Construction & Cooling: Regal textured finish die-cast basket, carbon cone foam surround, carbon fiber dust cap, direct cooling system, black anodized T-yoke, double black spider, and 4GA copper push terminals.
- Recommended Amp (Pair): VFL Comp 8K; pairing guidance for achieving the stated performance with ample headroom.
In a properly designed ported enclosure, the KING 15" delivers high-SPL bass with controlled cone motion. The combination of a cast basket, massive magnet stack, and high-temperature voice coil supports sustained performance under demanding playback while offering flexible integration with various amps and enclosure designs.
| RMS POWER | 6500 |
| MAX POWER | 15000 |
| IMPEDANCE (OHMS) | D1 / D2 |
| SENSITIVITY DB | 85.7 |
| MOUNTING DEPTH (IN) | 12.2 |
| CUTOUT SIZE (IN) | 13.78 |
| PORTED BOX (FT3) | 4 |
| MAGNET SIZE (OZ) | 613 |
| VOICE COIL SIZE | 4.5" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL Comp 8K |
