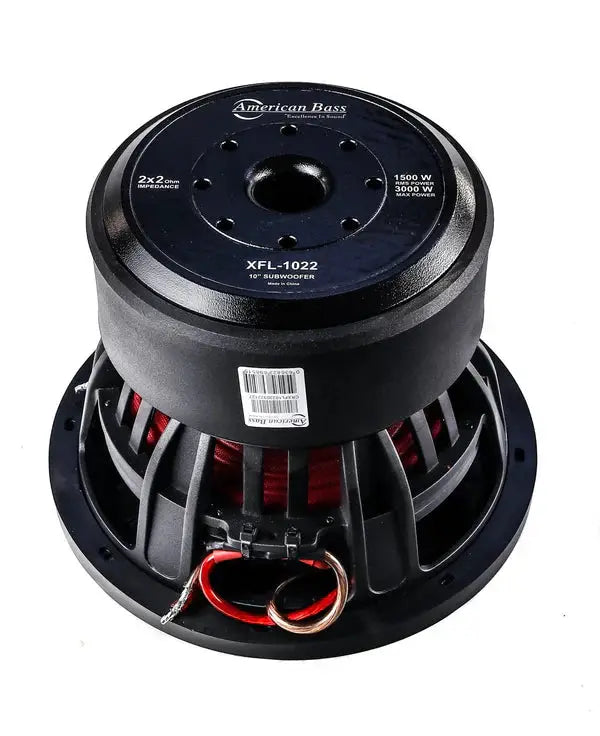

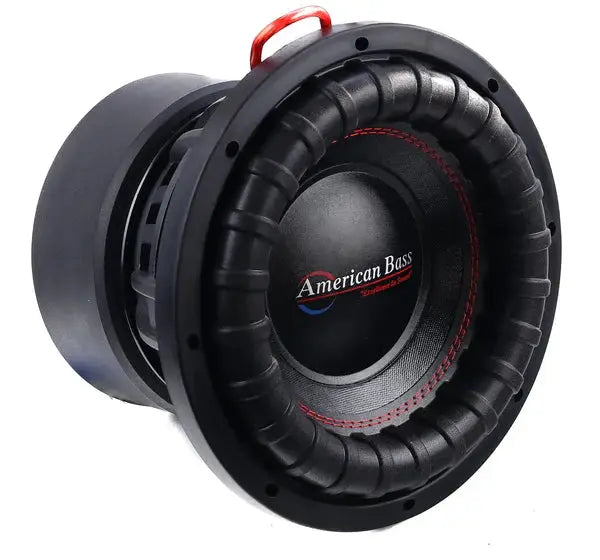

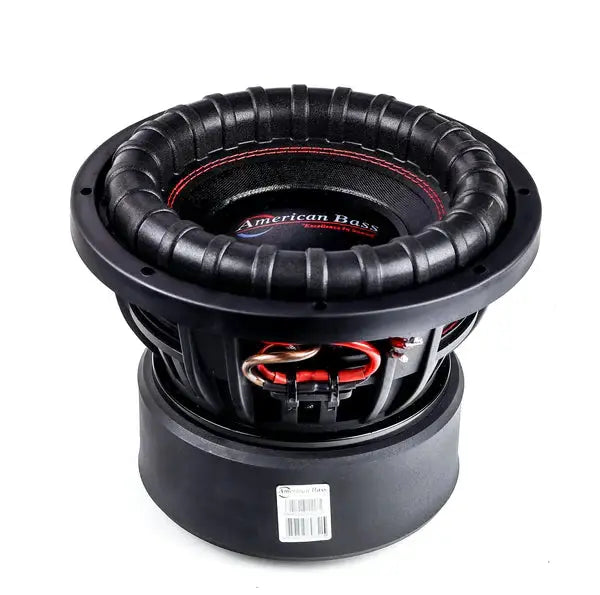

American Bass XFL Series 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 1000 W
- Voice-coil options: D2, D4
- Mounting depth: 7.36 inches
- Cutout size: 9.4 inches
- Voice-coil diameter: 3 inches
American Bass XFL Series 10" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
American Bass XFL Series 10" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring high-power bass to your car audio system with the American Bass XFL Series 10" subwoofer. This dual-voice-coil driver handles 1000W RMS and offers D2/D4 impedance options for flexible amplifier matching.
Key Features & Benefits
- 1000W RMS power handling: Supports continuous power delivery from a suitably matched amplifier.
- D2/D4 voice coils: Choose the available impedance version to suit your amplifier and system design.
- Cast basket: The rigid frame helps maintain alignment during demanding playback.
- 200 oz magnet: The substantial motor is designed to support controlled cone movement under heavy bass.
- 3" voice coil: The coil’s surface area supports heat dissipation and excursion capability.
- Vented enclosure recommendation: The suggested 1.25–1.5 ft³ box provides a clear starting point for enclosure planning.
Technical Specifications
| RMS POWER | 1000W |
| MAX POWER | 2000W |
| IMPEDANCE (OHMS) | D2/D4 |
| SENSITIVITY DB |
83.5 |
| MOUNTING DEPTH (IN) |
3.5" |
| CUTOUT SIZE (IN) |
9.4" |
| PORTED BOX (FT3) | 1.25 - 1.5 |
| MAGNET SIZE (OZ) | 200 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL COMP 2K |
Why Choose This Product?
The XFL Series combines 1000W RMS power handling with a cast basket, 200 oz magnet, and 3" voice coil. Its 10" size offers a high-power subwoofer option, while the D2/D4 versions let you consider impedance when planning your amplifier and enclosure setup.
The listed VFL COMP 2K is the recommended amplifier for a pair of these subwoofers. Match the amplifier and voice-coil version to your intended system before building your setup.
Installation & Compatibility Notes
Allow for a 9.4" cutout and 3.5" mounting depth, and check the available space in your installation location. The recommended ported enclosure volume is 1.25–1.5 ft³.
Confirm whether you are selecting the D2 or D4 version and that your amplifier can be matched to it. The VFL COMP 2K recommendation applies to a pair of subwoofers.
Frequently Asked Questions
What do 1000W RMS and 2000W maximum power mean?
1000W is the listed RMS power rating; 2000W is the listed maximum power rating. Consider the RMS rating when matching an amplifier.
What does D2/D4 impedance mean?
The subwoofer is available with dual 2-ohm or dual 4-ohm voice coils. Confirm which version you are choosing when planning your amplifier match.
What enclosure size is recommended?
The listed ported box volume is 1.25–1.5 ft³.
What space do I need for installation?
Allow for a 9.4" cutout and 3.5" mounting depth, then check the mounting location’s available clearance.
Which amplifier is recommended for two subwoofers?
The listed recommendation for a pair is the VFL COMP 2K.
