American Bass XFL Series 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1000 W
- Voice-coil options: D2, D4
- Mounting depth: 8.35 inches
- Cutout size: 11.26 inches
- Voice-coil diameter: 3 inches
American Bass XFL Series 12" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
American Bass XFL Series 12" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

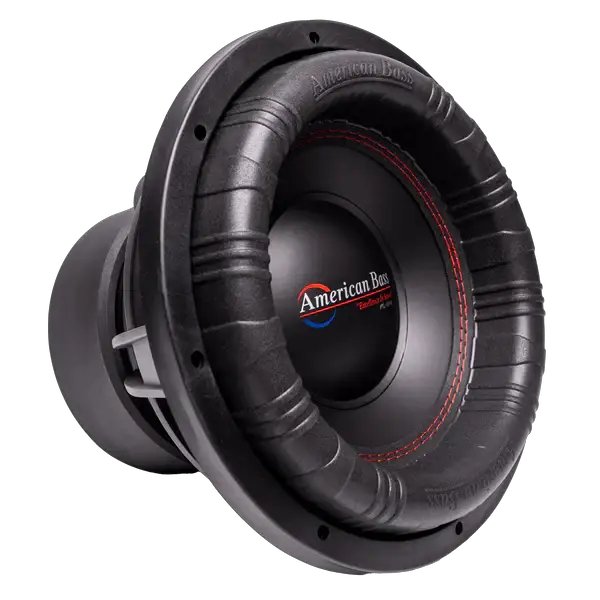

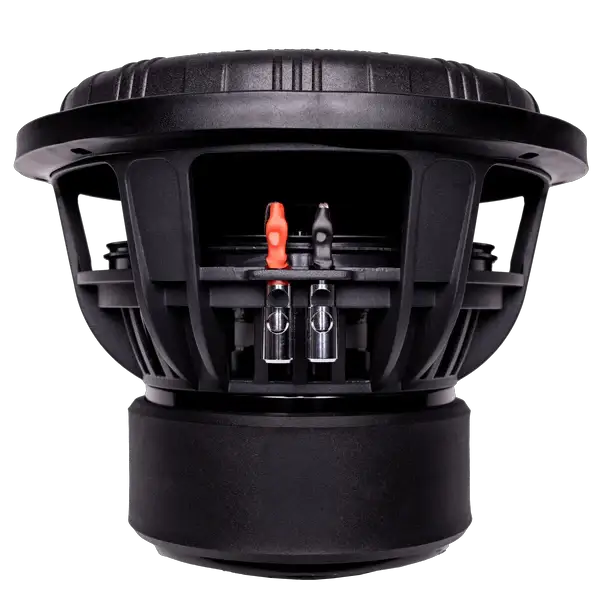

Build impactful car-audio bass with the American Bass XFL Series 12" subwoofer. Its 1000W RMS power handling, cast basket, and 3" voice coil suit demanding systems designed around a vented enclosure.
Key Features & Benefits
- Power handling: 1000W RMS and 2000W maximum ratings support high-output system designs.
- Dual impedance options: D2/D4 configurations give you a choice of voice-coil impedance for amplifier matching.
- Cast basket: The rigid frame supports the driver’s structure and voice-coil alignment.
- 3" voice coil: The large coil supports heat dissipation during demanding playback.
- 200 oz magnet: The motor’s magnet contributes to control at high excursion.
Technical Specifications
| RMS POWER | 1000w |
| MAX POWER | 2000w |
| IMPEDANCE (OHMS) | D2/D4 |
| SENSITIVITY DB | 86.5 |
| MOUNTING DEPTH (IN) | 8.34" |
| CUTOUT SIZE (IN) | 11.4" |
| PORTED BOX (FT3) | 2 -2.5 |
| MAGNET SIZE (OZ) | 200 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL COMOP 2K |
Why Choose This Product?
The XFL combines a cast frame, 200 oz magnet, and 3" voice coil in a 12" driver built for high-power car-audio systems. Its D2/D4 options offer flexibility when planning an amplifier load, while the recommended ported enclosure volume gives you a defined starting point for the build.
Installation & Compatibility Notes
Allow for 8.34" of mounting depth and an 11.4" cutout. The recommended ported box volume is 2–2.5 ft³.
Choose the D2 or D4 version to suit your system’s impedance requirements. The listed recommended amplifier is VFL COMOP 2K for a pair; plan amplifier power and wiring for the selected configuration.
Frequently Asked Questions
What enclosure volume is recommended for the XFL Series 12"?
The listed ported-box volume is 2–2.5 ft³.
How much space does the subwoofer need to mount?
Allow for 8.34" of mounting depth and an 11.4" cutout in the enclosure panel.
What does D2/D4 impedance mean?
The subwoofer is available in dual 2-ohm or dual 4-ohm voice-coil configurations. Select the version that suits your amplifier and planned wiring.
What amplifier is recommended?
The specification lists the VFL COMOP 2K as the recommended amplifier for a pair.
What are its power ratings?
It is rated at 1000W RMS and 2000W maximum power.
