American Bass XR Series 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 1000 W
- Voice-coil options: D2, D4
- Mounting depth: 7.08 inches
- Cutout size: 9.2 inches
- Voice-coil diameter: 3 inches
American Bass XR Series 10" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
American Bass XR Series 10" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

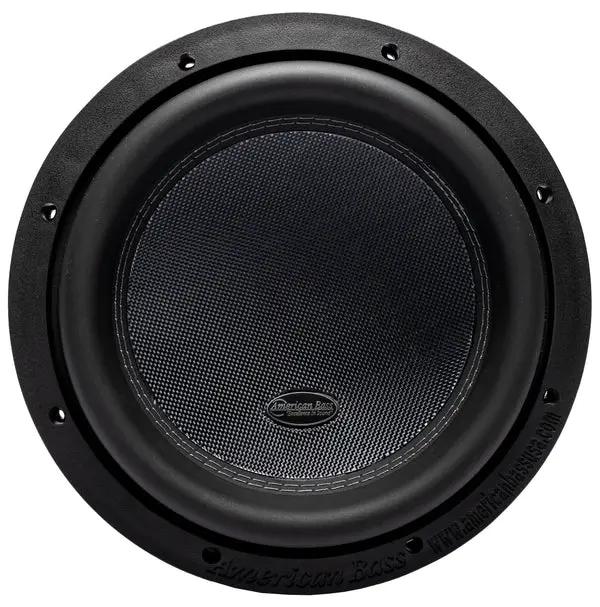

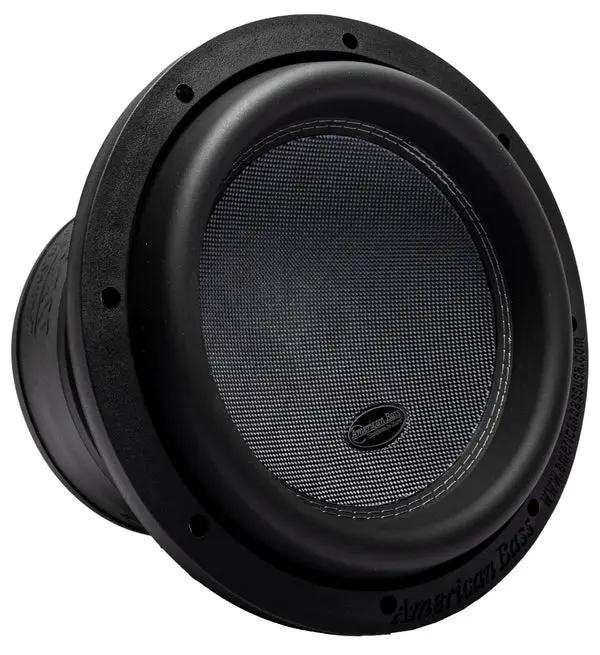

Build a ported car-audio system around the American Bass XR Series 10" subwoofer, rated for 1000W RMS and 2000W maximum power. Its fiberglass-reinforced cone, stitched rubber surround, and cast basket are designed for high-output bass, while side-mounted terminals make wiring access easier.
Key Features & Benefits
- Power handling: The 1000W RMS rating and 2000W maximum rating help you match the subwoofer to your amplifier’s output.
- Dual 4-ohm voice coil: The D4 configuration gives you wiring options when planning an amplifier setup.
- Reinforced construction: A fiberglass-reinforced cone, stitched rubber surround, and cast basket support the driver’s high-output design.

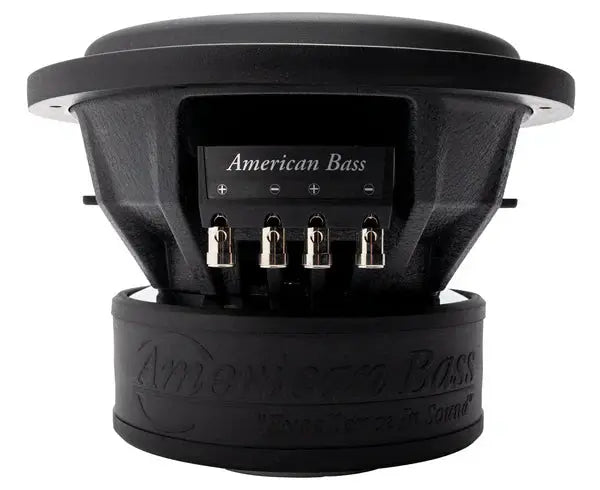

- Side-mounted terminals: Their position can make wiring access faster and easier during installation.
- Ported enclosure guidance: The recommended 1.25–1.5 ft³ range gives you a defined volume to plan around.
Technical Specifications
| RMS POWER | 1000W |
| MAX POWER | 2000W |
| IMPEDANCE (OHMS) |
D4 |
| SENSITIVITY DB | 88 |
| MOUNTING DEPTH (IN) | 7.08" |
| CUTOUT SIZE (IN) | 9.2" |
| PORTED BOX (FT3) | 1.25 - 1.5 |
| MAGNET SIZE (OZ) | 200 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL COMP 2K |
Why Choose This Product?

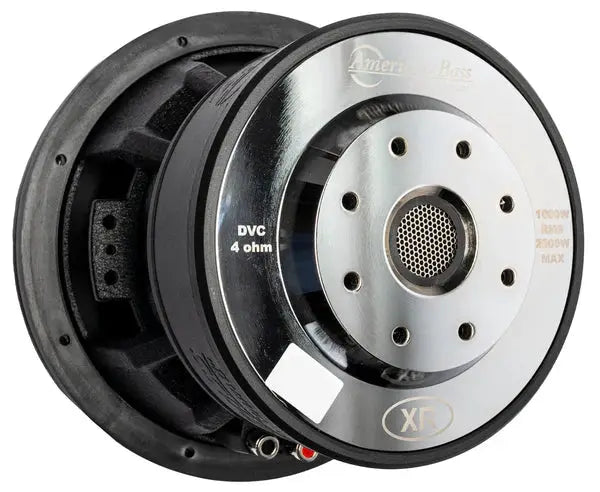

The XR Series 10" subwoofer combines a 3" voice coil and 200 oz magnet with a cast basket for a build intended to handle demanding bass setups. The listed ported-box volume helps you plan an enclosure around this specific driver, rather than choosing a volume without product guidance.
Installation & Compatibility Notes
Allow for a mounting depth of 7.08" and a cutout diameter of 9.2". Check the available mounting space and enclosure dimensions before installation.
The subwoofer has a D4 dual 4-ohm voice coil. Match its wiring configuration and power handling to your amplifier; the listed recommended amplifier for a pair is the VFL COMP 2K.
Frequently Asked Questions
What does D4 impedance mean?
D4 identifies this subwoofer’s dual 4-ohm voice coil configuration. Consider the intended wiring and resulting load when matching it to an amplifier.
What power ratings should I use when choosing an amplifier?
The subwoofer is rated at 1000W RMS and 2000W maximum power. Use the RMS rating when comparing continuous power handling.
What ported enclosure volume is recommended?
The listed ported-box volume is 1.25–1.5 ft³.
What mounting space does it need?
Plan for a 7.08" mounting depth and a 9.2" cutout size, then check these measurements against your installation space.
Which amplifier is listed for a pair?
The recommended amplifier for a pair is the VFL COMP 2K.
