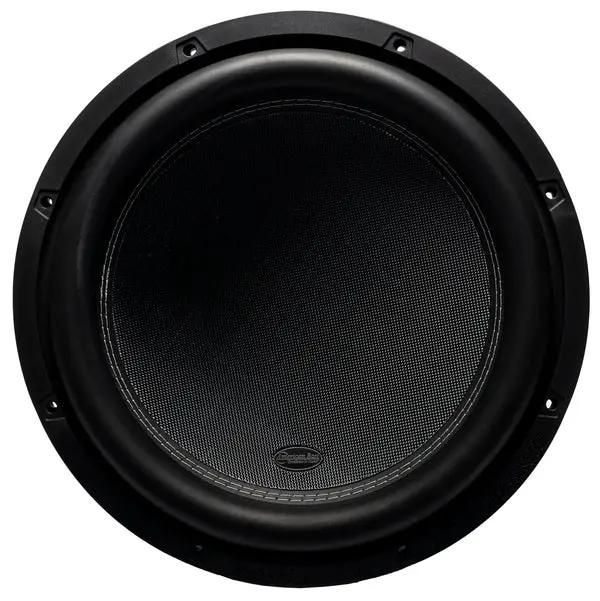

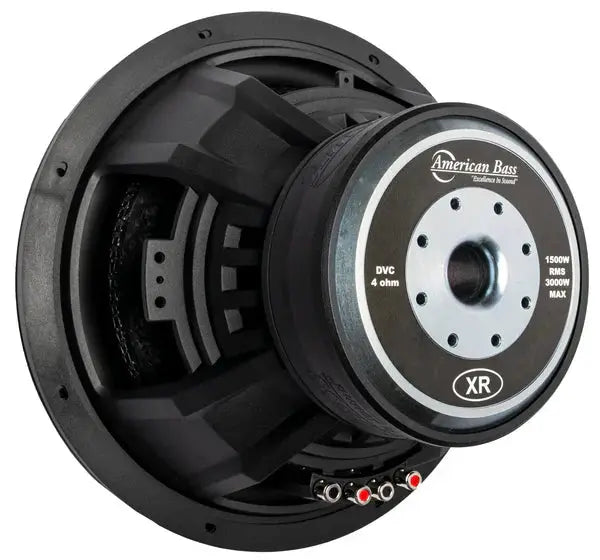

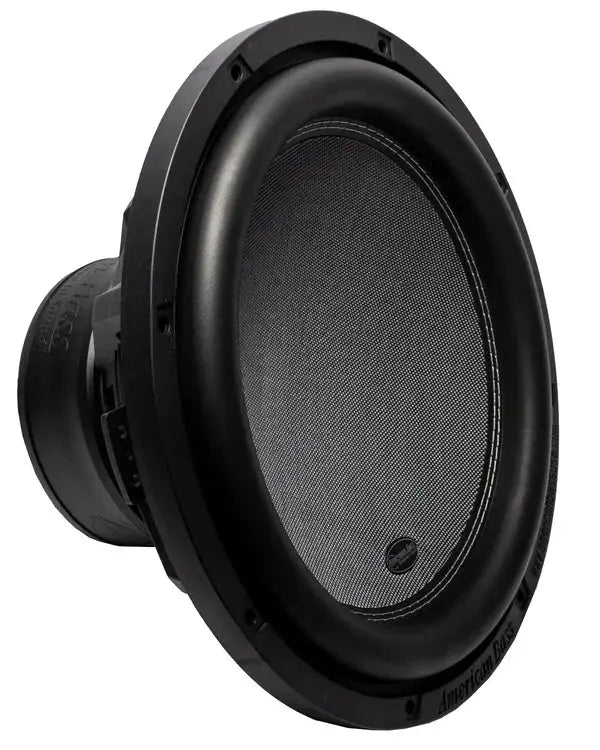

American Bass XR Series 15" Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 1500 W
- Voice-coil options: D2, D4
- Mounting depth: 7.76 inches
- Cutout size: 14 inches
- Voice-coil diameter: 3 inches
American Bass XR Series 15" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
American Bass XR Series 15" Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring deep, high-output bass to your car audio system with the American Bass XR Series 15" Subwoofer. Its dual 2-ohm voice coils, fiberglass-reinforced cone, and side-mounted terminals suit a powerful ported-enclosure build.
Key Features & Benefits
- Fiberglass-reinforced cone: Its stiff construction helps limit cone flex for clear, controlled response.
- Stitched rubber surround: Supports cone movement during demanding bass passages.

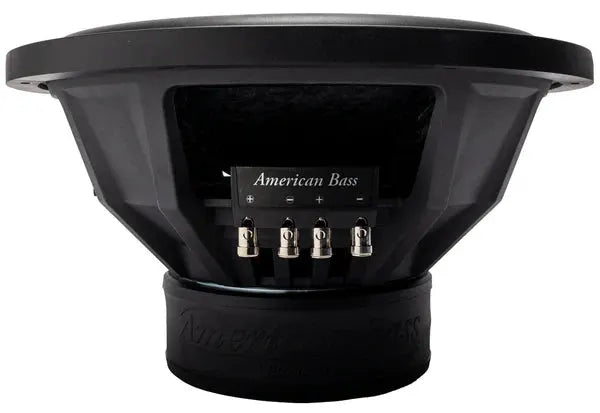

- Side-mounted terminals: Keep wiring accessible when space around the subwoofer is tight.
- Cast basket: Provides a rigid frame for the woofer’s moving assembly.
Technical Specifications
| RMS POWER | 1500W |
| MAX POWER | 3000W |
| IMPEDANCE (OHMS) | D2 |
| SENSITIVITY DB | 86 |
| MOUNTING DEPTH (IN) | 8 |
| CUTOUT SIZE (IN) | 14 |
| PORTED BOX (FT3) | 3-3.5 |
| MAGNET SIZE (OZ) | 200 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL 3K |
Why Choose This Product?
The XR Series 15" is built for a high-output car audio setup centered on a ported enclosure. Its 200 oz magnet and 3" voice coil are part of a design intended for demanding bass, while the recommended amplifier pairing is VFL 3K.
Installation & Compatibility Notes
Plan for an 8-inch mounting depth and a 14-inch cutout. The recommended ported box volume is 3–3.5 ft³. Check the available mounting space and your amplifier’s supported load before installation.
The dual 2-ohm voice coils offer wiring flexibility, but the final configuration must match the amplifier. Side-mounted terminals can help when routing wires in a tight trunk or custom enclosure.
Frequently Asked Questions
What enclosure volume is recommended?
The listed ported box volume is 3–3.5 ft³.
What mounting space does this subwoofer need?
Allow for an 8-inch mounting depth and a 14-inch cutout.
What does D2 impedance mean?
D2 identifies this as a dual 2-ohm voice-coil subwoofer. Choose a wiring configuration that matches your amplifier’s supported load.
Which amplifier is recommended?
The specification lists VFL 3K under “Recommended Amp (Pair).”
Explore More
Shop 12 Volt Outlet for car audio components, and explore our American Bass brand profile to learn more about the brand.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
