Deaf Bonce Apocalypse ASA-1000.2 | 1000 Watt 2-channel amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 410 W
- RMS per channel at 2 ohms: 680 W
- Amplifier class: Class D
- Frequency response: 10 Hz - 20 kHz
- Crossover slope: 12 dB/octave
Deaf Bonce Apocalypse ASA-1000.2 | 1000 Watt 2-channel amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse ASA-1000.2 | 1000 Watt 2-channel amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

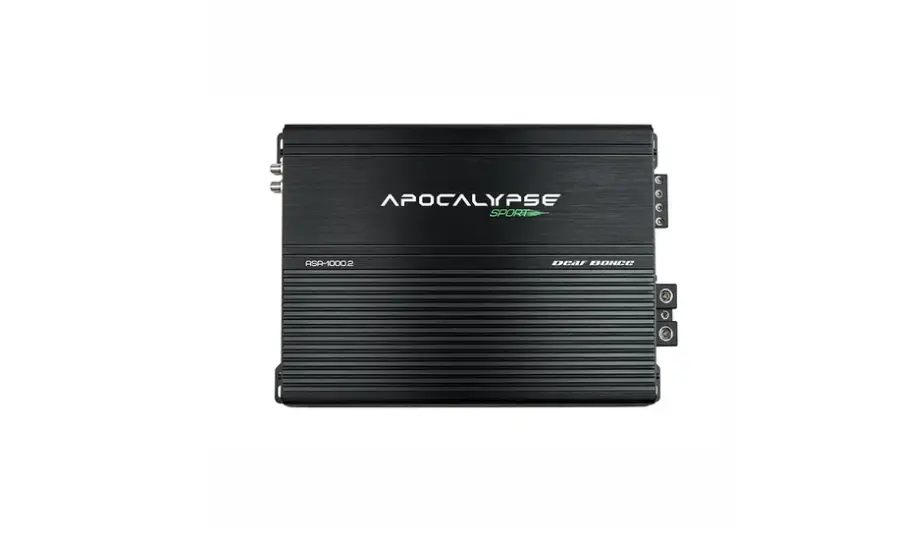

Give your car audio system flexible two-channel power with the Deaf Bonce Apocalypse ASA-1000.2 Class D amplifier. It delivers rated RMS power at 1, 2, or 4 Ohms per channel, with bridged output options for supported speaker configurations.
Use its low-pass and high-pass filter ranges to shape frequency separation for a front stage or a subwoofer setup. The compact chassis measures 13 x 9.4 x 2.5 inches.
Key Features & Benefits
- Two-channel output: Choose per-channel or bridged operation to suit your system plan.
- Multiple load ratings: Select from 1, 2, or 4 Ohm per-channel power ratings, or the specified bridged ratings.

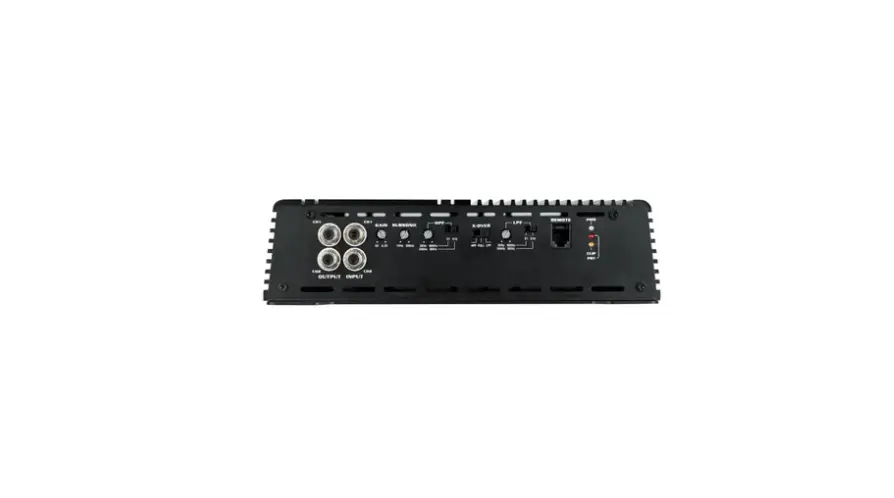

- Adjustable filters: LPF and HPF ranges provide options for tailoring frequency separation.
- Simultaneous LPF and HPF: Both filters can operate at the same time.
- Compact dimensions: The 13 x 9.4 x 2.5-inch footprint helps you plan an installation in a limited space.
Technical Specifications
| Model | ASA-1000.2 |
| Class | D |
| Number of the channels | 2 |
| Frequency response | 10-20000 Hz |
| 1 Ohm RMS Power (14.4 V) | 1000W x 2 |
| 2 Ohm RMS Power (14.4 V) | 680 W x 2 |
| 4 Ohm RMS Power (14.4 V) | 410 W x 2 |
| 2 Ohm RMS Power (Bridge) | 2060W x 1 |
| 4 Ohm RMS Power (Bridge) | 1360 W x 1 |
| Minimum permissible load on the channel | 1 Ohm |
| Minimum permissible load in a bridge connection | 2 Ohm |
| The simultaneous operation of LPF and HPF | Yes |
| Low pass filter | 50-1200 / 500-12000 Hz |
| High pass filter | 10-1200 / 100-12000 Hz |
| Crossover | 12 dB/Oct |
| Input terminal | 0 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ≥ 91 dB |
| Size (WxLxH) | 13 x 9.4 x 2.5 inch |
Why Choose This Product?
The ASA-1000.2 gives you more than one way to plan a two-channel system. Its listed RMS ratings cover several per-channel impedances, while the bridged ratings offer another configuration when your connected load meets the amplifier’s stated minimum.
Its filter ranges and 12 dB/Oct crossover give you control over frequency separation. The specified signal-to-noise ratio is ≥ 91 dB, and its Class D design suits a compact amplifier format.
Installation & Compatibility Notes
Check the connected speakers’ impedance and your planned configuration against the minimum permissible loads: 1 Ohm per channel or 2 Ohm bridged. Match power expectations to the corresponding ratings in the specification table.

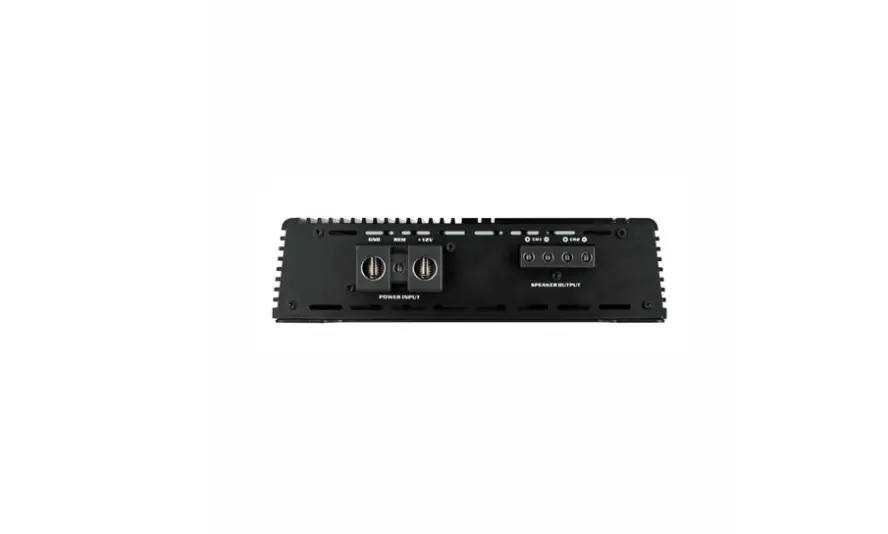

Allow space for the 13 x 9.4 x 2.5-inch amplifier and plan around its 9 - 15V working voltage. The listed input and output terminals are 0 Ga and 8 Ga, respectively.
Frequently Asked Questions
What is the ASA-1000.2’s power output per channel?
At 14.4 V, the listed RMS ratings are 1000W x 2 at 1 Ohm, 680 W x 2 at 2 Ohms, and 410 W x 2 at 4 Ohms.
What are its bridged power ratings?
The specifications list 2060W x 1 RMS at 2 Ohms and 1360 W x 1 RMS at 4 Ohms in bridge mode.
What minimum load should I use?
The minimum permissible load is 1 Ohm on a channel and 2 Ohms in a bridge connection.
Can the low-pass and high-pass filters run together?
Yes. The specifications state that LPF and HPF can operate simultaneously.
How much room should I allow for the amplifier?
Its listed dimensions are 13 x 9.4 x 2.5 inches (WxLxH). Compare these measurements with your planned mounting space.
