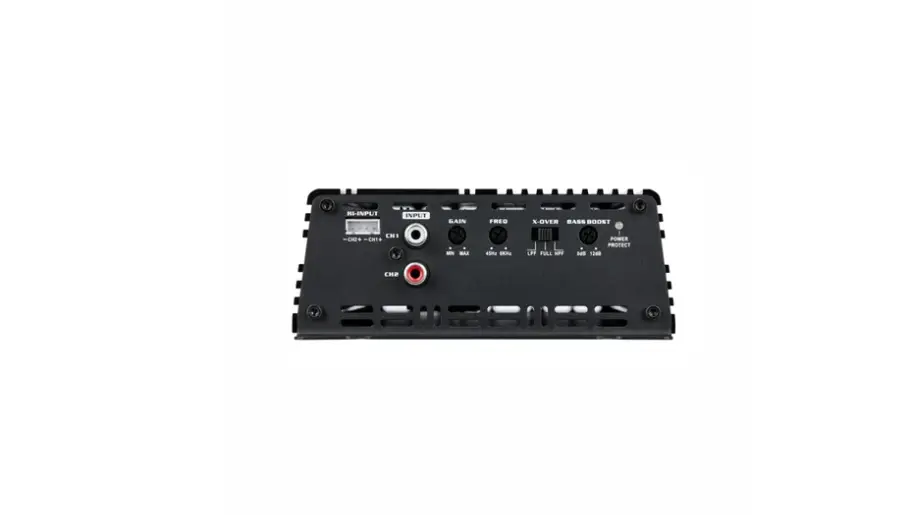

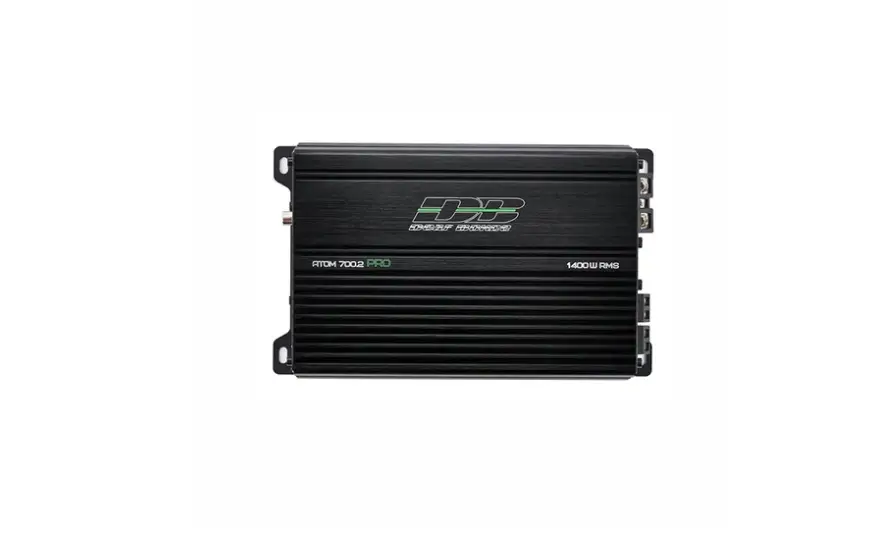

Deaf Bonce Apocalypse ATOM-700.2 PRO | 700 Watt 2-channel amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 270 W
- RMS per channel at 2 ohms: 470 W
- Amplifier class: Class D
- Frequency response: 10 Hz - 20 kHz
- Crossover slope: 12 dB/octave
Deaf Bonce Apocalypse ATOM-700.2 PRO | 700 Watt 2-channel amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse ATOM-700.2 PRO | 700 Watt 2-channel amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Deaf Bonce Apocalypse ATOM-700.2 PRO is a 2-channel Class D car audio amplifier with power ratings for stereo and bridged operation. Its adjustable high-pass and low-pass filter ranges support different crossover settings for your system.
Key Features & Benefits
- Two-channel design: Choose between channel-by-channel and bridged power ratings when planning your system.
- Filter ranges: High-pass and low-pass filters each cover 50-12000 Hz for crossover adjustment.
- Low-load ratings: The minimum permissible load is 1 Ohm per channel or 2 Ohm in a bridged connection.
- Compact dimensions: The amplifier measures 8.8 x 5.5 x 2.1 inches for installation-space planning.
Technical Specifications
| Model | ATOM-700.2 PRO |
| Class | D |
| Number of the channels | 2 |
| Frequency response | 10-20000 Hz |
| 1 Ohm RMS Power (14.4 V) | 700W x 2 |
| 2 Ohm RMS Power (14.4 V) | 480 W x 2 |
| 4 Ohm RMS Power (14.4 V) | 230 W x 2 |
| 2 Ohm RMS Power (Bridge) | 1400W x 1 |
| 4 Ohm RMS Power (Bridge) | 960 W x 1 |
| Minimum permissible load on the channel | 1 Ohm |
| Minimum permissible load in a bridge connection | 2 Ohm |
| Low pass filter | 50-12000 Hz |
| High pass filter | 50-12000 Hz |
| Crossover | 12 dB/Oct |
| Input terminal | 4 Ga |
| Output terminal | 10 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ��� 82 dB |
| Size (WxLxH) | 8.8 x 5.5 x 2.1 inch |
Why Choose This Product?
The ATOM-700.2 PRO provides separate RMS ratings for 1, 2, and 4 Ohm channel loads, plus ratings for 2 and 4 Ohm bridged connections. This makes it easier to compare its stated output with the load and configuration you are considering.
Its 12 dB/Oct crossover and broad filter ranges give you adjustment options when setting up the amplifier for your audio system.
Installation & Compatibility Notes
Check your planned speaker load against the amplifier’s minimum permissible load for channel or bridged operation. Confirm that the installation location accommodates its listed dimensions and that the electrical supply falls within the 9 - 15V working-voltage range.

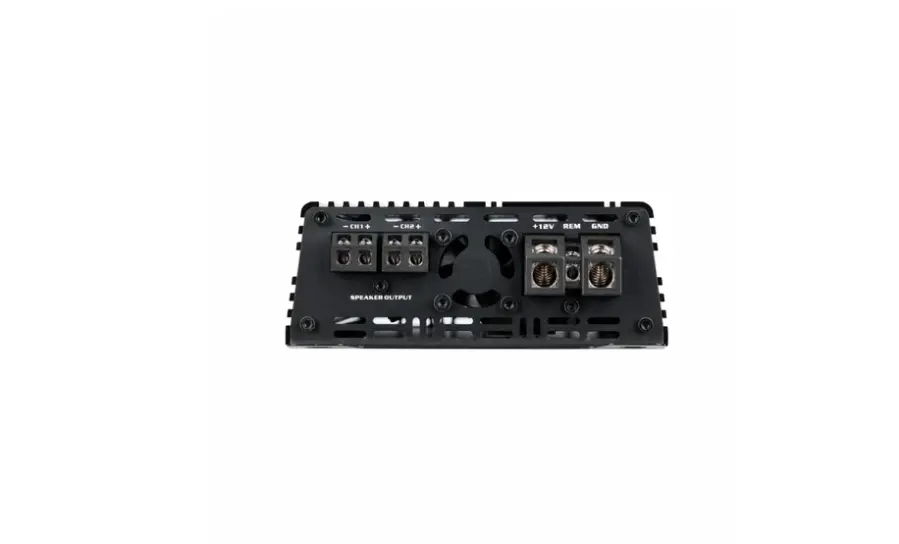

The listed input terminal is 4 Ga, and the output terminal is 10 Ga. Confirm your installation connections are appropriate before purchase and installation.
Frequently Asked Questions
What are the RMS power ratings at 14.4 V?
The amplifier is rated at 700W x 2 at 1 Ohm, 480 W x 2 at 2 Ohm, and 230 W x 2 at 4 Ohm.
What are the bridged power ratings?
The listed bridged RMS ratings are 1400W x 1 at 2 Ohm and 960 W x 1 at 4 Ohm.
What is the minimum permissible load?
The minimum is 1 Ohm on a channel and 2 Ohm in a bridge connection. Match your system load to the relevant rating.
How much installation space should I allow?
The amplifier measures 8.8 x 5.5 x 2.1 inches (WxLxH). Check the available mounting space against these dimensions.
