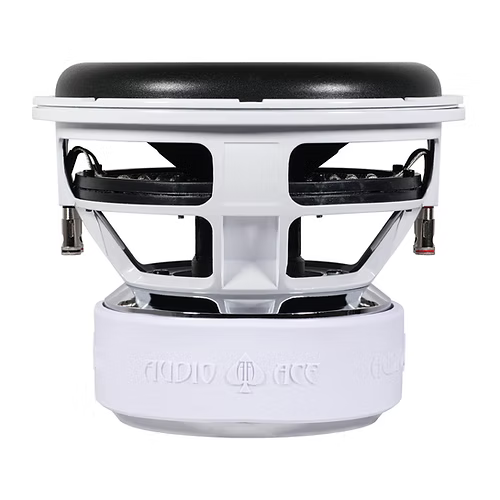

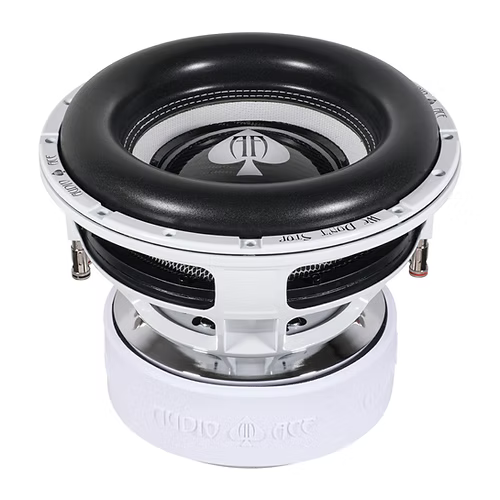

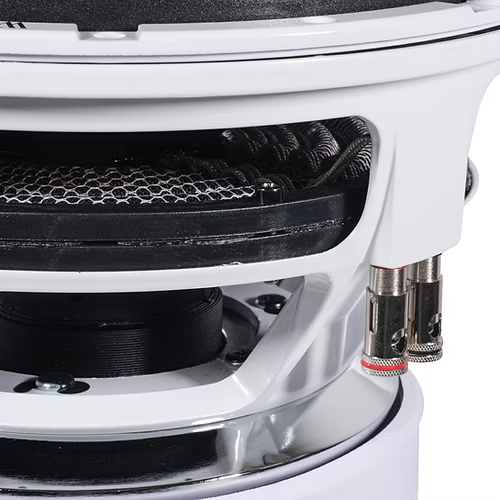

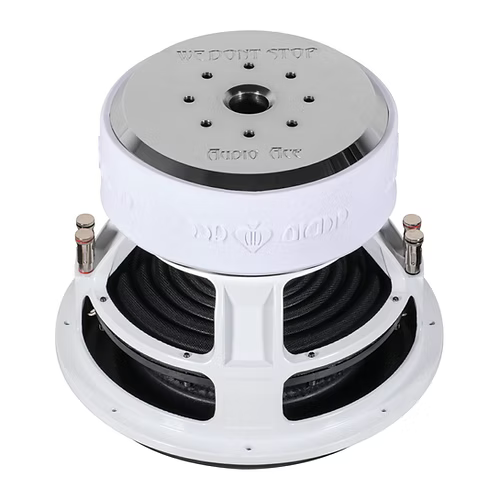

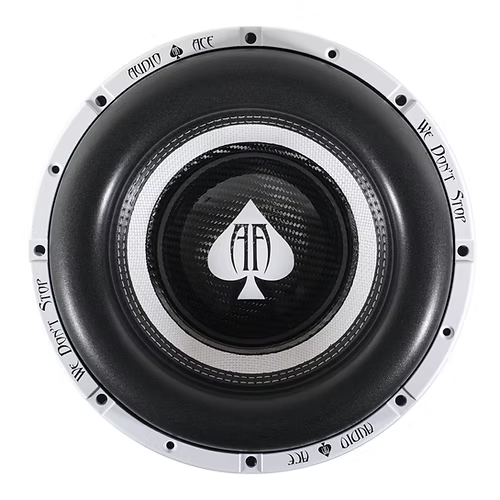

Audio Ace Jester Series 12" Subwoofer Dual 2 Ohm
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 3000 W
- Voice-coil options: D2
- Voice-coil diameter: 3 inches
- Mounting depth: 8.5 inches
- Mounting cutout diameter: 11.25 inches
Audio Ace Jester Series 12" Subwoofer Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Audio Ace Jester Series 12" Dual 2 Ohm subwoofer is built for car audio systems pursuing both sound quality and high output. Its 300 oz magnet, 3-inch four-layer voice coil, and 12-inch cone are designed to deliver deep, controlled bass in a properly sized vented enclosure.
Key Features & Benefits
- Dual 2-ohm voice coil: Gives you wiring flexibility when matching the subwoofer to your amplifier and system layout.
- 3-inch BACCAW four-layer voice coil: Its tall, multi-layer winding is designed to manage heat during sustained use.
- 300 oz magnet structure: Supports strong motor force for high-excursion bass with low distortion at high output.
- Die-cast aluminum basket: A rigid frame helps limit flex and resonance during heavy bass pulses.
- Four-layer, 10-inch spider: Helps keep cone movement controlled across frequencies and power levels.
Technical Specifications
| Specification | Value |
|---|---|
| Product | Audio Ace Jester Series 12" Subwoofer Dual 2 Ohm |
| Power rating | 3,000 RMS |
| Voice coil configuration | Dual 2 Ohm |
| Cone diameter | 12 inches |
| Basket | Heavy-duty die-cast aluminum |
| Voice coil | 3-inch BACCAW 4-layer |
| Magnet structure | 300 oz |
| Spider | 4-layer 10" |
| Cutout diameter | 11.25 inches |
| Mounting depth | 8.5 inches |
| Weight | 47.6 lbs |
| Re | 3.60 Ω |
| Fs | 35.4 Hz |
| Qts | .386 |
| Qes | .420 |
| Qms | 4.787 |
| Vas | 12.8560 |
| Mms | 454.545 |
| Recommended enclosure | 2–2.6 cubic feet ported |
| Port area recommendation | 14–16 square inches of port per cubic foot |
| Recommended tuning | 28–34 Hz |
| Enclosure types | Optimal in ported 4th and 6th order enclosures; not recommended for sealed applications |
Why Choose This Product?
The Jester Series combines a substantial motor with a stiff suspension and heat-capable voice coil. That design is intended to support sustained high-output playback while keeping bass transients controlled. Its dual 2-ohm configuration also gives system builders flexibility when planning an amplifier match.
Installation & Compatibility Notes
Plan the enclosure around the recommended ported volume, port area, and tuning range. The listed cutout diameter and mounting depth help you assess enclosure fit and available space before installation. Check your amplifier’s supported load and the completed wiring configuration before connecting the dual voice coils.
Frequently Asked Questions
Is this subwoofer intended for a sealed enclosure?
No. The supplied recommendation is for ported enclosures, and sealed applications are not recommended.
What enclosure tuning should I plan for?
The stated tuning range is 28–34 Hz. The recommended ported enclosure volume is 2–2.6 cubic feet, with 14–16 square inches of port per cubic foot.
What does the dual 2-ohm configuration mean for my system?
It provides wiring flexibility, but the final load depends on your wiring and system layout. Confirm that your amplifier supports the resulting impedance.
How much installation space should I allow?
Use the listed cutout diameter and mounting depth to plan the opening and space behind the mounting surface.
