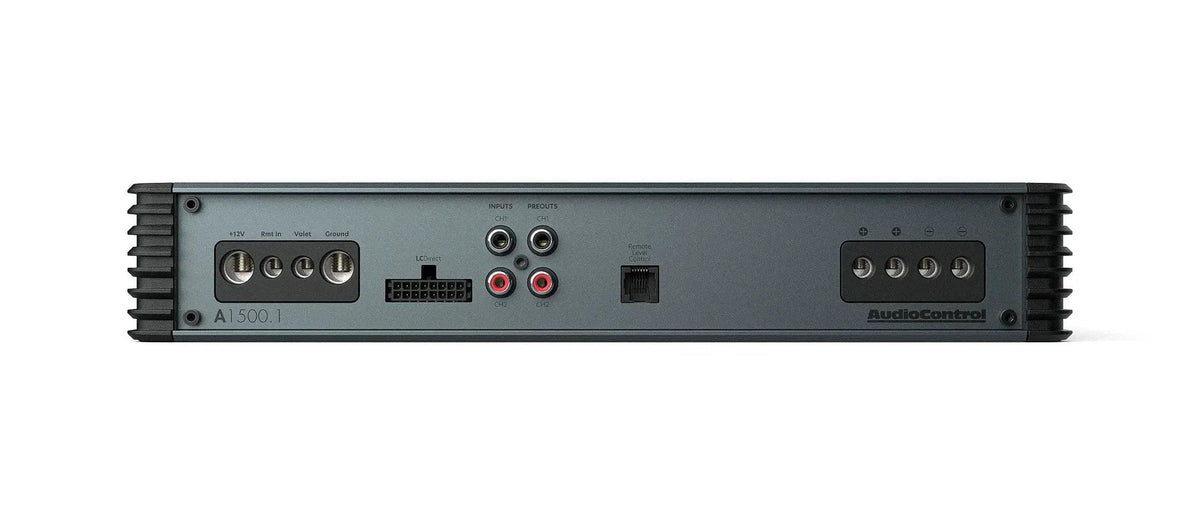

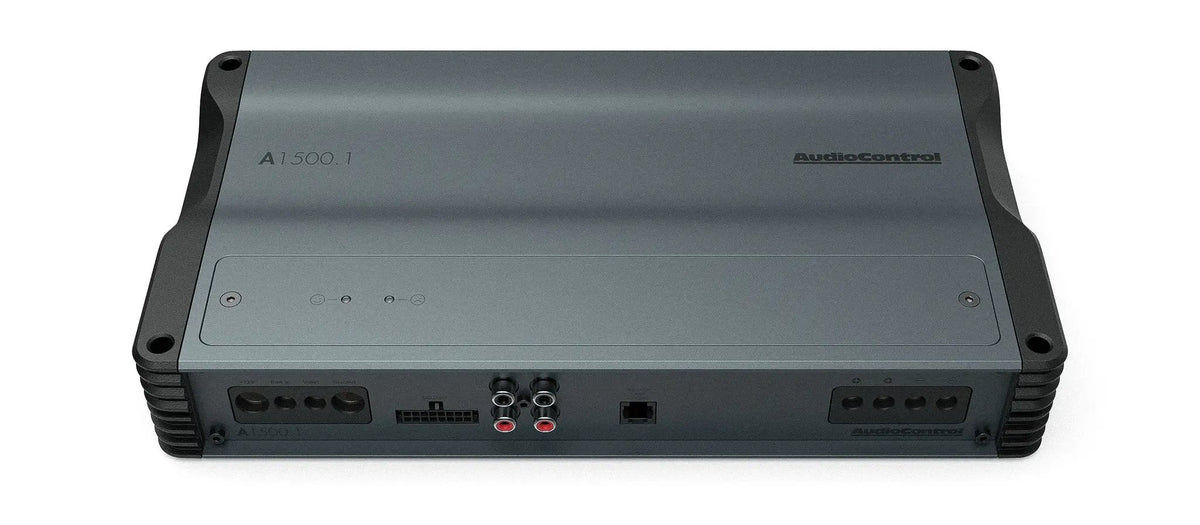

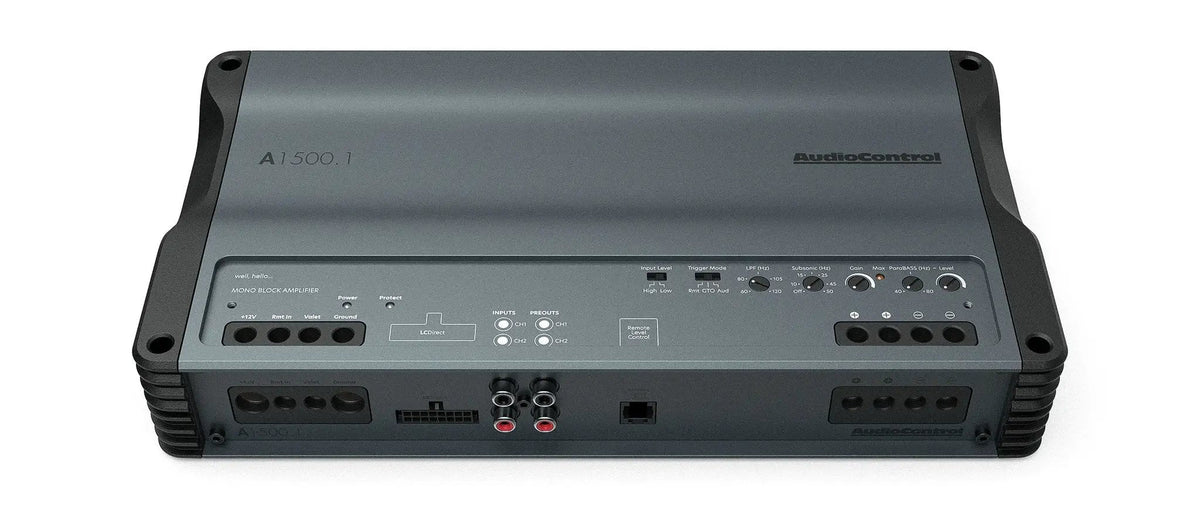

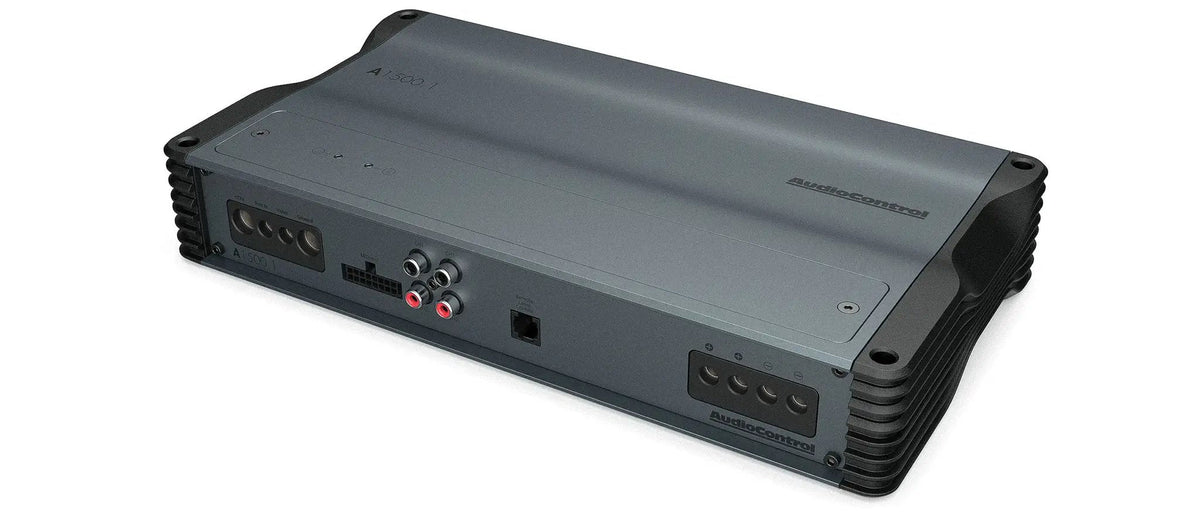

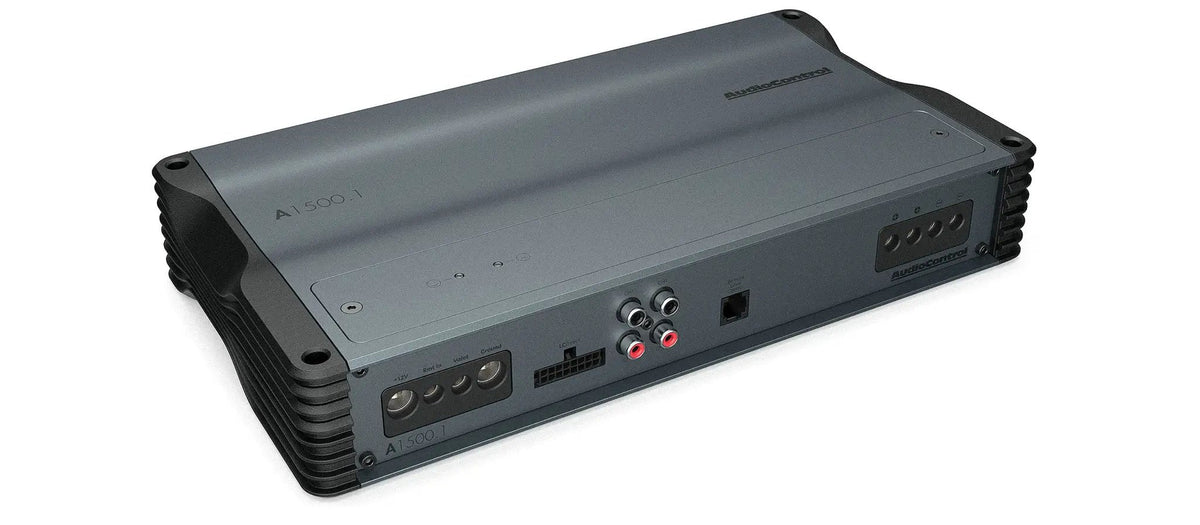

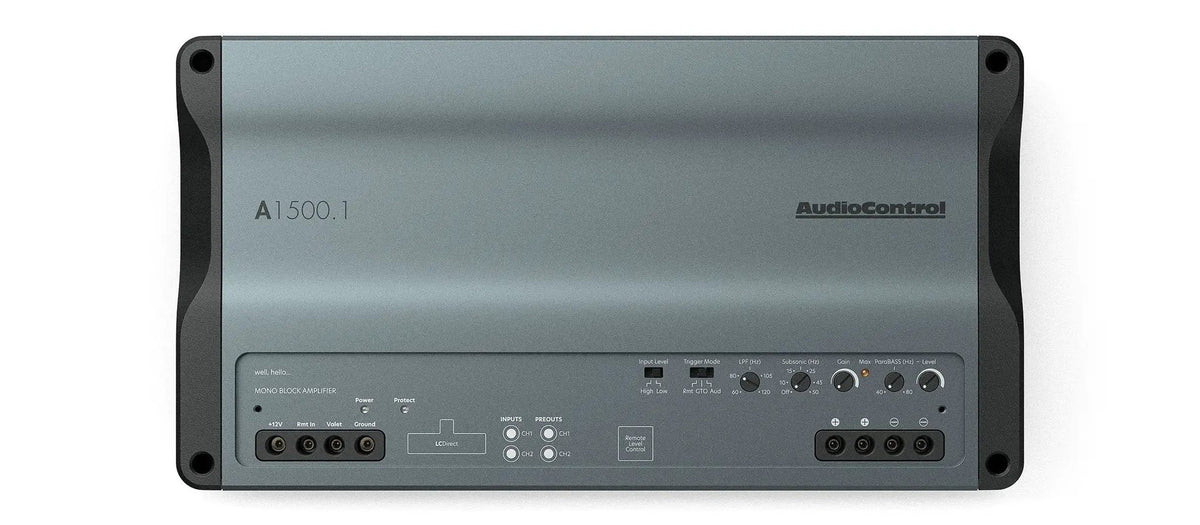

Audio Control A1500.1 ALTITUDE MONOBLOCK AMPLIFIER
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 600.0 W
- RMS output at 2 ohms: 1200 W
- Maximum line-level input: 6 V
- Maximum speaker-level input: 20 V
- Bass processing: ParaBASS contouring
Audio Control A1500.1 ALTITUDE MONOBLOCK AMPLIFIER is backordered and will ship as soon as it is back in stock.
Audio Control A1500.1 ALTITUDE MONOBLOCK AMPLIFIER is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a subwoofer system around the AudioControl A1500.1 Altitude monoblock amplifier, with up to 1500W x 1 at 1.33Ω. Its Class D design, bass-shaping controls, and flexible input options help you tailor the installation to your source and subwoofer setup.

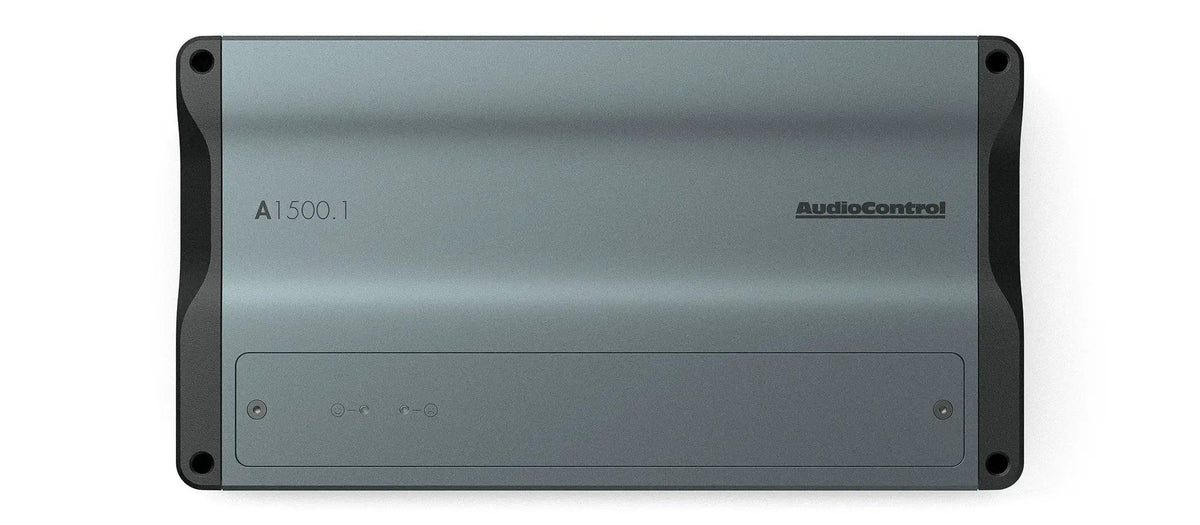

The anodized matte grey aluminum chassis measures 12.5" W x 6.7" D x 2.1" H, giving you the dimensions to check when planning an amplifier location.
Key Features & Benefits
- Three power ratings: Choose the listed output that matches your planned subwoofer load.
- PWM-driven Class D design: High-efficiency operation helps reduce heat and cooling demands.
- ParaBASS contouring: Adjust low-frequency response to suit your listening preferences and vehicle acoustics.
- Valet Mode: Limits maximum volume to 25% when activated.
- Flexible signal inputs: Preamp, line-level, and speaker-level connections support different source setups.
- Start-stop and EV support: Designed for start-stop systems and electric vehicles up to 17V.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | 1-channel Class D monoblock amplifier |
| Output power | 600W x 1 @ 4Ω; 1200W x 1 @ 2Ω; 1500W x 1 @ 1.33Ω |
| Modulator | PWM |
| Chassis | Anodized matte grey aluminum |
| ParaBASS | Low Frequency Contouring |
| Valet Mode | Limits maximum volume to 25% when activated |
| Spike Mode | Enables wiring three 4Ω subwoofers at 1.33Ω |
| Vehicle systems | Start-Stop compliant; EV up to 17V |
| Signal sensing | GTO Signal Sense |
| Crossovers | Linkwitz-Riley |
| Subsonic Filter | Variable |
| Low Pass range | 60 Hz to 120 Hz |
| Optional remote level control | ACR-1 |
| Preamp inputs | (2) |
| Line-Level inputs | Up to 6 V |
| Speaker-Level inputs | Up to 20 V |
| Dimensions | 12.5" W x 6.7" D x 2.1" H |
| Weight | 7.15 lbs |
| S/N | 103 dBA |
| THD+N | < 0.11% |
Why Choose This Product?
The A1500.1 combines subwoofer power with controls for shaping and integrating bass. Linkwitz-Riley crossovers, a variable subsonic filter, and a 60 Hz to 120 Hz low-pass range give you specific adjustment points for your system.
Spike Mode supports a three-subwoofer wiring arrangement using 4Ω subwoofers at 1.33Ω. GTO Signal Sense adds signal-responsive on/off behavior, while Valet Mode can limit maximum volume for everyday driving.
Installation & Compatibility Notes
Check the amplifier’s dimensions against your intended mounting space and confirm the planned subwoofer wiring matches the listed load and output rating. The amplifier accepts preamp, line-level inputs up to 6 V, and speaker-level inputs up to 20 V, allowing integration with aftermarket head units or factory radios.
For a three-subwoofer setup at 1.33Ω, use the stated Spike Mode arrangement. The ACR-1 remote level control is optional. Confirm your vehicle’s electrical requirements, mounting space, and system connections during installation planning.
Frequently Asked Questions
How much power does the A1500.1 produce?
Its listed outputs are 600W x 1 at 4Ω, 1200W x 1 at 2Ω, and 1500W x 1 at 1.33Ω.
What does Spike Mode do?
It enables wiring three 4Ω subwoofers at 1.33Ω and is designed to run cool at maximum output for extended periods.
Can I connect a factory radio?
The amplifier has speaker-level inputs up to 20 V, as well as preamp and line-level inputs, for flexible source integration.
Can I adjust bass from the cabin?
The optional ACR-1 remote level control provides bass-level adjustment from a preferred dash or seating position.
What should I check before installation?
Compare the 12.5" W x 6.7" D x 2.1" H dimensions with your mounting space, and check your source connections and subwoofer wiring plan.
