Audio Control EPIC1000 AudioControl EPIC Series Monoblock 1000 watt Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 400.0 W
- RMS output at 2 ohms: 700 W
- RMS output at 1 ohm: 1000 W
Audio Control EPIC1000 AudioControl EPIC Series Monoblock 1000 watt Amplifier is backordered and will ship as soon as it is back in stock.
Audio Control EPIC1000 AudioControl EPIC Series Monoblock 1000 watt Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your subwoofer system a dedicated bass amplifier with the AudioControl EPIC1000, a compact Class-D monoblock rated up to 1000 watts RMS at 1 ohm. Its EPICBoost controls and Epicenter link help you shape and integrate bass in a bass-focused car audio build.
Key Features & Benefits
- 1-ohm stability: The high-current design supports demanding subwoofer loads.

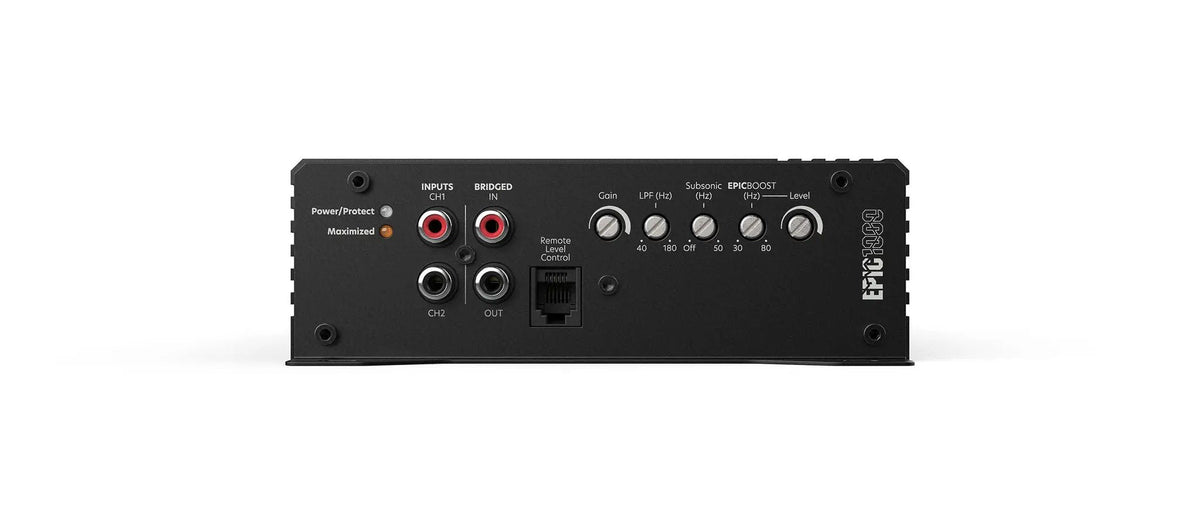

- Variable EPICBoost: Adjust bass boost from 0–12 dB and choose a center frequency from 30–80 Hz.
- Adjustable filters: Low-pass and subsonic filters help tailor bass for your system.
- Compact Class-D design: Efficient amplifier hardware helps reduce heat and idle draw.
- ACR-E remote included: Adjust the level from your seat as your listening changes.
- Epicenter connection: The included link harness connects to EPIC power and remote for integration with The Epicenter processor, sold separately.
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier type | Digital Class-D monoblock |
| RMS power at 14.4V | 400W @ 4 ohms; 700W @ 2 ohms; 1000W @ 1 ohm |
| Bridged power | 2000W @ 2 ohms when bridged |
| Stability | 1Ω stable |
| EPICBoost | 0–12 dB gain; center frequency 30 Hz–80 Hz |
| Low-pass filter | 12 dB/octave Linkwitz-Riley; 40–180 Hz |
| Subsonic filter | 12 dB/octave Linkwitz-Riley; Off–50 Hz |
| Remote level control | ACR-E included |

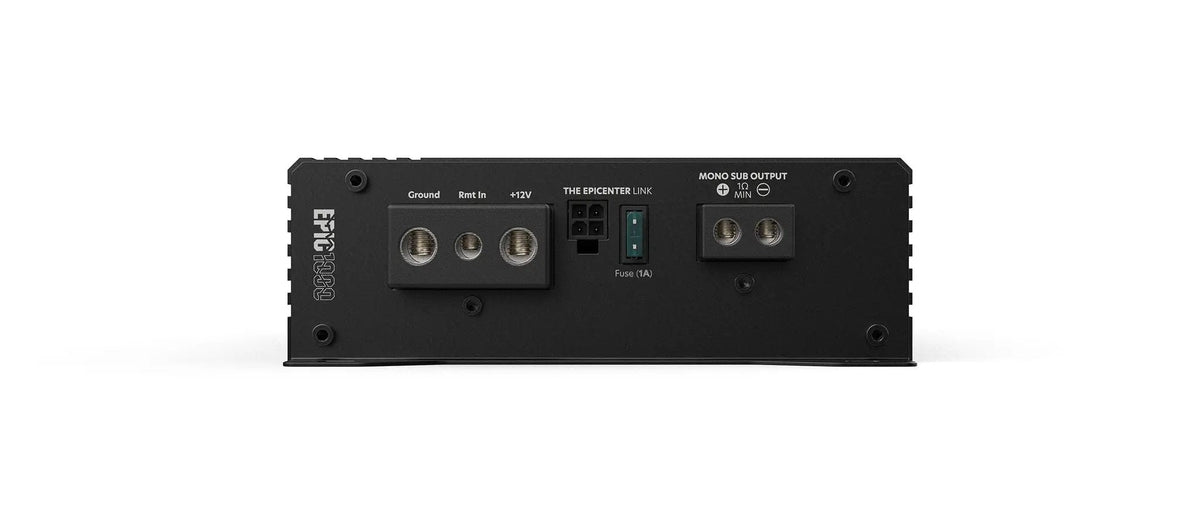

| Terminals and wiring | Direct Wire terminals with hex screws; 4 AWG power and 8 AWG speaker wiring |
| Epicenter link | Yes; connects to EPIC (Power & Remote) |
| Input sensitivity | Line-level inputs: 500 mV–6 V RMS |
| Dimensions | 6.1" W x 9.41" L x 2.01" H |
| Protection | Smart Auto Reset Protection Circuit with OCP, OVP, UVP, DCP, OTP |
| In the box | EPIC1000, wrench, screws, ACR-E remote level control and cable, The Epicenter Link (1 m harness), manual, warranty |
Why Choose This Product?
The EPIC1000 combines substantial RMS output with a compact footprint for a dedicated subwoofer setup. Its adjustable bass boost and filter ranges give you practical tuning options, while the included remote lets you change the level from the listening position.
If you plan to use The Epicenter, the supplied 1 m link harness connects to EPIC power and remote. The processor is sold separately.
Installation & Compatibility Notes
Check that your planned subwoofer load matches the amplifier’s ratings and that your installation can accommodate its 6.1" W x 9.41" L x 2.01" H dimensions. The amplifier uses 4 AWG power wiring and 8 AWG speaker wiring, with Direct Wire terminals secured by hex screws.
Line-level input sensitivity is 500 mV–6 V RMS. Confirm that your source and installation meet these requirements before setup.
Frequently Asked Questions
What power does the EPIC1000 deliver?
At 14.4V, it is rated at 400W RMS at 4 ohms, 700W at 2 ohms, and 1000W at 1 ohm. The listed bridged rating is 2000W at 2 ohms.
Can the amplifier operate at 1 ohm?
Yes. The EPIC1000 is specified as 1Ω stable. Match your subwoofer load to the amplifier’s power ratings.
What bass adjustments are available?
EPICBoost offers 0–12 dB of gain with a 30–80 Hz center frequency. The low-pass filter covers 40–180 Hz, and the subsonic filter ranges from Off to 50 Hz.
What comes with the amplifier?
The box includes the EPIC1000, wrench, screws, ACR-E remote and cable, a 1 m Epicenter Link harness, manual, and warranty.
