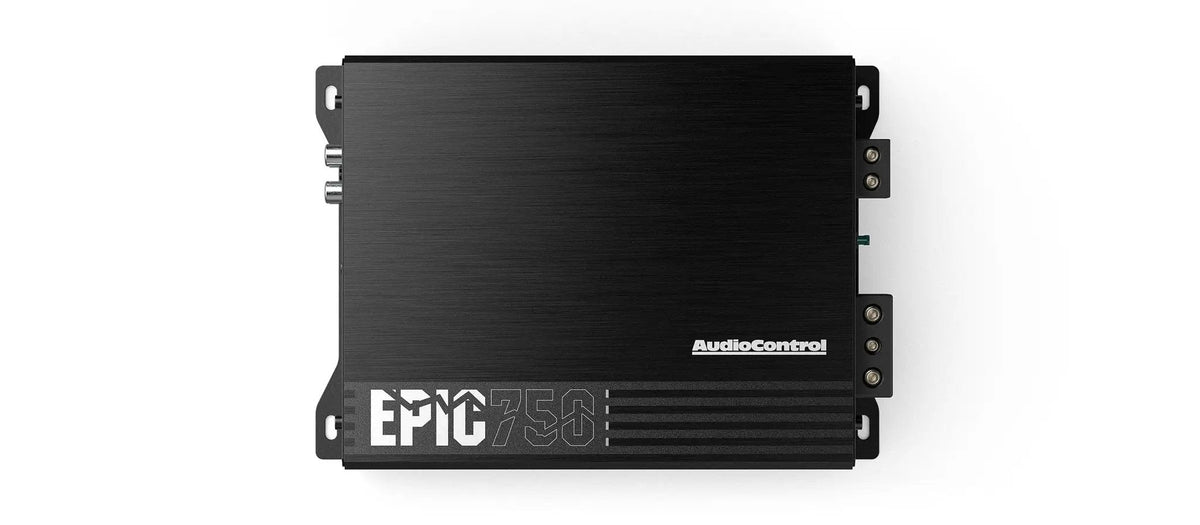

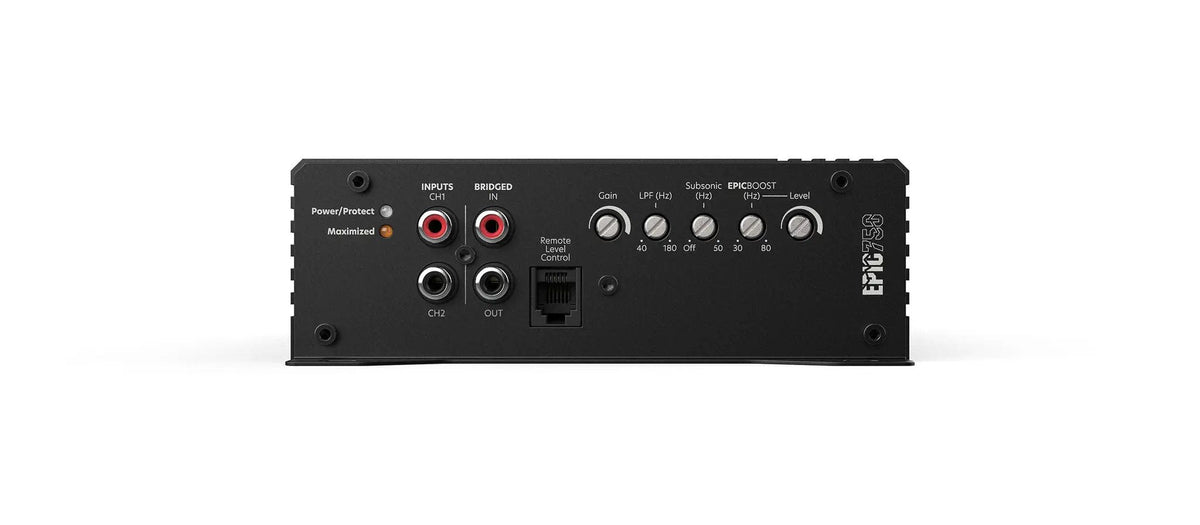

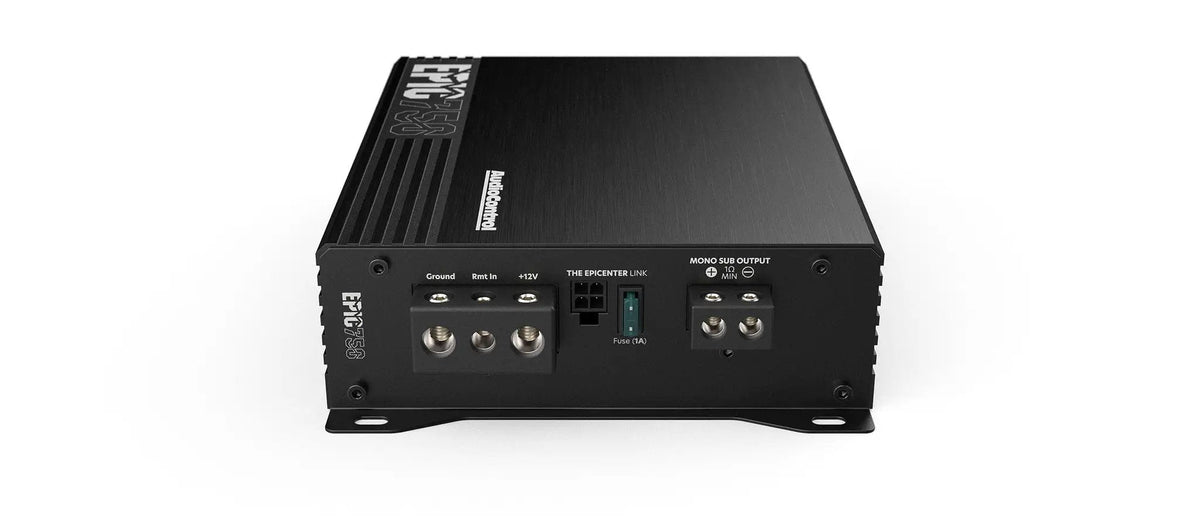

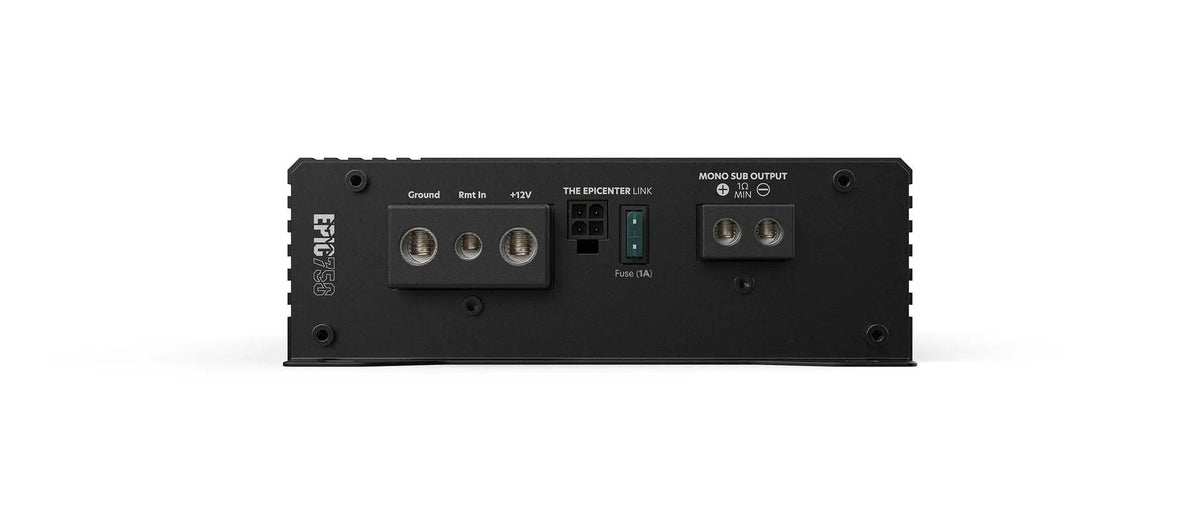

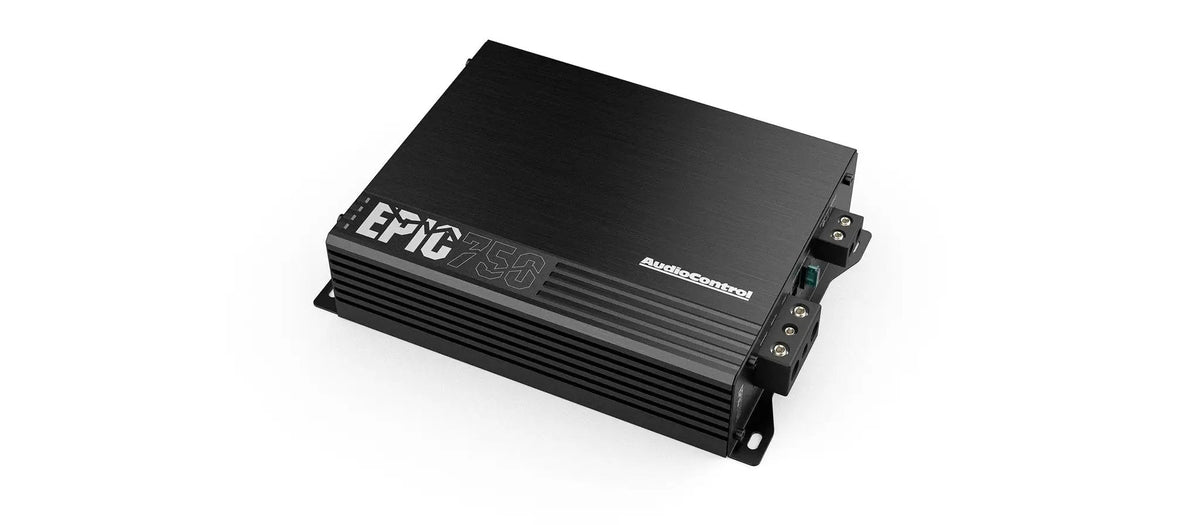

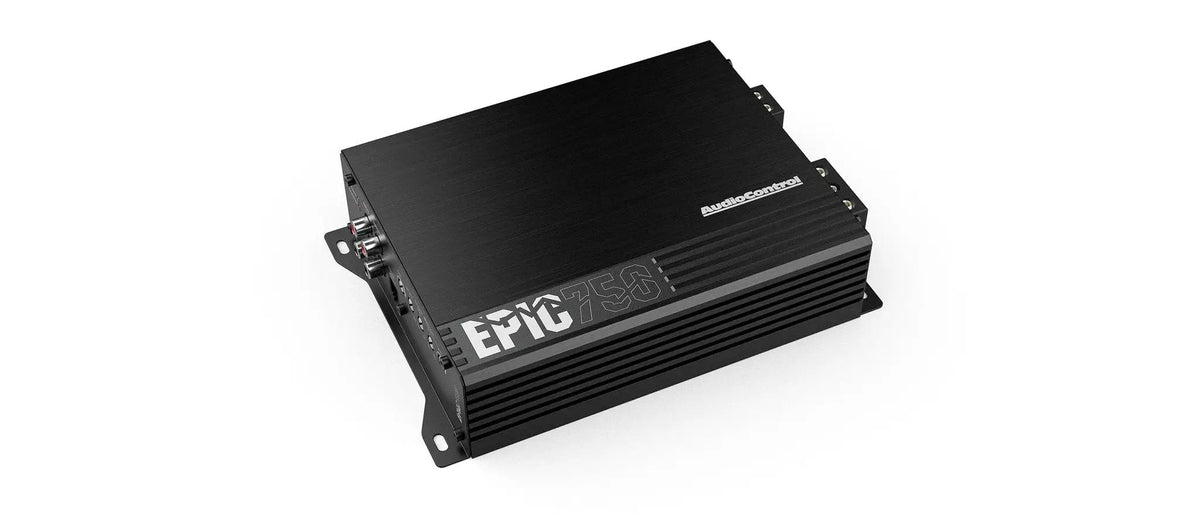

Audio Control EPIC750 EPIC Series Monoblock 750 watt Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 300.0 W
- RMS output at 2 ohms: 500 W
- RMS output at 1 ohm: 750 W
Audio Control EPIC750 EPIC Series Monoblock 750 watt Amplifier is backordered and will ship as soon as it is back in stock.
Audio Control EPIC750 EPIC Series Monoblock 750 watt Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring dedicated subwoofer power to a bass-focused car audio build with the AudioControl EPIC750 EPIC Series monoblock amplifier. Its compact Class-D design delivers up to 750 watts at 1 Ω and offers adjustable bass controls for tailoring output to your setup.
Key Features & Benefits
- Three power ratings: Choose between 1 Ω, 2 Ω, and 4 Ω loads using the amplifier’s listed output ratings.
- Adjustable filters: Shape the subwoofer’s upper range and reduce ultra-low frequencies with the low-pass and subsonic filters.
- EPICBoost™: Adjust bass boost to suit your subwoofer, vehicle acoustics, and listening preferences.
- Included ACR-E remote: Adjust bass level from the front seat.
- Epicenter integration: The EPIC connection and included 1 m Epicenter Link harness support integration with The Epicenter Bass Restoration Processor.
- Protection circuitry: Smart auto-reset protection monitors several electrical and temperature conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier type | Digital Class-D monoblock amplifier |
| Power output | 1 x 750 Watts @ 1 Ω (14.4V) |
| Power output | 1 x 500 Watts @ 2 Ω |
| Power output | 1 x 300 Watts @ 4 Ω |
| Low-pass filter | 12 dB/octave Linkwitz-Riley, 40 Hz to 180 Hz |
| Subsonic filter | 12 dB/octave Linkwitz-Riley, Off to 50 Hz |
| EPICBoost™ bass boost | 0–12 dB, center 30 Hz to 80 Hz |
| Line-level inputs | 500 mV – 6 V RMS |
| Signal-to-noise ratio | 92.2 dB(A), Ref 300 W @ 4 Ω |
| Idle current | < 1 A |
| Power terminal | 4 AWG |
| Speaker terminal | 8 AWG with hex screws |
| EPIC connection | EPIC (Power & Remote) |
| Protection | Smart Auto Reset Protection Circuit with Output Over-Current (OCP), Input Over-Voltage (OVP), Input Under-Voltage (UVP), Output DC-Offset (DCP), and Over-Temperature (OTP) |
| Bridged (strapped) | Capable of bridging as needed for higher wattage configurations |
| Dimensions | 6.1" W x 8.62" L x 2.01" H |
| In the box | EPIC750, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1m Harness), Manual, Warranty |
Why Choose This Product?
The EPIC750 combines subwoofer power, bass shaping, and remote level adjustment in a compact amplifier. Its Class-D design is intended for efficient operation, while its adjustable filters let you tune the bass response for your listening setup.
For a build using The Epicenter Bass Restoration Processor, the EPIC connection and included link harness provide a dedicated integration option. The stated 92.2 dB(A) signal-to-noise ratio gives you a useful reference when comparing amplifier specifications.
Installation & Compatibility Notes
Check your subwoofer load against the amplifier’s power ratings before choosing a configuration. The power ratings are listed at 1 Ω, 2 Ω, and 4 Ω; the 750-watt rating is specified at 1 Ω and 14.4V.
Allow for the amplifier’s 6.1" W x 8.62" L x 2.01" H dimensions when planning placement. The amplifier has 4 AWG power and 8 AWG speaker terminals. An ACR-E remote and cable, plus a 1 m Epicenter Link harness, are included.
Frequently Asked Questions
What power does the EPIC750 deliver at each listed load?
Its listed outputs are 750 watts at 1 Ω, 500 watts at 2 Ω, and 300 watts at 4 Ω. The 1 Ω rating is specified at 14.4V.
Can I adjust the bass from the front seat?
Yes. The included ACR-E remote level control and cable let you adjust bass level from the front seat.
Can the EPIC750 connect to The Epicenter?
It has an EPIC (Power & Remote) connection, and The Epicenter Link 1 m harness is included for integration with The Epicenter Bass Restoration Processor.
What filters and bass adjustments are available?
The amplifier includes adjustable low-pass and subsonic filters, plus EPICBoost™ bass boost. Their ranges and slopes are listed in the Technical Specifications table.
What comes in the box?
The package includes the EPIC750, wrench, screws, ACR-E remote level control and cable, The Epicenter Link harness, manual, and warranty.
Can the amplifier be bridged?
It is described as capable of bridging, or strapping, for higher-wattage configurations.
