Audio Control EPICFIVE AudioControl EPIC Series 5-Channel Amplifier
Key features
- Amplifier channels: 5
- Speaker-channel RMS at 4 ohms: 75 W per channel
- Speaker-channel RMS at 2 ohms: 150 W per channel
- Subwoofer-channel RMS at 4 ohms: 300 W
- Subwoofer-channel RMS at 2 ohms: 500 W
- Subwoofer-channel RMS at 1 ohm: 700 W
Audio Control EPICFIVE AudioControl EPIC Series 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Audio Control EPICFIVE AudioControl EPIC Series 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

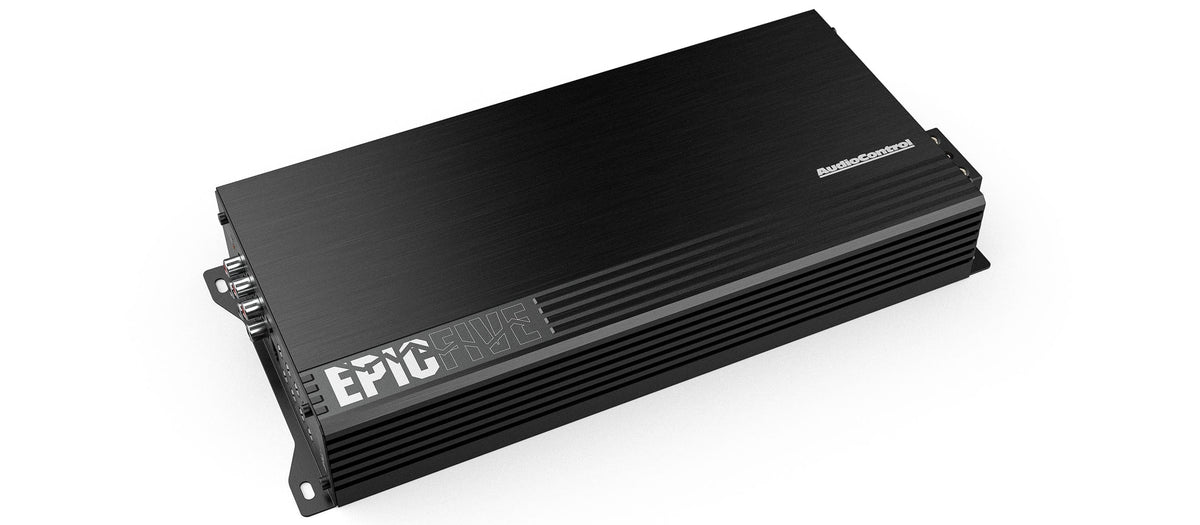

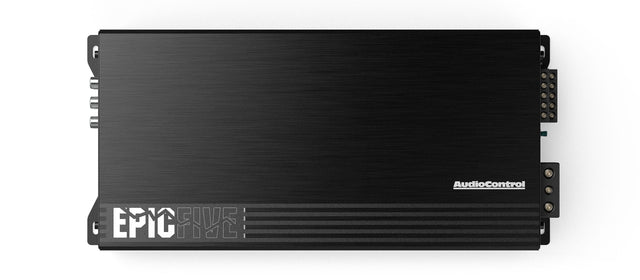

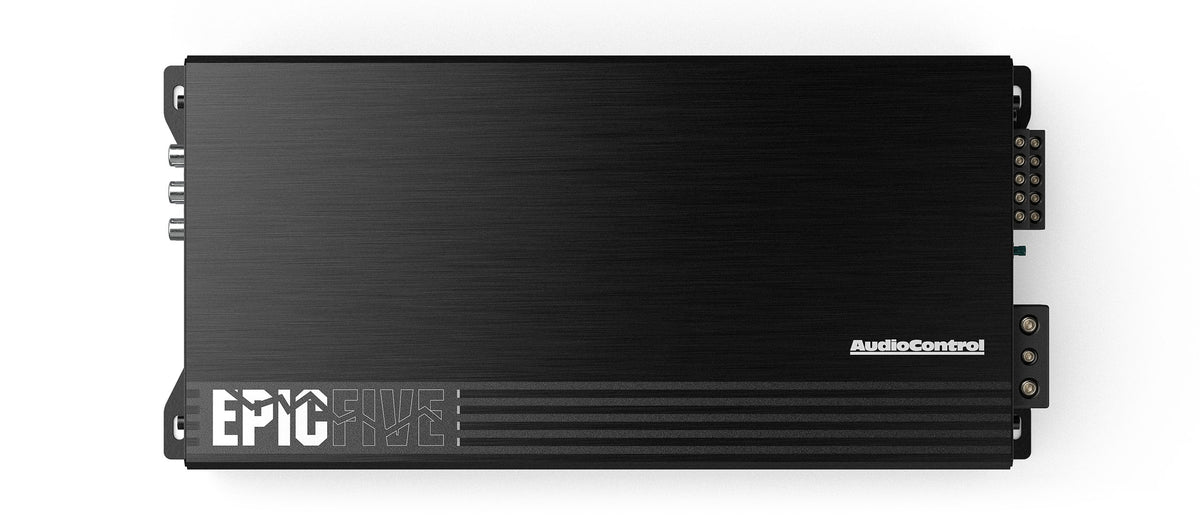

The AudioControl EPICFIVE 5-channel Class D amplifier lets you power a four-channel front stage and a subwoofer from one compact chassis. Its dedicated sub channel, built-in filters, and included bass control give you practical ways to shape your system’s sound.
Key Features & Benefits
- Five-channel output: Run four front-stage channels and one subwoofer channel from a single amplifier.
- Multiple power options: Choose from the specified 4-ohm, 2-ohm, 1-ohm subwoofer, and bridged ratings to plan your system.

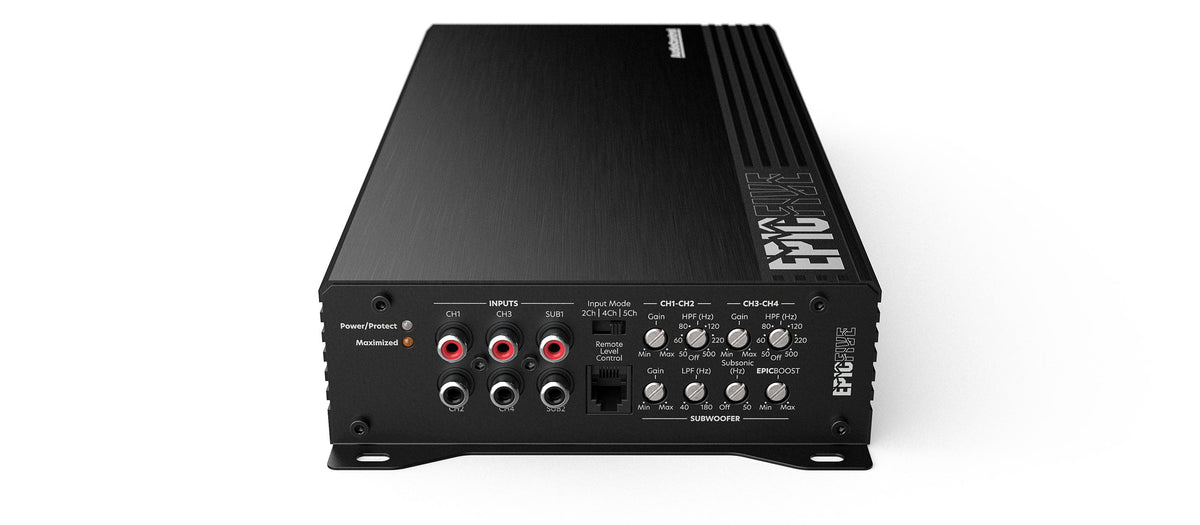

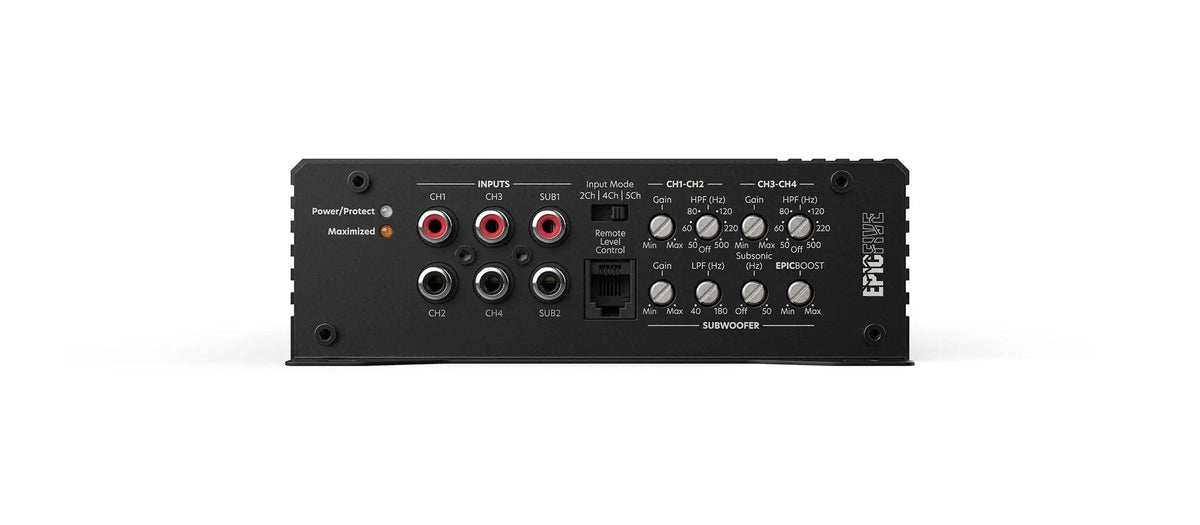

- Built-in filtering: High-pass, low-pass, and subsonic filters help tailor the signal for your system setup.
- Adjustable bass: Use the included remote level control for convenient front-seat bass adjustment.
- Epicenter connection: The Epicenter Link connects to EPIC power and remote for a simplified Epicenter installation.
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier type | Digital Class D, 5-channel |
| Power output @ 4 ohms | 4 x 75 Watts + 1 x 300 Watts |
| Power output @ 2 ohms | 4 x 150 Watts + 1 x 500 Watts |
| Subwoofer channel @ 1 ohm | 1 x 700 Watts |
| Bridged power | 2 x 300 Watts @ 4 ohms (bridged) |
| Line-level input range | 500 mV – 6 V RMS |
| High-pass filter | 12 dB/octave Linkwitz-Riley; 50 Hz–500 Hz or Off |
| Low-pass filter | 12 dB/octave Linkwitz-Riley; 40 Hz–180 Hz or Off |
| Subsonic filter | Off–50 Hz |
| EPIC Boost | 45 Hz center frequency; 0 to 12 dB gain |
| Power terminal | 4 AWG |
| Speaker terminal | 8 AWG with hex screws |
| Protection circuit | Smart Auto Reset Protection Circuit: Output Over-Current (OCP), Input Over-Voltage (OVP), Input Under-Voltage (UVP), Output DC-Offset (DCP), and Over-Temperature (OTP) |
| Signal-to-noise ratio | 92.1 dB A, Ref 75 Watts @ 4 ohms |
| Dimensions | 6.1" W x 13.35" L x 2.01" H |
| In the box | EPICFIVE, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1 meter harness), Manual, Warranty |
Why Choose This Product?
The EPICFIVE combines four full-range channels and a dedicated subwoofer channel, reducing the need to split those jobs across separate amplifiers. Its Class D design keeps the unit compact, while its listed power ratings support several channel and load configurations.
EPIC Boost provides 0 to 12 dB of adjustment centered at 45 Hz. If you plan to use The Epicenter Bass Restoration Processor, the included Epicenter Link is designed to connect with EPIC power and remote.
Installation & Compatibility Notes
Check your speaker and subwoofer impedances against the ratings above before choosing a wiring configuration. The amplifier supports 2-ohm loads and lists a 1-ohm rating for the subwoofer channel.

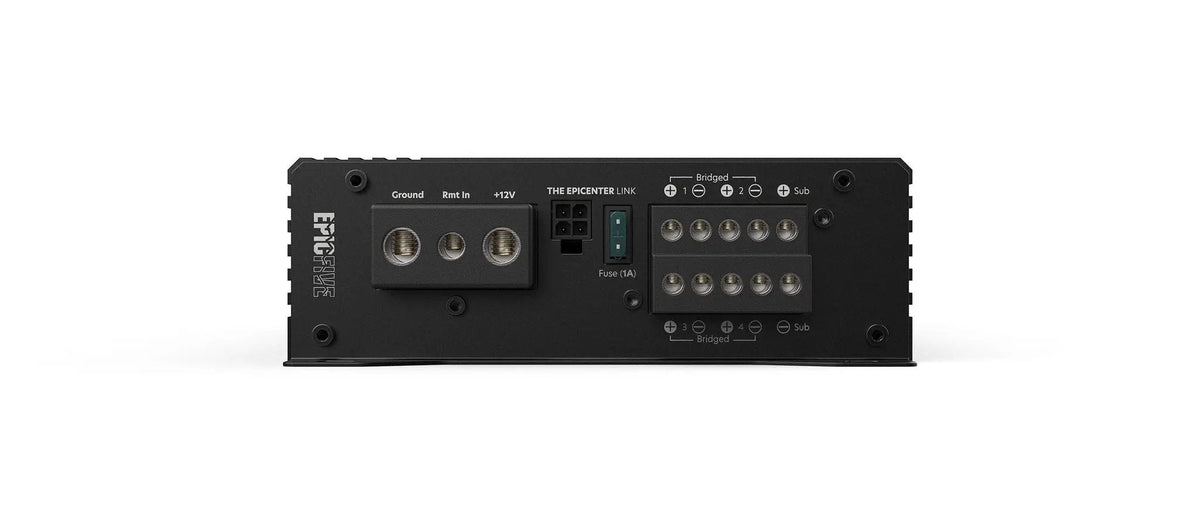

Allow for the EPICFIVE’s 6.1" W x 13.35" L x 2.01" H dimensions when planning its mounting location. Use the 4 AWG power and 8 AWG speaker terminals as part of your installation planning.
Frequently Asked Questions
What power does the EPICFIVE deliver at 4 ohms?
Its listed 4-ohm output is 4 x 75 Watts + 1 x 300 Watts.
What are the 2-ohm and 1-ohm power ratings?
At 2 ohms, the rating is 4 x 150 Watts + 1 x 500 Watts. The subwoofer channel is rated at 1 x 700 Watts at 1 ohm.
Can channels be bridged?
Yes. The listed bridged power is 2 x 300 Watts @ 4 ohms.
Does it include a bass control?
Yes. The box includes an ACR-E Remote Level Control and Cable for front-seat adjustment of low-end levels.
What comes in the box?
The package includes the EPICFIVE, wrench, screws, ACR-E Remote Level Control and Cable, a 1 meter Epicenter Link harness, manual, and warranty.
Explore More
Shop the AudioControl EPICFIVE at 12 Volt Outlet. Want to learn more about AudioControl? Explore our AudioControl brand profile.
