Audio Control EPICFOUR AudioControl EPIC Series 4-Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 100 W
- RMS per channel at 2 ohms: 200 W
- Frequency response (±1 dB): 10 Hz–22 kHz
- Line-level input range: 0.5–12 V RMS
- Power / ground wire gauge: 4 AWG
Audio Control EPICFOUR AudioControl EPIC Series 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Audio Control EPICFOUR AudioControl EPIC Series 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Fit powerful four-channel car audio into a tight installation space with the AudioControl EPICFOUR. This compact, high-current Class D amplifier delivers up to 200 watts per channel at 2 ohms, with crossover controls and bridged output options for flexible system planning.
Key Features & Benefits
- Four-channel power: Choose 100 watts per channel at 4 ohms or 200 watts per channel at 2 ohms for your speaker setup.
- Bridged output: Combine channels for 400 watts at 4 ohms to power a subwoofer or dedicated center channel.

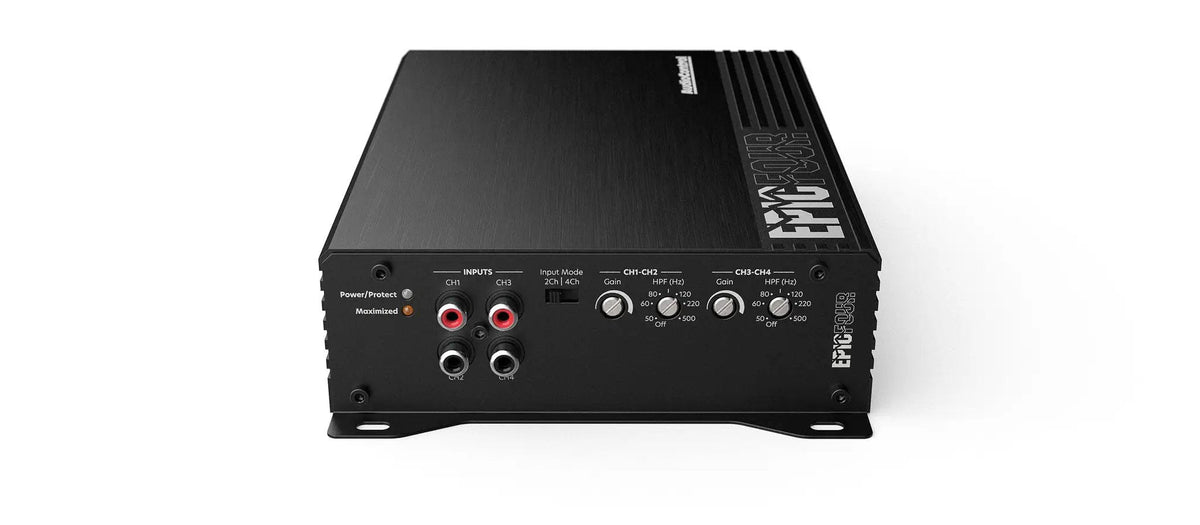

- Adjustable high-pass filters: Set 12 dB/octave Linkwitz-Riley filters from 50 Hz to 500 Hz, or switch them off.
- Compact Class D design: Its space-saving, thermally efficient design suits installations where room is limited.
- Protection circuitry: Smart auto-reset protection responds to over-current, over- and under-voltage, DC offset, and over-temperature events.
Technical Specifications
| Amplifier type | 4-channel Class D |
|---|---|
| Power output | 4 x 100 Watts @ 4 ohms |
| Power output | 4 x 200 Watts @ 2 ohms |
| Bridged power output | 2 x 400 Watts @ 4 ohms |
| Load stability | 2 Ω stable |
| High-pass filters | 12 dB/octave Linkwitz-Riley; 50 Hz–500 Hz, or Off |
| Signal-to-noise ratio | 91 dB+ (CEA standard) |
| Frequency response | 10 Hz–22 kHz |
| Line-level input sensitivity | 500 mV–6 V RMS |
| Power terminal | 4-gauge |
| Speaker terminals | 8-gauge, direct wire terminals with hex screws |
| Recommended fuse rating | 80 Amps |
| Dimensions | 6.1" W x 9.41" L x 2.01" H |
| Protection | Output over-current, input over-voltage, input under-voltage, output DC-offset, and over-temperature |
| In the box | EPICFOUR, wrench, screws, manual, and warranty |
Why Choose This Product?
The EPICFOUR gives you several ways to allocate its four channels: run front and rear speakers, or bridge channels for a 4-ohm subwoofer or center-channel application. Its selectable high-pass filters help tailor the signal for the connected system, while the compact chassis helps make use of limited installation space.
The listed frequency response is 10 Hz–22 kHz, and the CEA-standard signal-to-noise ratio is 91 dB+. Minimal idle draw helps reduce parasitic drain when the system is not playing.
Installation & Compatibility Notes

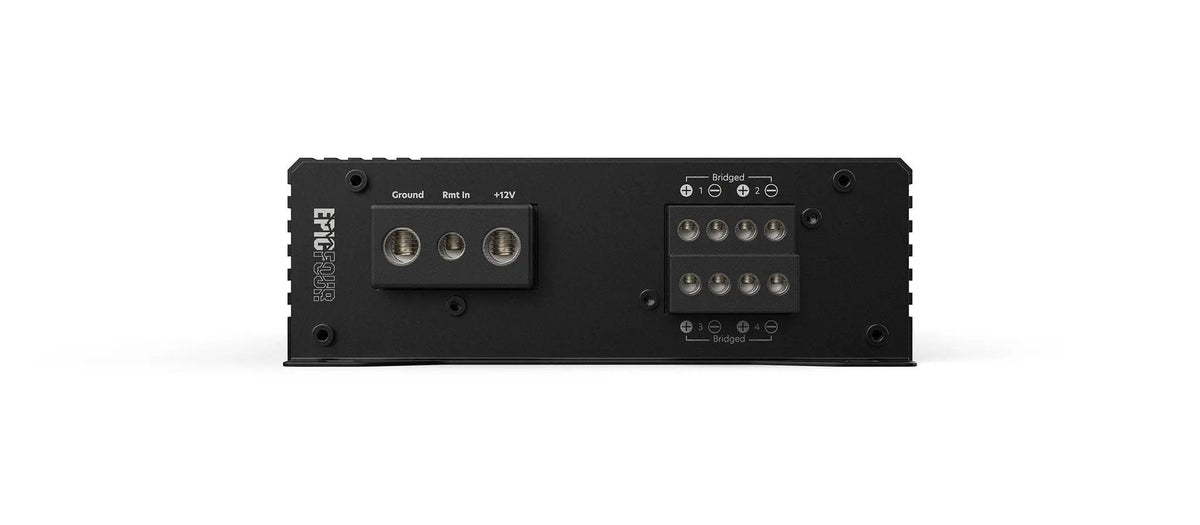

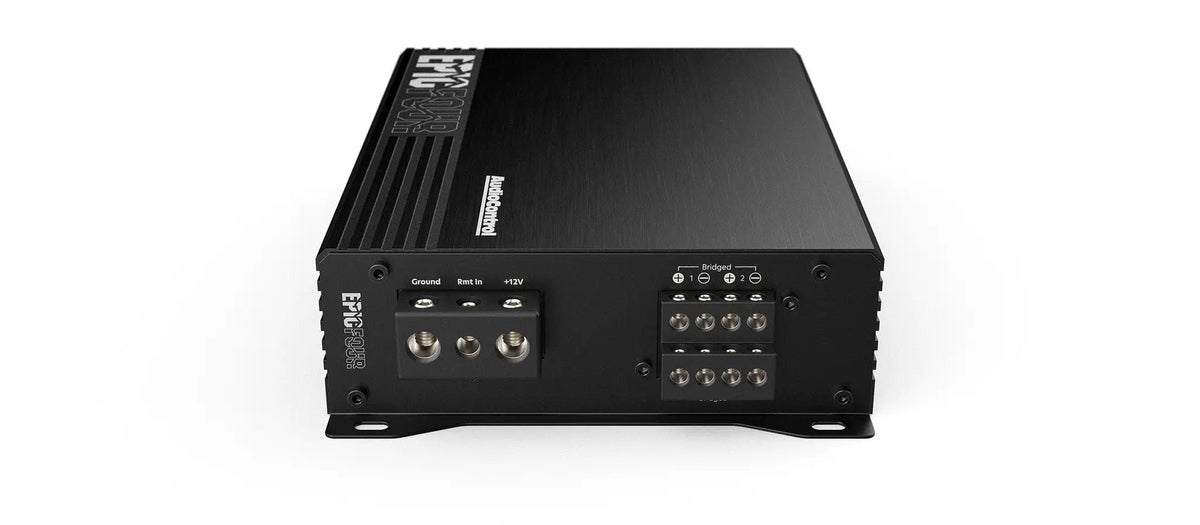

Allow space for the amplifier’s 6.1" W x 9.41" L x 2.01" H dimensions. The power terminal is 4-gauge and the speaker terminals are 8-gauge; the source lists an 80-amp recommended fuse rating. Mounting hardware is included. Check your system’s speaker impedance, wiring, and installation space before purchase.
Frequently Asked Questions
How much power does the EPICFOUR provide?
It delivers 4 x 100 watts at 4 ohms or 4 x 200 watts at 2 ohms. Bridged output is 2 x 400 watts at 4 ohms.
Can I bridge channels for a subwoofer?
Yes. The listed bridged rating is 400 watts at 4 ohms per bridged output. The product description identifies subwoofer and dedicated center-channel setups as possible uses.
What crossover adjustment does it offer?
Its 12 dB/octave Linkwitz-Riley high-pass filters adjust from 50 Hz to 500 Hz, with an Off setting.
What should I check before installation?
Check the amplifier’s dimensions against your available space, and confirm that your speakers and wiring match the intended load and connections.
What comes with the amplifier?
The box includes the EPICFOUR, a wrench, screws, a manual, and a warranty.
