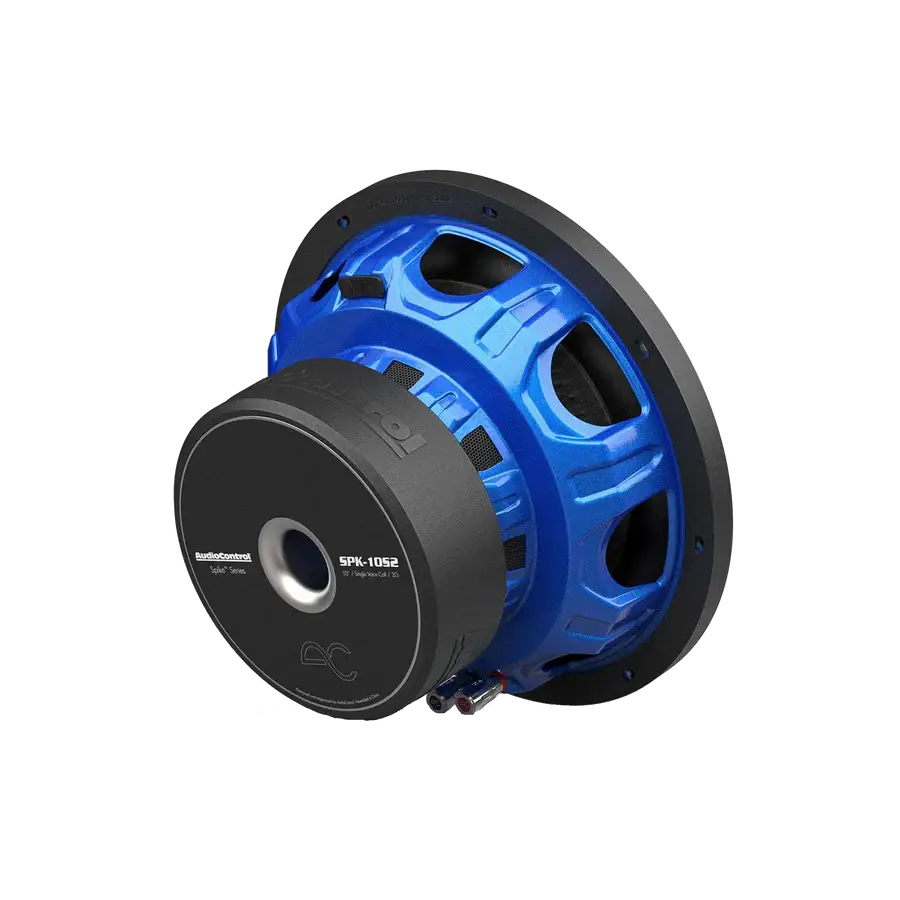

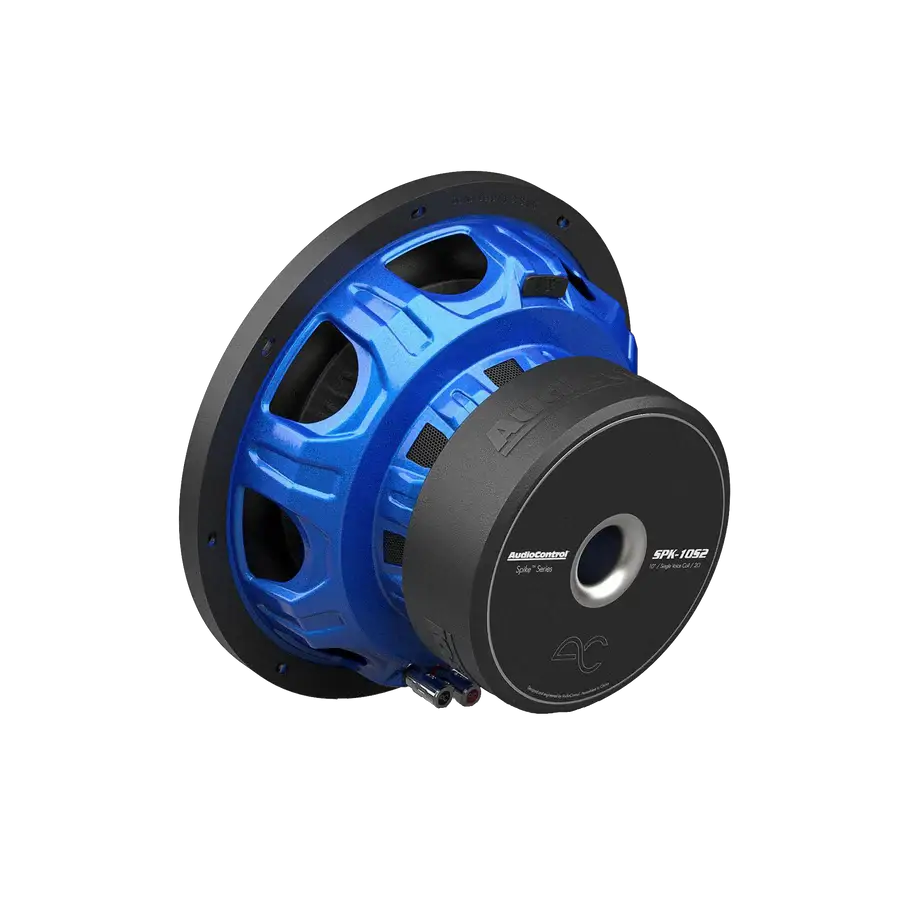

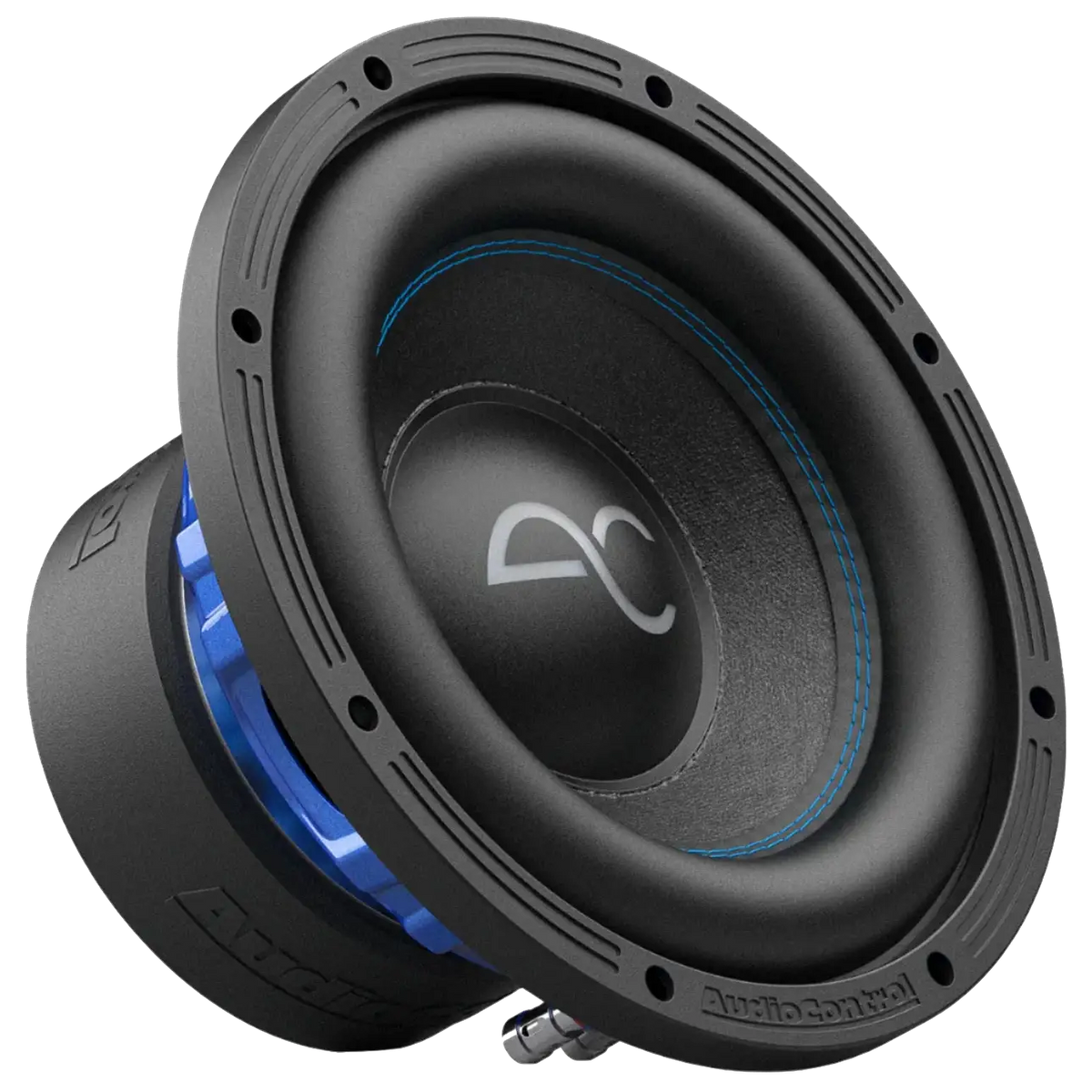

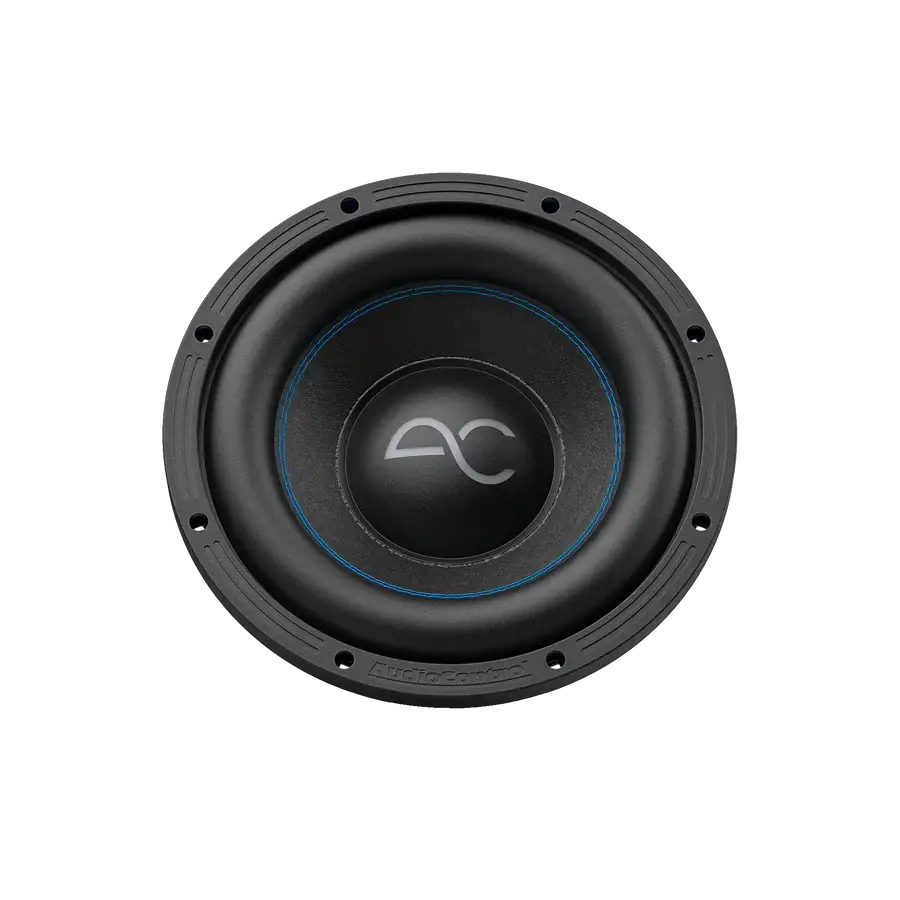

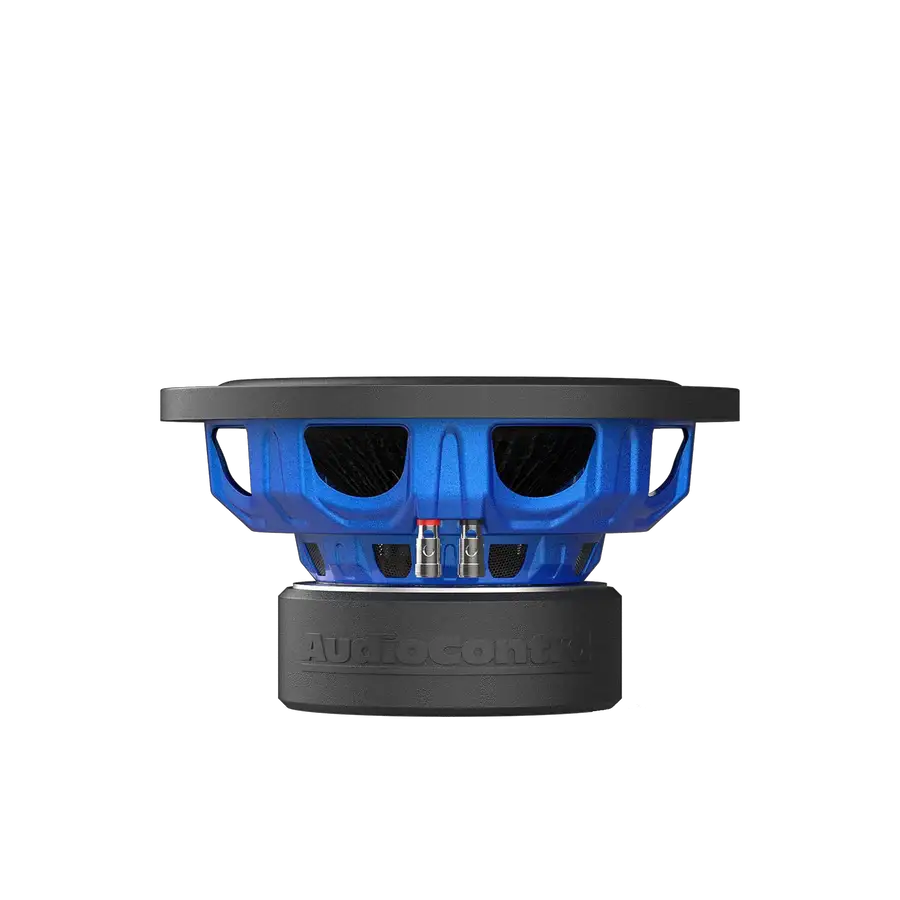

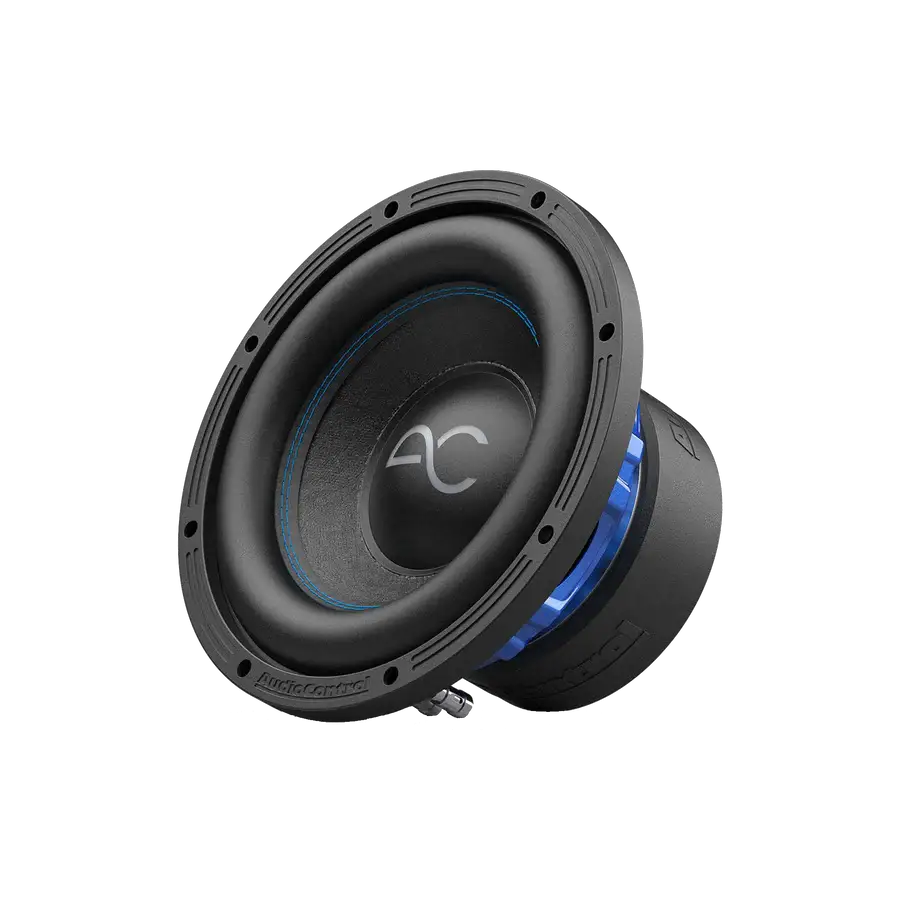

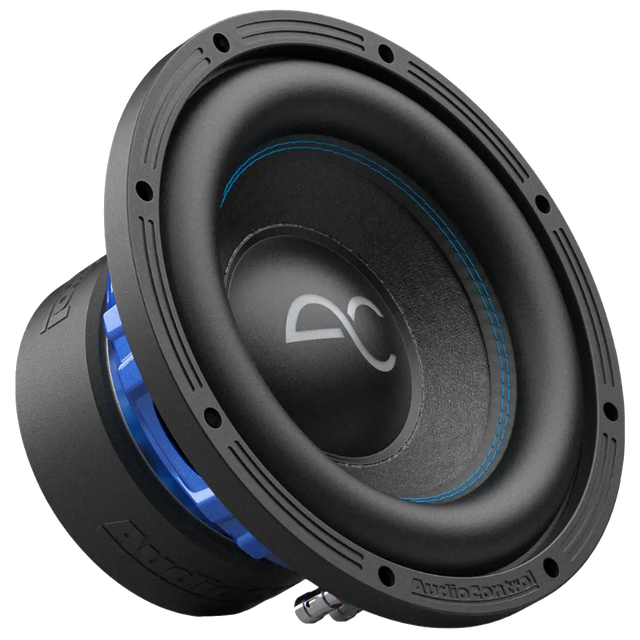

AudioControl Spike Series Spike Series 10" High-Performance Subwoofer, 500W RMS, 2/4 Ohms
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 500 W
- Voice-coil options: D2, D4
- Frequency response: 20–200 Hz
- Voice-coil diameter: 2.5 inches
- Mounting depth: 5.32 inches
AudioControl Spike Series Spike Series 10" High-Performance Subwoofer, 500W RMS, 2/4 Ohms - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
AudioControl Spike Series Spike Series 10" High-Performance Subwoofer, 500W RMS, 2/4 Ohms - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring low-frequency weight to your car audio system with the AudioControl SPK-10S Spike Series 10-inch subwoofer. Its high-excursion design, fiber matrix paper cone with mica coating, and dual damping system are built to deliver controlled bass at higher listening levels.
Key Features & Benefits
- High-excursion design: Long cone travel supports ultra-low bass response with control at high output.
- Three-layer high-temperature voice coil former: Designed to support power handling and durability during demanding use.
- Fiber matrix paper cone with mica coating: Combines stiffness and damping for accurate bass and reduced cone breakup.
- Dual damping system: Helps reduce distortion during dynamic musical passages.
- Dual dust cap system: Aids enclosure compression control for consistent bass performance across enclosures.
- Removable grille included: Gives you a protective screen option for trunk or cabin mounting.
Technical Specifications
| Model | SPK-10S2 or SPK-10S4 |
|---|---|
| Subwoofer size | 10" |
| Impedance | 2 or 4 Ohms |
| Power handling | 500W RMS / 700W Max |
| Frequency response | 20–200 Hz |
| Voice coil diameter | 2.5 in (63.5 mm) |
| Displacement | 0.0626 cu ft / 1.771 L |
| Voice coil former | 3-Layer High Temp Voice Coil Former |
| Design features | High Excursion Design; Dual Damping System; Dual Dust Cap System; Efficient Heavy-Duty Motor Design |
| Cone material | Fiber Matrix Paper Cone with Mica Coating |
| Included in the box | SPK-10S2 or SPK-10S4, Manual, Warranty, Removable Subwoofer Grille |
Ported enclosure option
| External dimensions | 24.00" W × 13.00" H × 11.25" D |
|---|---|
| Net internal volume | 1.01 ft3 |
| F3 | 37 Hz |
| Port area | 17.25 in2 |
| Port length | 28.50" |
Sealed enclosure option
| External dimensions | 20.00" W × 13.00" H × 11.00" D |
|---|---|
| Net internal volume | 1.11 ft3 |
| F3 | 45.96 Hz |
| Qtc | 0.705 |
Why Choose This Product?
The SPK-10S pairs a heavy-duty motor with its high-excursion, dual-damping design for a subwoofer intended to maintain control during demanding listening. Choose between the listed sealed and ported enclosure options to match your available space and bass goals.
Installation & Compatibility Notes
Check the subwoofer’s impedance version against your amplifier and planned system configuration. Before choosing an enclosure, compare its listed external dimensions with your available trunk or cabin space and consider the different ported and sealed specifications.
Frequently Asked Questions
What impedance versions are available?
The product details list SPK-10S2 and SPK-10S4, with impedance options of 2 or 4 Ohms. Select the version that matches your system design.
What are the power-handling ratings?
The SPK-10S is rated at 500W RMS / 700W Max.
Which enclosure options are listed?
Both ported and sealed enclosure options are provided, with separate dimensions and specifications shown above.
What comes in the box?
The listed contents are the SPK-10S2 or SPK-10S4, a manual, a warranty, and a removable subwoofer grille.
