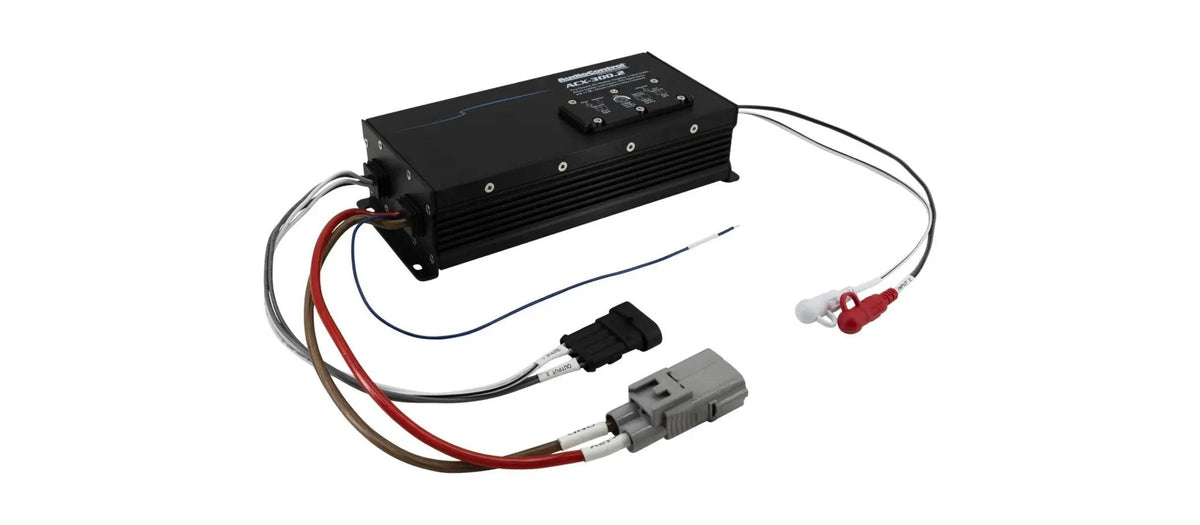

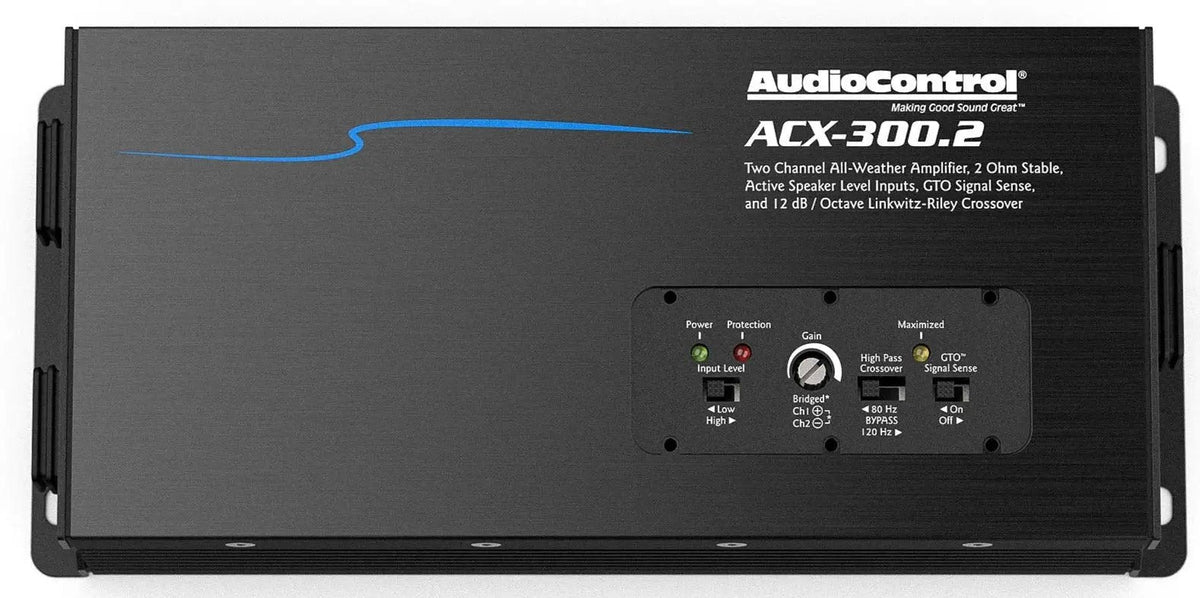

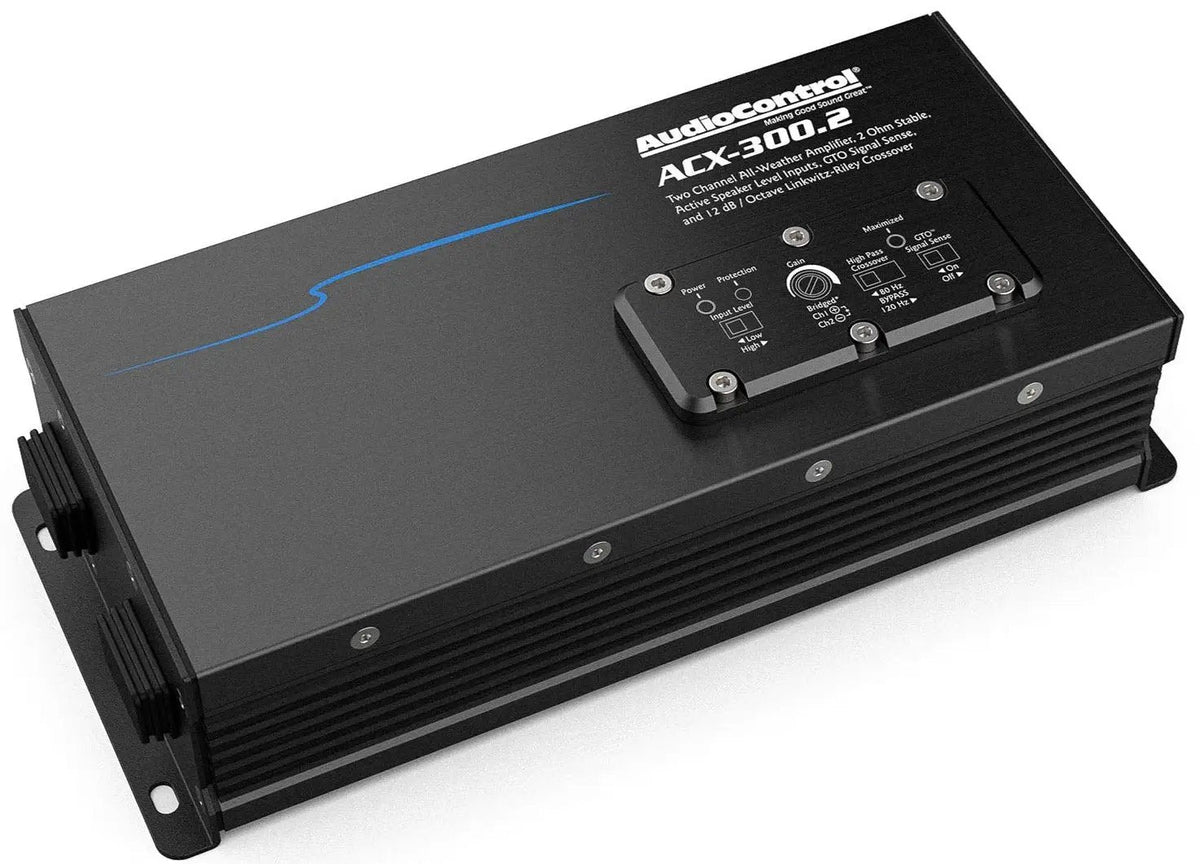

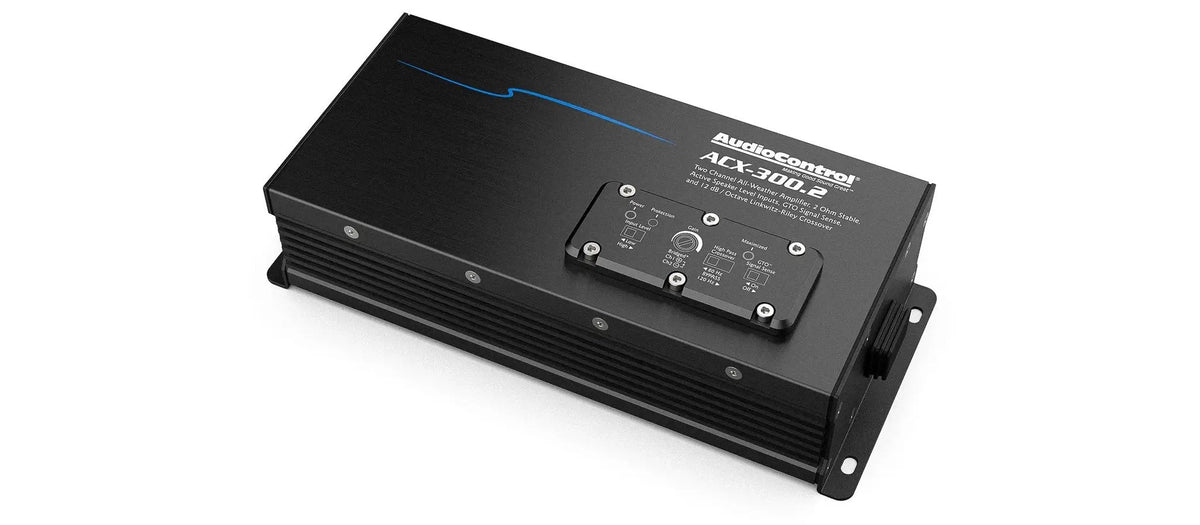

AudioControl ACX-300.2 2-Channel Amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 75 W
- RMS per channel at 2 ohms: 150 W
- Frequency response: 26 Hz–22 kHz
- Low-level input range: 0.5–6 V RMS
- Water resistance: IPX6 rated
AudioControl ACX-300.2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
AudioControl ACX-300.2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add amplified sound to a boat, UTV, motorcycle, or other open-air system with the AudioControl ACX-300.2 2-channel amplifier. Its IPX6-rated enclosure is designed for water spray, while flexible power options let you run two channels or a bridged load.
Preamp- and speaker-level inputs support different source types, and the built-in crossover gives you options for shaping the signal to your system.
Key Features & Benefits
- Flexible channel setup: Use two channels or bridge the amplifier for a single load.
- Outdoor-ready enclosure: The IPX6 rating is designed to resist water spray in open-air installations.
- Two input types: Preamp- and speaker-level inputs support different installation paths.
- Selectable crossover: Choose 80 Hz, 120 Hz, or bypass to suit your system setup.
- Installer-friendly wiring: Heavy-gauge quick-connect wiring simplifies connections.
Technical Specifications
| Product | AudioControl ACX-300.2 2-Channel Amplifier |
|---|---|
| Power output | 2 x 75 W @ 4 Ω / 2 x 150 W @ 2 Ω / 1 x 300 W bridged |
| Enclosure rating | IPX6 |
| Signal sensing | GTO Signal Sense |
| Inputs | Preamp/Speaker Level Inputs |
| Low-level input voltage | 500 mV – 6 Vrms |
| High-level input voltage | 1 Vrms – 12 Vrms |
| Crossover | Linkwitz-Riley, 12 dB/octave; 80 Hz and 120 Hz options; bypass |
| Frequency response | 26 Hz – 22 kHz |
| SNR | 102 dBA (ref 50 W @ 4 Ω) |
| THD+N | < 0.05% |
| Dimensions | 8.89" W x 3.86" D x 2.36" H |
| Weight | 3.15 lb |
| Fuse | 30A |
| Wiring | Heavy-gauge quick-connect wiring |
| Warranty | Bulletproof 5 year warranty when installed by an authorized AudioControl dealer |
| In the box | ACX-300.2, Manual, Warranty |
Why Choose This Product?
The ACX-300.2 gives you a choice between two-channel operation and a bridged configuration, so you can plan the amplifier around the system’s load and layout. Its IPX6-rated enclosure and water-spray resistance suit the open-air applications listed for this model.
GTO Signal Sense supports operation aligned with the source signal. The stated SNR and THD+N figures describe its noise and distortion performance.
Installation & Compatibility Notes
Before installation, check that your mounting space accommodates the 8.89" W x 3.86" D x 2.36" H chassis. Confirm that the connected load and source output match the amplifier’s stated power and input ranges.
The inputs accept preamp- or speaker-level signals. The source material lists a 30A fuse; confirm the installation requirements for your system before connecting power.
Frequently Asked Questions
What power does the ACX-300.2 provide?
It is rated at 2 x 75 W @ 4 Ω, 2 x 150 W @ 2 Ω, or 1 x 300 W bridged.
Can I use it with a preamp-level or speaker-level source?
Yes. It has preamp- and speaker-level inputs, with stated input voltage ranges of 500 mV – 6 Vrms for low-level and 1 Vrms – 12 Vrms for high-level.
What crossover settings are available?
The Linkwitz-Riley crossover offers 80 Hz and 120 Hz settings, plus bypass. Its slope is 12 dB/octave.
Is this amplifier intended for open-air installations?
It is described for boats, UTVs, motorcycles, and other open-air installations. Its enclosure is IPX6 rated and designed to resist water spray.
What comes in the box?
The listed contents are the ACX-300.2, a manual, and warranty documentation.
