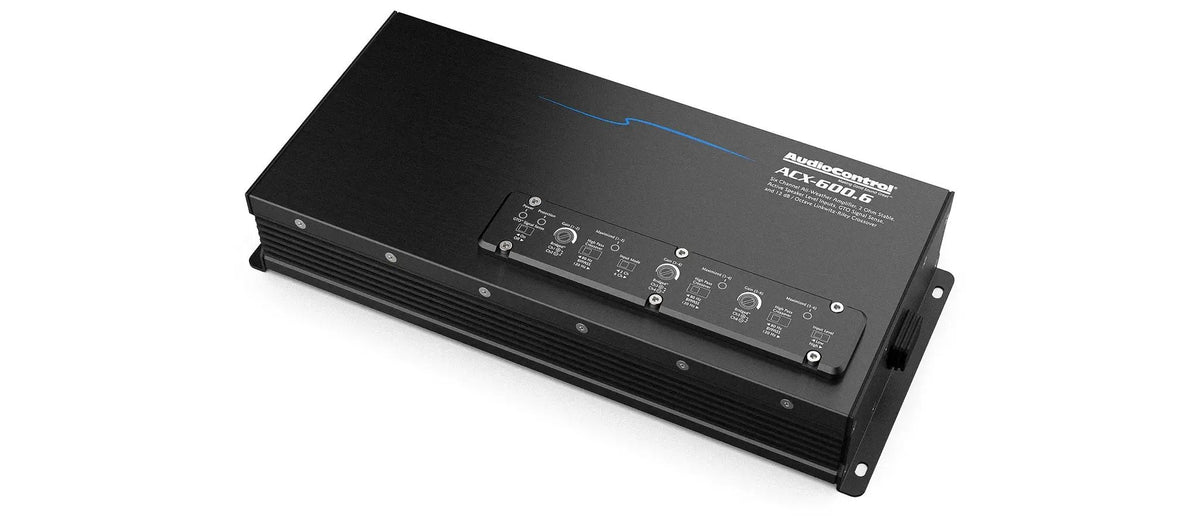

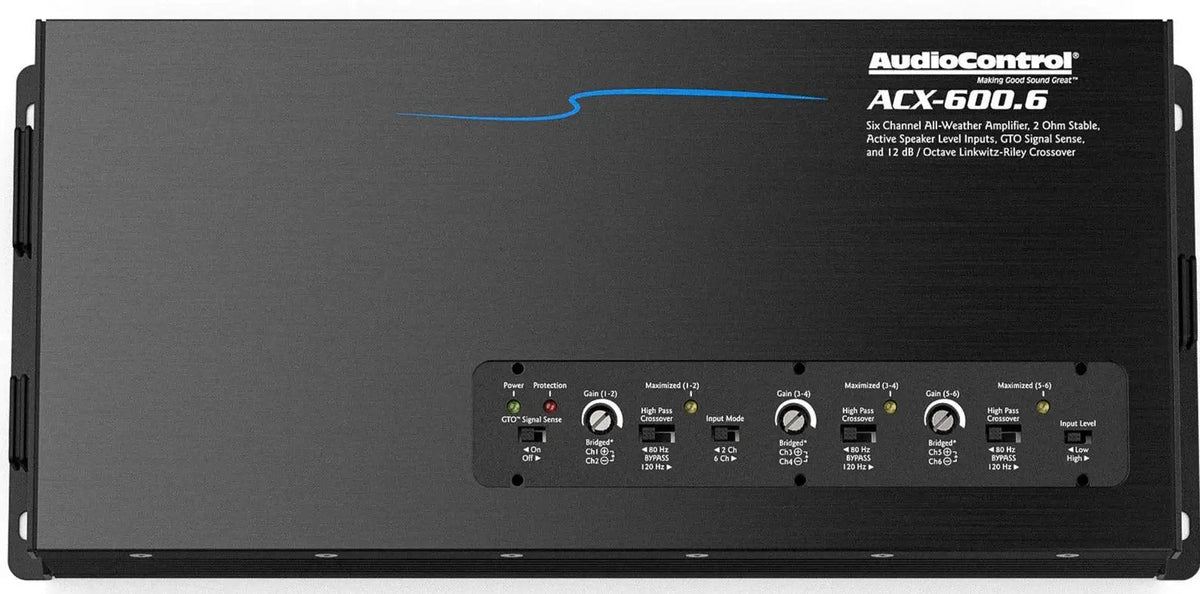

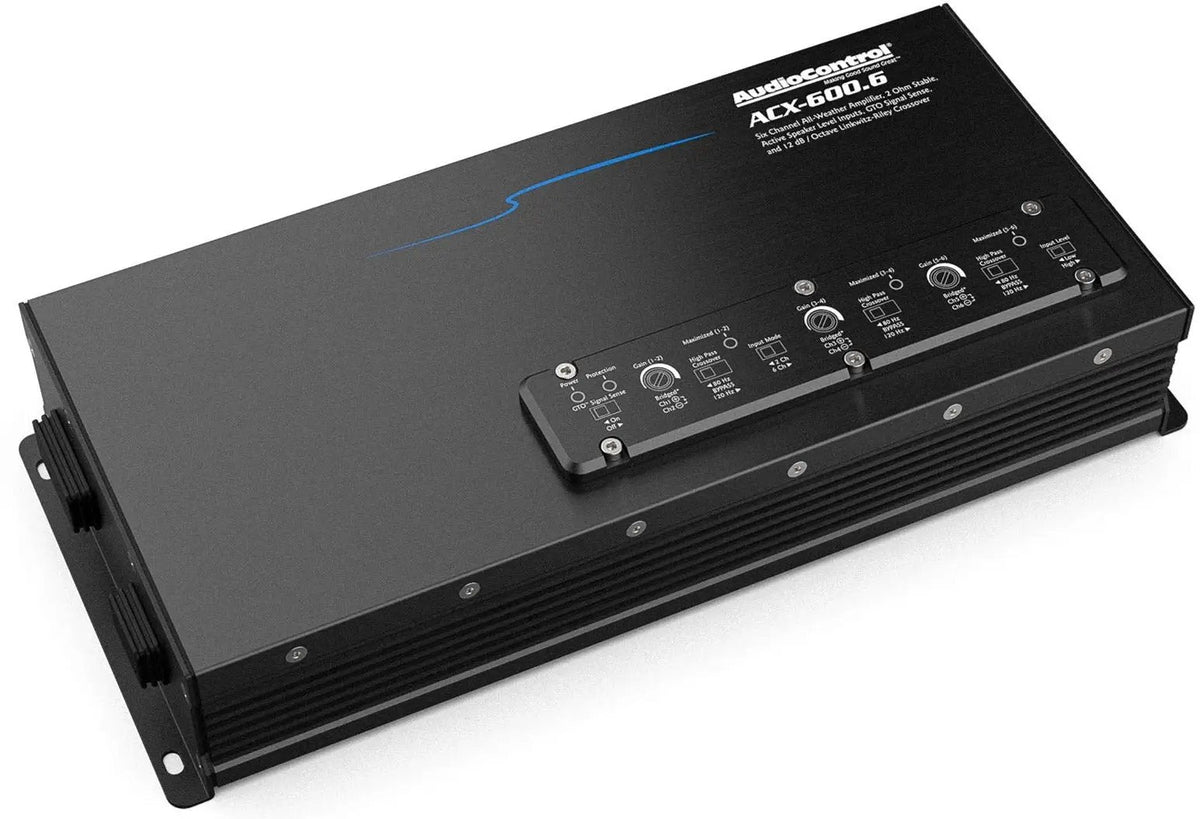

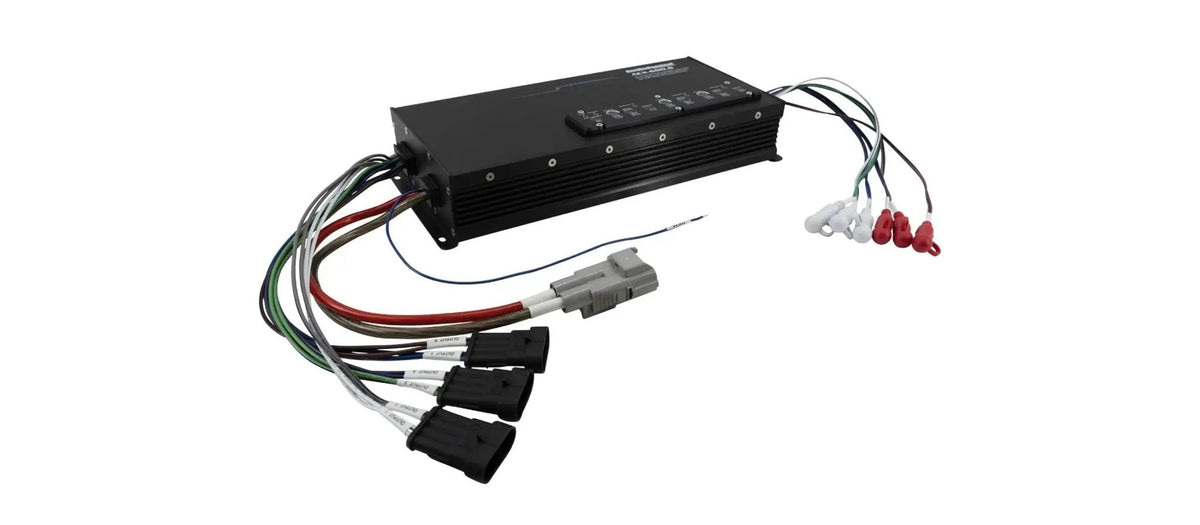

AudioControl ACX-600.6 6-Channel Amplifier
Key features
- Amplifier channels: 6
- RMS per channel at 4 ohms: 50 W
- RMS per channel at 2 ohms: 100 W
- Frequency response: 26 Hz–22 kHz
- Low-level input range: 0.5–6 V RMS
- Water resistance: IPX6 rated
AudioControl ACX-600.6 6-Channel Amplifier is backordered and will ship as soon as it is back in stock.
AudioControl ACX-600.6 6-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
The AudioControl ACX-600.6 is an all-weather six-channel amplifier for systems that need several speaker channels from one compact chassis. It accepts speaker-level or line-level signals and uses GTO signal sensing for automatic turn-on with a suitable speaker-level source.
Power and setup options
- 50 watts RMS per channel at 4 ohms or 100 watts RMS per channel at 2 ohms, measured at 14.4 volts.
- Three bridged channels rated at 200 watts RMS each into 4 ohms.
- Selectable 80 Hz or 120 Hz high-pass crossovers, plus bypass, with 12 dB-per-octave Linkwitz-Riley filtering.
- Six RCA inputs with selectable high- or low-level operation.
Install for the environment
The IPX6-rated design still needs secure mounting, ventilation and properly protected wiring. Reseal the control cover after adjustment. Keep speaker loads at or above 2 ohms per channel, or 4 ohms when bridged, and follow the supplied manual for wiring and circuit protection.
