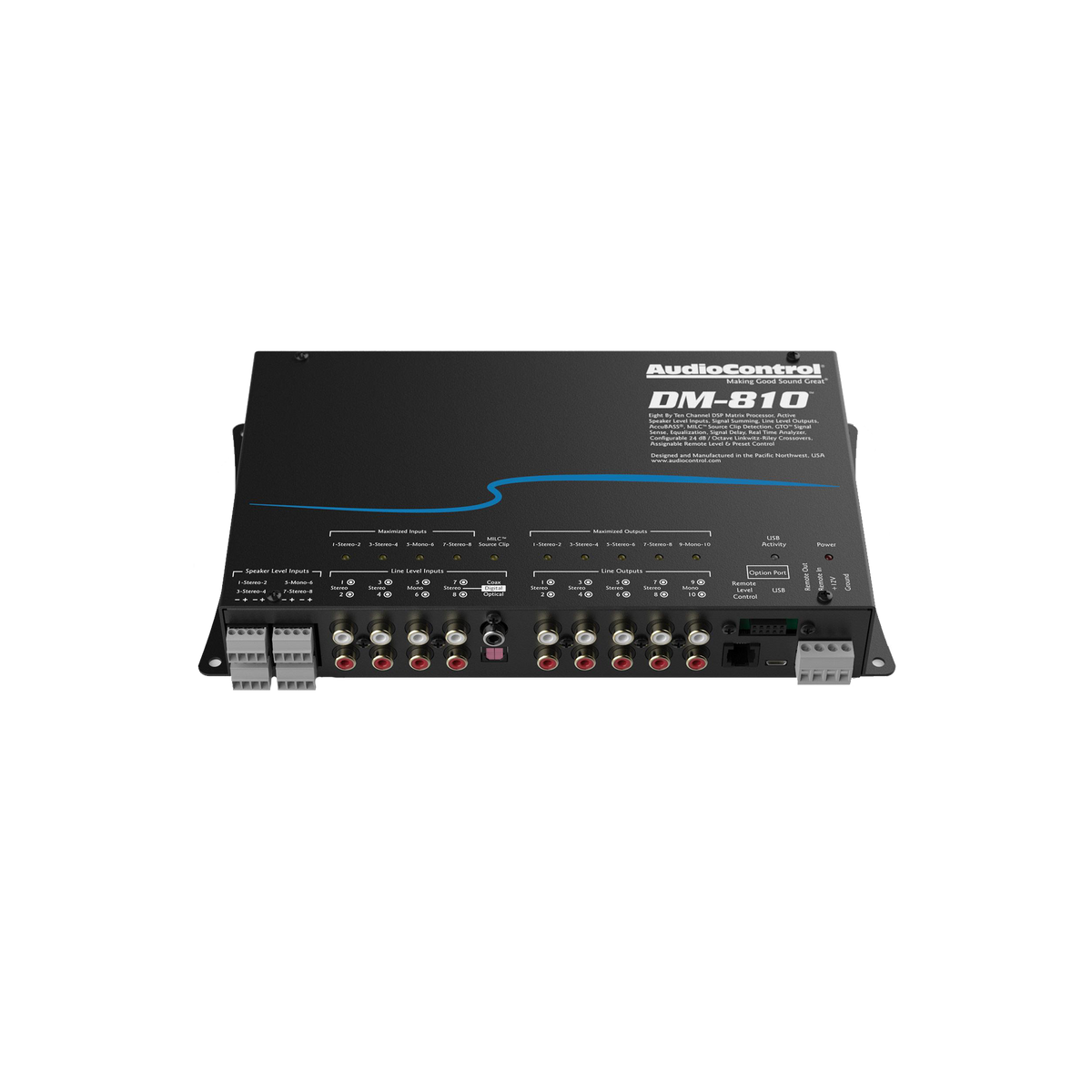

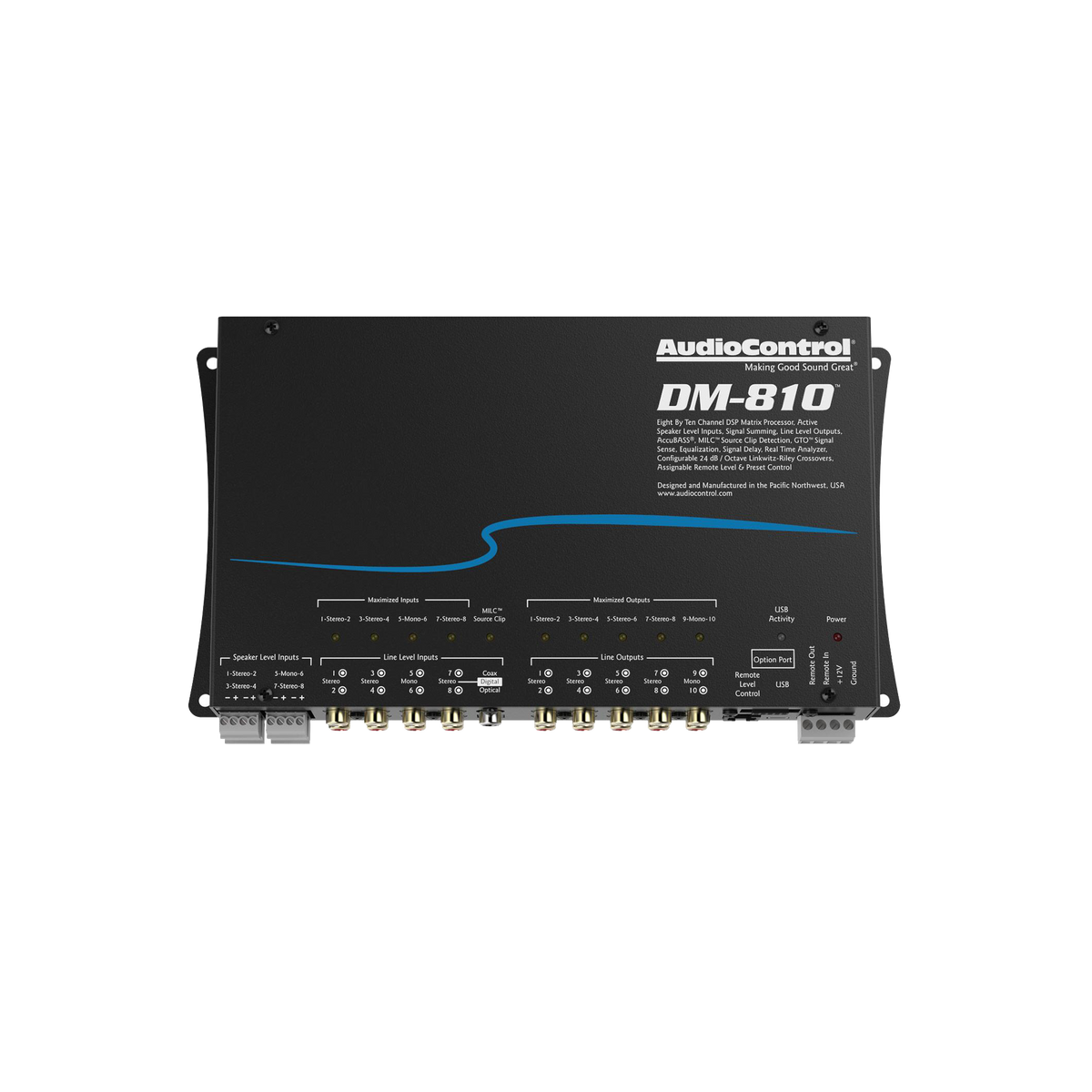

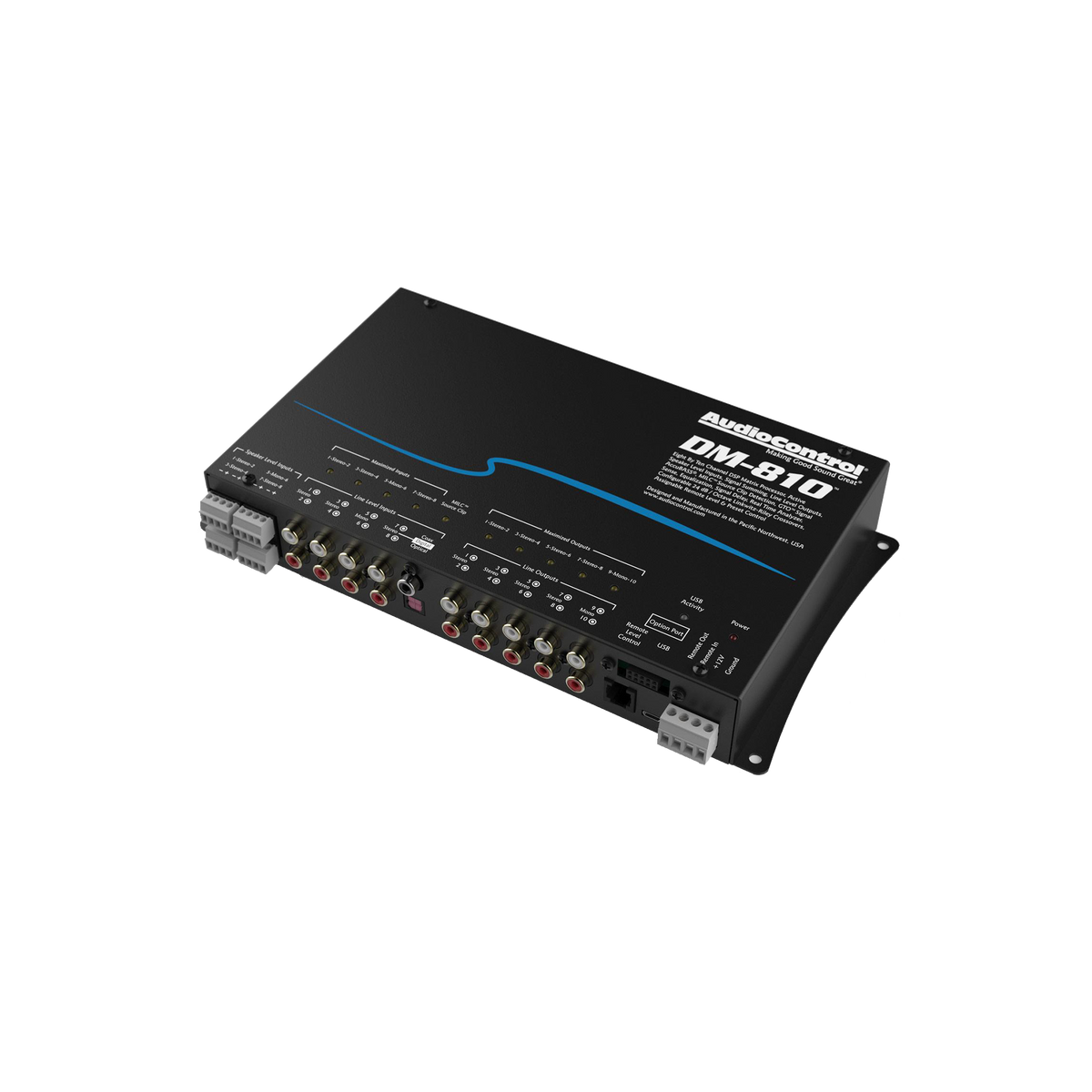

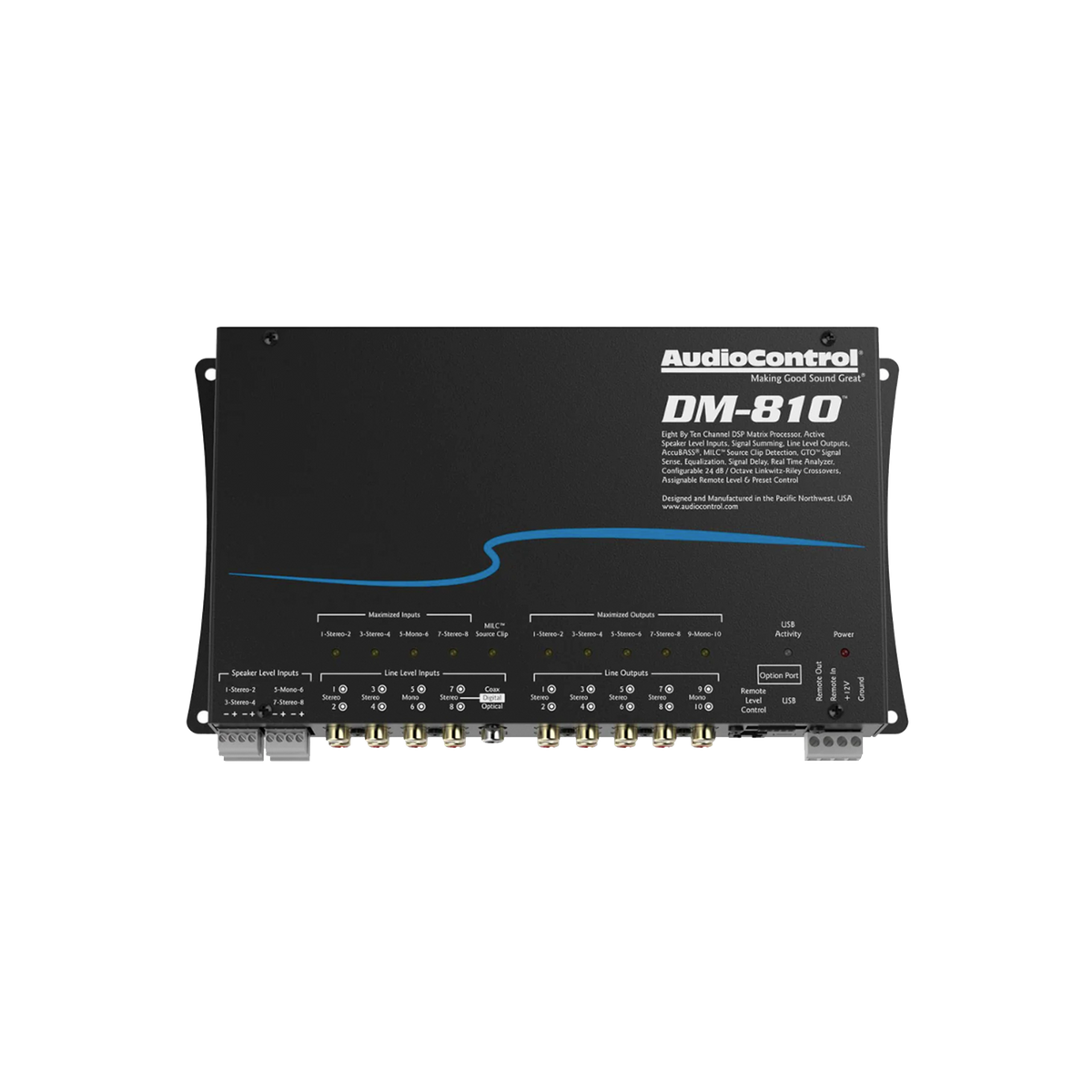

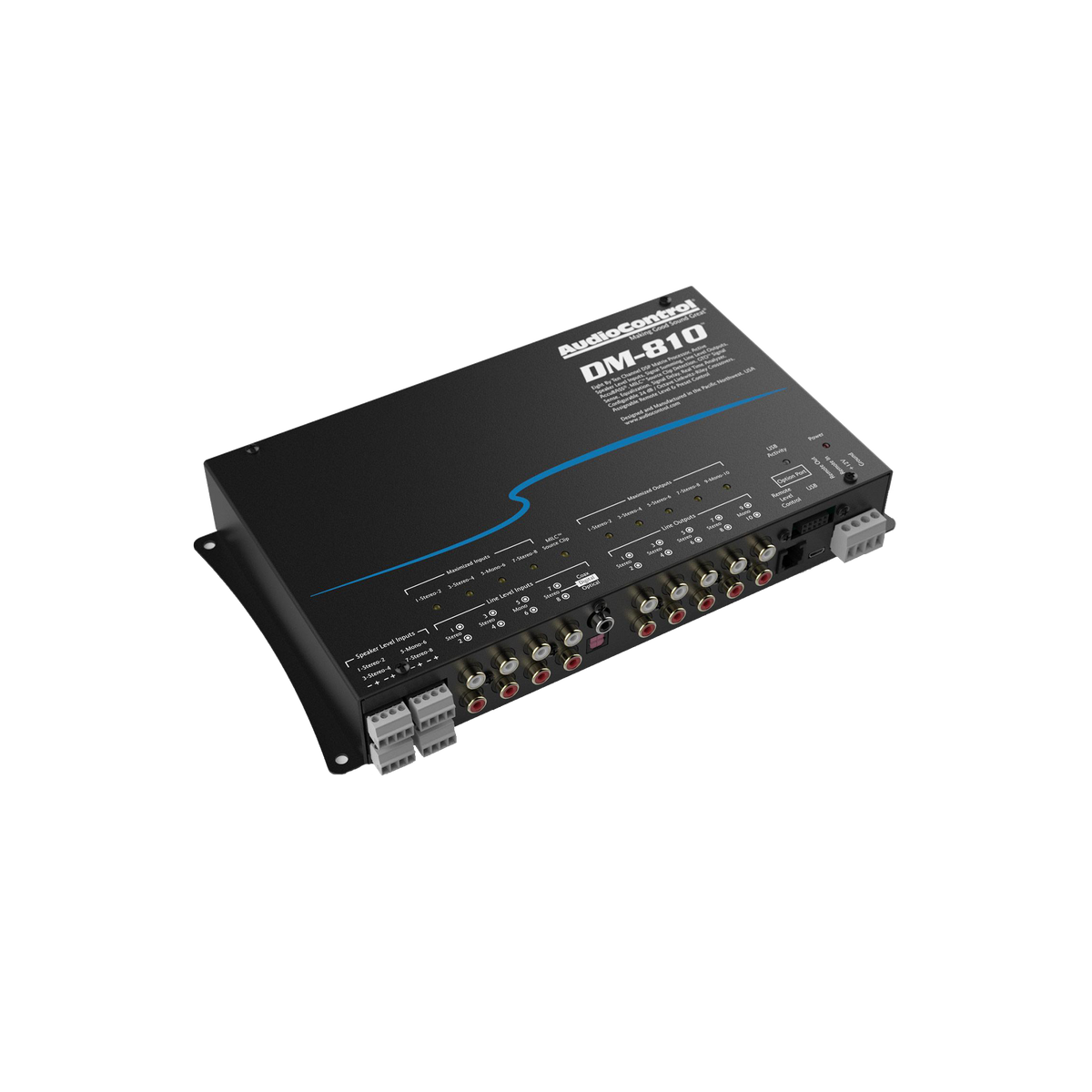

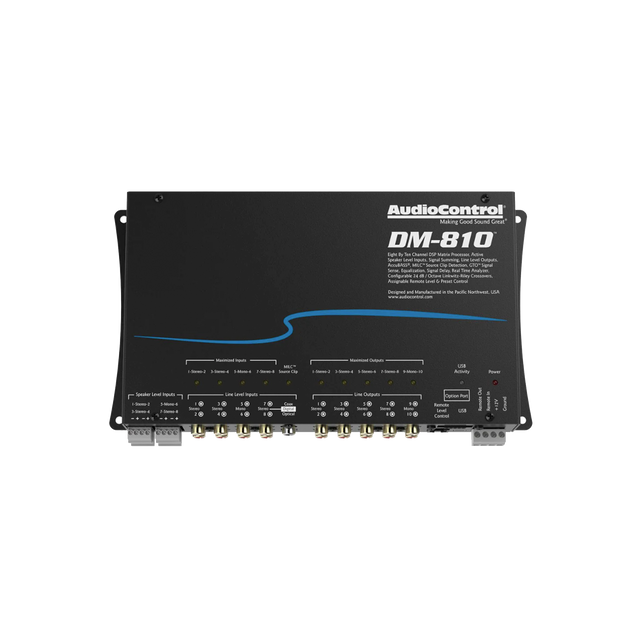

AudioControl DM-810 8x10 Channel DSP Matrix Processor
AudioControl DM-810 8x10 Channel DSP Matrix Processor is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
AudioControl DM-810 8x10 Channel DSP Matrix Processor
AudioControl DM-810 8x10 Channel DSP Matrix Processor is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Tune factory or aftermarket audio systems with the AudioControl DM-810 digital signal processor. Its matrix routing combines eight preamp input channels with ten preamp outputs, plus speaker-level and digital connectivity.
- Optical Toslink and coaxial digital inputs
- 30-band equalization, signal summing, delay, phase and polarity adjustment
- 12/24 dB-per-octave Linkwitz-Riley crossovers
- Input/output real-time analysis, AccuBASS, GTO signal sensing and MILC clipping detection
- DM Smart DSP software for system configuration
- Optional ACR-3 remote and AC-BT24 Bluetooth module sold separately
Technical specifications
- Maximum output: 10 Vrms; output impedance: 150 ohms
- Frequency response: 20 Hz–24 kHz; THD: 0.01%
- Preamp/speaker input impedance: 20 kΩ / 7 kΩ
- Current draw: 1 A; recommended fuse: 3 A
- 12 VDC remote input and output
