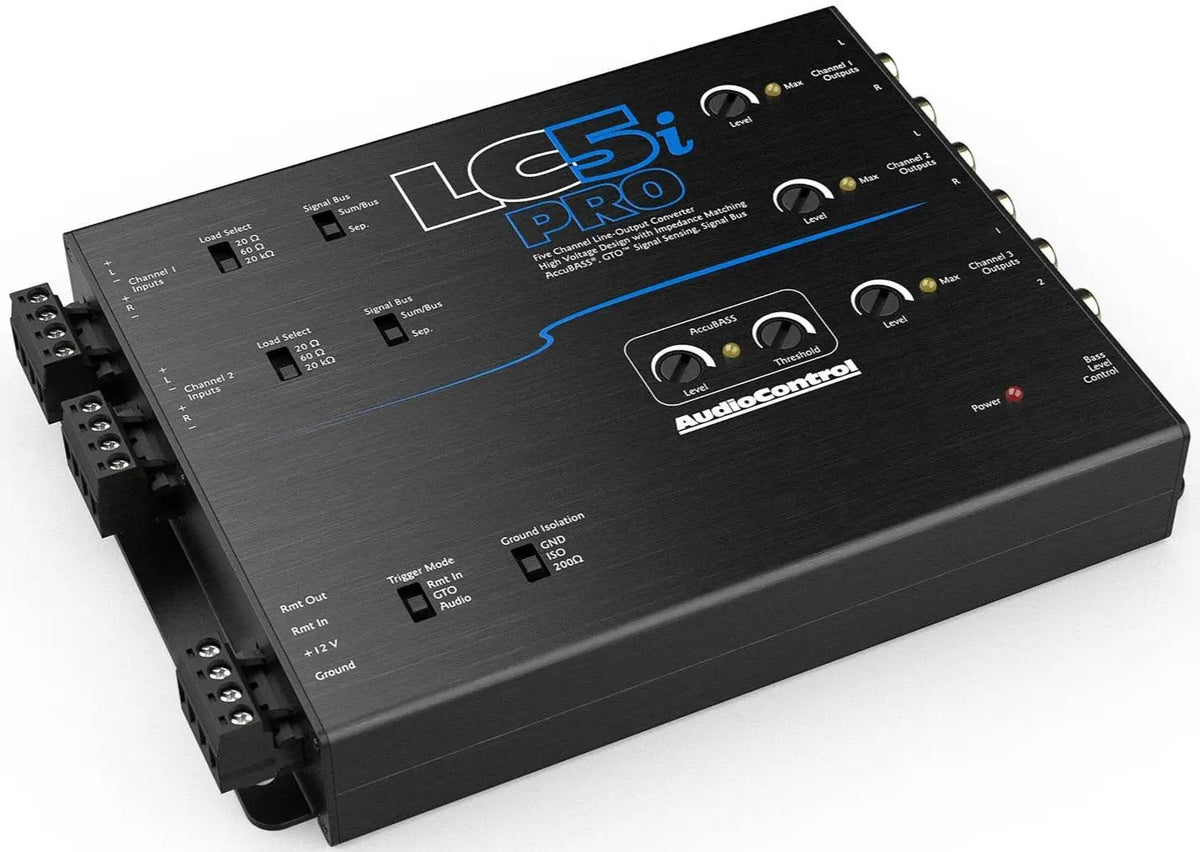

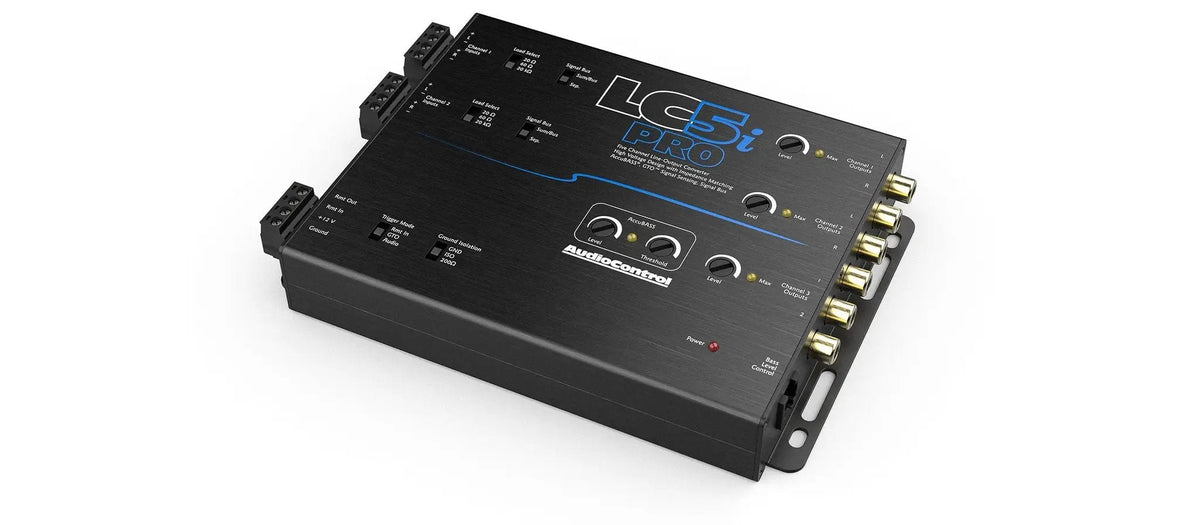

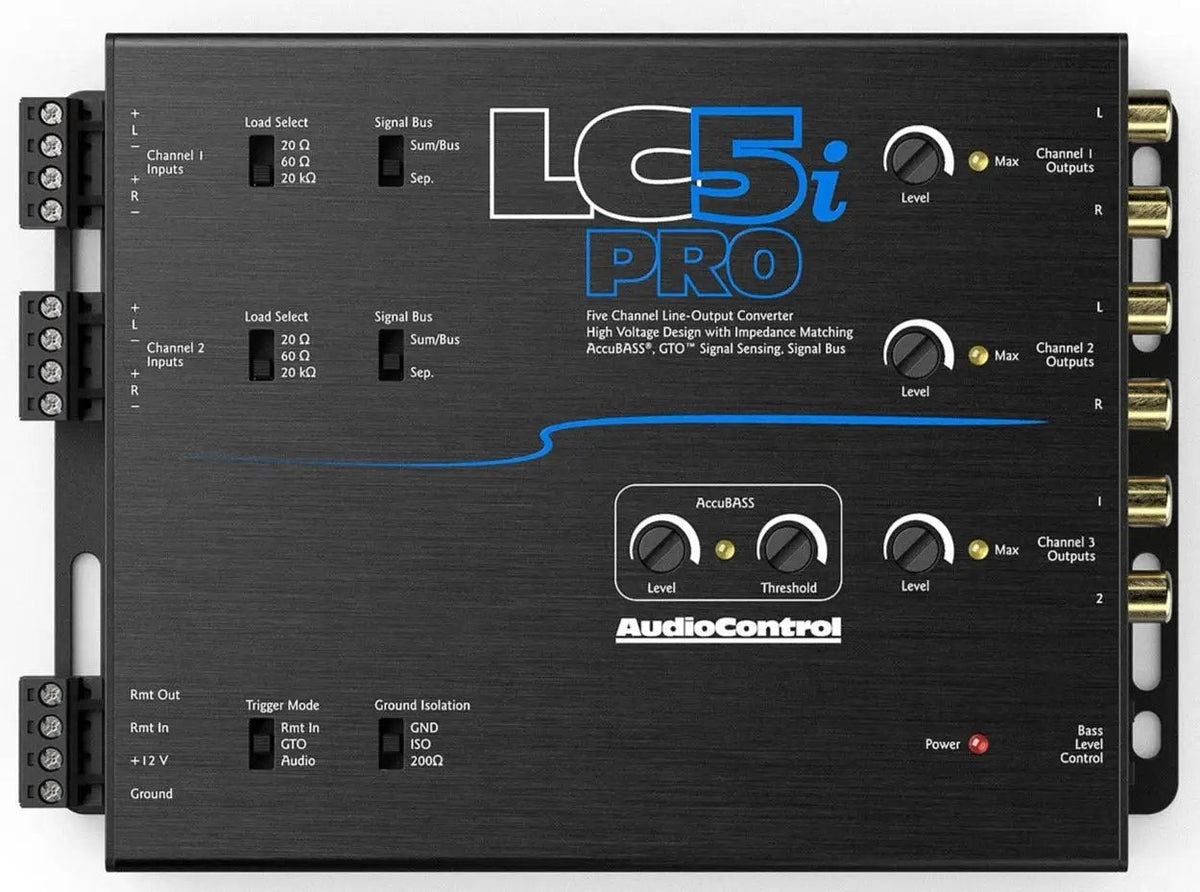

AudioControl LC5i-PRO 5-Channel Line Output Converter w/ AccuBass
Key features
- Speaker-level inputs: 4 channels
- Maximum speaker input: 40 V RMS at the 20 kΩ setting
- Selectable input load: 20 Ω, 60 Ω or 20 kΩ
- Maximum output: 9.5 V RMS
- Turn-on modes: Remote input, GTO signal sense or audio sense
- Included dash remote: ACR-1
AudioControl LC5i-PRO 5-Channel Line Output Converter w/ AccuBass is backordered and will ship as soon as it is back in stock.
AudioControl LC5i-PRO 5-Channel Line Output Converter w/ AccuBass is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep your factory head unit while adding a tunable signal path for aftermarket audio with the AudioControl LC5i-PRO 5-channel line output converter. It combines four speaker-level inputs, five preamp outputs, and built-in AccuBASS® processing to help restore bass that factory processing may reduce.
Use the included ACR-1 remote to adjust subwoofer level from the driver’s seat. Flexible turn-on options and load selection help you configure the converter for your audio system.
Key Features & Benefits
- AccuBASS® processing: Helps restore reduced bass without overdriving the rest of the system.

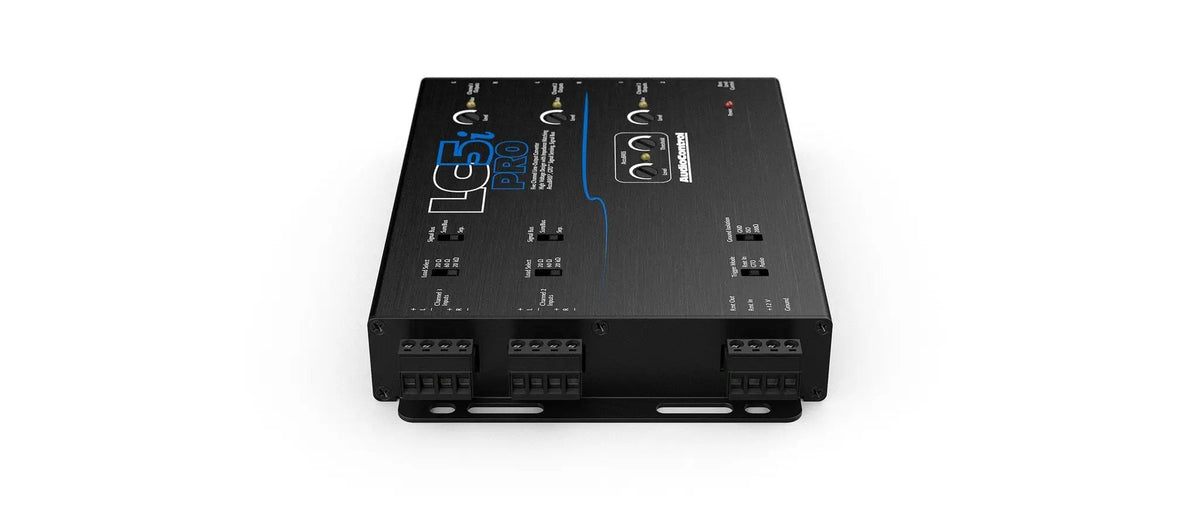

- Four speaker-level inputs: Accepts factory speaker-level signals up to 40 Vrms.

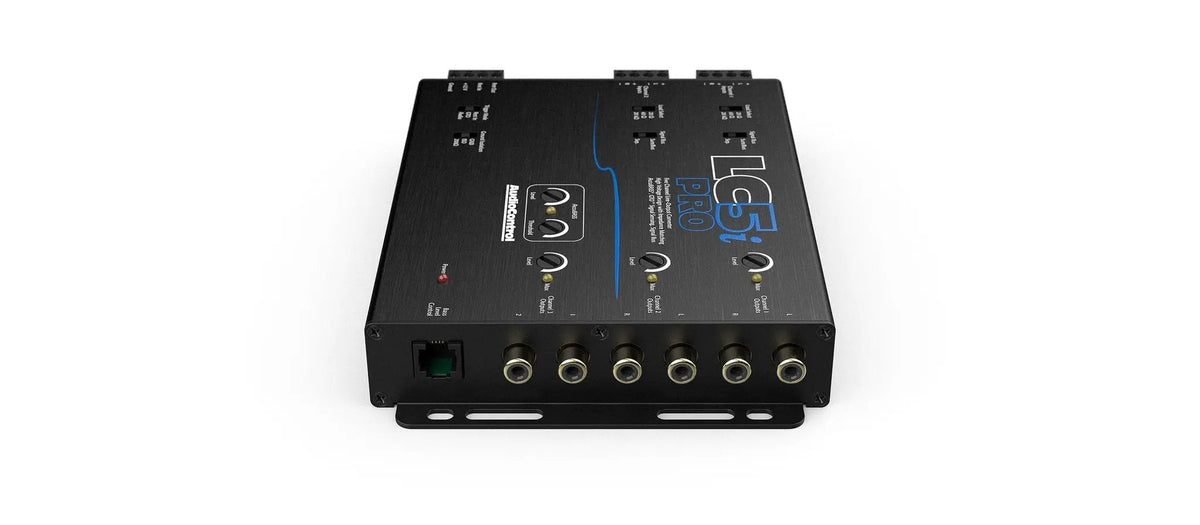

- Five preamp outputs: Four main outputs and one dedicated bass output support signal routing to multiple amplifiers or processors.
- Individual output controls: Fixed and variable outputs with discrete-level controls allow channel-by-channel level matching.
- Flexible turn-on options: Choose GTO™ signal sensing, audio sensing, or a 12V remote input for your installation.
- ACR-1 remote included: Adjust subwoofer level from the driver’s seat.
Technical Specifications
| Product type | 5-channel line output converter |
|---|---|
| Speaker-level inputs | Four active channels; up to 40 Vrms input handling |
| Preamp outputs | Five total: four main outputs and one dedicated bass output |
| AccuBASS® | Built-in bass restoration processing |
| Output level | Maximum 9.5 Vrms (13 V peak) |
| Output gain | ±15 dB |
| Output impedance | 150 Ω |
| THD | 0.01% |
| SNR | >124 dB |
| Frequency response | 20 Hz–20 kHz |
| Turn-on options | GTO™ signal sensing, audio sensing, or 12V remote input |
| Remote output | 12V DC; active whenever the unit is on |
| Load selection | Load Selection Switch |
| Ground isolation | Ground Isolation Switch |
| Dimensions | 7" L × 5.1" D × 1.14" H |
| Weight | 1.1 lbs. |

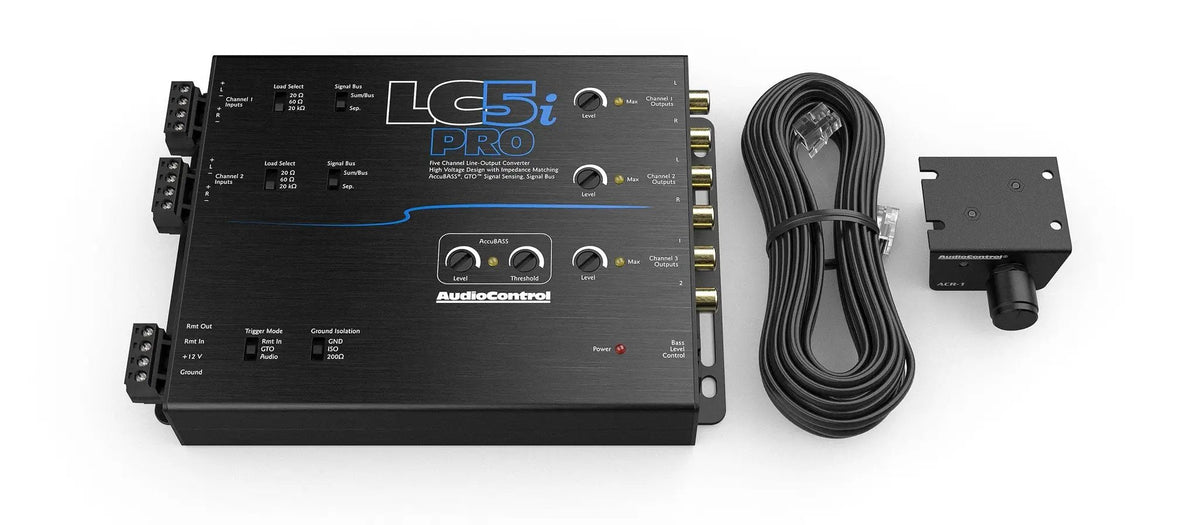

| Included | LC5i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty downloads |
Why Choose This Product?
The LC5i-PRO is designed for systems that retain or enhance an OEM head unit. Its four input channels and five outputs provide distinct routing options, while AccuBASS® addresses bass reduction from factory processing.
The LMC Load Matching Circuit and Load Selection Switch support load matching in the signal chain. Fixed and variable outputs, plus discrete-level controls, give you options for tuning output levels to your system.
Installation & Compatibility Notes
Plan your installation around four speaker-level input channels and the converter’s five preamp outputs. Check the available mounting space against the unit’s 7" L × 5.1" D × 1.14" H dimensions.
Select a turn-on method that suits your vehicle wiring: GTO™ signal sensing, audio sensing, or a standard 12V remote input. The unit’s 12V DC remote output is active whenever it is on.
Frequently Asked Questions
How many input and output channels does the LC5i-PRO have?
It has four active speaker-level input channels and five preamp outputs: four main outputs and one dedicated bass output.
What does AccuBASS® do?
It helps restore bass that factory processing may roll off, without overdriving the rest of the system.
Can I adjust subwoofer level from the driver’s seat?
Yes. The included ACR-1 remote provides driver-seat subwoofer level adjustment.
What turn-on methods are available?
You can use GTO™ signal sensing, audio sensing, or a standard remote input.
What mounting space should I allow?
The converter measures 7" L × 5.1" D × 1.14" H. Check your intended mounting location against these dimensions.
What is included in the box?
The listed contents are the LC5i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, and Warranty downloads.
