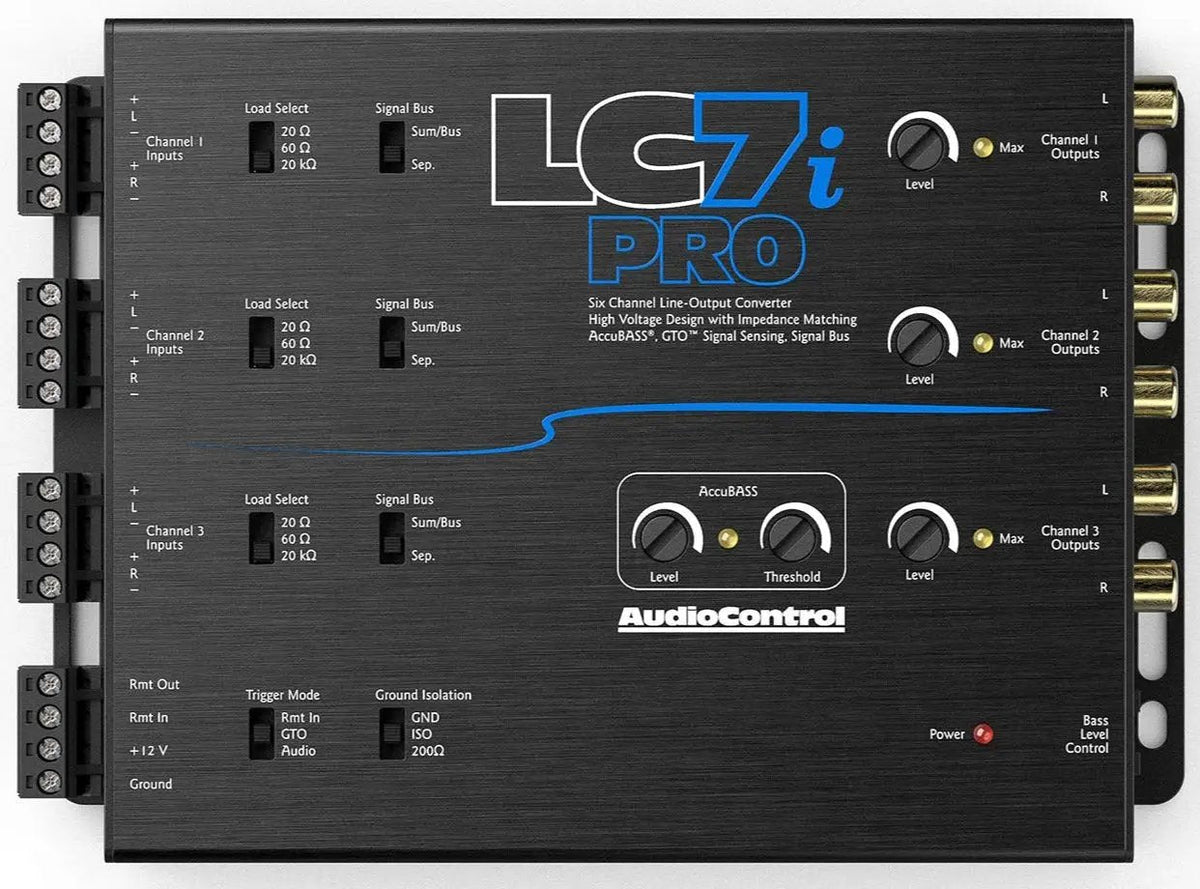

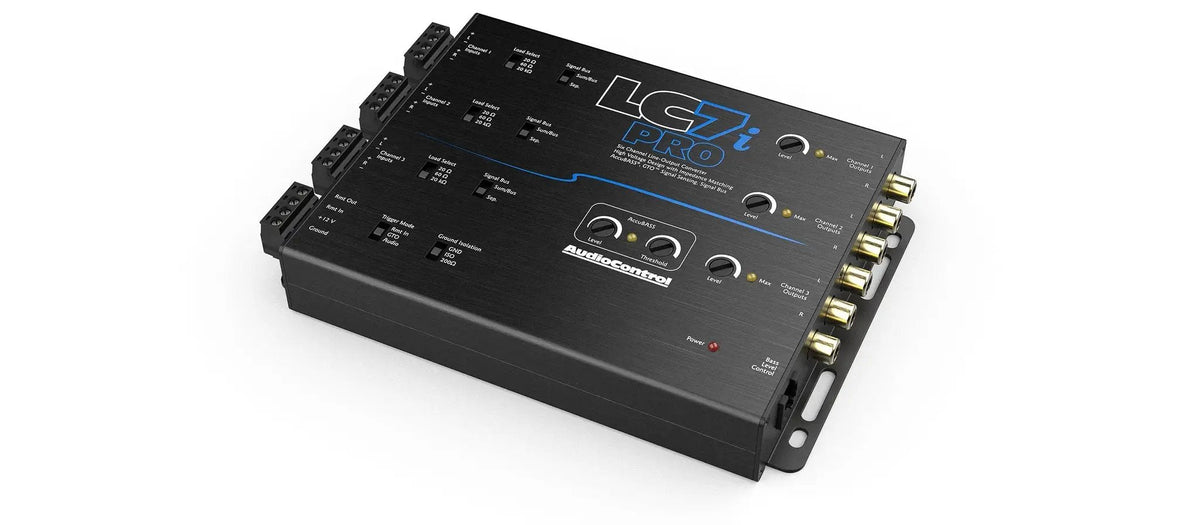

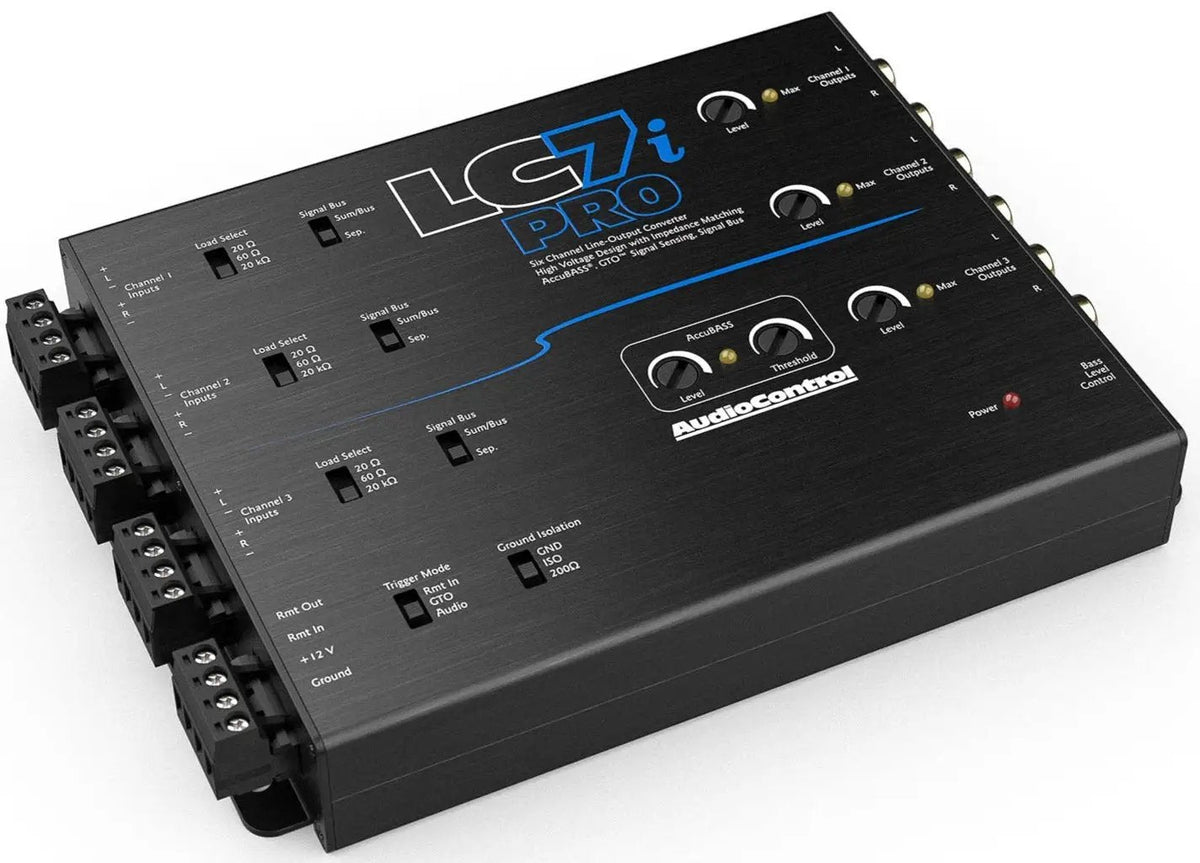

AudioControl LC7i-PRO 6-Channel Line Output Converter w/ AccuBass
Key features
- Speaker-level inputs: 6 channels
- Maximum speaker input: 40 V RMS at the 20 kΩ setting
- Selectable input load: 20 Ω, 60 Ω or 20 kΩ
- Maximum output: 9.5 V RMS
- Turn-on modes: Remote input, GTO signal sense or audio sense
- Included dash remote: ACR-1
AudioControl LC7i-PRO 6-Channel Line Output Converter w/ AccuBass is backordered and will ship as soon as it is back in stock.
AudioControl LC7i-PRO 6-Channel Line Output Converter w/ AccuBass is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring a clean six-channel signal from your factory sound system to aftermarket amplifiers with the AudioControl LC7i-PRO line output converter. Its selectable input impedance, multiple turn-on options, and AccuBASS® processing help you integrate with factory audio systems and address bass roll-off caused by factory processing.
Use its four main-channel outputs and two bass outputs to build your system around the signal your installation requires. The included ACR-1 remote lets you adjust subwoofer level from the driver’s seat.
Key Features & Benefits
- Six-channel speaker-level input: Accepts up to 40 Vrms, supporting connection to factory speaker-level signals.
- AccuBASS® processing: Restores low-frequency output diminished by factory processing.
- Three turn-on options: Choose GTO™ Signal Sense, audio signal sensing, or a standard 12V remote input.
- Selectable input impedance: Choose among 20Ω, 60Ω, and 20kΩ settings for system integration.
- Adjustable output levels: Fixed and variable outputs with discrete-level controls provide level adjustment for the connected system.
- Included ACR-1 remote: Adjust subwoofer level from the driver’s seat using the included dash control.
Technical Specifications
| Category | Specification |
|---|---|

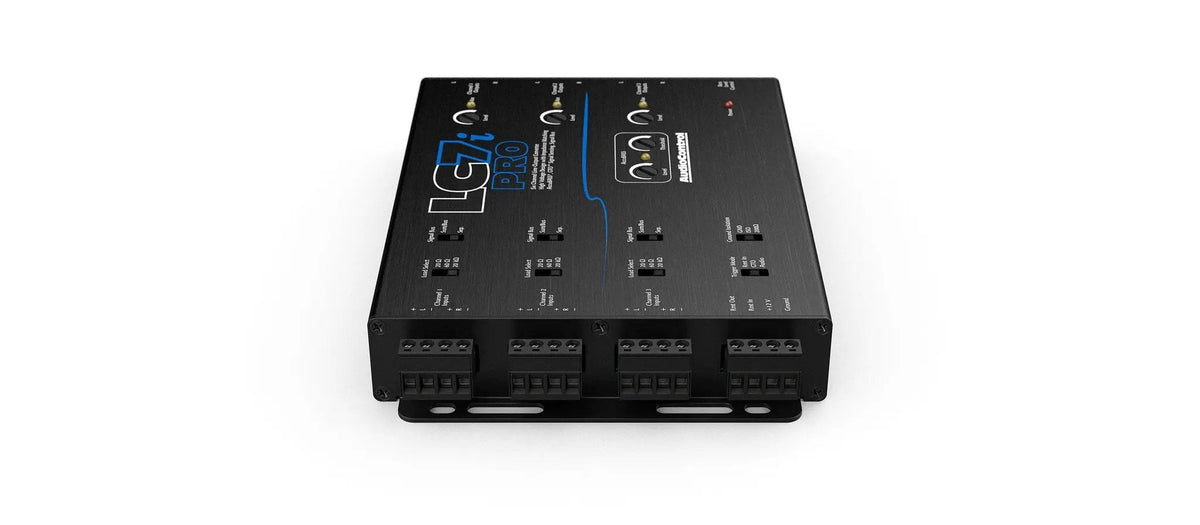

| Inputs | Speaker Level Input: 1 (6 channels) |
| Inputs | Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting) |
| Inputs | Input Impedance (selectable): 20Ω, 60Ω, 20kΩ |

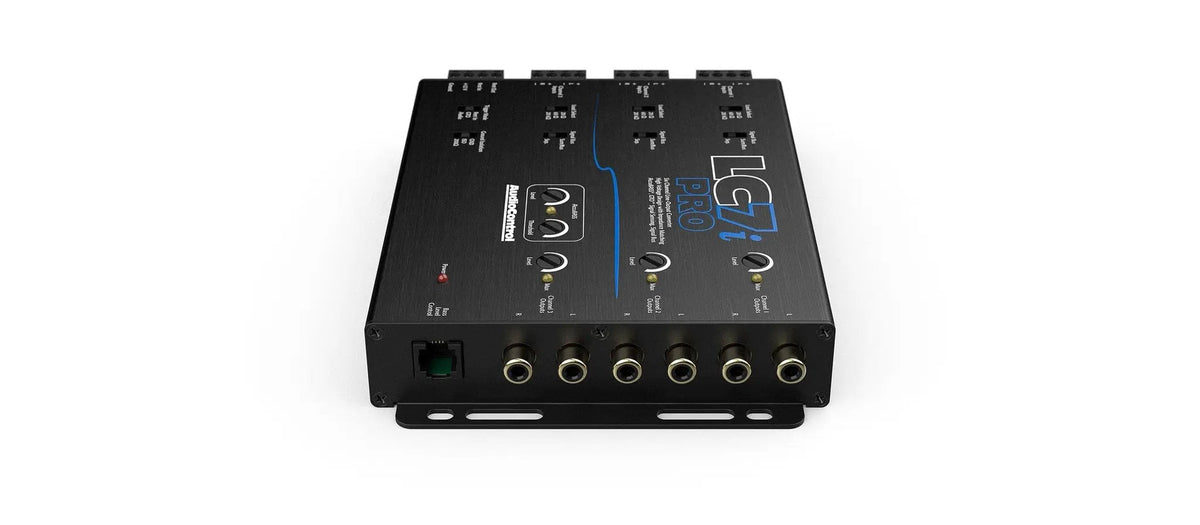

| Outputs | Preamp Outputs: 6 (4 channels main, 2 channels bass) |
| Outputs | Maximum Output Level: 9.5Vrms/13V peak |
| Outputs | Output Gain: +/- 15 dB |
| Outputs | Output Impedance: 150Ω |
| Performance | Total Harmonic Distortion: 0.01% |
| Performance | Signal to Noise: >124 dB |
| Performance | Frequency Response: 20 Hz – 20 kHz |
| Control | Remote In / GTO™ Signal Sense / Audio Sense |
| Control | 12VDC Remote Out (always active when unit is on) |
| General | Current Draw: 330 mA |
| General | Recommended Fuse Rating: 2 A |
| Weights & dimensions | Dimensions: 7″L x 5.1″D x 1.14″H (including speaker connectors) |
| Weights & dimensions | Weight: 1.15 lbs. |

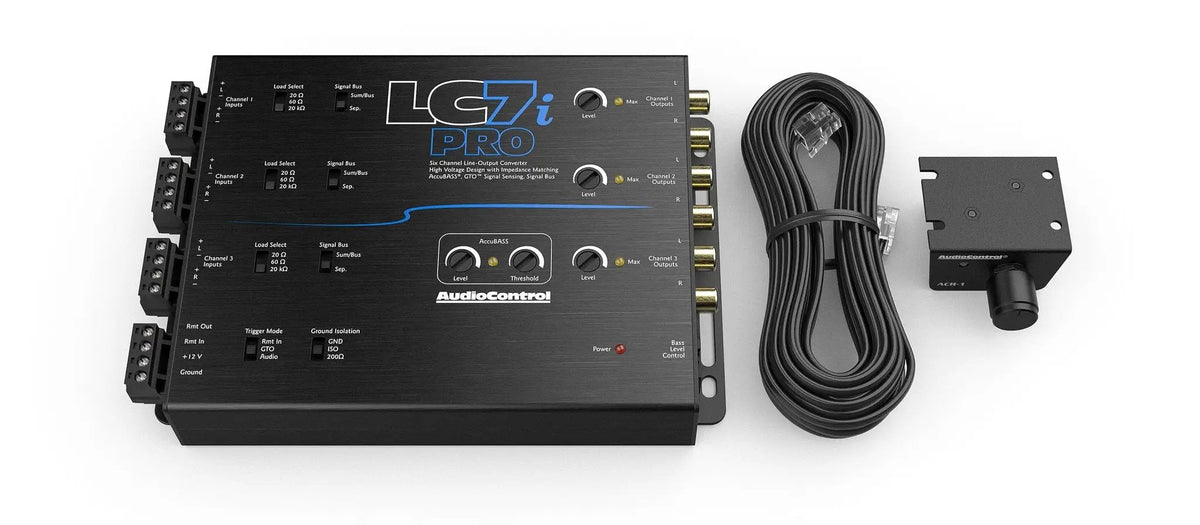

| In the box | LC7i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty |
Why Choose This Product?
The LC7i-PRO combines factory-signal integration features with six preamp outputs in a compact unit measuring 7″L x 5.1″D x 1.14″H, including speaker connectors. Its four main outputs and two bass outputs give you distinct output groups for connecting system components, while AccuBASS® addresses bass reduction from factory processing.
Selectable load settings and three turn-on methods give an installer options when planning the integration. The included ACR-1 adds convenient subwoofer level control from the cabin.
Installation & Compatibility Notes
The LC7i-PRO accepts speaker-level input and provides six preamp outputs. Confirm that its input and output connections, selectable impedance settings, dimensions, and electrical requirements suit your installation before fitting the unit.
Maximum speaker-level input is rated at 40 Vrms / 400 W at the 20kΩ setting. Current draw is 330 mA, and the recommended fuse rating is 2 A. The listed dimensions include the speaker connectors.
Frequently Asked Questions
What does the LC7i-PRO do?
It converts six channels of speaker-level input to preamp outputs for system integration. AccuBASS® processing addresses low-frequency output diminished by factory processing.
What are the output channels?
There are six preamp outputs: four main-channel outputs and two bass-channel outputs.
How can the unit turn on?
It supports GTO™ Signal Sense, audio signal sensing, and a standard remote input. It also has a 12VDC remote output that is always active when the unit is on.
Is a subwoofer level control included?
Yes. The box includes an ACR-1 dash remote and a 20′ Phone Cable.
What else is included?
The listed contents are the LC7i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, and Warranty.
