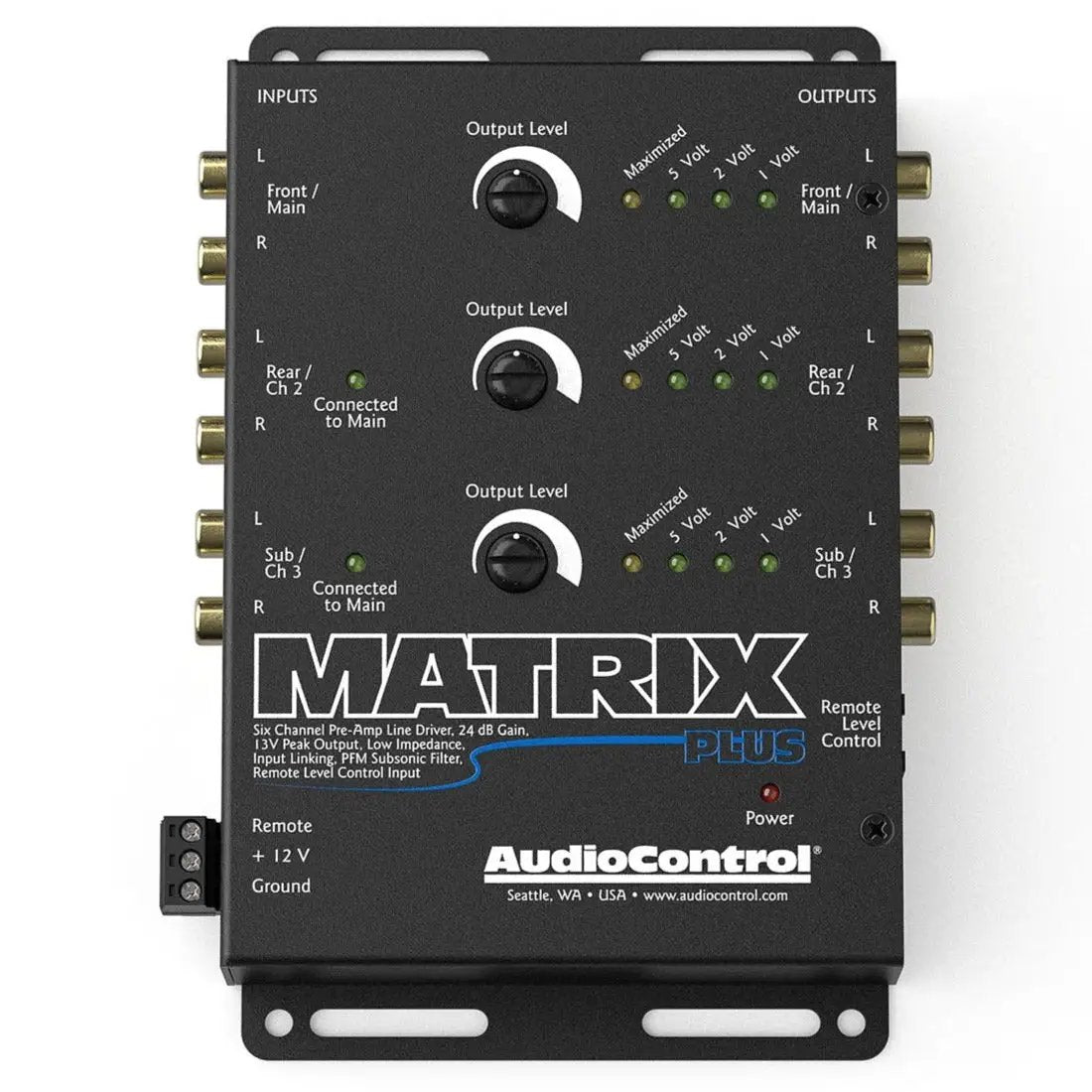

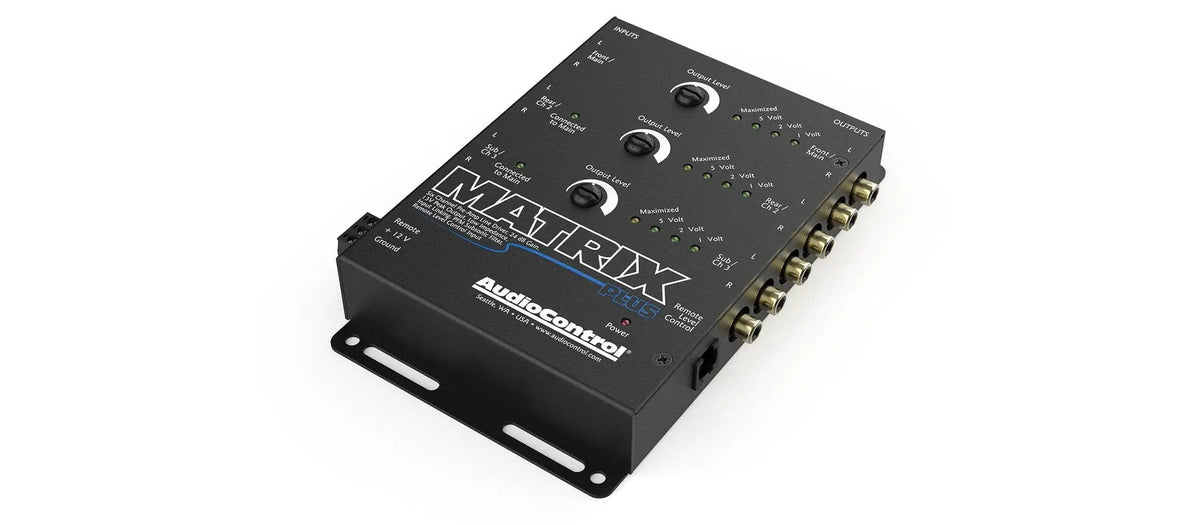

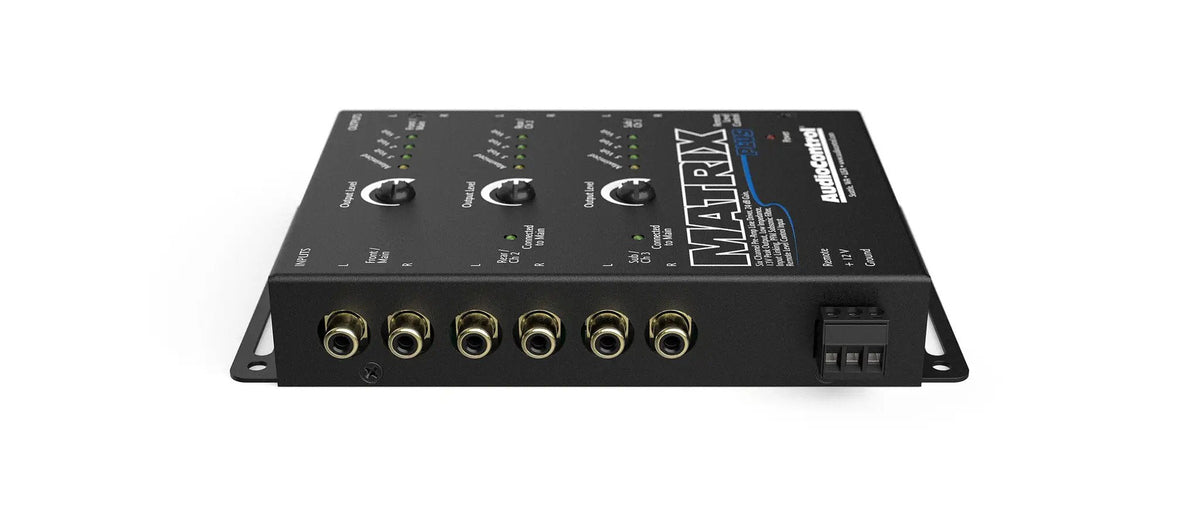

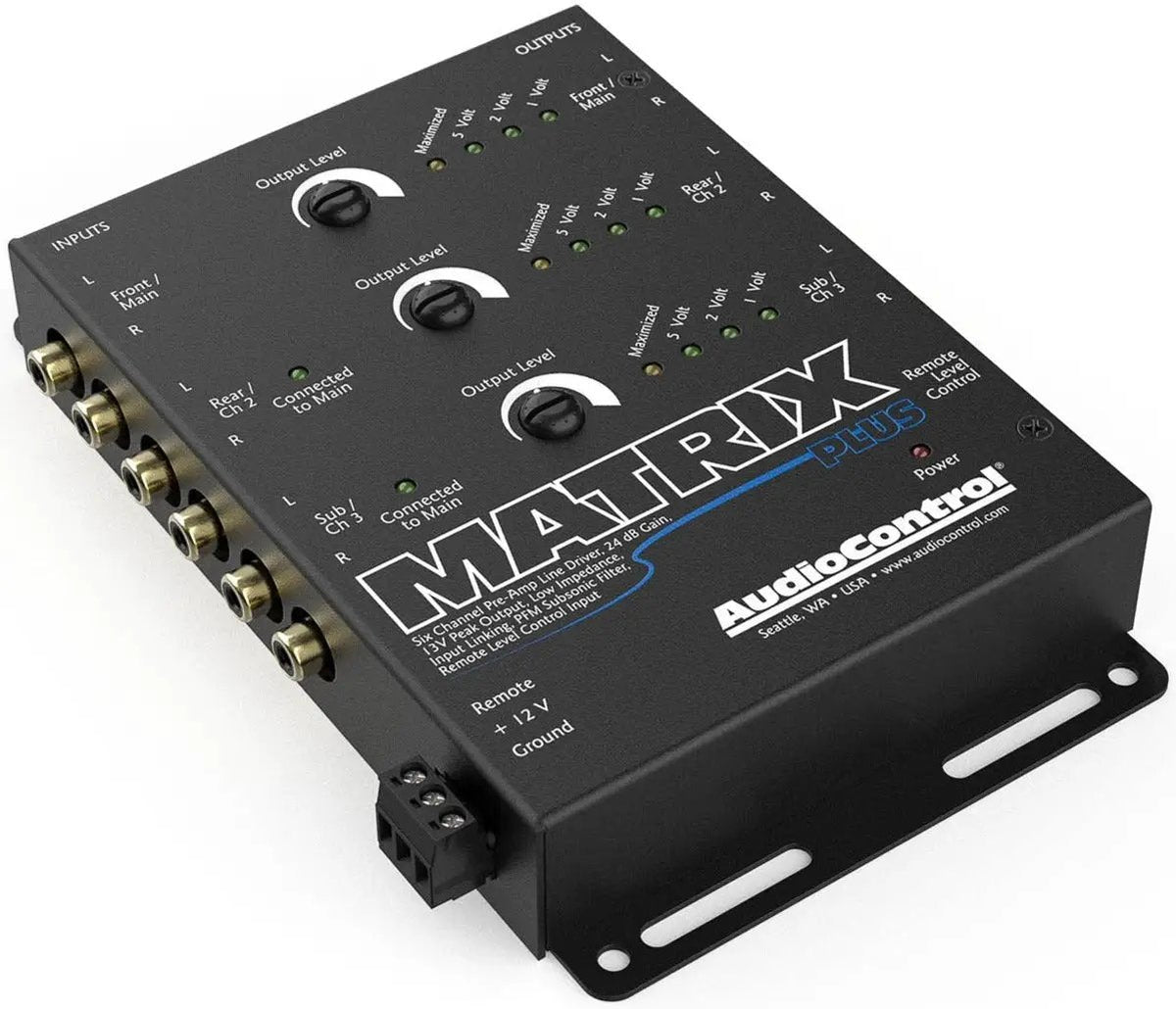

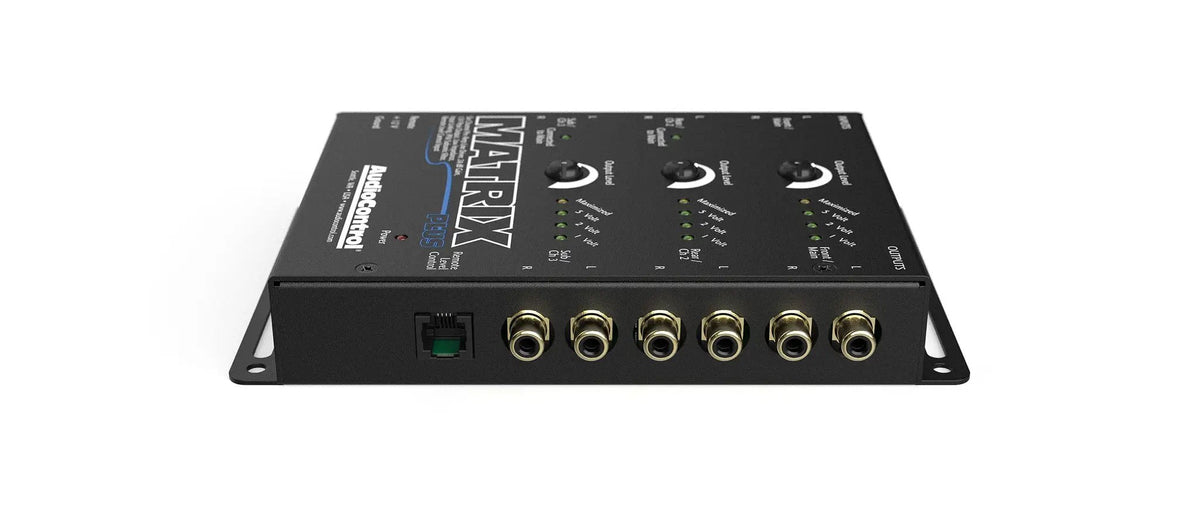

AudioControl Matrix Plus 6-Channel Line Driver
Key features
- Channels: 6 inputs and 6 outputs
- Input type: Balanced differential
- Maximum output: 9.5 V RMS
- Output gain: −12 to +24 dB
- Frequency response: 10 Hz–100 kHz (±1 dB)
- Output impedance: 50 Ω
AudioControl Matrix Plus 6-Channel Line Driver is backordered and will ship as soon as it is back in stock.
AudioControl Matrix Plus 6-Channel Line Driver is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give multiple amplifiers a stronger signal from your head unit with the AudioControl MATRIX PLUS 6-channel line driver. It provides up to 24 dB of gain and up to 9.5 Vrms (13V peak) output, with flexible routing for multi-amp car audio systems.
Balanced differential inputs help reject vehicle noise, while individual output level controls let you calibrate each channel. Use the optional ACR-1 remote level control to adjust preamp signal levels from a dash or control surface.
Key Features & Benefits
- Six-channel processing: Route six input channels to six outputs for a flexible multi-amplifier setup.
- Flexible input routing: The internal linking system lets two inputs feed all six outputs.
- Strong signal output: Up to 9.5 Vrms helps drive multiple amplifiers from one line driver.
- Noise-conscious design: Balanced differential inputs and selectable ground isolation help address noise in complex vehicle installations.
- Level adjustment: Individual output controls support channel-by-channel system calibration.
- Subsonic filtering: The PFM filter suppresses unwanted ultra-low frequencies that can tax amplifiers and subwoofers.
Technical Specifications
| Product | AudioControl MATRIX PLUS |
|---|---|
| Channels | 6 input channels; 6 output channels |
| Input routing | Internal linking system lets 2 inputs drive all 6 outputs |
| Amplifiers per output | Up to 7 |
| Gain | Up to 24 dB |
| Maximum output level | 9.5 Vrms |
| Peak output | 13V peak |
| Preamp inputs | 3 (6 channels) |
| Input impedance | 20 kΩ |
| Output impedance | 50 Ω |
| Frequency response | 10 Hz–100 kHz ±1 dB |
| Signal-to-noise ratio | >110 dB |
| THD | 0.005% |
| Power supply | Transformer-isolated PWM |
| Fuse recommendation | 1A |
| Dimensions | 4.6" W × 7.1" D × 1.2" H |
| Weight | Approximately 1.3 lb. |
| Additional features | Balanced differential inputs; low-impedance outputs; optional ACR-1 remote level control; PFM subsonic filter; output level controls; selectable ground isolation; optimum voltage indicator LEDs; conformally coated PCB |
| In the box | MATRIX PLUS, Power Connector, Manual, warranty/downloads |
Why Choose This Product?
The MATRIX PLUS addresses a common multi-amp system challenge: sending a useful signal to several amplifiers when the head unit’s preamp output is weak. Its gain, output level, and routing options give you centralized signal management for high-fidelity systems or SPL builds that need flexible input-to-output distribution.
The transformer-isolated PWM power supply supports stable operation, and the optimum voltage indicator LEDs provide visual setup cues. The conformally coated PCB is designed to resist moisture and contaminants in challenging automotive environments.
Installation & Compatibility Notes
Before installation, check that your system has the required preamp connections and that the available space accommodates the 4.6" W × 7.1" D × 1.2" H unit. Plan the input routing around the channels you want to distribute to your amplifiers.
The product specifies a 1A fuse recommendation. The ACR-1 remote level control is optional; the Power Connector and Manual are listed in the box.
Frequently Asked Questions
How much gain and output level does the MATRIX PLUS provide?
It provides up to 24 dB of gain, with a maximum output level of 9.5 Vrms and a peak output of 13V.
Can two inputs feed all six outputs?
Yes. Its internal linking system lets two inputs drive all six outputs.
How many amplifiers can each output drive?
Each output is specified to drive up to seven amplifiers.
Does it include a remote level control?
The ACR-1 remote level control is optional. It allows remote adjustment of preamp signal levels from a dash or control surface.
What are the unit’s dimensions?
It measures 4.6" W × 7.1" D × 1.2" H and weighs approximately 1.3 lb.
What is included?
The listed contents are the MATRIX PLUS, Power Connector, Manual, and warranty/downloads.
