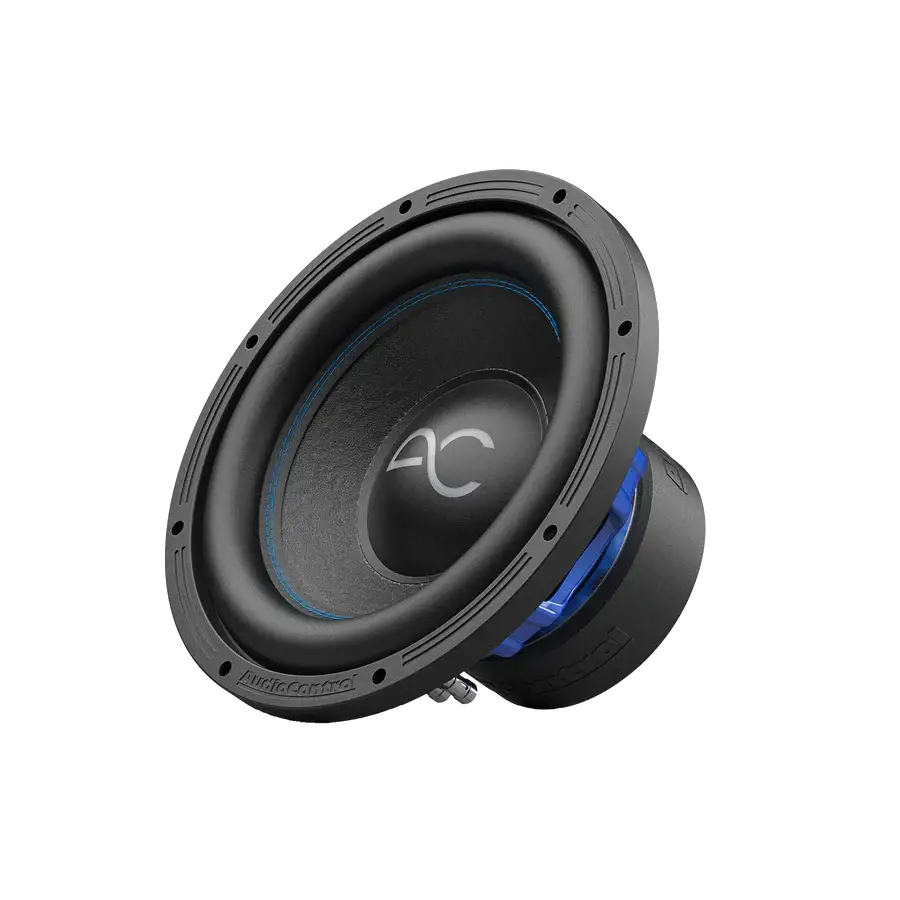

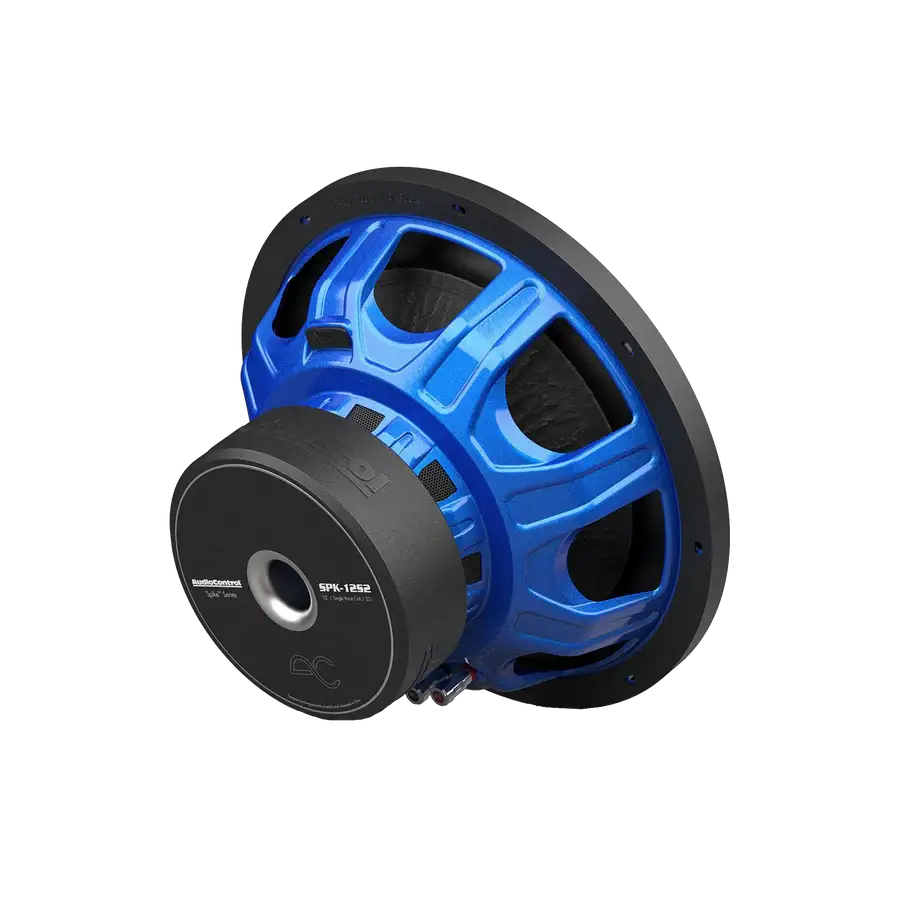

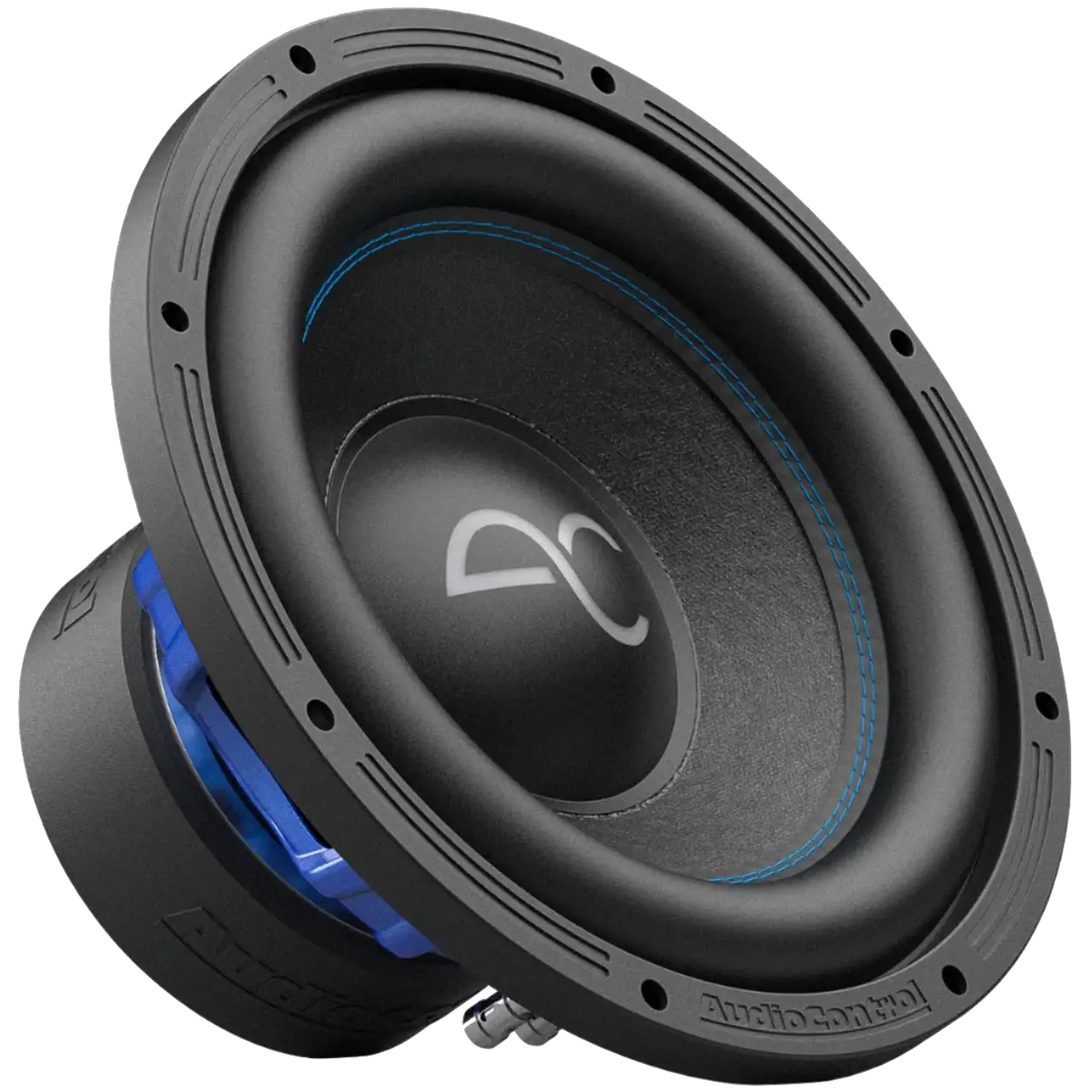

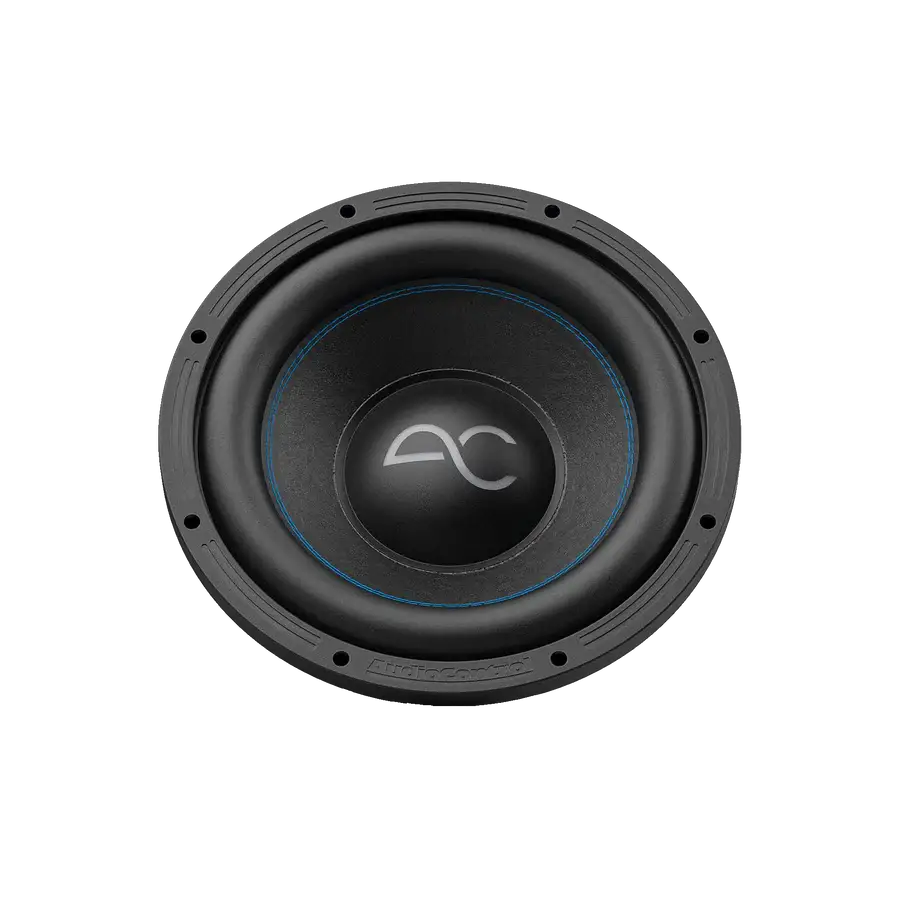

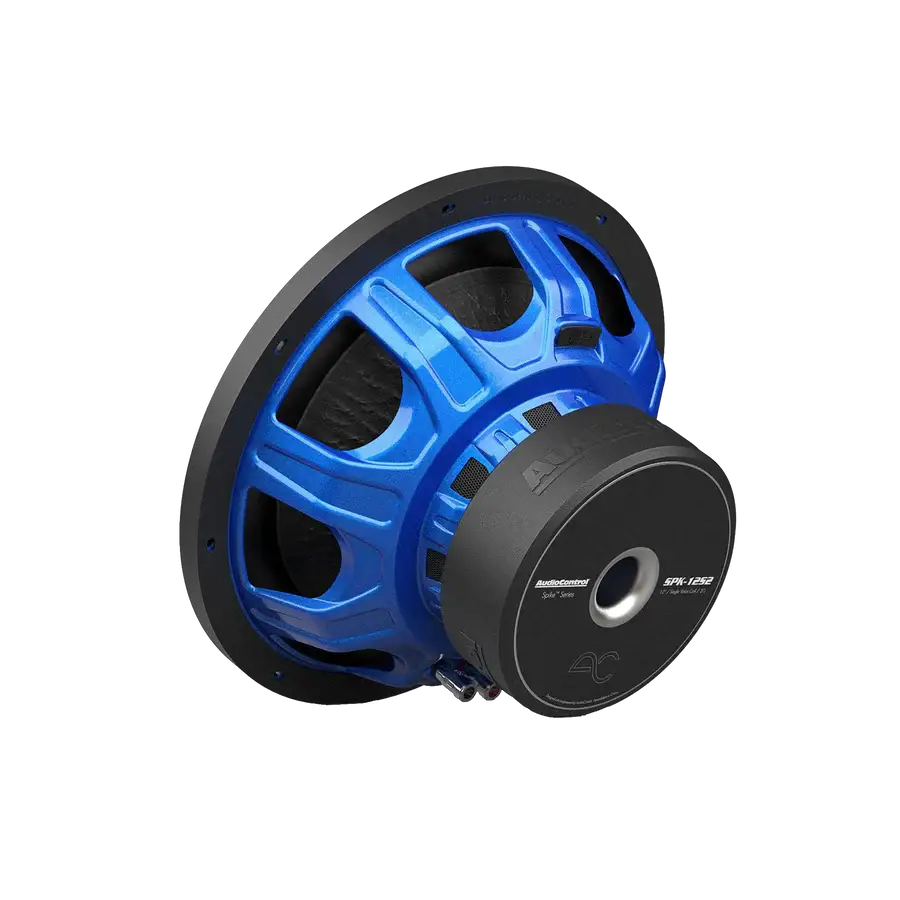

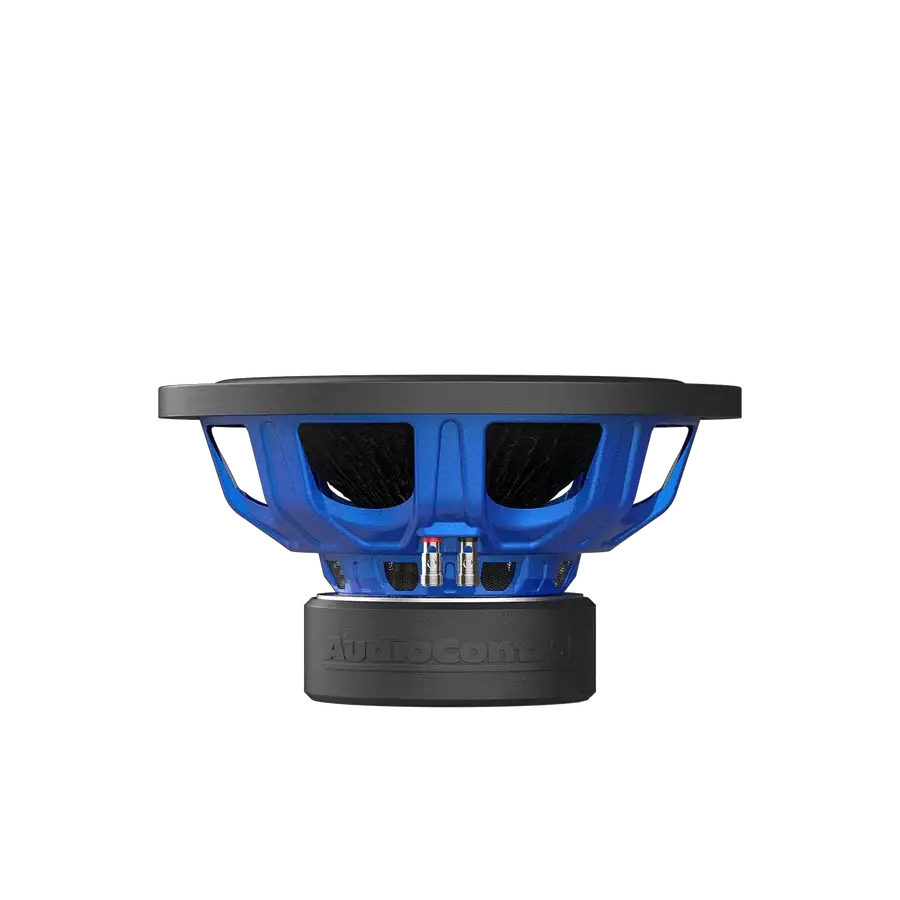

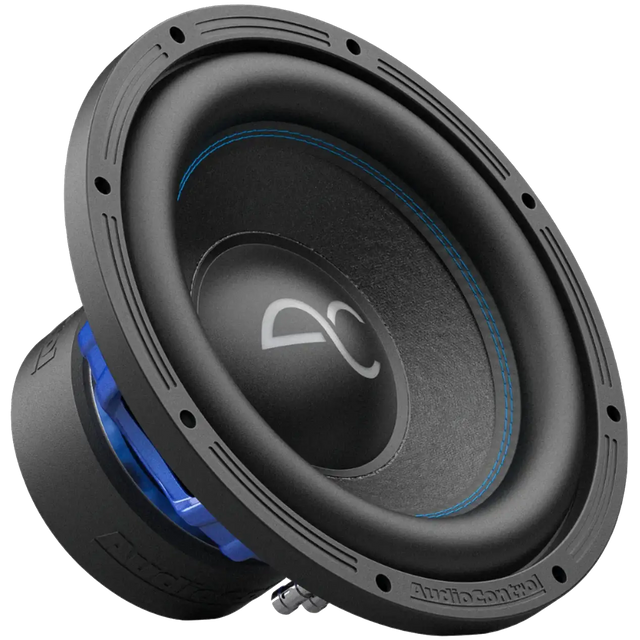

AudioControl Spike Series 12" High-Performance Subwoofer, 500W RMS, 2/4 Ohms
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 500 W
- Frequency response: 20–200 Hz
- Voice-coil diameter: 2.5 inches
- Mounting depth: 6.14 inches
- Mounting cutout diameter: 11.125 inches
AudioControl Spike Series 12" High-Performance Subwoofer, 500W RMS, 2/4 Ohms is backordered and will ship as soon as it is back in stock.
AudioControl Spike Series 12" High-Performance Subwoofer, 500W RMS, 2/4 Ohms is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add deep, controlled low-frequency sound to your car audio system with the AudioControl Spike Series 12-inch high-performance subwoofer. Available as the SPK-12S2 or SPK-12S4, it combines a fiber matrix paper cone with a mica coating, a high-temperature voice coil former, and dual damping features.
Choose a ported enclosure tuned to 39 Hz or a sealed enclosure for a different bass response and enclosure approach. A removable grille is included to cover the cone.
Key Features & Benefits
- High-excursion design: Substantial cone travel supports deep bass at high listening levels.
- Fiber matrix paper cone with mica coating: Stiffness and damping help control cone motion.
- Heat-ready voice coil construction: The 2.5-inch coil and three-layer high-temperature former are designed for demanding use.
- Dual damping and dual dust cap systems: These design features support cone control and help reduce enclosure-related compression.
- Removable grille: The included grille covers the cone in your installation.
Technical Specifications
| Product category | 12" high-performance subwoofer |
|---|---|
| Model options | SPK-12S2 or SPK-12S4 |
| Impedance | 2 or 4 Ohms |
| Power handling | 500W RMS / 700W Max |
| Frequency response | 20–200 Hz |
| Voice coil diameter | 2.5 in (63.5 mm) |
| Voice coil former | 3-Layer High Temp Voice Coil Former |
| Cone | Fiber Matrix Paper Cone with Mica Coating |
| Motor and damping | Efficient heavy-duty motor design; Dual Damping System; Dual Dust Cap System |
| Enclosure options | Ported: tuned to 39 Hz; Sealed: F3 52.77 Hz |
| Included | SPK-12S2 or SPK-12S4, Manual, Warranty, removable grille |
Why Choose This Product?
The Spike Series brings together a high-excursion design and construction details intended to maintain control during demanding playback. Its 20–200 Hz frequency response covers bass fundamentals and upper-bass details, while the two impedance options let you select the version that matches your system design.
Enclosure choice shapes the installation: the ported option is tuned to 39 Hz, while the sealed option has an F3 of 52.77 Hz. Consider your available enclosure space and preferred bass response when planning the system.
Installation & Compatibility Notes
Match the selected 2- or 4-ohm subwoofer version to an amplifier that supports the corresponding load. Check the subwoofer and enclosure dimensions against your available installation space before building or selecting an enclosure.
The supplied details identify ported and sealed enclosure options but do not give enclosure volumes or dimensions. Use the product manual for installation guidance.
Frequently Asked Questions
What is the difference between the SPK-12S2 and SPK-12S4?
The model options are listed as 2-ohm and 4-ohm versions. Choose the version that suits your amplifier and system design.
What do the RMS and Max power ratings mean?
The subwoofer is rated at 500W RMS and 700W Max. Check your amplifier’s output rating at the selected impedance when planning the system.
Should I use a ported or sealed enclosure?
The ported option is tuned to 39 Hz, and the sealed option has an F3 of 52.77 Hz. Consider your installation space and preferred response when choosing.
What comes in the box?
The package includes the SPK-12S2 or SPK-12S4, a manual, a warranty, and a removable grille.
